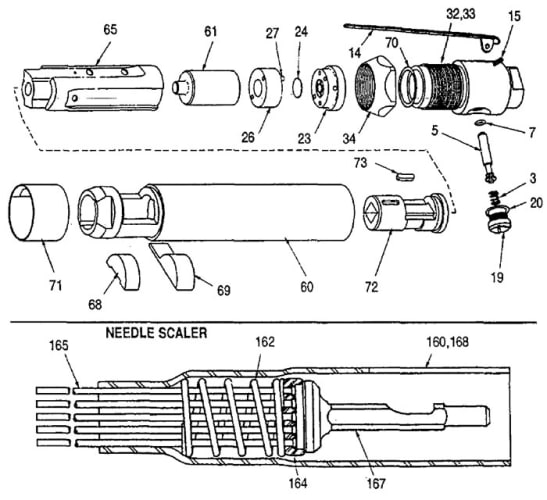

| Index No. | Part No. | Description | No. Req'd |
| 3 | C121535 | Spring - valve | 1 |
| 5 | WP123824 | Valve - throttle | 1 |
| 7 | P083076 | O-Ring (-077) | 1 |
| 14 | 475373 | Lever - throttle | 1 |
| 15 | CA059034 | Pin - roll (1/8" dia x 11/16") | 1 |
| 19 | WP123826 | Plug - spring | 1 |
| 20 | WP124755 | Gasket | 1 |
| 23 | WP123822 | Lid - valve case | 1 |
| 24 | WP123823 | Valve - disc | 1 |
| 26 | WP123832 | Case - valve (incl 27) | 1 |
| 27 | P122967 | Pin - dowel | 2 |
| 33 | WP123829 | Head - cylinder | 1 |
| 34 | WP123828 | Nut - cylinder lock | 1 |
| 60 | WP123830 | Cylinder | 1 |
| - | CA144007 | Decal - safety warning | 1 |
| 61 | WP123821 | Piston | 1 |
| 65 | WP123831 | Sleeve cylinder | 1 |
| 68 | WP123818 | Buffer | 1 |
| 69 | WP123819 | Retainer - tool | 1 |
| 70 | P084037 | Shim (0.005) | As Req'd |
| - | P084038 | Shim (0.010) | As Req'd |
| 71 | WP123820 | Lock - retainer | |
| 72 | WP123834 | Sleeve - tool 1/2" square | 1 |
| 73 | S025326 | Key - sleeve | 1 |
| 160 | P136738 | Housing - needle | 1 |
| 162 | P136744 | Spring - needle housing | 1 |
| 164 | P136737 | Holder Needle | 1 |
| 165 | P100146 | Needle set (7") (19 Steel needles) | 1 |
| - | P106454 | Needle set (7") (19 Stainless steel needles) | - |
| - | P106455 | Needle set (7") (19 Brylium copper needles) | - |
| 167 | P136736 | Anvil | 1 |
| 168 | P136983 | Attachment - Needle Scaler (Incl 160, 162, 164, P100146) | 1 |
| - | WP123997 | Flat chisel, 5/8" (16 mm) face | - |
| - | WP123996 | Flat chisel, 5/8" (16 mm) face | - |
| - | WP123998 | Flat chisel, 1-3/8" (35 mm) face | - |
