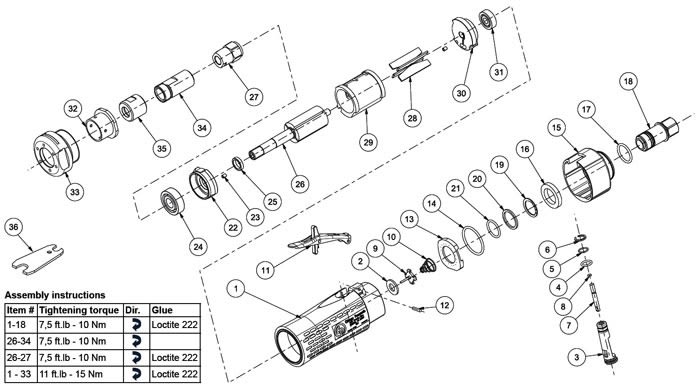

Chicago Pneumatic CP3000-420F Die Grinder Repair Parts



Index
No.
Part No. Description No.
Req'd
A
2050547823

-
3
-
Regulator
1
4
-
O-Ring (8.1 x 1.6)
1
5
-
O-Ring (8 x 1)
1
6
-
Spring ring WR9
1
7
-
Valve stem
1
8
-
O-Ring (2 x 1)
1
B
2050546343
Valve Kit
-
9
-
Tip valve
1
10
-
Spring
1
C
2050547893
Front Plate Assembly
-
22
-
Front plate
1
23
-
Pin spring (3 x 4)
1
24
6157580520
Bearing (10 x 26 x 8)
1
25
-
Washer
1
D
2050547843
Rear Plate Assembly
-
23
-
Pin spring (3 x 4)
1
30
-
Rear plate
1
31
6157581390
Bearing 626ZZ (6 x 19 x 6)
1
E
2050547853
Motor Assembly
-
C
2050547893
Front plate assembly
1
D
2050547843
Rear plate assembly
1
26
6154261220
Rotor
1
28
2050547793
Blades (set of 4)
1
29
6154001490
Cylinder
1
F
2050546413
Small Parts Kit
-
6
-
Spring ring WR9
1
8
-
O-Ring (2 x 1)
1
12
-
Needle (2.5 x 11.8)
1
14
-
O-Ring (27 x 2)
1
17
-
O-Ring (17 x 2)
1
19
-
Ring
1
20
-
Spacer
1
21
-
O-Ring (15.6 x 1.78)
1
-
2050547863
Tune-up Kit
-
2
-
Seal
1
16
-
Felt
1
28
2050547793
Blades (set of 4)
1
22
-
Paper gasket
1
-
1
2050547813
Handle assembly (incl 15)
1
11
2050541493
Safety lever
1
13
6159700950
Plate

15
-
Rear cap
1
18
2050542533
Inlet assembly
1
27
6156080520
Rotor nut
1
32
2050549983
Air control ring (15,000 rpm) 1
-
2050549993
Air control ring (18,000 rpm) 1
-
2050550003
Air control ring (20,000 rpm) 1
-
2050550013
Air control ring (24,000 rpm)
1
33
2050549033
Cover
1
34
6155230230
Collet holder sial 200
1
35
6156071540
Collet nut
1
-
6155260630
Collet 1/4"
1
36
2050548193
Spanner
2
-
6158727980
Warning label
1
Sort By:
Page of 1
2050541493 Chicago Pneumatic Safety Lever
2050541493 Chicago Pneumatic Safety Lever
Price $15.45

2050541493 Chicago Pneumatic Safety Lever more info
2050542533 Chicago Pneumatic Inlet Assy
2050542533 Chicago Pneumatic Inlet Assy
Price $19.57

2050542533 Chicago Pneumatic Inlet Assy more info
2050546343 Chicago Pneumatic Valve Kit
2050546343 Chicago Pneumatic Valve Kit
Price $6.18

2050546343 Chicago Pneumatic Valve Kit more info
2050546413 Chicago Pneumatic Small Parts Kit
2050546413 Chicago Pneumatic Small Parts Kit
Price $4.12

2050546413 Chicago Pneumatic Small Parts Kit more info
2050547793 Chicago Pneumatic Blades 400W (Set Of 4)
2050547793 Chicago Pneumatic Blades 400W (Set Of 4)
Price $17.39

2050547793 Chicago Pneumatic Blades 400W (Set Of 4) more info
2050547813 Chicago Pneumatic Handle 400-500 W Assy
2050547813 Chicago Pneumatic Handle 400-500 W Assy
Price $62.83

2050547813 Chicago Pneumatic Handle 400-500 W Assy more info
2050547823 Chicago Pneumatic Regulator Assembly 400 500W
2050547823 Chicago Pneumatic Regulator Assembly 400 500W
Price $32.96

2050547823 Chicago Pneumatic Regulator Assembly 400 500W more info
2050547843 Chicago Pneumatic Rear Plate Assembly 400
2050547843 Chicago Pneumatic Rear Plate Assembly 400
Price $71.07

2050547843 Chicago Pneumatic Rear Plate Assembly 400 more info
2050547853 Chicago Pneumatic Motor Assembly 400W Straight
2050547853 Chicago Pneumatic Motor Assembly 400W Straight
Price $349.17

2050547853 Chicago Pneumatic Motor Assembly 400W Straight more info
2050547863 Chicago Pneumatic Tune-Up Kit 400W
2050547863 Chicago Pneumatic Tune-Up Kit 400W
Price $25.75

2050547863 Chicago Pneumatic Tune-Up Kit 400W more info
2050547893 Chicago Pneumatic Front Plate Assembly 500
2050547893 Chicago Pneumatic Front Plate Assembly 500
Price $75.19

2050547893 Chicago Pneumatic Front Plate Assembly 500 more info
2050548193 Chicago Pneumatic Spanner 400, 500W
2050548193 Chicago Pneumatic Spanner 400, 500W
Price $7.21

2050548193 Chicago Pneumatic Spanner 400, 500W more info
2050549033 Chicago Pneumatic Cover 400W Front
2050549033 Chicago Pneumatic Cover 400W Front
Price $18.75

2050549033 Chicago Pneumatic Cover 400W Front more info
2050549983 Chicago Pneumatic Air Control Ring 15K Front
2050549983 Chicago Pneumatic Air Control Ring 15K Front
Price $7.21

2050549983 Chicago Pneumatic Air Control Ring 15K Front more info
2050549993 Chicago Pneumatic Air Control Ring 18K Front
2050549993 Chicago Pneumatic Air Control Ring 18K Front
Price $8.96

2050549993 Chicago Pneumatic Air Control Ring 18K Front more info
2050550003 Chicago Pneumatic Air Control Ring 20K Front
2050550003 Chicago Pneumatic Air Control Ring 20K Front
Price $8.96

2050550003 Chicago Pneumatic Air Control Ring 20K Front more info
2050550013 Chicago Pneumatic Air Control Ring 24K Front
2050550013 Chicago Pneumatic Air Control Ring 24K Front
Price $8.96

2050550013 Chicago Pneumatic Air Control Ring 24K Front more info
6154001490 Chicago Pneumatic Cylinder 400W
6154001490 Chicago Pneumatic Cylinder 400W
Price $73.13

6154001490 Chicago Pneumatic Cylinder 400W more info
6154261220 Chicago Pneumatic Rotor 400W
6154261220 Chicago Pneumatic Rotor 400W
Price $73.13

6154261220 Chicago Pneumatic Rotor 400W more info
6155230230 Chicago Pneumatic Collet Holder.
6155230230 Chicago Pneumatic Collet Holder.
Price $176.94

6155230230 Chicago Pneumatic Collet Holder. more info
6155260630 Chicago Pneumatic Collet Ø1/4" Erickson Series 200
6155260630 Chicago Pneumatic Collet 1/4" Erickson Series 200
Price $35.15

6155260630 Chicago Pneumatic Collet 1/4" Erickson Series 200 more info
6156071540 Chicago Pneumatic Collet Nut
6156071540 Chicago Pneumatic Collet Nut
Price $21.63

6156071540 Chicago Pneumatic Collet Nut more info
6156080520 Chicago Pneumatic Rotor Nut 400W
6156080520 Chicago Pneumatic Rotor Nut 400W
Price $22.66

6156080520 Chicago Pneumatic Rotor Nut 400W more info
6157580520 Chicago Pneumatic Ball Bearing
6157580520 Chicago Pneumatic Ball Bearing
Price $8.00

6157580520 Chicago Pneumatic Ball Bearing more info
6159700950 Chicago Pneumatic Plate 400, 500W (Acr)
6159700950 Chicago Pneumatic Plate 400, 500W (Acr)
Price $1.34

6159700950 Chicago Pneumatic Plate 400, 500W (Acr) more info
CP3000-420F Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Die Grinder
CP3000-420F Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Die Grinder
Price $258.24

CP3000-420F Chicago Pneumatic 1/4" (6.35mm) Collet 0.54Hp Die Grinder - Industrial die grinder. Industrial grade durability up to 1000 hours maintenance intervals. Operator comfort, high precision and easy maintenance. more info
