Chicago Pneumatic CP875 Mini Angle Die Grinder Repair Parts


Index
No.
 Part No.
Description
 No.
Req'd
1
 CA144786
 Housing - Motor (Incl Index No: 34)
1
2
 CA144787 Pin - Throttle
 1
4
 CA144788 Lever - Throttle (Incl Lockout)
1
5
 CA144789 Valve - Throttle 1
7
 CA144842 O-Ring (P4)
1
8
 CA144790 Spring - Throttle Valve
1
9
 CA144843 O-Ring (P10) 1
10
 CA144791 Plug - Throttle Valve 1
11
 CA144844 O-Ring (P7) 1
12
 CA144792 Collar - Rotor
 1
13
 CA144793 Bearing - Ball (CP875)
2
-
 CA144793 Bearing - Ball (CP876) 1
14
 CA144794 Plate - Rear End
1
15
 CA144795 Rotor
 1
16
 CA144796 Blade Set - Rotor (4)
1
17
 CA144797 Pin - Roll
 2
18
 CA144798 Liner
 1
19
 CA144799 Plate - Front End (CP875)
1
-
 CA144855 Plate - Front End (CP876) 1
20
 CA144800 Bearing - Ball (CP875) 2
-
 CA144800 Bearing - Ball (CP876) 1
21
 CA144801 Regulator - Air
 1
22
 CA144802 Pinion (CP875)
 1
23
 CA144803 Nut - Clamp (CP875)
1
-
 CA144856 Nut - Clamp (CP876) 1
24
 C138727
 Collet (1/4")
 1
-
 C139289
 Collet (6mm)
 1
25
 C138728
 Nut - Collet
 1
26
 CA144806 Cap - Housing (CP875)
1
-
 CA144857 Cap - Housing (CP876) 1
27
 CA144807 Wrench - Spanner
2
28
 CA144808 Head - Housing (Incl Oil Cap)
1
30
 CA144809 Gear - Bevel (CP875)
1
31
 CA144810 Ring - Lock (CP875) 1
32
 CA144811 Key (CP875) 1
33
 CA144812 Spindle (CP875) 1
-
 CA144858 Spindle (CP876) 1
34
 CA147745
 Bushing - Throttle Valve
1
35
 CA144813 Decal Safety Warning (Not Shown)
1
-
 CA145217 Motor Assembly (CP875)
(Incl Index Nos: 13, 14, 15, 16, 17, 18, 19, 20 & 22)
 1
-
 CA145315 Motor Assembly (CP876)
(Incl Index Nos: 13, 14, 15, 16, 17, 18, 19, 20 & 33) 		1
-
 CA145218 Gear Housing Assembly (CP875)
(Incl Index Nos: 13, 20, 28, 30, 31, 32 & 33)
 1
-
 CA145219 Housing Assembly (CP875 & CP876)
(Incl Index Nos: 1, 5, 7, 8, 9, 10, 11 & 21)
 1
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5° F to 350° F.

Price $5.15
2050484383 Chicago Pneumatic Cylinder 2050484383 Chicago Pneumatic Cylinder

2050484383 Chicago Pneumatic Cylinder

Price $11.10
2050484463 Chicago Pneumatic Spindle 2050484463 Chicago Pneumatic Spindle

2050484463 Chicago Pneumatic Spindle

Price $23.60
2050486853 Chicago Pneumatic Ball Bearing 2050486853 Chicago Pneumatic Ball Bearing

2050486853 Chicago Pneumatic Ball Bearing

Price $19.18
2050496423 Chicago Pneumatic Collet Nut 6mm 2050496423 Chicago Pneumatic Collet Nut 6mm

2050496423 Chicago Pneumatic Collet Nut 6mm

Discontinued See KF124525
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C138727 Chicago Pneumatic Collet-.250 C138727 Chicago Pneumatic Collet-.250

C138727 Chicago Pneumatic Collet-.250

Price $15.06
C138728 Chicago Pneumatic Nut-Collet C138728 Chicago Pneumatic Nut-Collet

C138728 Chicago Pneumatic Nut-Collet

Price $19.34
C139289 Chicago Pneumatic Collet-6mm C139289 Chicago Pneumatic Collet-6mm

C139289 Chicago Pneumatic Collet-6mm

Price $16.14
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA144786 Chicago Pneumatic Housing-Motor CA144786 Chicago Pneumatic Housing-Motor

CA144786 Chicago Pneumatic Housing-Motor

Price $28.03
CA144788 Chicago Pneumatic Lever-Throttle CA144788 Chicago Pneumatic Lever-Throttle

CA144788 Chicago Pneumatic Lever-Throttle

Price $8.71
CA144789 Chicago Pneumatic Valve-Throttle CA144789 Chicago Pneumatic Valve-Throttle

CA144789 Chicago Pneumatic Valve-Throttle

Price $5.36
CA144790 Chicago Pneumatic Spring-Throttle Valv CA144790 Chicago Pneumatic Spring-Throttle Valv

CA144790 Chicago Pneumatic Spring-Throttle Valv

Price $3.89
CA144791 Chicago Pneumatic Plug-Throttle Valve CA144791 Chicago Pneumatic Plug-Throttle Valve

CA144791 Chicago Pneumatic Plug-Throttle Valve

Price $3.88
CA144792 Chicago Pneumatic Collar-Rotor CA144792 Chicago Pneumatic Collar-Rotor

CA144792 Chicago Pneumatic Collar-Rotor

Price $5.39
CA144793 Chicago Pneumatic Bearing-Ball CA144793 Chicago Pneumatic Bearing-Ball

CA144793 Chicago Pneumatic Bearing-Ball

Discontinued See 2050486853
CA144794 Chicago Pneumatic Plate-Rear End CA144794 Chicago Pneumatic Plate-Rear End

CA144794 Chicago Pneumatic Plate-Rear End

Price $15.84
CA144795 Chicago Pneumatic Rotor CA144795 Chicago Pneumatic Rotor

CA144795 Chicago Pneumatic Rotor

Discontinued
CA144796 Chicago Pneumatic Blade-Set-Rotor (4) CA144796 Chicago Pneumatic Blade-Set-Rotor (4)

CA144796 Chicago Pneumatic Blade-Set-Rotor (4)

Price $12.61
CA144797 Chicago Pneumatic Pin-Roll CA144797 Chicago Pneumatic Pin-Roll

CA144797 Chicago Pneumatic Pin-Roll

Discontinued
CA144798 Chicago Pneumatic Liner CA144798 Chicago Pneumatic Liner

CA144798 Chicago Pneumatic Liner

Discontinued See 2050484383
CA144799 Chicago Pneumatic Plate-Front End CA144799 Chicago Pneumatic Plate-Front End

CA144799 Chicago Pneumatic Plate-Front End

Price $12.61
CA144800 Chicago Pneumatic Bearing-Ball CA144800 Chicago Pneumatic Bearing-Ball

CA144800 Chicago Pneumatic Bearing-Ball

Price $26.42
CA144801 Chicago Pneumatic Regulator-Air CA144801 Chicago Pneumatic Regulator-Air

CA144801 Chicago Pneumatic Regulator-Air

Price $3.86
CA144802 Chicago Pneumatic Pinion CA144802 Chicago Pneumatic Pinion

CA144802 Chicago Pneumatic Pinion

Price $26.54
CA144803 Chicago Pneumatic Nut-Clamp CA144803 Chicago Pneumatic Nut-Clamp

CA144803 Chicago Pneumatic Nut-Clamp

Price $16.22
CA144806 Chicago Pneumatic Cap-Housing CA144806 Chicago Pneumatic Cap-Housing

CA144806 Chicago Pneumatic Cap-Housing

Price $15.84
CA144807 Chicago Pneumatic Wrench-Spanner CA144807 Chicago Pneumatic Wrench-Spanner

CA144807 Chicago Pneumatic Wrench-Spanner

Price $8.72
CA144808 Chicago Pneumatic Head-Housing CA144808 Chicago Pneumatic Head-Housing

CA144808 Chicago Pneumatic Head-Housing

Price $25.09
CA144809 Chicago Pneumatic Gear-Bevel CA144809 Chicago Pneumatic Gear-Bevel

CA144809 Chicago Pneumatic Gear-Bevel

Discontinued See CPT2050484433
CA144810 Chicago Pneumatic Ring-Lock CA144810 Chicago Pneumatic Ring-Lock

CA144810 Chicago Pneumatic Ring-Lock

Price $8.65
CA144811 Chicago Pneumatic Key CA144811 Chicago Pneumatic Key

CA144811 Chicago Pneumatic Key

Discontinued
CA144812 Chicago Pneumatic Spindle CA144812 Chicago Pneumatic Spindle

CA144812 Chicago Pneumatic Spindle

Discontinued See 2050484463
CA144842 Chicago Pneumatic O-Ring CA144842 Chicago Pneumatic O-Ring

CA144842 Chicago Pneumatic O-Ring

Price $3.89
CA144843 Chicago Pneumatic O-Ring CA144843 Chicago Pneumatic O-Ring

CA144843 Chicago Pneumatic O-Ring

Price $3.89
CA144855 Chicago Pneumatic Plate-Front End CA144855 Chicago Pneumatic Plate-Front End

CA144855 Chicago Pneumatic Plate-Front End

Price $12.61
CA144856 Chicago Pneumatic Nut-Clamp CA144856 Chicago Pneumatic Nut-Clamp

CA144856 Chicago Pneumatic Nut-Clamp

Price $25.07
CA144857 Chicago Pneumatic Cap-Housing CA144857 Chicago Pneumatic Cap-Housing

CA144857 Chicago Pneumatic Cap-Housing

Price $7.18
CA144858 Chicago Pneumatic Spindle CA144858 Chicago Pneumatic Spindle

CA144858 Chicago Pneumatic Spindle

Discontinued
CA145217 Chicago Pneumatic Motor Assy. CA145217 Chicago Pneumatic Motor Assy.

CA145217 Chicago Pneumatic Motor Assy.

Price $101.70
CA145218 Chicago Pneumatic Gear Housing Assembly CA145218 Chicago Pneumatic Gear Housing Assembly

CA145218 Chicago Pneumatic Gear Housing Assembly

Price $81.09
CA145219 Chicago Pneumatic Housing Assembly CA145219 Chicago Pneumatic Housing Assembly

CA145219 Chicago Pneumatic Housing Assembly

Discontinued
CA145315 Chicago Pneumatic Motor Assembly CA145315 Chicago Pneumatic Motor Assembly

CA145315 Chicago Pneumatic Motor Assembly

Price $95.83
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86

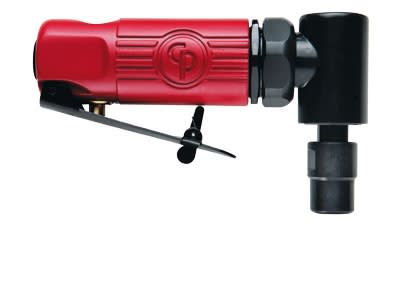

CP875 Chicago Pneumatic 1/4" Mini 90° Angle Die Grinder CP875 Chicago Pneumatic 1/4" Mini 90ø Angle Die Grinder

CP875 1/4" Mini 90° Angle Die Grinder - This angle die grinder has a 90 degree head, built-in air regulator and it comes with both 1/4" and 6mm collets. This is a great tool for limited space applications.

Price $81.32
KF124525 Chicago Pneumatic Nut-Collet KF124525 Chicago Pneumatic Nut-Collet

KF124525 Chicago Pneumatic Nut-Collet

Price $20.81
