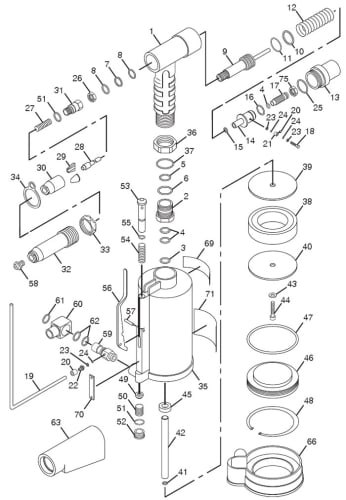

CP883 Air Riveter Repair Parts


Index
No.
Part No.
Description
No.
Req'd
1
CA147064
Housing - Hydraulic
1
2
CA147065 Guide - Plunger Rod
1
3
CA147066 Ring - Back Up
1
4
CA146654 O-Ring P9
3
5
CA147067 O-Ring P18 1
6
CA147068 O-Ring P22
1
7
CA147069 Ring - Back Up
1
8
CA144843
O-Ring P10 2
9
CA147070 Plunger - Hydraulic Assembly
1
10
CA147071 Ring - Back Up
1
11
CA146657
O-Ring P20 1
12
CA147072 Spring - Return
1
13
CA147073 Gland - Rear
1
14
CA147074 Tube - Vacuum
1
15
CA147075R O-Ring
1
16
CA147076 O-Ring P16
1
17
CA147077 Regulator - Vacuum
1
18
CA147078 Fitting - Vacuum Hose (Upper)
1
19
CA147079 Hose - Vacuum 1
20
CA147080 Cap - Vacuum Hose
2
21
CA147081 Swivel - Hose Fitting
1
22
CA147082 Fitting - Vacuum Hose (Lower)
1
23
CA147083 Washer
3
24
CA147084 O-Ring P3
3
25
CA147085 O-Ring S21
1
26
CA147086 Nut
1
27
CA147087 Spring
1
28
CA147088 Plusher - Jaw
1
29
CA147089 Jaws "M"
2
30
CA147090 Housing - Jaw
1
31
CA147091 Coupler - Jaw Housing
1
32
CA147092 Head - Riveter
1
33
CA147093 Nut - Lock
1
34
CA147094 Hanger (Optional)
1
35
CA147095 Housing - Air Cylinder
1
36
CA147096 Nut - Lock
1
37
CA147097 O-Ring S28
1
38
CA147098 Ring - Packing
1
39
CA147099 Disc - Upper Head
1
40
CA147100 Disc - Lower Head
1
41
C100129
O-Ring P5 1
42
CA147101 Rod - Plunger
1
43
CA147102 Washer
1
44
C127936
Screw - Lock
1
45
CA147103 Ring - Bumper
1
46
CA147104 Cap - Air Cylinder Housing
1
47
CA147105 O-Ring G55
1
48
CA147106 Ring - Retaining
1
49
CA147107 Valve - Throttle
1
50
CA147108 Spring - Throttle Valve
1
51
CA146579 O-Ring S14
2
52
CA147109 Plug - Throttle Valve 1
53
CA147110 Stem - Throttle Valve 1
54
CA147111 Spring - Throttle Valve 1
55
CA147112 O-Ring S6
1
56
CA147113 Lever
1
57
CA147114 Pin - Roll
1
58
CA147115 Nosepiece 1/8" (3.2mm)
1
-
CA147116 Nosepiece 5/32" (4.0mm) 1
-
CA147117 Nosepiece 3/16" (4.8mm) 1
-
CA147118 Nosepiece 3/16" "T" Riveter (Optional) 1
-
CA158154 Nosepiece 1/8" (2.4mm) 1
59
CA147119 Body - Swivel (Male)
1
60
CA147120 Body - Swivel (Female) 1
61
CA147121 Ring - Snap
1
62
A043001
O-Ring P11 2
63
CA147122 Deflector
1
64
CA147123 Wrench (A) (Not Shown)
1
65
CA147124 Wrench (B) (Not Shown)
1
66
CA147125 Base - Rubber
1
67
CA147126 Hose - Mandrel Collection (Not Shown)
1
68
CA147127 Bag - Mandrel Collection (Not Shown)
1
69
CA144007
Decal - Safety Warning
1
70
CA146786 Nameplate
1
71
CA147802 Decal - CP883
1
75
CA158150
Nut - Lock
1
Tune-Up Kit
CA147377 Incl Index Nos: 3, 4, 5, 6, 7, 8, 10, 11, 12, 15, 16, 23,
24, 25, 29, 37, 38, 41, 45, 47, 49, 50, 51, 54, 55 & 62
