Robinair 25150 / 25175 HVAC Recovery Recycling Unit Parts

Illus. # Part # Description
1 RA18767 Ball Valve 1 & 2 (3-way)
2 13149 System Pressure Gauge (25150)
2 11794 System Pressure Gauge (25151, 25152)
2 11773 System Pressure Gauge (25175, 25176) (disc)
3 RA19343 Compressor Start Switch
4 RA17106 Red Indicator Light (115V)
4 RA19349 Red Indicator Light (220V)
5 RA19408 Fan (115V) (25150)
5 RA19409 Fan (220V) (25151, 25152)
5 RA17416 Fan (115V) (25175)
5 RA17516 Fan (220V) (25176)
6 RA19302 Compressor (115V) (25150)
6 RA19315 Compressor (220V) (25151)
6 RA19456 Compressor (100V) (25152)
6 RA19555 Compressor (115V) (25175)
6 RA19556 Compressor (220V) (25176) (disc)
7 RA19347 Compressor Start Relay (115V)
7 RA19348 Compressor Start Relay (220V) (disc)
8 RA19181 Receptacle
9 RA19342 Capacitor
10 17668 Rubber Foot (disc)
N/S RA19133 Float Relay (115V)
N/S RA19134 Float Relay (220V)
N/S RA19104 High Pressure Switch
N/S RA19287 Check Valve MFL x 1/8" MPT "
N/S RA19407 Crankcase Pressure Regulator (disc)
N/S 19049 Power Cord (110V)
N/S 19097 Power Cord (220V)
N/S 17421 Inlet Filter
N/S 19497 Optional Tank Float Cable and Relay (110V)
N/S 19498 Optional Tank Float Cable and Relay (220V)
N/S 19225 Tank Float Cable
N/S 17121 30 lb. (14 kg) Tank without Float Switch
N/S 17605 30 lb. (14 kg) Tank with Float Switch
N/S 68360A 60 Red Q.S. Discharge Hose "
N/S 117196 Condenser Coil (25150 series)

Sort By:
114692 Robinair Oil Bottle Cap 114692 Robinair Oil Bottle Cap

114692 Robinair Oil Bottle Cap for Oil Inject / Drain bottle, for 8 - 12 ounce oil injector bottles. Durable plastic resists oils and dyes and most chemicals. Easily cleaned for long life. Don't forget extra bottles (115642) for storing different oil types.

Price $4.62
114693 Robinair Oil Bottle Cap (Less Liner With Holes) 114693 Robinair Oil Bottle Cap (Less Liner With Holes)

114693 Robinair Oil Bottle Cap (Less Liner With Holes) For Oil Injectors

Price $3.45
114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each) 114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each)

These gaskets fit 1/4" flare and 1/2 ACME standard hose fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become crushed over time resulting in poor flow or restriction due to swelling. These are standard for some other vendors hoses as well.

Discontinued See 40083
11724 Robinair Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar 11724 Robinair Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar pressure readings, R22/404A/410A temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $22.68
11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar 11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar

11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar pressure readings, R22/R404A/R410A 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $22.68
11734 Robinair Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar 11734 Robinair Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar pressure readings, R12/22/502 -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $24.68
11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar 11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar

11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $24.68
11744 Robinair Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar 11744 Robinair Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar pressure readings, R134a/404A/507 -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $22.68
11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar 11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar

11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar pressure readings, R134A/R404A/R507 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $24.68
11754 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar 11754 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar pressure readings, R22/134a/404A -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $24.68
11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar 11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar

11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $22.68
11794 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 120 Psi/Bar 11794 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 120 Psi/Bar

Low Side Universal Replacement Compound Gauge -30" to 120 Psi/Bar, Psi/kPa pressure readings, R-22 and R-134a temperature readings in degrees Celsius, Replaces 11692. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $22.68
11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar 11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar

11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar pressure readings, R22/134a -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $22.68
11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar 11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar

11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR.

Price $22.68
13149 Robinair Low Side Compound Refrigerant Manifold Gauge R410a -30 To 250 Psi 13149 Robinair Low Side Compound Refrigerant Manifold Gauge R410a -30 To 250 Psi

Low Side Compound Refrigerant Manifold Gauge R410a -30 To 250 Psi pressure readings, R410a temperature scale. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in PSI.

Price $22.68
17121 Robinair 30lb. 1/4 Flare Refillable Refrigerant Tank 17121 Robinair 30lb. 1/4 Flare Refillable Refrigerant Tank

30lb. R-12 / Universal Gas Refillable Refrigerant Tank. Red Vapor Blue Liquid Ported Valve. 30 lb. capacity refrigerant tank for R-12, R-22, R-502 (universal) with 1/4" Flare fittings

Price $178.83
17419 Robinair 8oz. Oil Drain - Oil Injector Bottle 17419 Robinair 8oz. Oil Drain - Oil Injector Bottle

8oz. Graduated Oil Drain - Oil Injector Bottle. 8oz Capacity in 1/2oz graduations and 240 Milliliters in 10 Milliliter graduations, for dispensing oil via an injector or for measuring oil removed during refrigernt recovery process.

Price $19.97
17421 Robinair Inlet Filter 1/4 Male Flare X 1/4 Female Flare 17421 Robinair Inlet Filter 1/4 Male Flare X 1/4 Female Flare

Designed to protect recevery systems from debris and deposits that would normally harm your unit. Large filter capacity provides long life. All steel construction with enamel finish resists corrosion and rusting.

Discontinued See C032F
17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank 17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank

50lb. R-12 / Universal Gas Refillable Refrigerant Tank. Red Vapor Blue Liquid Ported Valve. 50 lb. capacity refrigerant tank for R-12, R-22, R-502 (universal) with 1/4" Flare fittings

Price $185.29

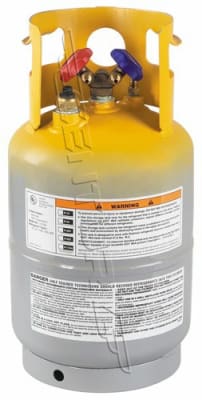

17605 Robinair 30 Lb. 1/4 Flare Refillable Refrigerant Tank With Float 17605 Robinair 30 Lb. 1/4 Flare Refillable Refrigerant Tank With Float

30 Lb. Refillable Refrigerant Tank Float Switch. Red Vapor Blue Liquid Ported Valve. 30 lb. capacity refrigerant tank for R-12, R-22, R-502 (universal) with 1/4" Flare fittings

Price $213.37
18451 Robinair 1/4 45 Degree Quick Seal Repair Kit For Enviro-Guard Hoses 18451 Robinair 1/4 45 Degree Quick Seal Repair Kit For Enviro-Guard Hoses

1/4" 45 Degree  Quick Seal Repair Kit for Enviro-Guard Hoses rebuilds leaking or damaged Quick Seal Enviro-Guard Hoses. Kit includes complete instructions and installs in minutes.

Price $15.63
19049 Robinair Power Cord 110 Volt 16 Gauge 19049 Robinair Power Cord 110 Volt 16 Gauge

Power Cord - 110 Volt 16 Gauge. For heay duty cord see 551628.

Price $33.56
19225 Robinair Float Switch Cable 19225 Robinair Float Switch Cable

Float Switch Cable Makes the connection between the float in the tank and the system relay. When the tank reaches 80% capacity, the float interrupts the control voltage to the system relay causing the unit to shut down.

Price $159.86
19497 Robinair Optional 80% Overfill Float Cable Relay Kit 115v 19497 Robinair Optional 80% Overfill Float Cable Relay Kit 115v

Optional Float Cable and Relay assembly for Portable Recovery Units: 25200B 25175A 25150A. Enables recovery units to operate with 80% float tanks. This item has been discontinued, see 19225 Cable & RA19133 relay as replacements.

Discontinued
40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6) 40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6)

These gaskets fit 1/4" flare and 1/2 ACME standard fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become smashed over time resulting in poor flow.

Price $13.88
40300 Robinair 1/4 Quick Seal Repair Kit For Enviro-Guard Hoses 40300 Robinair 1/4 Quick Seal Repair Kit For Enviro-Guard Hoses

1/4" Quick Seal Repair Kit for Enviro-Guard Hoses rebuilds leaking or damaged Quick Seal Enviro-Guard Hoses. Kit includes complete instructions and installs in minutes.

Discontinued
569104 Robinair Main Power Switch 569104 Robinair Main Power Switch

Main Power Switch Controls the power between the power cord and the main board.

Price $14.63
68360A Robinair 60in. Red Enviro-Guard Hose 45 Degree Quick Seal Fitting 68360A Robinair 60in. Red Enviro-Guard Hose 45 Degree Quick Seal Fitting

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure.

Price $30.20
CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug

CRXTOSP1 Tank Overfill Protection Cable Shorting Plug allows the user to override the tank float safety device on most recovery units using a 3 pin brad Harrison cable. Screws in place at the cable end allowing the unit to start. (Always use a scale for accuracy when using this device) 30 & 50 pound tanks should never be filled to a level beyond 80% of tank capacity.

Price $52.83
NB6501 PROMAX 1/4" Flare Cap & Strap NB6501 PROMAX 1/4" Flare Cap & Strap

1/4 Flare Seal Cap with anchor retention strap prevents loss when not in use.

Price $12.82
RA17106 Robinair Red Light RA17106 Robinair Red Light

Red Light High Pressure Light / Tank Full Light - Indicates when the discharge pressure reaches 350 psi or when the recovery tank is full.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $19.05
RA17416 Robinair Fan RA17416 Robinair Fan

Fan Used to keep the unit hermetic compressor and electrical components cool.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $104.96
RA18767 Robinair Ball Valve Assembly RA18767 Robinair Ball Valve Assembly

Ball Valve Assembly A manual valve that, when open, routes discharge pressure through the condenser.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $223.94
RA19104 Robinair High Pressure Cutout 435 PSI RA19104 Robinair High Pressure Cutout 435 PSI

High Pressure Cutout 17650 / 17655 A normally closed sensor that opens, stopping the recovery process when the compressor discharge pressure reaches 435 psi. SPDT Contact arrangement. 1/4 spade termination.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $218.36
RA19133 Robinair Float Relay 115 Volt RA19133 Robinair Float Relay 115 Volt

Float Relay Interrupts power from the system relay. The Tank Full light comes on when the float opens the circuit.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $48.76
RA19134 Robinair Float Relay 220 Volt RA19134 Robinair Float Relay 220 Volt

Float Relay When energized, turns off the compressor and turns on the Tank Full light.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $63.59
RA19144 Robinair Tank Cable - DISC SEE RO19225 RA19144 Robinair Tank Cable

Tank Cable - Discontinued - See RO19225 Makes the connection between the float in the tank and the system relay. When the tank reaches 80% capacity, the float interrupts the control voltage to the system relay causing the unit to shut down.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See RO19225
RA19181 Robinair 115 Volt Power Cord Receptacle RA19181 Robinair 115 Volt Power Cord Receptacle

RA19181 Robinair 115 Volt Power Cord Receptacle
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $10.14
RA19258 Robinair Solenoid Rebuild Kit RA19258 Robinair Solenoid Rebuild Kit

Solenoid Rebuild Kit Normally closed Solenoid Rebuild Kit - Used to rebuild certain solenoids in manifolds or discrete (RA19006) etc..
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $80.56
RA19287 Robinair Check Valve RA19287 Robinair Check Valve

Check Valve A two port valve, that normally allows fluid (liquid or gas) to flow through it in only one direction.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $41.53
RA19302 Robinair Oilless Compressor RA19302 Robinair Oilless Compressor

Discontinued Oilless Compressor 1/3 hp oilless compressor that pumps refrigerant from vehicle being serviced into storage tank.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See RA19484
RA19342 Robinair Start Capacitor RA19342 Robinair Start Capacitor

Start Capacitor Provides a high amperage discharge to aid the compressor in starting.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $7.70
RA19343 Robinair Main Power Switch RA19343 Robinair Main Power Switch

Main Power Switch Controls the power between the power cord and the main board.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued See 569104
RA19347 Robinair Start Relay RA19347 Robinair Start Relay

Start Relay When energized, sends voltage to the compressor and start capacitor to complete a circuit to the compressor and allow the compressor to start and run.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $38.14
RA19349 Robinair Red Light 230v RA19349 Robinair Red Light 230v

Red Light 230v Tank full and high pressure lights. Informs user if tank is full or has high pressure.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued
RA19408 Robinair 115v 100CFM Fan RA19408 Robinair 115v 100CFM Fan

115v 100CFM Fan Cooling fan positioned to pull air into front of unit across condenser and compressor and discharge it through top of unit.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued
RA19456 Robinair 100v Compressor RA19456 Robinair 100v Compressor

100v Compressor Pumps the refrigerant from vehicle being serviced into the ISV or tank, on or inside of unit, for storage.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued
RA19474 Robinair Compound Gauge RA19474 Robinair Compound Gauge

Compound Gauge Indicates the pressure of the system being recovered.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Discontinued
RA19484 Robinair Oilless Compressor Repair Kit RA19484 Robinair Oilless Compressor Repair Kit

Oilless Compressor Repair Kit Consists of o-rings, reed valves, and eccentric bearing assembly required to repair one oil-less compressor.
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $1,123.24
RA19491 Robinair 115v Solenoid Coil RA19491 Robinair 115v Solenoid Coil

115v Solenoid Coil Coil only, used to energize a normally closed solenoid that, when energized, allows flow. i.e. Recovery, Charge, vacuum, etc. NOTE: RA19258 Solenoid Rebuild Kit
Robinair does not warrant any "RA" repair item not installed by an Authorized Service Center.

Price $54.56
