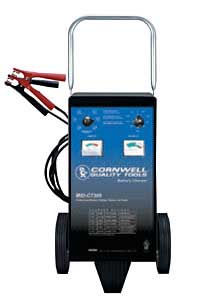

MID-C7300
Professional Battery Charger and Starter
For charging 6 & 12 volt batteries
10/60 Amps continuous charge
60 amp fast charge
80 amp boost charge
250 amp engine start
2 hour Timer with Hold
Ammeter
Sort By:
Page of 1
0099000045 Schumacher Knob For Selector Switches on SE Series Chargers 0099000045 Schumacher Knob For Selector Switches on SE Series Chargers

This Knob is for selector switches on SE Series chargers only, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000062 Schumacher 6" CW Fan Blade 0099000062 Schumacher 6" CW Fan Blade

0099000062 Schumacher 6" CW Fan Blade.

Discontinued see 316-009-000
0099000063 Schumacher Fan Motor Open Frame 115 Volt 0099000063 Schumacher Fan Motor Open Frame 115 Volt

Fan Motor Open Frame 115 Volt

Discontinued
0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft 0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft

0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000201 Axle Rod 3/8 X 14.25" Zinc Plated 0099000201 Schumacher Axle Rod 3/8 X 14.25" Zinc Plated

0099000201 Axle Rod 3/8 X 14.25" Zinc Plated

Price $7.17
0099000203 Foot Plastic 6" (New Style) 0099000203 Schumacher Foot Plastic 6" (New Style)

6" Front foot for new style battery chargers

Discontinued
0099000208 Axle 3/8" X 14.5" With Swage 0099000208 Axle 3/8" X 14.5" With Swage

0099000208 Axle 3/8" X 14.5" With Swage

Discontinued
0099000226 Rubber Wheel 6" Units 3/8" Axle 0099000226 Schumacher Rubber Wheel 6" Units 3/8" Axle

0099000226 Rubber Wheel, 6" Plastic 3/8" Axle

Discontinued
0099000228 Axle, 14.5 X 3/8 With Swage 0099000228 Schumacher Axle 14.5 X 3/8 With Swage

0099000228 Axle, 14.5 X 3/8 With Swage

Price $7.17
0099000269 Schumacher Knob For Timer Switches on PS Series Chargers 0099000269 Schumacher Knob For Timer Switches on PS Series Chargers

This Knob is for timers on PS Series chargers only with a 1/2 Shaft, there are separate knobs for selector switches with a 3/4 shaft. Please check your part numbers carefully.

Price $4.62
0099000270 Schumacher Knob For Selector Switches on PS Series Chargers 0099000270 Knob For Selector Switches on PS Series Chargers

This Knob is for selector switches with a 3/4 Shaft only, there are separate knobs for timers with a half shaft. Please check your part numbers carefully.

Discontinued
0499000075 Rotary Switch 6 Position 0499000075 Schumacher Rotary Switch 6 Position

0499000075 Rotary Switch 6 Position

Discontinued
2199700006 Axle End Cap .375 Dia Axle (Pair) 2199700006 Schumacher Axle End Cap .375 Dia Axle (Pair)

Axle End Cap Fits .375 (3/8") Diameter Axle, Sold as a Pair, Can be used on any 3/8" Axle to secure wheels.

Discontinued
2299001055 Heatsink Rectifier Assembly 4 Diode 2299001055 Schumacher Heatsink Rectifier Assembly 4 Diode

Heatsink Rectifier Assembly 4 Diode design, requires soldering to install. Check your unit for size and type, there were several versions of this unit, earlier units are no longer available. Caution should be used when installing this product and care taken to insure over heating or shorting does not occur while soldering. This unit does not include insulators, bolts, nuts or any other hardware. Discontinued See 3199100028A 75 Amp 400 Volt Positive Diode (Set Of 4) individual diodes.

Discontinued
2299001548 Mechanical Timer Kit With Knob (ZA101) 2299001548 Schumacher Mechanical 120 Minute Timer Kit With Knob (ZA101)

120 Minute mechanical timer with knob. 120 minute total time. Mechanically controls charging in timed Mode with manual hold mode. Single Pole Single Throw (SPST) Switch rated 15 amperes, finish bell.

Discontinued
247-159-666 Ammeter Horizontal 0-60 Amp Range 247-159-666 Ammeter Horizontal 0-60 Amp Range

Ammeter Horizontal 0-60 Amp Range features easy snap-in installation, no tools required. Black Charge Rate face. 0-60 Amp range with start. Wire through induction pick-up for greater accuracy.

Price $29.94
316-009-000 Fan Blade 6" 4 Blade CW 316-009-000 Fan Blade 6" 4 Blade CW

Fan Blade 6" 4 Blade CW. Same as 130007-001 Christie

Price $12.85
3199100028A 75 Amp 400 Volt Positive Diode (Anode On Lead) 3199100028A Schumacher 75 Amp 400 Volt Positive Diode (Set Of 4)

3199100028A 75 Amp 400 Volt Positive Diode (Anode On Lead). Press in diode, used in a wide array of applications. Once installed in the heat-sink these may require soldering to install onto transformer taps.
Use caution when replacing diodes always verify polarity or damage to equipment or self may result. Century Tool & Equipment assumes no responsibility for loss, damage or personal injury due to the miss-application of any electrical component. Purchase of this item agrees to said statement. This item should only be installed by a qualified and experienced electrician.

Discontinued
3599000566 Schumacher Battery Charger Handle Round Steel Chrome, Flat sides 3599000566 Schumacher Battery Charger Handle Round Steel Chrome, Flat sides

3599000566 Schumacher Battery Charger Handle Round Steel Chrome, Flat sides

Discontinued
3899001556 Schumacher Negative 4 Gauge Output Cable and Clamp 3899001556 Schumacher Negative 4 Gauge Output Cable and Clamp

3899001556 Schumacher Negative 4 Gauge Output Cable and Clamp

Discontinued
3899001558 Schumacher Positive 4 Gauge Output Cable and Clamp 3899001558 Schumacher Positive 4 Gauge Output Cable and Clamp

3899001558 Schumacher Positive 4 Gauge Output Cable and Clamp

Price $17.39
3999000111 Circuit Breaker DC 120 Amp 32 Volt 3999000111 Circuit Breaker DC 120 Amp 32 Volt

Circuit Breaker 32 Volt DC 120 Amp, Automatic Reset with Screw Terminal Tab Connectors, No Hardware Included. When ordering, it may be necessary to purchase a pair of the 5199000406 screws if replacing and older circuit breaker for retrofit.

Discontinued
51-257 Goodall Ammeter Horizontal 0-60 Amp Range With Start (100 Amp) 51-257 Goodall Ammeter Horizontal 0-60 Amp Range With Start (100 Amp)

51-257 Goodall Ammeter Horizontal 0-60 Amp Range With Start (100 Amp)

Discontinued See 247-159-666
51-288 115 Volt Fan Motor With Fan Blade & Mount 51-288 115 Volt Fan Motor With Fan Blade & Mount

51-288 115 Volt Fan Motor With Fan Blade & Mount. .195 diameter shaft. Your unit may not require the mount, in which case discard it.

Discontinued See ASO610190
5100000005 Timer Screw M3 X 5.5 5100000005 Timer Screw M3 X 5.5

5100000005 Screw M3 X 5.5 For Original Timer

Price $0.05
5399100118 Ammeter, 0-100 Amp Range with Charge & Start 5399100118 Schumacher Ammeter 0-100 Amp Range with Charge & Start

5399100118 Ammeter, 0-100 Amp Range with Charge & Start

Discontinued
5399100145 Schumacher Ammeter Horizontal 0-80 Amp 5399100145 Schumacher Ammeter Horizontal 0-80 Amp

5399100145 Schumacher Ammeter 80 Amp With Start (100 Amp) Horizontal Mount. Wire through Induction pickup.

Discontinued
5399200015 Schumacher Volt Test Meter 8-16 Volt Range Percent Charged Low Med Hi Scale 5399200015 Schumacher Volt Test Meter 8-16 Volt Range Percent Charged Low Med Hi Scale

5399200015 Schumacher Volt Test Meter 8-16 Volt Range Percent Charged Low Med Hi Scale

Discontinued
6094K89 Knob For Schumacher Battery Charger Selector Switches & Timers 6094K89 Knob For Battery Charger Selector Switches & Timers

6094K89 Knob For Battery Charger Selector Switches & Timers. This Knob is for selector switches and timers, designed with 1/4" ID and a set screw for locking onto shaft. Suitable for all 1/4" shaft switches. Replaces Schumacher 0099000045 & 0099000096.

Price $4.65
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers.

Price $29.95
