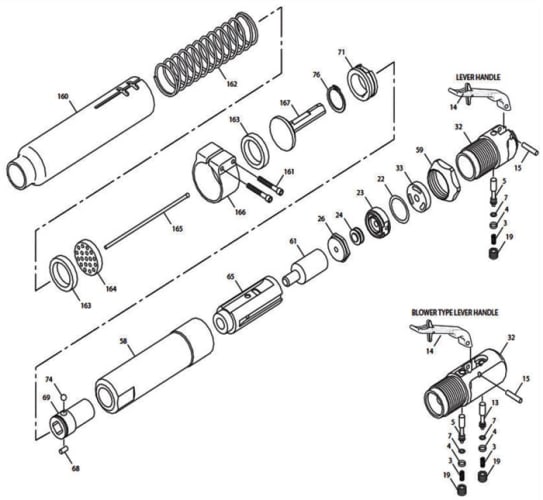

Chicago Pneumatic CP0456-LASAN Needle Scaler Repair Parts

Index No.	Part No.	Description	No. Req'd
3	P091585	Valve spring	2
4	P091584	Cap O-Ring	2
5	P091582	Throttle valve	1
7	P083076	O-Ring	2
13	P091583	Blower valve	1
14	475353	Lever assembly	1
-	P084042	Throttle lever (blower type)	1
15	P084043	Pin - lever	1
19	P009876	Plug - valve	2
22	P084037	Shim (0.005")	AS REQ'D
-	P084038	Shim (0.010")	AS REQ'D
23	P043309	Lid	1
24	P043310	Valve - cycling (metallic)	1
-	P119294	Valve - cycling (rubber) (not shown)	1
26	P084034	Case - valve cycling	1
32	P109273	Head - cylinder	1
-	P113310	Head - cylinder (blower type)	1
33	P125736	Spacer - head	1
58	P113312	Cylinder (incl index no 65)	1
59	P109271	Locknut - cylinder	1
61	P084033	Piston	1
65	P041557	Sleeve - cylinder	1
68	P088815	Lock - rubber	1
69	P050933	Sleeve - chisel (1/2" Q. O.)	1
71	P088813	Ring - chisel lock	1
74	P070416	Ball - steel (5/16")	1
76	P050934	Ring - retaining (external)(#5160-98)	1
160	P117630	Housing (round nose)	1
-	P117631	Housing (rectangular nose)	1
161	P117633	Screw - socket head (#10-32 x 1-1/4")	2
162	P100150	Spring - compression	1
163	P100964	Buffer - holder	2
164	P100145	Holder - needle	1
165	P100146	Set - needle (7") (consists of 19 steel needles)	1
-	P106454	Set - needle (7") (consists of 19 stainless steel needles)	1
-	P106455	Set - needle (7") (consists of 19 beryilium copper needles)	1
166	P117632	Clamp - housing	1
167	P100144	Anvil	1

Sort By:

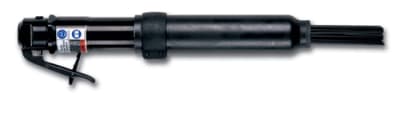

CP0456-LASAN Chicago Pneumatic Heavy Industrial Needle Scaler 4300 Blows per Minute
