141-306 Century 87250 40 amp phase control charger

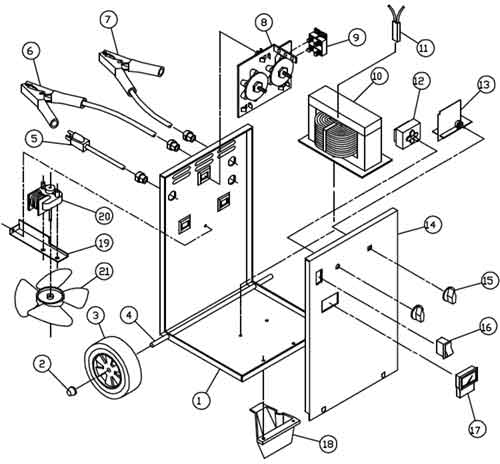

ITEM DESCRIPTION PART NUMBER
1 Base 440-593-010
2 (2) Hubs 068-013-666
3 (2) Wheels & (2) Hubs 413-044-666
4 Axle & (2) Hubs 413-043-666
5 Power Cord W/ Strain Relief 248-323-666
6 Positive Clamp W/Cable & Strain Relief 238-260-666
7 Negative Clamp W/Cable & Strain Relief 238-261-666
6 & 7 Positive & Negative Clamps & Grips 249-066-666
8 Rectifier Assembly 865-682-666
9 Circuit Breaker 246-386-666
10 Transformer 865-838-888
11 Thermo Breaker 246-410-666
12 Timer 246-372-666
13 Circuit Board 865-839-666
14 Front Panel 440-598-020
15 Control Knob 246-041-666
16 Rocker Switch 246-262-666
17 Ammeter 247-074-666
18 Front Foot 312-067-666
19 Fan Bracket 412-590-666
20 Fan Motor 216-041-666
21 Fan Blade 316-014-666
22 Cover (Not Shown) 440-591-010
23 Handle (Not Shdwn) 442-020-166

Sort By:
Page of 1
068-013-666 Century Axle End Cap 068-013-666 Century 3/8" Axle End Cap

068-013-666 Century 3/8" Axle End Cap, for 3/8" Axles

Price $2.68
216-041-666 115 Volt Fan Motor Open Frame Design 216-041-666 115 Volt Fan Motor Open Frame Design

115 Volt Fan Motor Open Frame Design. Clock Wise Shaft End, mechanically reversible for universal applications.

Discontinued See 610190
238-006-666 Clamp Kit 8 Foot 6 Gauge Parrot Jaw 238-006-666 Clamp Kit 8 Foot 6 Gauge Parrot Jaw

8' 6AWG Welding Wire Lead Set with heavy duty polished clamps featuring coated clamp handles. a 50 lb. Jaw Strength provides positive connections and color coded wires make for easy identification. These even have molded strain relief built on the cables. Ring terminal connections make installation a snap.

Price $39.30
238-260-666 Century Positive Cable & Clamp Assembly 6ga 106" 238-260-666 Century Positive Cable & Clamp Assembly 6ga 106"

238-260-666 Century Positive Cable & Clamp Assembly 6ga 106" for Century / Solar battery chargers. Universal Style for other chargers. Booster Clamp features 6 Gauge solid copper wire, dual power jaws for better conductivity with a braided internal power crossover strap (distributes full power to both jaws), heavy duty construction for durability and long life.

Price $29.50
238-261-666 Century Negative Cable & Clamp Assembly 6ga 106" 238-261-666 Century Negative Cable & Clamp Assembly 6ga 106"

238-261-666 Century Negative Cable & Clamp Assembly 6ga 106" for Century / Solar battery chargers. Universal Style for other chargers. Booster Clamp features 6 Gauge solid copper wire, dual power jaws for better conductivity with a braided internal power crossover strap (distributes full power to both jaws), heavy duty construction for durability and long life.

Price $29.50
246-041-666 Universal Selector Knob 246-041-666 Universal Selector Knob

246-041-666 Universal Selector Knob with set screw for controls with 1/4" Stem. Replaces all knobs with 1/4" diameter shaft. Fits 1/2 shaft and 3/4 style shaft stems.

Price $7.65
246-243-000 Circuit Breaker 12 Volt 50 Amp (578800-050) 246-243-000 Circuit Breaker 12 Volt 50 Amp (578800-050)

246-243-000 Circuit Breaker 12 Volt 50 Amp (578800-050). Universal Breaker replaces many older unit parts.

Price $4.50
246-262-000 Switch Three Position DPTT 15 Amp (On-Off-On) 246-262-000 Switch Three Position DPTT 15 Amp (On-Off-On)

246-262-000 Switch DPDT Center Off Voltage Selector Switch. Three Position Double Pole Triple Throw (On-Off-On) 15 Amp Rating 1/4 Quick Connect Terminals.

Price $38.55
246-372-666 Mechanical Timer 120 Minute 246-372-666 Mechanical Timer 120 Minute

Mechanically controls charging in timed Mode with manual hold mode. 2 hour. Single Pole Double Throw (SPDT) Switch rated 15 amperes. Termination is designed to accept 1/4" spade terminals.

Discontinued See 51-248
246-386-000 Dual Circuit Breaker W/Tabs 50/100 Amp 246-386-000 Dual Circuit Breaker W/Tabs 50/100 Amp

Battery Charger Circuit Breaker. Dual 12 Volt 50 Amp, Single Pole Thermal Type Breaker (Paired), Bracket Type Mounting, 10-32 Studs.

Price $25.46
247-074-666 Ammeter Horizontal 0-60 Amp Range W/Start 247-074-666 Ammeter Horizontal 0-60 Amp Range W/Start

Ammeter Horizontal 0-60 AMP features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and bolt through induction pick-up for greater accuracy.

Discontinued
247-132-000 Ammeter Horizontal 0-60 Amp Range 247-132-000 Ammeter Horizontal 0-60 Amp Range

Ammeter Horizontal 0-60 AMP features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued See 247-147-000
247-147-000 Ammeter Horizontal 0-60 Amp 247-147-000 Ammeter Horizontal 0-60 Amp

247-147-000 Ammeter Horizontal 0-60 Amp features easy snap-in installation. Green Red Charge Rate face. 0-60 Amp range and wire through induction pick-up for greater accuracy. Replaces old style bolt through meters.

Discontinued
248-321-000 Power Cord 18/3 AWG SJTOW 92" 248-321-000 Power Cord 18/3 AWG SJTOW 92"

248-321-666 Power Cord 18/3 AWG SJTOW 92" 1/4" Spade Terminals, Ring Terminal Ground.

Price $14.54
248-323-666 Power Cord 248-323-666 Power Cord

POWER CORD DISCONTINUED NO LONGER AVAILABLE

Discontinued
249-066-666 Solar Booster Clamps Positive & Negative 249-066-666 Solar Booster Clamps Positive & Negative

Clamps Positive & Negative. Screw Type Connection for ring terminal cables to anchor wire for solderless connection. Dual Hot Jaws for better power distribution. Includes Phillips anchor screws. Does not include hardware for cables, (ring terminals, solder etc...).

Discontinued - replaced by 238-006-666
249-093-900 Black Negative Booster Clamp 249-093-900 Black Negative Booster Clamp

Black Negative Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $14.45
249-094-900 Red Positive Booster Clamp 249-094-900 Red Positive Booster Clamp

Red Positive Booster Clamp features full power jaws (distributes full power to both jaws), heavy duty construction for durability and long life, solid copper jaws for better conductivity, and a braided internal power crossover strap instead of wire for even power to the jaws.

Price $14.45
316-014-000 Fan Blade 6" 4 Blade CW 316-014-000 Fan Blade 6" 4 Blade CW

316-014-000 Fan Blade 6" 4 Blade CW

Price $18.60
412-751-666 Handle W/Hardware 412-751-666 Chrome Battery Charger Handle

412-751-666 Chrome Battery Charger Handle. Replaces 442-020-166 and other older Century / Solar Handles

Price $30.55
413-043-666 Universal Axle Kit With Hubs (15.3/4" Long 3/8" Diameter) 413-043-666 Universal Axle Kit With Hubs (15.75" Long 3/8" Diameter)

413-043-666 Universal Axle Kit With Hubs (15.3/4" Long 3/8" Diameter)

Discontinued See 413-002-666
413-044-666 Wheel Kit 6" With Hubs 413-044-666 Wheel Kit 6" With Hubs

413-044-666 Wheel Kit 6" With Hubs. For 3/8" Axle.

Price $19.51
442-020-166 Century Battery Charger Handle 442-020-166 Century Battery Charger Handle

442-020-166 Century Battery Charger Handle. Flat side black painted finish.

Price $14.85
51-248 Mechanical Timer 2 Hour 51-248 Mechanical Timer 2 Hour

Mechanically controls charging in timed Mode. Single Pole Double Throw (SPDT) Switch rated 15 amperes. Termination is designed to accept 1/4" spade terminals.

Price $51.54
512-127-000 Rectifier Insulator Standoff 512-127-000 Rectifier Insulator Standoff

512-127-000 Rectifier Insulator Standoff. Connects to the back wall of the charger chassis to provide a mount for the rectifier.

Price $3.85
865-682-666 Heatsink Rectifier Kit 865-682-666 Heatsink Rectifier

865-682-666 Heatsink Rectifier.  Product as pictured.  Does not include any mounting hardware (512-127-000).

Price $44.85
865-838-888 Century Transformer 2/40/200 TSTD/CTND 865-838-888 Century Transformer 2/40/200 TSTD/CTND

865-838-888 Century Transformer 2/40/200 TSTD/CTND

Discontinued
865-839-666 Circuit Board 865-839-666 Circuit Board

CIRCUIT BOARD DISCONTINUED NO LONGER AVAILABLE

Discontinued
S29420-24 Century Battery Charger Clamp Holder S29420-24 Century Battery Charger Clamp Holder

S29420-24 Century Battery Charger Clamp Holder With Screws. Now you can stow your clamps in a safe place that doesn't get in the way, drag the ground or short out. Fits any round or flat bar battery charger handle. If using as a universal fit drilling two holes will be necessary.

Price $14.85
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers.

Discontinued
