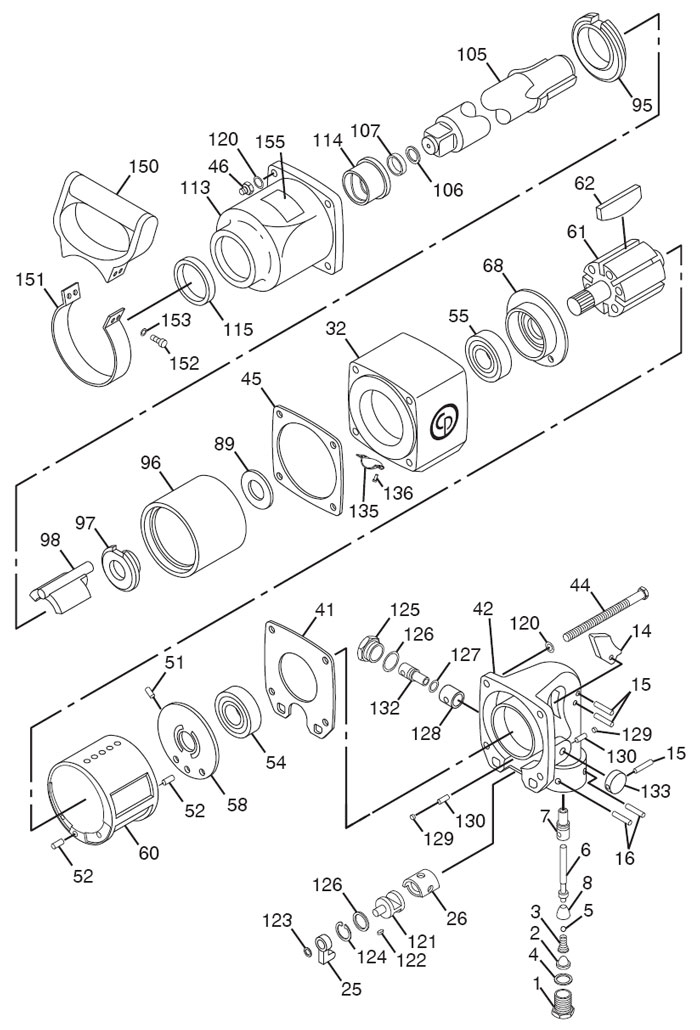

CP898 Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA144694 Bushing - Inlet 1
2 CA144735 Screen - Air 1
3 CA144763 Spring - Throttle 1
4 C056667 O-Ring 1
5 CA144766 Ball 1
6 CA144737 Rod - Throttle Valve 1
7 CA144738 Bushing - Throttle Valve 1
8 CA144736 Valve - Throttle 1
14 CA144775 Trigger 1
15 CA144778 Pin - Spring 3
16 CA146340 Pin - Roll 2
25 CA144741 Lever - Reverse Valve 1
26 CA144740 Bushing - Reverse Valve 1
32 CA144763 Housing - Motor 1
41 CA144702 Gasket - Handle Housing 1
42 CA144647 Handle 1
44 CA144697 Screw - Socket Head 4
45 CA144703 Gasket - Clutch Housing 1
46 CA144698 Nut - Nylon Insert 4
51 CA144759 Pin - Spring 1
52 CA144760 Pin - Spring 2
54 CA144767 Bearing - Ball 1
55 CA144768 Bearing - Ball 1
58 CA144746 End Plate - Rear 1
60 CA144747 Liner 1
61 CA144748 Rotor 1
62 CA145317 Blade - Set Rotor 1
68 CA144750 End Plate - Front 1
89 CA144751 Plate - Thrust
1
95 CA144755 Bushing - Cage 1
96 CA144753 Cage 1
97 CA144752 Cam 1
98 CA144754 Dog 1
105 CA144756 Shank - Anvil (6" Extended) 1
- CA145754 Shank - Anvil 1
106 CA144774 O-Ring 1
107 CA144773 Ring - Socket Retaining 1
113 CA144645 Housing - Clutch 1
114 CA144757 Bushing - Housing 1
115 CA144772 Seal - Oil 1
120 CA144758 Washer 8
121 CA144739 Valve - Reverse 1
122 CA144761 Key 1
123 CA144770 O-Ring 1
124 CA144764 Ring - Snap 1
125 CA144745 Cap - Control Valve 1
126 CA144771 O-Ring 2
127 CA144769 O-Ring 1
128 CA144743 Bushing - Control Valve 1
129 CA144765 Ball - Steel 2
130 CA144762 Spring 2
132 CA144742 Valve - Control 1
133 CA144711 Knob - Control Valve 1
135 CA144776 Deflector - Exhaust 1
136 CA144777 Screw - Self Tapping 4
150 CA048548 Handle - Support 1
151 CA144701 Band - Support Handle Housing 1
152 P073025 Allen Head Screw 4
153 S000271 Lockwasher 4
155 CA144007 Decal - Safety Warning 1
Tune-Up Kit CA145228 Incl Index Nos: 4, 41, 45, 62, 106, 107, 115, 123, 124, 126 & 127
