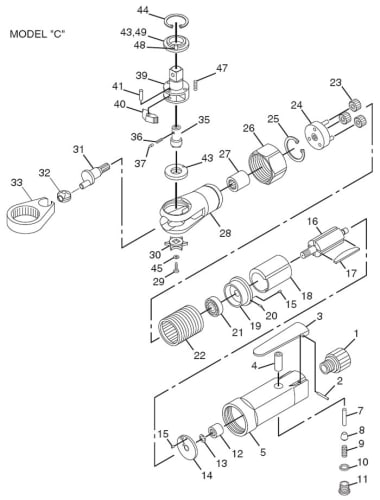

Chicago Pneumatic CP825 Air Ratchet Repair Parts


Index
No.
Part No. Description No.
Req'd
1 KF138175 Bushing - Air Inlet 1
2 KF124394 Pin - Roll 1
3 KF138194 Lever - Throttle 1
4 KF138176 Bushing - Throttle 1
5 KF138207 Handle - Throttle
(Incl Index Nos: 4 & 12)
1
7 KF134169 Pin 1
8 KF125190 Valve - Throttle 1
9 KF124390 Spring - Throttle 1
10 A082777 O-Ring (-012) 1
11 KF134162 Plug - Throttle Valve 1
12 KF138214 Bearing - Needle 1
13 S082845 Ring - Retaining 1
14 KF138200 Plate - Rear End
(Incl Index No: 15)
1
15 KF138196 Pin - Roll 2
16 KF138208 Rotor (11 Teeth) 1
17 KF138202 Set - Rotor Blade (4) 1
18 KF138199 Liner 1
19 KF138201 Plate - Front End
(Incl Index Nos: 15 & 20)
1
20 KF124410 Pin - Dowel 1
21 C087834 Bearing - Ball 1
22 KF138204 Housing - Spindle 1
23 KF138205 Gear - Idler (13 Teeth) 3
24 KF138203 Spindle - Idler 1
25 KF138179 Ring - Retaining 1
26 KF138174 Calmp - Housing 1
27 KF138213 Bearing - Needle 1
28 KF141563 Housing - Ratchet
(Incl Index No: 27)
1
29 KF138215 Screw - Ratchet Head 1
30 KF141635 Button - Reverse 1
31 KF138177 Shaft - Crank 1
32 KF138186 Bushing - Drive 1
33 KF138206 Yoke - Reverse 1
35 KF141565 Pin - Reverse 1
36 KF138212 Spring - Reverse 1
37 KF138187 Pin - Lock 1
39 CA149701 Shank - Reverse (CP825) 1
- CA149687 Shank - Reverse (CP825T) 1
40 KF138195 Pawl - Reverse 1
41 KF138211 Pin - Ratchet 1
43 KF141564 Washer - Thrust (1 Req'd for CP825T)
(Incl Index No: 48)
2
44 KF138191 Ring - Internal 1
45 C130136 Lockwasher - AFS 1
47 CA149686 Spring - Friction 2
48 KF140185 Pin - Dowel 2
49 KF141853 Washer - Thrust (CP825T)
(Incl Index No: 48)
1
50 CA144813 Decal - Safety Warning (Not Shown) 1
- KF139510 Wrench - Spindle Housing (Not Shown) 1
Tune-Up Kit CA155091 Incl Index Nos: 8, 9, 10, 11, 17, 36, 37 & 47
Head Kit (M0del C) CA155090 Incl Index Nos: 29, 30, 35, 36, 37, 39, 40, 41, 43, 44, 45, 47 & 49
Head Kit (Model C) CA155093 Incl Index Nos: 29, 30, 35, 36, 37, 39, 40, 41, 43, 44, 45, 47 & 49
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
A082777 Chicago Pneumatic O-Ring In-012 A082777 Chicago Pneumatic O-Ring In-012

A082777 Chicago Pneumatic O-Ring In-012

Price $7.10
C087834 Chicago Pneumatic Bearing-Ball C087834 Chicago Pneumatic Bearing-Ball

C087834 Chicago Pneumatic Bearing-Ball

Discontinued See CA144800
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C130136 Chicago Pneumatic Lockwasher C130136 Chicago Pneumatic Lockwasher

C130136 Chicago Pneumatic Lockwasher

Price $3.87
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA144778 Chicago Pneumatic Roll Pin 3x24 CA144778 Chicago Pneumatic Roll Pin 3x24

CA144778 Chicago Pneumatic Roll Pin 3x24

Price $3.89
CA144800 Chicago Pneumatic Bearing-Ball CA144800 Chicago Pneumatic Bearing-Ball

CA144800 Chicago Pneumatic Bearing-Ball

Price $26.42
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA149686 Chicago Pneumatic Spring-Compression CA149686 Chicago Pneumatic Spring-Compression

CA149686 Chicago Pneumatic Spring-Compression

Price $3.89
CA149687 Chicago Pneumatic Shank-Ratchet (3/8) CA149687 Chicago Pneumatic Shank-Ratchet (3/8)

CA149687 Chicago Pneumatic Shank-Ratchet (3/8)

Price $60.47
CA149701 Chicago Pneumatic Shank-Ratchet (1/4) CA149701 Chicago Pneumatic Shank-Ratchet (1/4)

CA149701 Chicago Pneumatic Shank-Ratchet (1/4)

Price $55.99
CA155090 Chicago Pneumatic Kit-Ratchet Head (Cp CA155090 Chicago Pneumatic Kit-Ratchet Head (Cp

CA155090 Chicago Pneumatic Kit-Ratchet Head (Cp

Price $53.46
CA155091 Chicago Pneumatic Kit-Tune Up(Cp825) CA155091 Chicago Pneumatic Kit-Tune Up(Cp825)

CA155091 Chicago Pneumatic Kit-Tune Up(Cp825)

Price $50.13
CA155093 Chicago Pneumatic Kit-Ratchet Head (Cp CA155093 Chicago Pneumatic Kit-Ratchet Head (Cp

CA155093 Chicago Pneumatic Kit-Ratchet Head (Cp

Price $78.12
CP825 Chicago Pneumatic 1/4" Ratchet Small CP825 Chicago Pneumatic 1/4" Ratchet Small

CP825 1/4" Ratchet Small - This 1/4" square drive air ratchet has a progressive teasing throttle, conveniently located forward / reverse button and is small in size (only 6.5" long). This is the tool to have for getting into those limited space applications.

Discontinued See CP825C
CP825 Chicago Pneumatic 1/4" Ratchet Small CP825C Chicago Pneumatic 1/4" Ratchet Small

CP825C 1/4" Ratchet Small - This 1/4" square drive air ratchet has a progressive teasing throttle, conveniently located forward / reverse button and is small in size (only 6.6" long). Quieter more powerful and lighter than its previous model. This is the tool to have for getting into those limited space applications.

Price $176.35
KF124390 Chicago Pneumatic Spring-Throttle KF124390 Chicago Pneumatic Spring-Throttle

KF124390 Chicago Pneumatic Spring-Throttle

Price $5.41
KF124394 Chicago Pneumatic Roll Pin KF124394 Chicago Pneumatic Roll Pin

KF124394 Chicago Pneumatic Roll Pin

Discontinued See CA144778
KF124410 Chicago Pneumatic Pin-Dowel KF124410 Chicago Pneumatic Pin-Dowel

KF124410 Chicago Pneumatic Pin-Dowel

Price $5.41
KF125190 Chicago Pneumatic Valve-Throttle KF125190 Chicago Pneumatic Valve-Throttle

KF125190 Chicago Pneumatic Valve-Throttle

Price $5.41
KF134162 Chicago Pneumatic Plug-Throttle Valve KF134162 Chicago Pneumatic Plug-Throttle Valve

KF134162 Chicago Pneumatic Plug-Throttle Valve

Price $7.19
KF138174 Chicago Pneumatic Clamp-Housing KF138174 Chicago Pneumatic Clamp-Housing

KF138174 Chicago Pneumatic Clamp-Housing

Price $17.71
KF138175 Chicago Pneumatic Bushing-Air Inlet KF138175 Chicago Pneumatic Bushing-Air Inlet

KF138175 Chicago Pneumatic Bushing-Air Inlet

Price $11.06
KF138176 Chicago Pneumatic Bushing-Throttle KF138176 Chicago Pneumatic Bushing-Throttle

KF138176 Chicago Pneumatic Bushing-Throttle

Price $5.40
KF138179 Chicago Pneumatic Ring-Retaining KF138179 Chicago Pneumatic Ring-Retaining

KF138179 Chicago Pneumatic Ring-Retaining

Price $5.41
KF138191 Chicago Pneumatic Ring-Internal KF138191 Chicago Pneumatic Ring-Internal

KF138191 Chicago Pneumatic Ring-Internal

Price $5.41
KF138194 Chicago Pneumatic Lever-Throttle KF138194 Chicago Pneumatic Lever-Throttle

KF138194 Chicago Pneumatic Lever-Throttle

Price $12.65
KF138196 Chicago Pneumatic Pin-Roll KF138196 Chicago Pneumatic Pin-Roll

KF138196 Chicago Pneumatic Pin-Roll

Price $5.41
KF138199 Chicago Pneumatic Liner KF138199 Chicago Pneumatic Liner

KF138199 Chicago Pneumatic Liner

Price $48.65
KF138200 Chicago Pneumatic Plate-Rear End KF138200 Chicago Pneumatic Plate-Rear End

KF138200 Chicago Pneumatic Plate-Rear End

Price $17.71
KF138201 Chicago Pneumatic Plate-Front End KF138201 Chicago Pneumatic Plate-Front End

KF138201 Chicago Pneumatic Plate-Front End

Price $19.16
KF138202 Chicago Pneumatic Bld-Set Rotor Cp0825 KF138202 Chicago Pneumatic Bld-Set Rotor Cp0825

KF138202 Chicago Pneumatic Bld-Set Rotor Cp0825

Price $15.80
KF138203 Chicago Pneumatic Spindle-Idler KF138203 Chicago Pneumatic Spindle-Idler

KF138203 Chicago Pneumatic Spindle-Idler

Price $26.56
KF138204 Chicago Pneumatic Housing-Spindle KF138204 Chicago Pneumatic Housing-Spindle

KF138204 Chicago Pneumatic Housing-Spindle

Price $25.07
KF138205 Chicago Pneumatic Gear-Idler (13t) KF138205 Chicago Pneumatic Gear-Idler (13t)

KF138205 Chicago Pneumatic Gear-Idler (13t)

Price $14.21
KF138207 Chicago Pneumatic Handle-Throttle KF138207 Chicago Pneumatic Handle-Throttle

KF138207 Chicago Pneumatic Handle-Throttle

Price $79.60
KF138208 Chicago Pneumatic Rotor (11teeth) KF138208 Chicago Pneumatic Rotor (11teeth)

KF138208 Chicago Pneumatic Rotor (11teeth)

Price $38.30
KF138211 Chicago Pneumatic Pin-Ratchet KF138211 Chicago Pneumatic Pin-Ratchet

KF138211 Chicago Pneumatic Pin-Ratchet

Price $5.41
KF138212 Chicago Pneumatic Spring-Ratchet KF138212 Chicago Pneumatic Spring-Ratchet

KF138212 Chicago Pneumatic Spring-Ratchet

Price $5.41
KF138213 Chicago Pneumatic Bearing-Needle KF138213 Chicago Pneumatic Bearing-Needle

KF138213 Chicago Pneumatic Bearing-Needle

Price $20.64
KF138214 Chicago Pneumatic Bearing-Needle KF138214 Chicago Pneumatic Bearing-Needle

KF138214 Chicago Pneumatic Bearing-Needle

Price $20.66
KF138215 Chicago Pneumatic Screw-Ratchet Head KF138215 Chicago Pneumatic Screw-Ratchet Head

KF138215 Chicago Pneumatic Screw-Ratchet Head

Price $5.41
KF139510 Chicago Pneumatic Wrench-Hsg (Spindle) KF139510 Chicago Pneumatic Wrench-Hsg (Spindle)

KF139510 Chicago Pneumatic Wrench-Hsg (Spindle)

Price $367.24
KF140185 Chicago Pneumatic Pin-Roll KF140185 Chicago Pneumatic Pin-Roll

KF140185 Chicago Pneumatic Pin-Roll

Price $3.86
KF141564 Chicago Pneumatic Washer-Thrust KF141564 Chicago Pneumatic Washer-Thrust

KF141564 Chicago Pneumatic Washer-Thrust

Price $12.65
KF141565 Chicago Pneumatic Pin-Reverse KF141565 Chicago Pneumatic Pin-Reverse

KF141565 Chicago Pneumatic Pin-Reverse

Price $15.80
KF141635 Chicago Pneumatic Button-Reverse KF141635 Chicago Pneumatic Button-Reverse

KF141635 Chicago Pneumatic Button-Reverse

Discontinued
KF141853 Chicago Pneumatic Washer-Thrust KF141853 Chicago Pneumatic Washer-Thrust

KF141853 Chicago Pneumatic Washer-Thrust

Price $12.61
S082845 Chicago Pneumatic Ring-Retaining S082845 Chicago Pneumatic Ring-Retaining

S082845 Chicago Pneumatic Ring-Retaining

Price $3.86
