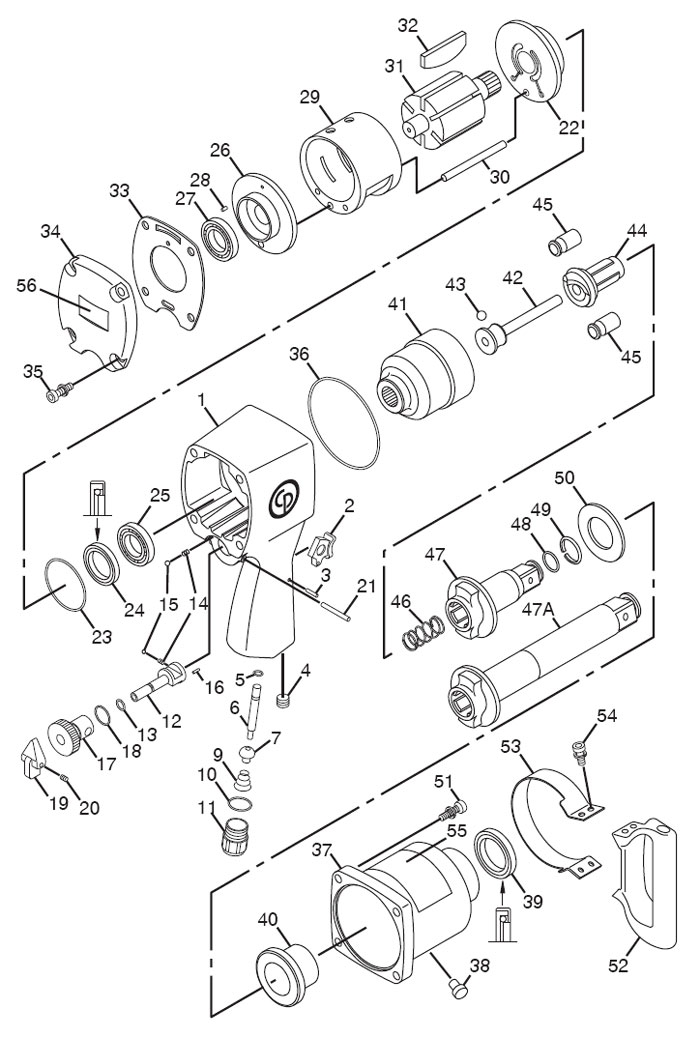

CP893 Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA156917 Housing - Motor 1
2 CA146650 Trigger 1
3 CA146651 Pin - Roll 1
4 C068799 Plug - Pipe (1/4" NPT) 1
5 CA146652 O-Ring (W1516-1) 1
6 CA156918 Pin - Valve 1
7 CA156919 Ball - Valve 1
9 CA154873 Spring - Throttle 1
10 CA154874 O-Ring (W1516-14) 1
11 CA154875 Bushing - Air Inlet 1
12 CA146775 Valve - Reverse 1
13 CA146659 O-Ring (W1516-5) 1
14 CA146660 Spring 2
15 KF124396 Ball - Steel (4mm dia.) 2
16 CA146698 Pin - Roll (2.5 x 8) 1
17 CA146661 Regulator - Air 1
18 CA146662 O-Ring (W1516-12) 1
19 CA146663 Lever - Reverse 1
20 S007708 Screw - Set 1
21 CA146665 Pin - Roll (4 x 40) 1
22 CA154876 Plate - Front End 1
23 CA146667 O-Ring (W1516-6) 1
24 CA146668 Seal - Oil 1
25 CA146669 Bearing - Ball (6205Z) 1
26 CA146670 Plate - Rear End 1
27 CA146671 Bearing - Ball (6204) 1
28 CA146672 Pin - Roll (4 x 8) 1
29 CA146673 Liner 1
30 CA156920 Pin - Guide 1
31 CA146675 Rotor 1
32 CA146676 Set - Rotor Blade (6) 1
33 CA146677 Gasket - Back Cover 1
34 CA155205 Cover - Motor Housing 1
35 CA157414 Screw (MB-1.25P) with washer 4
36 CA146680 O-Ring (W1516-154) 1
37 CA154881 Housing - Clutch 1
38 C054897 Plug - Pipe 1
39 CA146682 Seal - Oil 1
40 CA146683 Bushing - Clutch 1
41 CA146684 Cage - Hammer 1
42 CA146685 Shaft - Pilot 1
43 P004254 Ball - Steel (0.5" dia.) 1
44 CA146686 Cam - Hammer
1
45 CA146687 Pin - Hammer 2
46 CA146688 Spring - Clutch 1
47 CA146689 Shank - Anvil
(Incl Index Nos: 48 & 49)
1
47A CA146690 Shank - Anvil (6" Extension) 1
48 CA146691 O-Ring (W1516-13) 1
49 CA146692 Retainer - Socket 1
50 CA146693 Spacer - Anvil 1
51 CA157415 Screw - Hex Socket Head (M8) with washer 4
52 CA156921 Support - Handle 1
53 CA146695 Band - Support Handle 1
54 CA146922 Screw - Cap with Washer 4
55 CA155779 Decal - Safety Warning 1
- CA156923 Wrench - Hex (Not Shown) 1
Tune-Up Kit CA146649 Incl Index Nos: 5, 7, 10, 13, 18, 23, 24, 32, 33, 36, 39, 48 & 49
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
C054897 Chicago Pneumatic Pipe Plug C054897 Chicago Pneumatic Pipe Plug

C054897 Chicago Pneumatic Pipe Plug

Price $3.70
C068799 Chicago Pneumatic Pipe Plug- .25 Npt C068799 Chicago Pneumatic Pipe Plug- .25 Npt

C068799 Chicago Pneumatic Pipe Plug- .25 Npt

Price $8.66
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA146649 Chicago Pneumatic Kit-Tune Up CP893 CA146649 Chicago Pneumatic Kit-Tune Up CP893

CA146649 Chicago Pneumatic Kit-Tune Up CP893

Discontinued See Individual Parts
CA146650 Chicago Pneumatic Trigger CA146650 Chicago Pneumatic Trigger

CA146650 Chicago Pneumatic Trigger

Price $32.43
CA146651 Chicago Pneumatic Pin-Roll CA146651 Chicago Pneumatic Pin-Roll

CA146651 Chicago Pneumatic Pin-Roll

Price $3.87
CA146652 Chicago Pneumatic O-Ring (W1516-1) CA146652 Chicago Pneumatic O-Ring (W1516-1)

CA146652 Chicago Pneumatic O-Ring (W1516-1)

Discontinued
CA146659 Chicago Pneumatic O-Ring (W1516-5) CA146659 Chicago Pneumatic O-Ring (W1516-5)

CA146659 Chicago Pneumatic O-Ring (W1516-5)

Price $3.87
CA146660 Chicago Pneumatic Spring CA146660 Chicago Pneumatic Spring

CA146660 Chicago Pneumatic Spring

Discontinued
CA146661 Chicago Pneumatic Regulator-Air CA146661 Chicago Pneumatic Regulator-Air

CA146661 Chicago Pneumatic Regulator-Air

Discontinued
CA146662 Chicago Pneumatic O-Ring (W1516-12) CA146662 Chicago Pneumatic O-Ring (W1516-12)

CA146662 Chicago Pneumatic O-Ring (W1516-12)

Discontinued
CA146663 Chicago Pneumatic Lever-Reverse CA146663 Chicago Pneumatic Lever-Reverse

CA146663 Chicago Pneumatic Lever-Reverse

Price $22.13
CA146665 Chicago Pneumatic Pin-Roll (4x40) CA146665 Chicago Pneumatic Pin-Roll (4x40)

CA146665 Chicago Pneumatic Pin-Roll (4x40)

Price $7.16
CA146667 Chicago Pneumatic O-Ring (W1517-6) CA146667 Chicago Pneumatic O-Ring (W1517-6)

CA146667 Chicago Pneumatic O-Ring (W1517-6)

Price $5.39
CA146668 Chicago Pneumatic Seal-Oil CA146668 Chicago Pneumatic Seal-Oil

CA146668 Chicago Pneumatic Seal-Oil

Discontinued
CA146669 Chicago Pneumatic Bearing-Ball (6205z) CA146669 Chicago Pneumatic Bearing-Ball (6205z)

CA146669 Chicago Pneumatic Bearing-Ball (6205z)

Discontinued
CA146670 Chicago Pneumatic Plate-Rear End CA146670 Chicago Pneumatic Plate-Rear End

CA146670 Chicago Pneumatic Plate-Rear End

Discontinued
CA146671 Chicago Pneumatic Bearing-Ball (6204) CA146671 Chicago Pneumatic Bearing-Ball (6204)

CA146671 Chicago Pneumatic Bearing-Ball (6204)

Discontinued
CA146672 Chicago Pneumatic Pin-Roll (4x8) CA146672 Chicago Pneumatic Pin-Roll (4x8)

CA146672 Chicago Pneumatic Pin-Roll (4x8)

Price $5.41
CA146675 Chicago Pneumatic Rotor CA146675 Chicago Pneumatic Rotor

CA146675 Chicago Pneumatic Rotor

Price $435.01
CA146676 Chicago Pneumatic Set-Rotor Blade (6) CA146676 Chicago Pneumatic Set-Rotor Blade (6)

CA146676 Chicago Pneumatic Set-Rotor Blade (6)

Price $48.61
CA146677 Chicago Pneumatic Gasket-Back Cover CA146677 Chicago Pneumatic Gasket-Back Cover

CA146677 Chicago Pneumatic Gasket-Back Cover

Discontinued
CA146680 Chicago Pneumatic O-Ring (Ms9241-154) CA146680 Chicago Pneumatic O-Ring (Ms9241-154)

CA146680 Chicago Pneumatic O-Ring (Ms9241-154)

Discontinued
CA146681 Chicago Pneumatic Housing-Clutch CA146681 Chicago Pneumatic Housing-Clutch

CA146681 Chicago Pneumatic Housing-Clutch

Discontinued
CA146682 Chicago Pneumatic Seal-Oil CA146682 Chicago Pneumatic Seal-Oil

CA146682 Chicago Pneumatic Seal-Oil

Discontinued
CA146683 Chicago Pneumatic Bushing-Clutch CA146683 Chicago Pneumatic Bushing-Clutch

CA146683 Chicago Pneumatic Bushing-Clutch

Price $134.18
CA146684 Chicago Pneumatic Cage-Hammer CA146684 Chicago Pneumatic Cage-Hammer

CA146684 Chicago Pneumatic Cage-Hammer

Discontinued
CA146685 Chicago Pneumatic Shaft-Pilot CA146685 Chicago Pneumatic Shaft-Pilot

CA146685 Chicago Pneumatic Shaft-Pilot

Price $176.90
CA146686 Chicago Pneumatic Cam-Hammer CA146686 Chicago Pneumatic Cam-Hammer

CA146686 Chicago Pneumatic Cam-Hammer

Price $166.59
CA146687 Chicago Pneumatic Pin-Hammer CA146687 Chicago Pneumatic Pin-Hammer

CA146687 Chicago Pneumatic Pin-Hammer

Discontinued
CA146688 Chicago Pneumatic Spring-Clutch CA146688 Chicago Pneumatic Spring-Clutch

CA146688 Chicago Pneumatic Spring-Clutch

Discontinued
CA146690 Chicago Pneumatic Shank-Anvil (6" Ext) CA146690 Chicago Pneumatic Shank-Anvil (6" Ext)

CA146690 Chicago Pneumatic Shank-Anvil (6" Ext)

Discontinued
CA146691 Chicago Pneumatic O-Ring (W1516-13) CA146691 Chicago Pneumatic O-Ring (W1516-13)

CA146691 Chicago Pneumatic O-Ring (W1516-13)

Discontinued
CA146692 Chicago Pneumatic Retainer-Socket CA146692 Chicago Pneumatic Retainer-Socket

CA146692 Chicago Pneumatic Retainer-Socket

Discontinued
CA146693 Chicago Pneumatic Spacer-Anvil CA146693 Chicago Pneumatic Spacer-Anvil

CA146693 Chicago Pneumatic Spacer-Anvil

Discontinued
CA146695 Chicago Pneumatic Band-Support Handle CA146695 Chicago Pneumatic Band-Support Handle

CA146695 Chicago Pneumatic Band-Support Handle

Price $27.99
CA146698 Chicago Pneumatic Pin-Roll (2.5x8) CA146698 Chicago Pneumatic Pin-Roll (2.5x8)

CA146698 Chicago Pneumatic Pin-Roll (2.5x8)

Discontinued
CA146775 Chicago Pneumatic Valve-Reverse CA146775 Chicago Pneumatic Valve-Reverse

CA146775 Chicago Pneumatic Valve-Reverse

Discontinued
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA154873 Chicago Pneumatic Spring-Throttle CA154873 Chicago Pneumatic Spring-Throttle

CA154873 Chicago Pneumatic Spring-Throttle

Price $2.30
CA154874 Chicago Pneumatic O-Ring CA154874 Chicago Pneumatic O-Ring

CA154874 Chicago Pneumatic O-Ring

Price $3.89
CA154875 Chicago Pneumatic Bushing-Air Inlet CA154875 Chicago Pneumatic Bushing-Air Inlet

CA154875 Chicago Pneumatic Bushing-Air Inlet

Discontinued
CA154876 Chicago Pneumatic Plate-Front End CA154876 Chicago Pneumatic Plate-Front End

CA154876 Chicago Pneumatic Plate-Front End

Discontinued
CA154881 Chicago Pneumatic Housing-Clutch CA154881 Chicago Pneumatic Housing-Clutch

CA154881 Chicago Pneumatic Housing-Clutch

Discontinued
CA155205 Chicago Pneumatic Cover-Motor Housing CA155205 Chicago Pneumatic Cover-Motor Housing

CA155205 Chicago Pneumatic Cover-Motor Housing

Discontinued
CA156917 Chicago Pneumatic Housing-Motor CA156917 Chicago Pneumatic Housing-Motor

CA156917 Chicago Pneumatic Housing-Motor

Price $425.02
CA156918 Chicago Pneumatic Pin-Valve CA156918 Chicago Pneumatic Pin-Valve

CA156918 Chicago Pneumatic Pin-Valve

Discontinued
CA156919 Chicago Pneumatic Ball-Valve CA156919 Chicago Pneumatic Ball-Valve

CA156919 Chicago Pneumatic Ball-Valve

Discontinued
CA156920 Chicago Pneumatic Pin-Guide CA156920 Chicago Pneumatic Pin-Guide

CA156920 Chicago Pneumatic Pin-Guide

Price $8.71
CA156921 Chicago Pneumatic Support-Handle CA156921 Chicago Pneumatic Support-Handle

CA156921 Chicago Pneumatic Support-Handle

Discontinued
CA157414 Chicago Pneumatic Screw-Shcs W/Washer CA157414 Chicago Pneumatic Screw-Shcs W/Washer

CA157414 Chicago Pneumatic Screw-Shcs W/Washer

Price $3.87
CA157415 Chicago Pneumatic Screw-Shcs W/Washer CA157415 Chicago Pneumatic Screw-Shcs W/Washer

CA157415 Chicago Pneumatic Screw-Shcs W/Washer

Discontinued
CP893 Chicago Pneumatic 1" Impact Wrench CP893 Chicago Pneumatic 1" Impact Wrench

CP893 1" Impact Wrench - This 1" square drive impact wrench has some great features like: a pistol style handle, the DYNA-PACT clutch, adjustable side handle, conveniently located forward / reverse button and three selectable positive power settings.

Discontinued
KF124396 Chicago Pneumatic Ball-Steel 4mm Dia KF124396 Chicago Pneumatic Ball-Steel 4mm Dia

KF124396 Chicago Pneumatic Ball-Steel 4mm Dia

Discontinued See S008613
P004254 Chicago Pneumatic Ball-Steel .5"Dia P004254 Chicago Pneumatic Ball-Steel .5"Dia

P004254 Chicago Pneumatic Ball-Steel .5"Dia

Discontinued
S007708 Chicago Pneumatic Set Screw S007708 Chicago Pneumatic Set Screw

S007708 Chicago Pneumatic Set Screw

Price $3.46
S008613 Chicago Pneumatic Ball-Steel .156"Dia S008613 Chicago Pneumatic Ball-Steel .156"Dia

S008613 Chicago Pneumatic Ball-Steel .156"Dia

Price $5.34
