6019 Associated Battery Charger Parts List


1 Transformer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611020
2 Rectifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611002
3 Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611022
4 Volt meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611021
5 Charge Rate Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 605675
6 Timer w/knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610895
7 Ammeter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610695
8 Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611023
9 DC circuit breaker (1) . . . . . . . . . . . . . . . . . . . . . . . . . . 611028
10 Back panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610977
11 Side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611024
12 Top panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611025
13 Base panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610054
Parts not shown
AC power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610696
DC cable set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 611006
Front Leg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 605671
Axle w/nuts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610052
Wheel w/nuts (2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 605672
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610753

MAINTENANCE INSTRUCTIONS
Worn clamps should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of DC Cable Set. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.
Sort By:
Page of 1
020-0076 Associated Chrome Handle Screws (Each) 020-0076 Associated Chrome Handle Screws (Each)

020-0076 Associated Chrome Handle Screws (Each)

Price $1.54
603147 Associated Pointer Knob (Press-On) 603147 Associated Pointer Knob (Press-On)

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.

Price $10.95
605213 Associated Chrome Handle 605213 Associated Chrome Handle

Chrome Handle with screws and insulated clamp bar.

Price $52.11
605671 Associated Front Leg With Screws 605671 Associated Front Leg With Screws

Front Leg With Screws

Price $31.87
605672 Associated Wheel Kit With Nuts (Set Of Two Plastic) 605672 Associated Wheel Kit With Nuts 6" Plastic

605672 Associated Wheel Kit With Nuts 6" Plastic 3/8" hub diameter

Price $36.09
605675 Associated Rotary Switch Multi Knob Kit 605675 Associated Rotary Switch Multi Knob Kit

605675 Associated Rotary Switch Multi Knob Kit. This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob of your choice and discard the rest. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

When Discontinued See 611187

Discontinued See 611187
610043 Associated 3/8 Axle Cap (Each) 610043 Associated 3/8 Axle Cap (Each)

610043 Associated 3/8 Axle Cap (Each)

Price $2.84
610052 Associated Axle With Nuts 610052 Associated Axle With Nuts

610052 Associated Axle With Nuts. Axle 3/8" O.D. x 15-3/4" Long

Price $30.68
610180 Associated Knob 610180 Associated Knob

Associated 610180 KNOB

Price $21.92
610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit 610389 Associated 90 Minute Mechanical Timer w/ Hold Retro-fit Kit

This kit provides everything needed to replace older obsolete electrical driven timers with a new spring wound mechanical timer. The kit includes Knob, wiring and electrical connections, wire ties, spade terminals for universal applications and instructions.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Discontinued
610517 Associated Clamp Bar 7" 610517 Associated Clamp Bar 7"

610517 Associated Clamp Bar 7"

Price $7.58
610695 Associated Ammeter Horizontal 0-40 Amp Range W/ Start 610695 Associated Ammeter Horizontal 0-40 Amp Range W/ Start

Horizontal Snap In Mount, no tools needed to install. "Wire Through" Induction pick-up

Price $27.89
610696 Associated Power Cord 115 Volt 610696 Associated Power Cord 115 Volt

610696 Associated Power Cord 115 Volt

Price $31.19
610753 Associated Chrome Handle 610753 Associated Chrome Handle

610753 Associated Chrome Handle

Discontinued See 605213
610895 Associated Timer W/Knob 610895 Associated 90 Minute Mechanical Timer With Knob

Mechanically controls charging in timed Mode with manual hold mode. Two Independent Single Pole Single Throw (SPST) Switches rated 15 amperes. 1/4" spade terminals. Timer has Hold Position.
*See 611254 retrofit Timer kit.

Discontinued See 611254
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp) 610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Price $17.87
611002 Associated Rectifier Installation Kit 611002 Associated Rectifier Installation Kit

Associated 610102 Rectifier Installation Kit. The Highest rated 12 Diode Rectifier in the market, completely assembled and includes mounting hardware and insulators. With Large Heat Sink Backing Plate.

Price $59.99
611006 Associated DC Cable Assembly 611006 Associated DC Cable Assembly

DC CABLE ASSEMBLY

Discontinued See 611204

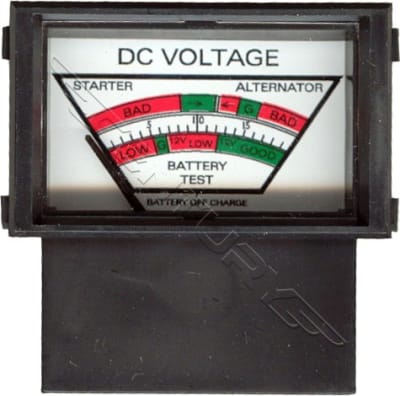

611021 Associated Voltmeter With Start Alternator Test 611021 Associated Voltmeter With Start Alternator Test
