Product Features

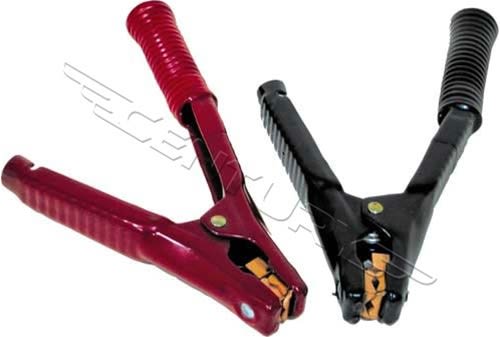

- Set of Red & Black Clamp
- 500 Amp Rating
- All Copper construction Jaws
- Patented "Plastisol" Coated Clamp prevents shorting
- Flexi-Spring Cable Guards prevent cables from wearing clamp
- Replaces other OEM clamps for longer life
- Side Terminal adapters available
Clamp Rating: 500 Amp
Jaws: Copper
Insulation: Bonded "Plastisol" Vinyl
Use With Cable Gauge: 3,4,6 GA
Flexi-Spring: Yes
Replacement Jaw Kits: Yes
INSTRUCTIONS
Hold clamp open by wrap of friction tape around handles. Insert cable under clamp spring. Strip cable 1/2". Be sure wires are free of corrosion. Solder cable into copper jaw with rosin core solder and torch or heavy iron. DO NOT USE ACID FLUX OR ACID CORE SOLDER. Bolt parts into place in the sequence Illustrated
For chargers with cell test leads strip cable 3-1/2" instead of 1/2" to permit re-connection of the black #18 wire cell test lead.
|
