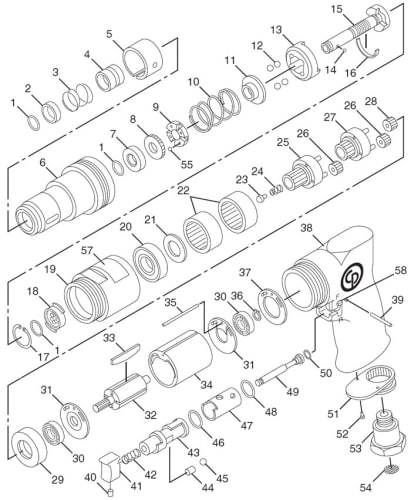

Chicago Pneumatic CP780 - 781 Screwdriver Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA148855 Ring - Retaining 3
2 CA148856 Washer 1
3 CA148857 Spring 1
4 CA148858 Retainer - Ball 1
5 CA148859 Cover - Adjustment 1
6 CA148860 Housing - Clutch 1
7 CA148861 Spacer 1
8 CA148862 Nut - Adjustment 1
9 CA148863 Washer 1
10 CA148864 Spring (Standard) 1
- CA149407 Spring (Hard) (800 RPM) (781) 1
11 CA148865 Washer 1
12 CA148866 Ball - Steel 4
13 CA148867 Carrier - Clutch 1
14 S000821 Ball - Steel (0.125" dia.) 1
15 CA148868 Spindle - Cam 1
16 CA148869 Wiper 1
17 CA148870 Ring - Retaining 1
18 CA148871 Dog - Drive 1
19 CA148883 Nut - Clamp (800 RPM) (781) 1
- CA148872 Nut - Clamp (1800 RPM) 1
20 S014490 Bearing - Ball 1
21 CA146091 Washer 1
22 KF137282 Gear - Internal (800 RPM) (781) 2
- KF137282 Gear - Internal (1800 RPM) 1
23 CA148873 Pin - Guide 1
24 CA148873 Spring 1
25 CA148884 Carrier - Second Reduction
(Includes Pins) (800 RPM) (781)
1
26 CA146172 Gear - Idler
(Includes Bushing) (800 RPM) (781)
6
- KF137281 Gear - Idler
(Includes Bushing) (1800 RPM)
3
27 CA146120 Spindle - First Reduction
(Includes Pins) (800 RPM) (781)
1
- C148875 Spindle - Output (Includes Pins)
(1800 RPM)
1
28 CA146121 Gear - Pinion (800 RPM) (781) 1
29 CA146095 Spacer 1
30 S025101 Bearing - Ball 2
31 CA146096 Plate - Rear End 2
32 CA146097 Rotor 1
33 CA145709 Blade Set - Rotor 5
34 CA146098 Liner 1
35 KF131295 Pin - Liner Dowel 1
36 KF137287 Ring - Retaining 1
37 CA146099 Gasket - Motor 1
38 CA146100 Housing - Motor 1
39 CA146113 Pin - Roll 1
40 CA146101 Screw 1
41 CA146102 Button - Throttle 1
42 CA146103 Throttle - Valve 1
43 CA146104 Lever - Reverse 1
44 CA146105 Cushion - Rubber 1
45 CA146106 Ball - Steel 1
46 CA148589 O-Ring (781) 1
47 CA146108 Bushing - Reverse Valve 1
48 CA146107 O-Ring 1
49 CA146109 Throttle - Valve 1
50 P083076 O-Ring (-007) 1
51 CA146110 Deflector - Exhaust 1
52 KF131927 Screw - Self Tapping 2
53 CA146111 Bushing - Air Inlet 1
54 CA146112 Screen 1
55 C148876 Ball - Steel 4
57 CA146619 Decal - Safety 1
58 CA146589 Regulator - Forward Assembly 1
