PS-5250 Schumacher Battery Charger Parts List



Schumacher PS-5250 Repair Parts
Part No.
Description
Qty
0090026133
115 Volt Power Cord
1
0099000062
Fan Blade
1
0099000063
Fan Motor Open Frame 115 Volt
1
0099000064
135 Minute Timer Mechanical with Hold
1
0099000269
Knob for Timer Switches on PS Series Chargers
1
0099000270
Knob for Selector Switches on PS Series Chargers
1
0499000022
6 Position Rotary Selector Switch (Old Style)
1
0499000050
Rocker Switch 2 Position 3 Terminal On-On
1
3899001140
Output Cable and Clamp Black Negative 6 AWG 80" 1
3899001141
Output Cable and Clamp Red Positive 6 AWG 80" 1
3899001968
Output Cable and Clamp Black Negative 6 AWG 83" 1
3899001969
Output Cable and Clamp Red Positive 6 AWG 88"
1
3999000066
Circuit Breaker
1
5399100132
Ammeter Horizontal
1
5399100137
Ammeter Horizontal 0-80 Amp
1
PT21004
John Deere Ammeter Horizontal
1
Sort By:
Page of 1
0099000045 Schumacher Knob For Selector Switches on SE Series Chargers 0099000045 Schumacher Knob For Selector Switches on SE Series Chargers

This Knob is for selector switches on SE Series chargers only, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000062 Schumacher 6" CW Fan Blade 0099000062 Schumacher 6" CW Fan Blade

0099000062 Schumacher 6" CW Fan Blade.

Discontinued
0099000063 Schumacher Fan Motor Open Frame 115 Volt 0099000063 Schumacher Fan Motor Open Frame 115 Volt

Fan Motor Open Frame 115 Volt

Discontinued
0099000094 Schumacher 135 Minute Timer Mechanical with Hold 0099000094 Schumacher 135 Minute Timer Mechanical with Hold

Mechanically controls charging in timed Mode with manual hold mode. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" spade terminals.

Discontinued
0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft 0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft

0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000269 Schumacher Knob For Timer Switches on PS Series Chargers 0099000269 Schumacher Knob For Timer Switches on PS Series Chargers

This Knob is for timers on PS Series chargers only with a 1/2 Shaft, there are separate knobs for selector switches with a 3/4 shaft. Please check your part numbers carefully.

Price $4.62
0099000270 Schumacher Knob For Selector Switches on PS Series Chargers 0099000270 Knob For Selector Switches on PS Series Chargers

This Knob is for selector switches with a 3/4 Shaft only, there are separate knobs for timers with a half shaft. Please check your part numbers carefully.

Discontinued
0499000022 Schumacher 6 Position Rotary Selector Switch 0499000022 Schumacher 6 Position Rotary Selector Switch (Old Style)

6 Position Rotary Selector Switch (5 Terminals). Older Units used this switch and can be identified by the difference in cabinet mounting, this switch uses a threaded collar with jam nut to mount to case.

Discontinued
0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On 0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On

0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On

Discontinued
246-176-666 Switch 2 Position Rocker 16 Amp SPDT 246-176-666 Switch 2 Position Rocker 16 Amp SPDT

SPDT Switch 16 amp Rating Snap-in mount no tools required to install, 1/4 Spade terminals. Original OEM Part Every Time

Price $12.46
316-009-000 Fan Blade 6" 4 Blade CW 316-009-000 Fan Blade 6" 4 Blade CW

Fan Blade 6" 4 Blade CW. Same as 130007-001 Christie

Price $12.85
3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82" 3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82"

Output Cable And Clamp, Black Negative, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 82" long with square strain relief on cable.

Discontinued
3899001141 Schumacher Output Cable And Clamp Red Positive 6 AWG 88" 3899001141 Schumacher Output Cable And Clamp Red Positive 6 AWG 88"

Output Cable And Clamp, Red Positive, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 88" long with square strain relief on cable.

Discontinued
3899001968 Schumacher Output Cable And Clamp Black Negative 6 AWG 83" 3899001968 Schumacher Output Cable And Clamp Black Negative 6 AWG 83"

Output Cable And Clamp, Black Negative, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 83" long with square strain relief on cable.

Discontinued
3899001969 Schumacher Output Cable And Clamp Red Positive 6 AWG 88" 3899001969 Schumacher Output Cable And Clamp Red Positive 6 AWG 88"

Output Cable And Clamp, Red Positive, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 88" long with square strain relief on cable.

Discontinued
3999000066 Discontinued Schumacher Circuit Breaker 3999000066 Schumacher Circuit Breaker

Discontinued Circuit Breaker

Discontinued
51-288 115 Volt Fan Motor With Fan Blade & Mount 51-288 115 Volt Fan Motor With Fan Blade & Mount

51-288 115 Volt Fan Motor With Fan Blade & Mount. .195 diameter shaft. Your unit may not require the mount, in which case discard it.

Discontinued See ASO610190
5100000005 Timer Screw M3 X 5.5 5100000005 Timer Screw M3 X 5.5

5100000005 Screw M3 X 5.5 For Original Timer

Price $0.05

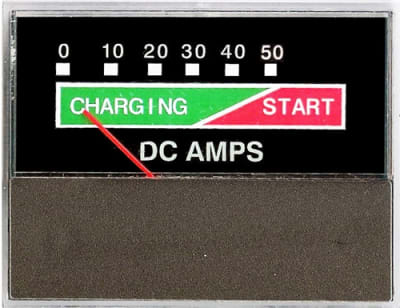

5399100132 Schumacher Ammeter Horizontal 0-50 AMP 5399100132 Schumacher Ammeter Horizontal 0-50 AMP

5399100132 Schumacher Ammeter Horizontal 0-50 AMP features easy snap-in installation, no tools required. Black Charge Rate face. 0-50 Amp range with start. Wire through induction pick-up for greater accuracy.

Price $24.65

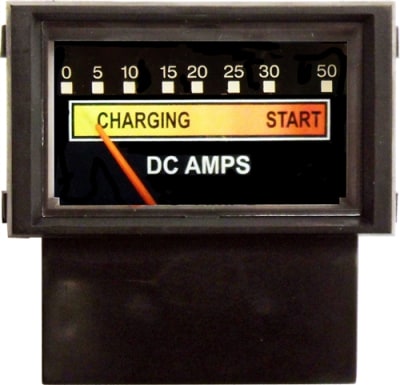

5399100137 Schumacher Ammeter Horizontal 0-50 Amp 5399100137 Schumacher Ammeter Horizontal 0-50 Amp

5399100137 Schumacher Ammeter Horizontal 0-50 AMP features easy snap-in installation, no tools required. Yellow Orage Charge Rate face. 0-30 Amp range For Charge 0-50 Amp Start. Wire through induction pick-up for greater accuracy.

Price $24.65
6094K89 Knob For Schumacher Battery Charger Selector Switches & Timers 6094K89 Knob For Battery Charger Selector Switches & Timers

6094K89 Knob For Battery Charger Selector Switches & Timers. This Knob is for selector switches and timers, designed with 1/4" ID and a set screw for locking onto shaft. Suitable for all 1/4" shaft switches. Replaces Schumacher 0099000045 & 0099000096.

Price $4.65

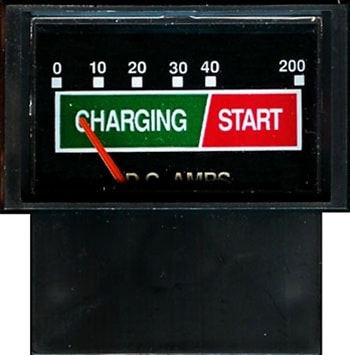

PT21004 John Deere Ammeter Horizontal PT21004 John Deere Ammeter Horizontal

PT21004 John Deere Ammeter Horizontal

Discontinued
S29420-24 Century Battery Charger Clamp Holder S29420-24 Century Battery Charger Clamp Holder

S29420-24 Century Battery Charger Clamp Holder With Screws. Now you can stow your clamps in a safe place that doesn't get in the way, drag the ground or short out. Fits any round or flat bar battery charger handle. If using as a universal fit drilling two holes will be necessary.

Price $14.85
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers.

Price $49.40
