118-023-000 82021 Century 25 amp plasma cutter

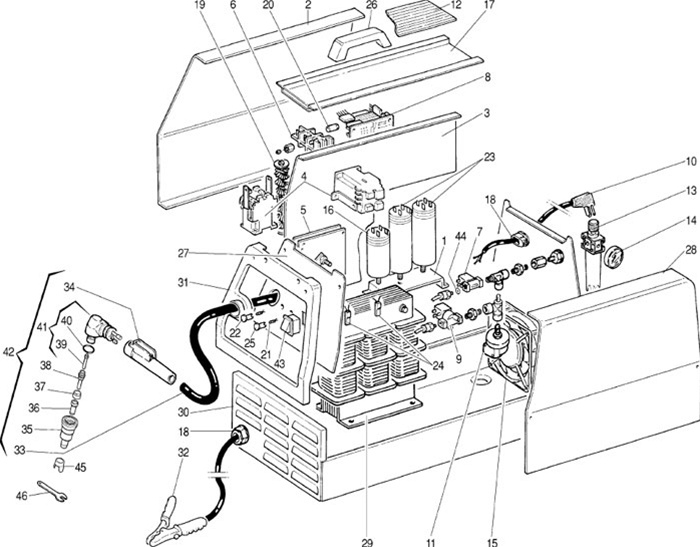

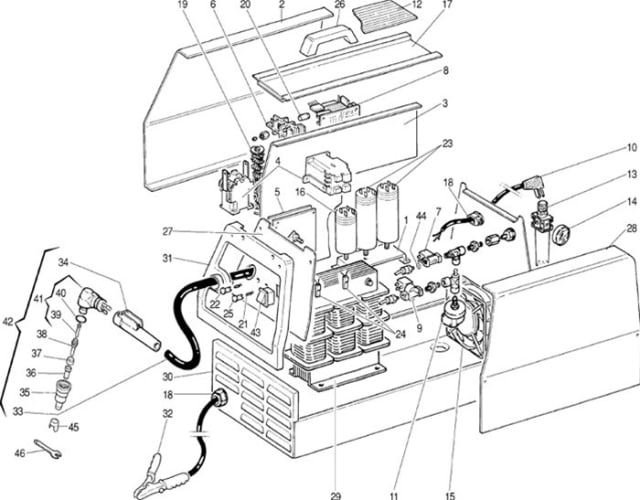

118-023 Replacement Parts List
Item No.
 		Part No.
 		Description
1
 260457
 Support
2
 260460
 Left Side Panel
3
 260459
 Intermediate Plane
4
 B7053370
 Contactor
5
 251146
 Rectifier
6
 B7009380
 Terminal Board
7
 251036
 Solenoid Vlave
8
 5602146
 Control Circuit Board
9
 3160195
 Solenoid Vlave
10
 251150
 Input Cable
11
 B7005380
 Pressure Swtich
12
 260467
 Rubber Mat
13
 B7006380
 Regulator
14
 B7014380
 Gauge
15
 260453
 Fan Motor
16
 260468
 Capacitor
17
 260466
 Top Panel
18
 B7018380
 Strain Relief
19
 B7029380
 Resistance
20
 B7004380
 Joint
21
 5585773
 Lamp
22
 B7015380
 Lamp Holder
23
 251155
 Capacitor
24
 251156
 Thermostat
25
 246251
 Lamp Holder
26
 250975
 Handle
27
Control Panel - 82021


Control Panel - M12155


Control Panel - PCS25
28
 260461
 Right Side Panel
29
 260464
 Transformer
30
 260500
 Bottom
31
 260470
 Front Panel Frame
32
 251159
 Earth / Ground Cable Assembly
33
 5580778
 Torch Cable
34
 B7037380
 Handgrip & Button
35
 334-584-100
 Nozzle Holder / Cap
36
 334-581-100
 Long Nozzle 0.9 mm
37
 334-583-100
 Diffuser or Swirl Ring
38
 334-580-100
 Long Electrode
39
 3065225
 Diffuser
40
 251194
 O-Ring
41
 1346
 Torch Head
42
 1210.18
 Complete Torch Assembly
43
 B7069370
 Switch
44
 3175881
 Limiting Device
45
 334-585-100
 Two-Point Spacer - Standoff
46
 5800818
 Electrode Wrench
