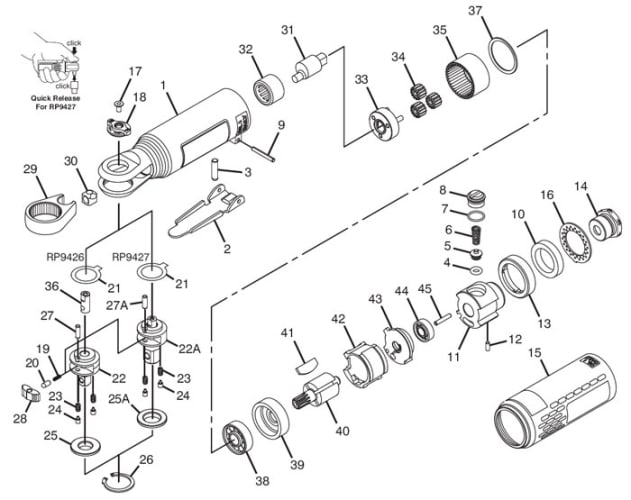

CP9426 Mini Air Ratchet Repair Parts


Index
No.
Part No.
Description
No.
Req'd
1
2050526543
Housing
1
2
2050526553 Trigger
1
3
2050526563 Valve Stem
1
4
2050526573 O-Ring 1
5
2050526583 Discharge Sheet 1
6
2050526593 Discharge Sheet Spring 1
7
2050526603 O-Ring 1
8
2050526613 Discharge Sheet Seal 1
9
2050526623 Spring Pin 1
10
2050526633 Muffler 1
11
2050526643 Valve Unit 1
12
2050526653 Pin 1
13
2050526663 Packing 1
14
2050526673 Air Inlet 1
15
2050526683 Handle Grip 1
16
2050526693 Deflector 1
17
2050526703 Counter Sunk Screw 1
18
2050526713 Reverse Lever A 1
19
2050526723 Reverse Spring
1
20
2050526743 Reverse Pin
1
21
2050526753 Yoke - Washer
1
22
2050526763 Anvil Assembly
1
22A
2050526773 Anvil B Assembly
1
23
2050526783 Thrust Washer Spring
2
24
2050526793 Pin
2
25
2050526803 Anvil - Washer 1
25A
2050526813 Anvil - Washer
1
26
2050526823 In-Concentric Ring
1
27
2050526833
Planet Pin
1
27A
2050526843 Planet Pin
1
28
2050526853 Ratchet Pawl
1
29
2050526863 Yoke
1
30
2050526873 Drive Bushing
1
31
2050526883 Motor Shaft Balancer
1
32
2050526893 Needle Bearing
1
33
2050526903 Planet Cage
1
34
2050526913 Planet Gear
3
35
2050526923 Internal Gear
1
36
2050526933 Reverse Lever B
1
37
2050526943 Spring - Washer
1
38
2050526953 Bearing
1
39
2050526963 Front Bearing Plate
1
40
2050526973 Rotor
1
41
2050526983 Blade Set
4
42
2050526993 Cylinder
1
43
2050527003 Rear End Plate
1
44
2050527013 Bearing
1
45
2050527023 Spring Pin
1
-
2050527033 Tune-Up Kit
(Incl: 4, 5, 6, 7, 20, 21, 23, 24, 26, 41)
-
2050527043 Ratchet Head Replacement Kit (RP9426)
Incl: 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 36)
-
2050527053 Ratchet Head Replacement Kit (RP9427)
(Incl: 19, 20, 21, 22A, 23, 24, 25A, 26, 27A, 28)
Sort By:
Page of 1
2050526543 Chicago Pneumatic Housing
2050526543 Chicago Pneumatic Housing
Price $39.14

2050526543 Chicago Pneumatic Housing more info
2050526553 Chicago Pneumatic Trigger
2050526553 Chicago Pneumatic Trigger
Price $4.12

2050526553 Chicago Pneumatic Trigger more info
2050526563 Chicago Pneumatic Valve Stem
2050526563 Chicago Pneumatic Valve Stem
Price $2.06

2050526563 Chicago Pneumatic Valve Stem more info
2050526573 Chicago Pneumatic O-Ring
2050526573 Chicago Pneumatic O-Ring
Price $2.06

2050526573 Chicago Pneumatic O-Ring more info
2050526583 Chicago Pneumatic Discharge Sheet
2050526583 Chicago Pneumatic Discharge Sheet
Price $2.06

2050526583 Chicago Pneumatic Discharge Sheet more info
2050526593 Chicago Pneumatic Discharge Sheet Spring
2050526593 Chicago Pneumatic Discharge Sheet Spring
Price $2.06

2050526593 Chicago Pneumatic Discharge Sheet Spring more info
2050526603 Chicago Pneumatic O-Ring
2050526603 Chicago Pneumatic O-Ring
Price $2.06

2050526603 Chicago Pneumatic O-Ring more info
2050526613 Chicago Pneumatic Discharge Sheet Seal
2050526613 Chicago Pneumatic Discharge Sheet Seal
Price $4.12

2050526613 Chicago Pneumatic Discharge Sheet Seal more info
2050526623 Chicago Pneumatic Spring Pin
2050526623 Chicago Pneumatic Spring Pin
Price $1.63

2050526623 Chicago Pneumatic Spring Pin more info
2050526633 Chicago Pneumatic Muffler
2050526633 Chicago Pneumatic Muffler
Price $2.06

2050526633 Chicago Pneumatic Muffler more info
2050526643 Chicago Pneumatic Valve Unit
2050526643 Chicago Pneumatic Valve Unit
Price $19.57

2050526643 Chicago Pneumatic Valve Unit more info
2050526653 Chicago Pneumatic Pin
2050526653 Chicago Pneumatic Pin
Price $2.06

2050526653 Chicago Pneumatic Pin more info
2050526663 Chicago Pneumatic Packing
2050526663 Chicago Pneumatic Packing
Price $7.21

2050526663 Chicago Pneumatic Packing more info
2050526673 Chicago Pneumatic Air Inlet
2050526673 Chicago Pneumatic Air Inlet
Price $4.12

2050526673 Chicago Pneumatic Air Inlet more info
2050526683 Chicago Pneumatic Handle Grip
2050526683 Chicago Pneumatic Handle Grip
Price $3.09

2050526683 Chicago Pneumatic Handle Grip more info
2050526693 Chicago Pneumatic Deflector
2050526693 Chicago Pneumatic Deflector
Price $2.06

2050526693 Chicago Pneumatic Deflector more info
2050526703 Chicago Pneumatic Counter Sunk Screw
2050526703 Chicago Pneumatic Counter Sunk Screw
Price $1.77

2050526703 Chicago Pneumatic Counter Sunk Screw more info
2050526713 Chicago Pneumatic Reverse Lever A
2050526713 Chicago Pneumatic Reverse Lever A
Price $1.77

2050526713 Chicago Pneumatic Reverse Lever A more info
2050526723 Chicago Pneumatic Reverse Spring
2050526723 Chicago Pneumatic Reverse Spring
Price $2.06

2050526723 Chicago Pneumatic Reverse Spring more info
2050526743 Chicago Pneumatic Reverse Pin
2050526743 Chicago Pneumatic Reverse Pin
Price $2.06

2050526743 Chicago Pneumatic Reverse Pin more info
2050526753 Chicago Pneumatic Yoke-Washer
2050526753 Chicago Pneumatic Yoke-Washer
Price $2.06

2050526753 Chicago Pneumatic Yoke-Washer more info
2050526763 Chicago Pneumatic Anvil Assembly
2050526763 Chicago Pneumatic Anvil Assembly
Price $12.36

2050526763 Chicago Pneumatic Anvil Assembly more info
2050526773 Chicago Pneumatic Anvil Assembly
2050526773 Chicago Pneumatic Anvil Assembly
Price $19.57

2050526773 Chicago Pneumatic Anvil Assembly more info
2050526783 Chicago Pneumatic Thrust Washer Spring
2050526783 Chicago Pneumatic Thrust Washer Spring
Price $2.06

2050526783 Chicago Pneumatic Thrust Washer Spring more info
2050526793 Chicago Pneumatic Pin
2050526793 Chicago Pneumatic Pin
Price $2.06

2050526793 Chicago Pneumatic Pin more info
2050526803 Chicago Pneumatic Anvil-Washer
2050526803 Chicago Pneumatic Anvil-Washer
Price $3.09

2050526803 Chicago Pneumatic Anvil-Washer more info
2050526813 Chicago Pneumatic Anvil-Washer
2050526813 Chicago Pneumatic Anvil-Washer
Price $2.06

2050526813 Chicago Pneumatic Anvil-Washer more info
2050526823 Chicago Pneumatic In-Concentric Ring
2050526823 Chicago Pneumatic In-Concentric Ring
Price $2.06

2050526823 Chicago Pneumatic In-Concentric Ring more info
2050526833 Chicago Pneumatic Planet Pin
2050526833 Chicago Pneumatic Planet Pin
Price $2.06

2050526833 Chicago Pneumatic Planet Pin more info
2050526843 Chicago Pneumatic Planet Pin
2050526843 Chicago Pneumatic Planet Pin
Price $2.06

2050526843 Chicago Pneumatic Planet Pin more info
2050526853 Chicago Pneumatic Ratchet Pawl
2050526853 Chicago Pneumatic Ratchet Pawl
Price $4.12

2050526853 Chicago Pneumatic Ratchet Pawl more info
2050526863 Chicago Pneumatic Yoke
2050526863 Chicago Pneumatic Yoke
Price $11.33

2050526863 Chicago Pneumatic Yoke more info
2050526873 Chicago Pneumatic Drive Bushing
2050526873 Chicago Pneumatic Drive Bushing
Price $4.12

2050526873 Chicago Pneumatic Drive Bushing more info
2050526883 Chicago Pneumatic Moter Shaft Blancer
2050526883 Chicago Pneumatic Moter Shaft Blancer
Price $7.21

2050526883 Chicago Pneumatic Moter Shaft Blancer more info
2050526893 Chicago Pneumatic Needle Bearing
2050526893 Chicago Pneumatic Needle Bearing
Price $5.15

2050526893 Chicago Pneumatic Needle Bearing more info
2050526903 Chicago Pneumatic Planet Cage
2050526903 Chicago Pneumatic Planet Cage
Price $3.09

2050526903 Chicago Pneumatic Planet Cage more info
2050526913 Chicago Pneumatic Planet Gear
2050526913 Chicago Pneumatic Planet Gear
Price $4.12

2050526913 Chicago Pneumatic Planet Gear more info
2050526923 Chicago Pneumatic Internal Gear
2050526923 Chicago Pneumatic Internal Gear
Price $6.18

2050526923 Chicago Pneumatic Internal Gear more info
2050526933 Chicago Pneumatic Reverse Lever B
2050526933 Chicago Pneumatic Reverse Lever B
Price $3.09

2050526933 Chicago Pneumatic Reverse Lever B more info
2050526943 Chicago Pneumatic Spring-Washer
2050526943 Chicago Pneumatic Spring-Washer
Price $2.06

2050526943 Chicago Pneumatic Spring-Washer more info
2050526963 Chicago Pneumatic Front Bearing Plate
2050526963 Chicago Pneumatic Front Bearing Plate
Price $6.18

2050526963 Chicago Pneumatic Front Bearing Plate more info
2050526973 Chicago Pneumatic Rotor
2050526973 Chicago Pneumatic Rotor
Price $14.42

2050526973 Chicago Pneumatic Rotor more info
2050526983 Chicago Pneumatic Blade Set (4)
2050526983 Chicago Pneumatic Blade Set (4)
Price $3.09

2050526983 Chicago Pneumatic Blade Set (4) more info
2050526993 Chicago Pneumatic Cylinder
2050526993 Chicago Pneumatic Cylinder
Price $27.81

2050526993 Chicago Pneumatic Cylinder more info
2050527003 Chicago Pneumatic Rear End Plate
2050527003 Chicago Pneumatic Rear End Plate
Price $6.18

2050527003 Chicago Pneumatic Rear End Plate more info
2050527013 Chicago Pneumatic Bearing
2050527013 Chicago Pneumatic Bearing
Price $11.33

2050527013 Chicago Pneumatic Bearing more info
2050527023 Chicago Pneumatic Spring Pin
2050527023 Chicago Pneumatic Spring Pin
Price $2.06

2050527023 Chicago Pneumatic Spring Pin more info
2050527033 Chicago Pneumatic Tune Up Kit (Cp9426)
2050527033 Chicago Pneumatic Tune Up Kit (Cp9426)
Price $10.30

2050527033 Chicago Pneumatic Tune Up Kit (Cp9426) more info
2050527043 Chicago Pneumatic Tune Up Kit (Cp9426)
2050527043 Chicago Pneumatic Tune Up Kit (Cp9426)
Price $27.81

2050527043 Chicago Pneumatic Tune Up Kit (Cp9426) more info
2050527053 Chicago Pneumatic Ratchet Head Replacement Kit
2050527053 Chicago Pneumatic Ratchet Head Replacement Kit
Price $29.87

2050527053 Chicago Pneumatic Ratchet Head Replacement Kit more info
CP9426 Chicago Pneumatic 1/4" Ratchet Wrench Mini
CP9426 Chicago Pneumatic 1/4" Ratchet Wrench Mini
Price $118.85

CP9426 1/4" Ratchet Wrench Mini - This mini ratchet is a dynamo with the most power in the class and only 5.1" in length. This is the ideal tool for all of your confined space applications. more info
