Chicago Pneumatic CP782 Screwdriver Repair Parts


Index
No.
Part No. Description No.
Req'd
1 C148855 Ring - Retainer 3
2 C148856 Washer 1
3 C148857 Spring - Retainer 1
4 C148858 Retainer - Ball 1
5 C148859 Cover - Adjustment 1
6 C148860 Housing - Clutch 1
7 C148861 Spacer 1
8 C148862 Nut - Sdjustment 1
9 C148863 Washer 1
10 C148864 Spring (Standard) 1
11 C148865 Washer - Thrust 1
12 C148866 Ball - Steel (0.125" dia) 4
13 C148867 Clutch - Carrier 1
14 S000821 Ball - Steel 1
15 C148868 Spindle - Cam 1
16 C148869 Wiper 1
17 C148870 Ring - Retaining 1
18 C148871 Dog - Drive 1
19 C148872 Nut - Clamp 1
20 S014490 Bearing - Ball 1
21 C148803 Plate - Steel 1
22 KF137282 Gear - Internal 1
23 C148873 Pin - Guide 1
24 C148874 Spring - Guide Pin 1
25 C148875 Carrier
Incl Index No: 61
1
26 KF134281 Gear - Idler
Incl Index No: 62
3
27 CA146095 Spacer 1
28 S025101 Bearing - Ball 1
29 CA146096 Plate - Rear End 2
30 CA146097 Rotor 1
31 CA145709 Blade - Rotor 5
32 CA146098 Liner 1
33 KF131295 Pin - Liner Dowel 1
34 KF137287 Ring - Retainer 1
35 CA146099 Gasket - Motor 1
36 C148783 Housing - Motor 1
37 C148787 Valve - Reverse 1
38 C148793 Spring - Reverse 1
39 C148788 Bushing - Reverse Valve 1
40 C148804 Screw - Valve 1
41 P083071 O-Ring (-011) 1
42 C148794 Retainer - Reverse 1
43 C136940 Spring - Valve 1
44 C148786 Valve 1
45 C148785 Pin - Valve 1
46 KF137213 Pin - Roll 1
47 C148784 Lever - Throttle 1
48 C114089 Pin - Roll 1
49 C148792 Gasket - Housing 1
50 C148805 Muffler 1
51 C148791 Cap - Housing 1
52 C148800 Screw 2
53 KF125475 Sleeve - Exhaust 1
54 C148789 O-Ring 1
55 P092536 O-Ring (-020) 1
56 C148790 Bushing - Air Inlet 1
57 CA146112 Screen 1
58 C148806 Hanger 1
59 C148876 Ball - Steel 4
60 CA146619 Decal - Safety Warning 1
61 C148796 Pin - Idler Gear 1
62 C148797 Bushing - Idler Gear 1
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $3.41
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C114089 Chicago Pneumatic Pin-Roll .125x.875 C114089 Chicago Pneumatic Pin-Roll .125x.875

C114089 Chicago Pneumatic Pin-Roll .125x.875

Price $5.66
C148783 Chicago Pneumatic Housing-Motor C148783 Chicago Pneumatic Housing-Motor

C148783 Chicago Pneumatic Housing-Motor

Price $129.75
C148784 Chicago Pneumatic Lever-Throttle C148784 Chicago Pneumatic Lever-Throttle

C148784 Chicago Pneumatic Lever-Throttle

Price $5.35
C148785 Chicago Pneumatic Pin-Valve C148785 Chicago Pneumatic Pin-Valve

C148785 Chicago Pneumatic Pin-Valve

Price $3.89
C148786 Chicago Pneumatic Valve C148786 Chicago Pneumatic Valve

C148786 Chicago Pneumatic Valve

Price $5.41
C148787 Chicago Pneumatic Valve-Reverse C148787 Chicago Pneumatic Valve-Reverse

C148787 Chicago Pneumatic Valve-Reverse

Price $36.86
C148788 Chicago Pneumatic Bushing-Rev Valve C148788 Chicago Pneumatic Bushing-Rev Valve

C148788 Chicago Pneumatic Bushing-Rev Valve

Price $51.61
C148789 Chicago Pneumatic O-Ring C148789 Chicago Pneumatic O-Ring

C148789 Chicago Pneumatic O-Ring

Price $3.89
C148790 Chicago Pneumatic Bushing C148790 Chicago Pneumatic Bushing

C148790 Chicago Pneumatic Bushing

Price $12.65
C148791 Chicago Pneumatic Housing Cap C148791 Chicago Pneumatic Housing Cap

C148791 Chicago Pneumatic Housing Cap

Price $30.96
C148792 Chicago Pneumatic Gasket-Housing C148792 Chicago Pneumatic Gasket-Housing

C148792 Chicago Pneumatic Gasket-Housing

Price $3.88
C148793 Chicago Pneumatic Spring-Reverse C148793 Chicago Pneumatic Spring-Reverse

C148793 Chicago Pneumatic Spring-Reverse

Price $3.88
C148794 Chicago Pneumatic Retainer-Reverse C148794 Chicago Pneumatic Retainer-Reverse

C148794 Chicago Pneumatic Retainer-Reverse

Price $3.89
C148800 Chicago Pneumatic Screw C148800 Chicago Pneumatic Screw

C148800 Chicago Pneumatic Screw

Price $3.89
C148803 Chicago Pneumatic Seal-Plate C148803 Chicago Pneumatic Seal-Plate

C148803 Chicago Pneumatic Seal-Plate

Price $3.89
C148805 Chicago Pneumatic Muffler C148805 Chicago Pneumatic Muffler

C148805 Chicago Pneumatic Muffler

Price $3.89
C148806 Chicago Pneumatic Hanger C148806 Chicago Pneumatic Hanger

C148806 Chicago Pneumatic Hanger

Price $11.07
C148855 Chicago Pneumatic Ring-Retaining C148855 Chicago Pneumatic Ring-Retaining

C148855 Chicago Pneumatic Ring-Retaining

Price $3.89
C148856 Chicago Pneumatic Washer C148856 Chicago Pneumatic Washer

C148856 Chicago Pneumatic Washer

Price $5.40
C148857 Chicago Pneumatic Spring C148857 Chicago Pneumatic Spring

C148857 Chicago Pneumatic Spring

Price $3.87
C148858 Chicago Pneumatic Retainer-Ball C148858 Chicago Pneumatic Retainer-Ball

C148858 Chicago Pneumatic Retainer-Ball

Price $15.83
C148859 Chicago Pneumatic Cover-Adjustment C148859 Chicago Pneumatic Cover-Adjustment

C148859 Chicago Pneumatic Cover-Adjustment

Price $8.71
C148860 Chicago Pneumatic Housing-Clutch C148860 Chicago Pneumatic Housing-Clutch

C148860 Chicago Pneumatic Housing-Clutch

Price $116.48
C148861 Chicago Pneumatic Spacer C148861 Chicago Pneumatic Spacer

C148861 Chicago Pneumatic Spacer

Price $12.61
C148862 Chicago Pneumatic Nut-Adjustment C148862 Chicago Pneumatic Nut-Adjustment

C148862 Chicago Pneumatic Nut-Adjustment

Price $48.66
C148863 Chicago Pneumatic Washer C148863 Chicago Pneumatic Washer

C148863 Chicago Pneumatic Washer

Price $47.16
C148864 Chicago Pneumatic Spring (Standard) C148864 Chicago Pneumatic Spring (Standard)

C148864 Chicago Pneumatic Spring (Standard)

Price $10.13
C148865 Chicago Pneumatic Washer C148865 Chicago Pneumatic Washer

C148865 Chicago Pneumatic Washer

Price $14.23
C148866 Chicago Pneumatic Ball-Steel C148866 Chicago Pneumatic Ball-Steel

C148866 Chicago Pneumatic Ball-Steel

Price $3.89
C148867 Chicago Pneumatic Clutch-Carrier C148867 Chicago Pneumatic Clutch-Carrier

C148867 Chicago Pneumatic Clutch-Carrier

Price $41.30
C148868 Chicago Pneumatic Spindle-Cam C148868 Chicago Pneumatic Spindle-Cam

C148868 Chicago Pneumatic Spindle-Cam

Price $78.16
C148869 Chicago Pneumatic Wiper C148869 Chicago Pneumatic Wiper

C148869 Chicago Pneumatic Wiper

Price $3.89
C148870 Chicago Pneumatic Ring-Retaining C148870 Chicago Pneumatic Ring-Retaining

C148870 Chicago Pneumatic Ring-Retaining

Price $3.87
C148871 Chicago Pneumatic Dog-Drive C148871 Chicago Pneumatic Dog-Drive

C148871 Chicago Pneumatic Dog-Drive

Price $33.89
C148872 Chicago Pneumatic Nut-Clamp C148872 Chicago Pneumatic Nut-Clamp

C148872 Chicago Pneumatic Nut-Clamp

Price $53.07
C148873 Chicago Pneumatic Pin-Guide C148873 Chicago Pneumatic Pin-Guide

C148873 Chicago Pneumatic Pin-Guide

Price $3.87
C148874 Chicago Pneumatic Spring C148874 Chicago Pneumatic Spring

C148874 Chicago Pneumatic Spring

Price $3.87
C148876 Chicago Pneumatic Ball-Steel C148876 Chicago Pneumatic Ball-Steel

C148876 Chicago Pneumatic Ball-Steel

Price $8.67
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA145486 Chicago Pneumatic Ball-Reverse Vav Det CA145486 Chicago Pneumatic Ball-Reverse Vav Det

CA145486 Chicago Pneumatic Ball-Reverse Vav Det

Price $3.86
CA145709 Chicago Pneumatic Rotor Blade Set (5) CA145709 Chicago Pneumatic Rotor Blade Set (5)

CA145709 Chicago Pneumatic Rotor Blade Set (5)

Price $20.66
CA146095 Chicago Pneumatic Spacer CA146095 Chicago Pneumatic Spacer

CA146095 Chicago Pneumatic Spacer

Price $15.83
CA146096 Chicago Pneumatic Plate-Rear End CA146096 Chicago Pneumatic Plate-Rear End

CA146096 Chicago Pneumatic Plate-Rear End

Price $26.58
CA146097 Chicago Pneumatic Rotor CA146097 Chicago Pneumatic Rotor

CA146097 Chicago Pneumatic Rotor

Price $75.18
CA146098 Chicago Pneumatic Liner CA146098 Chicago Pneumatic Liner

CA146098 Chicago Pneumatic Liner

Price $76.68
CA146099 Chicago Pneumatic Gasket-Motor CA146099 Chicago Pneumatic Gasket-Motor

CA146099 Chicago Pneumatic Gasket-Motor

Discontinued
CA146112 Chicago Pneumatic Screen CA146112 Chicago Pneumatic Screen

CA146112 Chicago Pneumatic Screen

Price $7.11
CA146619 Chicago Pneumatic Decal-Safety Warning CA146619 Chicago Pneumatic Decal-Safety Warning

CA146619 Chicago Pneumatic Decal-Safety Warning

Price $3.89
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86

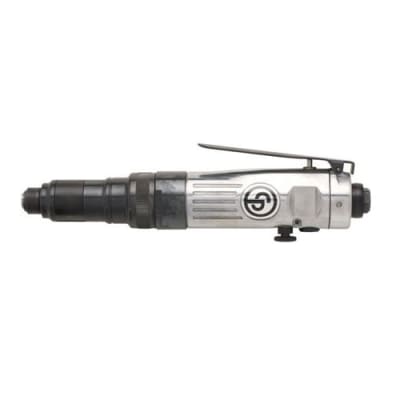

CP782 Chicago Pneumatic In-Line Screwdriver High Torque CP782 Chicago Pneumatic In-Line Screwdriver High Torque
