Robinair 41400 Series Manifold Stem Repair Diagram



Robinair Model #
Robinair 41400 Four-Way Manifold (no hoses)
Robinair 13146 Four-Way Manifold includes (3) Standard 60 Hoses and (1) 3/8 Yellow 60 Enviro-Guard Hose
Robinair 41460 Four-Way Manifold includes (3) Color-Coded Enviro-Guard Hoses and (1) 3/8 Black Enviro-Guard Hose


Illus. #

Part #

Description

1

11794

Compound Gauge

2

11795

Pressure Gauge

3

41691

Manifold Holster

4

41697

Replacement Hook Assembly

5

41464

Replacement Stem Assembly

6

41462

Replacement Black Hand Wheel

7

41698

Replacement Red/Blue Hand Wheels

N/S

118550

Drive Screw / Stem Assy.

N/S

31060

Yellow " Standard 60" Hose (41450)

N/S

32060

Blue " Standard 60" Hose (41450)

N/S

33060

Red " Standard 60" Hose (41450)

N/S

36060

Yellow 3/8" Enviro-Guard 60" Hose (41450)

N/S

68160A

Yellow " Enviro-Guard 60" Hose (41460)

N/S

68260A

Blue " Enviro-Guard 60" Hose (41460)

N/S

68360A

Red " Enviro-Guard 60" Hose (41460)

N/S

68060

Black 3/8" Enviro-Guard 60" Hose (41460)

N/S

40083

Replacement " Hose Gaskets (pkg. of 6)

N/S

40084

Replacement 3/8" Hose Gaskets (pkg. of 6)

N/S

118039

Pressure/Temperature Chart

N/S

119015

Hose Holder Assembly



Sort By:
Page of 1
114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each)
114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each)
Discontinued See 40083

These gaskets fit 1/4" flare and 1/2 ACME standard hose fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become crushed over time resulting in poor flow or restriction due to swelling. These are standard for some other vendors hoses as well. more info
11724 Robinair Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar
11724 Robinair Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar
Price $22.68

Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar pressure readings, R22/404A/410A temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar
11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar
Price $22.68

11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar pressure readings, R22/R404A/R410A 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11734 Robinair Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar
11734 Robinair Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar
Price $22.68

Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar pressure readings, R12/22/502 -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar
11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar
Price $22.68

11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11744 Robinair Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar
11744 Robinair Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar
Price $22.68

Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar pressure readings, R134a/404A/507 -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar
11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar
Price $22.68

11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar pressure readings, R134A/R404A/R507 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11754 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar
11754 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar
Price $22.68

Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar pressure readings, R22/134a/404A -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar
11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar
Price $22.68

11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11794 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 120 Psi/Bar
11794 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 120 Psi/Bar
Price $22.68

Low Side Universal Replacement Compound Gauge -30" to 120 Psi/Bar, Psi/kPa pressure readings, R-22 and R-134a temperature readings in degrees Celsius, Replaces 11692. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11795 Robinair High Side Universal Replacement Gauge 0-500 R22/134a Psi/Bar
11795 Robinair High Side Universal Replacement Gauge 0-500 R22/134a Psi/Bar
Price $22.68

11795 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar pressure readings, R22/134A 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. Replaces 11693 more info
11796 Robinair Gauge Lens 1/4 Turn
11796 Robinair Gauge Lens 1/4 Turn
Price $19.10

Replacement gauge lens, quarter turn on-off. Designed for ashcroft style gauges. Made of durable lexan for long life. 2.75" diameter. more info
11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar
11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar
Price $22.68

11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar pressure readings, R22/134a -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar
11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar
Price $22.68

11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in either PSI or BAR. more info
118039 Robinair Refrigerant Pressure Temperature Chart
118039 Robinair Refrigerant Pressure Temperature Chart
Price $10.40

Refrigerant Pressure Temperature Chart For 41600 Series Manifolds or Universal Application. Lists 12 refrigerants including R-12, R-22, R-134A, R-410A, R-502, R-401A, R-401B, R-402A, R-402B, R-404A Fits conveniantly on the rear of 41400, 41600, 40100 series gauges with protector. more info
118550 Robinair Drive Screw For 41400 Series Manifolds
118550 Robinair Drive Screw For 41400 Series Manifolds
Price $11.45

118550 Robinair Drive Screw For 41400 Series Manifolds more info
13149 Robinair Low Side Compound Refrigerant Manifold Gauge R410a -30 To 250 Psi
13149 Robinair Low Side Compound Refrigerant Manifold Gauge R410a -30 To 250 Psi
Price $22.68

Low Side Compound Refrigerant Manifold Gauge R410a -30 To 250 Psi pressure readings, R410a temperature scale. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in F and pressure is displayed in PSI.

more info
31036 Robinair 36in. Standard Yellow Hose 1/4 FFL X 1/4 FFL Standard Fittings
31036 Robinair 36in. Standard Yellow Hose 1/4 FFL X 1/4 FFL Standard Fittings
Price $16.41

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI. more info
31060 Robinair 60in. Standard Yellow Hose 1/4 FFL X 1/4 FFL Standard Fittings
31060 Robinair 60in. Standard Yellow Hose 1/4 FFL X 1/4 FFL Standard Fittings
Price $20.33

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI. more info
32060 Robinair 60in. Standard Blue Hose 1/4 FFL X 1/4 FFL Standard Fittings
32060 Robinair 60in. Standard Blue Hose 1/4 FFL X 1/4 FFL Standard Fittings
Price $23.46

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI. more info
33036 Robinair 36" Standard Red Hose 1/4 FFL X 1/4 FFL Standard Fittings
33036 Robinair 36" Standard Red Hose 1/4 FFL X 1/4 FFL Standard Fittings
Price $19.55

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI. more info
40001 Robinair Flexible Protective Holster For 41600 Series Manifolds (Blue)
40001 Robinair Flexible Protective Holster For 41600 Series Manifolds (Blue)
Discontinued

This flexible holster provides protection against the bumps and knocks of everyday use. A Pressure Temperature Chart stores in a slot on the back, giving multiple refrigerant capability. more info
40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6)
40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6)
Price $13.88

These gaskets fit 1/4" flare and 1/2 ACME standard fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become smashed over time resulting in poor flow. more info
40084 Robinair Gaskets For 3/8 Charging Hose (Pkg. Of 6)
40084 Robinair Gaskets For 3/8 Charging Hose (Pkg. Of 6)
Price $13.88

Gaskets For 3/8" Charging Hose (Pkg. Of 6) more info
40449 Robinair Red And Blue Lexan Manifold Handwheels
40449 Robinair Red And Blue Lexan Manifold Handwheels
Price $13.88

Robinair Red And Blue Lexan Manifold Handwheels, Wagon Wheel Type For Manifold gauge sets and Tube Cutters. Fits on most manifold stems and accessory valves for a universal application and can replace newer barrell style manifold hand wheels. more info

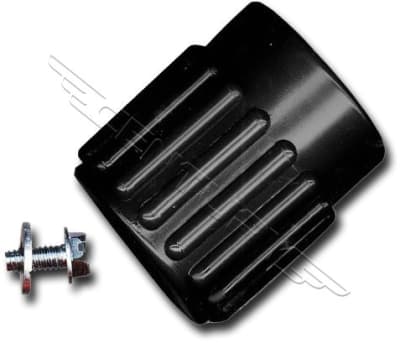

41462 Robinair Black Lexan Manifold Handwheel
41462 Robinair Black Lexan Manifold Handwheel
Price $10.07

Black Lexan Manifold Handwheel Handle For 41400 Series Manifold gauge sets and 13984, 13986 Tube Cutters. Fits on most manifolds stems for a universal application and can replace older wagon wheel style manifold hand wheels. more info
41464 Robinair Stem Assembly For 41400 Series Manifolds
41464 Robinair Stem Assembly For 41400 Series Manifolds
Discontinued

Stem Assembly For 41400 Series Manifolds. includes stem, o-rings and spring. For best results always lubricate with vacuum grease before assembly. more info
41675 Robinair Low Side Compound Gauge For 41670 Discontinued See 13149
41675 Robinair Low Side Compound Gauge For 41670
Discontinued See 13149

Low Side High Pressure Replacement Gauge 0-250, retard at 500,  Psi pressure readings, Vibration Free Gauge, R-410A temperature readings in degrees Fahrenheit on the gauge face. 1/8" MPT threaded mount. 41675 Robinair Low Side Compound Gauge For 41670 Discontinued See 13149 more info
41676 Robinair High Side High Pressure Gauge For 41670
41676 Robinair High Side High Pressure Gauge For 41670
Price $22.68

High Side High Pressure Replacement Gauge 0-800, Psi pressure readings, Vibration Free Gauge, R-410A temperature readings in degrees Fahrenheit on the gauge face. 1/8" MPT threaded mount.

more info
41691 Robinair Flexible Protective Holster For 41600 Series Manifolds (Black)
41691 Robinair Protective Holster For 41600 Series Manifolds (Black)
Discontinued See 40001

This flexible holster provides protection against the bumps and knocks of everyday use. A Pressure Temperature Chart stores in a slot on the back, giving multiple refrigerant capability. (Black) more info
41697 Robinair Hook Assembly For 41600 Series Manifold Gauge Sets
41697 Robinair Hook Assembly For 41600 Series Manifold Gauge Sets
Price $19.10

Hook Assembly For 41600 Series Manifold Gauge Sets is constructed of steel with a brass threaded locking nut. more info
41698 Robinair Red And Blue Lexan Manifold Handwheels
41698 Robinair Red And Blue Lexan Manifold Handwheels
Price $19.97

Robinair Red And Blue Lexan Manifold Handwheels, Barrel Type For Manifold gauge sets and Tube Cutters. Fits on most manifolds stems for a universal application and can replace older wagon wheel style manifold hand wheels. more info
68060 Robinair 3/8 60" Black Enviro-Guard Hose Standard Fitting
68060 Robinair 3/8 60" Black Enviro-Guard Hose Standard Fitting
Price $49.80

These larger diameter hoses reduce pull-down time by as much as 40%. Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure. more info
68160A Robinair 60in. Yellow Enviro-Guard Hose 45 Degree Quick Seal Fitting
68160A Robinair 60in. Yellow Enviro-Guard Hose 45 Degree Quick Seal Fitting
Discontinued

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure. more info

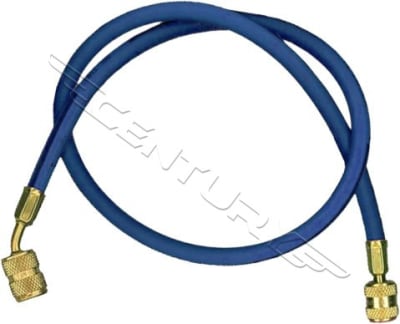

68260A Robinair 60in. Blue Enviro-Guard Hose 45 Degree Quick Seal Fitting
68260A Robinair 60in. Blue Enviro-Guard Hose 45 Degree Quick Seal Fitting
Price $30.20

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure. more info
68360A Robinair 60in. Red Enviro-Guard Hose 45 Degree Quick Seal Fitting
68360A Robinair 60in. Red Enviro-Guard Hose 45 Degree Quick Seal Fitting
Price $30.20

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure. more info
