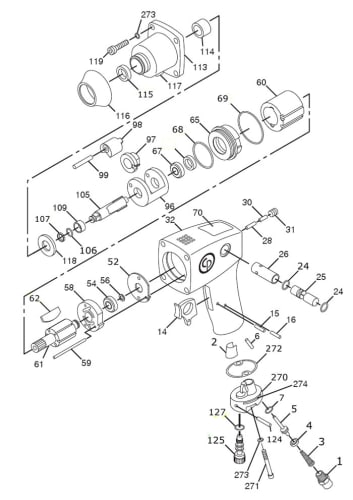

Chicago Pneumatic CP721 Impact Wrench Repair Parts


Index
No.
Part No. Description No.
Req'd
1 CA091545 Bushing - Air Inlet 1
2 CA046590 Screen - Air 1
3 CA046613 Spring - Valve 1
4 CA094885 Retainer - O-Ring 1
5 CA099901 Valve - Throttle 1
6 CA099899 Pin - Push 1
7 C100129 O-Ring 1
14 CA099927 Trigger 1
15 S014764 Pin - Dowel 1
16 CA059034 Pin - Roll 1
24 C069083 O-Ring (-010) 2
25 KF125335 Reverse Valve 1
26 KF125329 Bushing - Reverse Valve 1
28 KF125331 Stop Pin 1
30 KF125332 Spring Detent 1
31 CA116385 Screw - Set (#8 - 32) 1
32 KF130375 Housing - Motor 1
52 KF124219 Gasket - Motor Seal 1
54 S065412 Bearing - Ball 1
56 S082845 Ring - Retaining 1
58 CA092058 Plate - Upper End 1
59 CA094316 Pin - Dowel 1
60 KF124224 Liner 1
61 KF124225 Rotor 1
62 CA094246 Blade - Set (6) 1
65 KF124227 Plate - Front 1
66 C042233 Seal - Oil 1
67 C075878 Bearing - Ball 1
68 C042234 O-Ring 1
69 C084715 O-Ring (-030) 1
70 CA155878 Decal - Warning 1
96 KF136450 Cage - Clutch Dog 1
97 KF136129 Cam - Dog 1
98 KF136131 Dog - Clutch 1
99 KF136449 Pin - Clutch Dog 1
105 KF136451 Shank - Anvil 1
106 CA119716 O-Ring 1
107 CA092093 Retainer - Socket 1
109 KF136452 Bushing - Dog Cage 1
113 KF130431 Housing - Clutch 1
114 KF129209 Bushing - Housing 1
115 C043739 Seal - Oil 1
116 CA092063 Shield 1
117 C102507 Pipe Plug 1
118 KF129210 Washer - Thrust 1
119 C078984 Socket HD Screw 4
124 C056671 Pin - Roll 1
125 CA046691 Regulator - Power (Incl Index No: 127) 1
127 C102551 O-Ring 1
270 KF141312 Block Valve 1
271 C089718 Screw - Hex SKT HD 2
272 CA099895 Gasket - Valve Block 1
273 S091250 Lockwasher 6
274 CA131376 Decal - Oil Daily 1
NS CA144091 Decal - Rotational Direction (Not Shown) 1
Tune-Up Kit CA118880 Incl Index Nos: 7, 24, 52, 62, 66, 68, 69,
106, 107, 115, 127 & 272
Regulator Assy CA127951 Incl Index Nos: 1, 2, 3, 4, 5, 7, 124, 125,
127, 270 & 272
