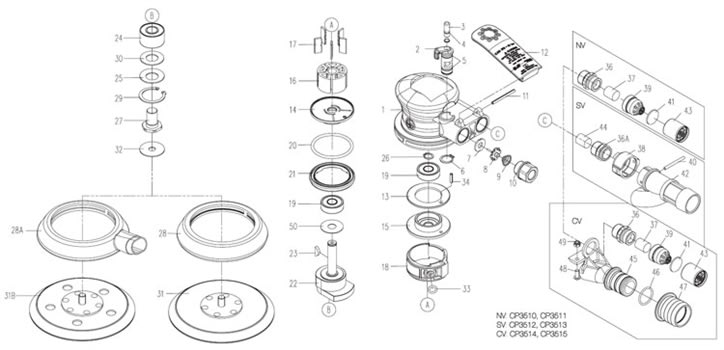

| Index No. | PartNo. | Description | No. Req'd |
| - | 8940168367 | Throttle Kit | |
| 2 | Regulator | 1 | |
| 3 | Valve Stem | 1 | |
| 4 | O-Ring | 1 | |
| 5 | O-Ring | 2 | |
| 6 | Retaining ring | 1 | |
| - | 8940168368 | Valve Seat Kit | |
| 7 | Valve Seat | 1 | |
| 8 | Tip Valve | 1 | |
| 9 | Conical Spring | 1 | |
| - | 8940168369 | Exhaust Kit (forCP3510, CP3511, CP3514, CP3515) | |
| 36 | Muffler Screw | 1 | |
| 37 | Muffler | 1 | |
| 39 | Nozzle | 1 | |
| 41 | Muffler | 1 | |
| 43 | Muffler Cap | 1 | |
| - | 8940168372 | ECO Change Motor KitCP35 | |
| 13 | Front Ring | 1 | |
| 14 | Rear End Plate | 1 | |
| 15 | Front End Plate | 1 | |
| 16 | Rotor | 1 | |
| 17 | 8940163417 | Blades set (5 pcs.) | 1 |
| 18 | Cylinder | 1 | |
| 19 | Bearing | 2 | |
| 20 | 8940163420 | O-Ring | 1 |
| 21 | 8940163421 | Lock Ring | 1 |
| 22 | Motor Shaft Balancer 3/16" (5mm)orbital | 1 | |
| 23 | Rotor Key | 1 | |
| 24 | Bearing | 1 | |
| 25 | Bearing Shield | 1 | |
| 26 | Snap Ring | 1 | |
| 27 | Blalancer Shaft | 1 | |
| 29 | Snap Ring | 1 | |
| 30 | Bearing Seal | 1 | |
| 33 | 8940163435 | O-Ring | 1 |
| 34 | Pin | 1 | |
| 50 | Anti-Dust Washer | 1 | |
| - | - | - | - |
| 1 | 8940163399 | HousingAssembly Red Color | 1 |
| 10 | 8940163409 | Air Inlet | 1 |
| 11 | 8940163494 | Spring Pin | 1 |
| 12 | 8940163411 | Lever 3/16" (5mm) orbital | 1 |
| 31 | 8940166665 | 5"(125mm) Pad PSA w/o hole | 1 |
| - | 8940166666 | 5"(125mm) Pad Hook & Loopw/o hole | 1 |
| 31B | 8940166667 | 5"(125mm) Pad PSA w/ 5 holes(for SV & CV) | 1 |
| - | 8940166668 | 5"(125mm) Pad Hook & Loop w/5 holes (for SV & CV) | 1 |
| 32 | Heat Isolation Washer | 1 | |
| 28 | Skirt | 1 | |
| 28A | Skirt (for SV & CV) | 1 | |
| 36A | Muffler Screw (for CP3512,CP3513) | 1 | |
| 38 | Connector (for CP3512, CP3513) | 1 | |
| 40 | Pin (for CP3512, CP3513) | 1 | |
| 41 | 8940163440 | Muffler | 1 |
| 42 | Vacuum Adapter (for CP3512,CP3513) | 1 | |
| 44 | 8940163447 | Muffler (for CP3512, CP3513) | 1 |
| 45 | Vacuum Adapter (for CP3514,CP3515) | 1 | |
| 46 | O-Ring (for CP3514, CP3515) | 1 | |
| 47 | Revolving Connector (for CP3514,CP3515) | 1 | |
| 48 | Screw (for CP3514, CP3515) | 1 | |
| 49 | U nut (for CP3514, CP3515) | 1 | |
| - | 8940163525 | Pad Wrench (not shown) | 1 |
| - | 8940163495 | Dust Bag Unit (for CP3512,CP3513) (not shown) | 1 |
| - | 8940163497 | Dust Hose (for CP3512, CP3513)(not shown) | 1 |
| - | 8940163220 | Warning label (not shown) | 1 |
| - | 8940163459 | Tune-Up Kit (Incl: 7, 17, 19, 20, 23, 26, 33 & 50) | |
| - | 8940163460 | Maintenance Kit | |
| - | 8940163525 | Pad Wrench (not shown) | 1 |
| - | 8940163579 | Lock Ring Wrench | 1 |
| - | 8940163578 | Motor Extractor | 1 |
