RTI BFX-2 Brake Flush System Equipment Parts

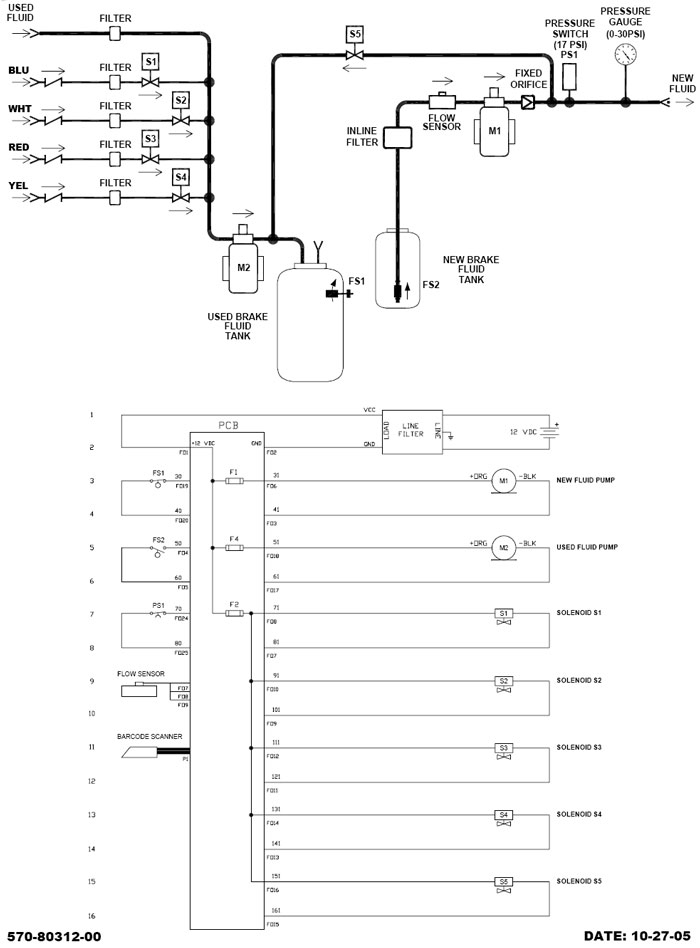

Figure Part Number Description
1 024-80106-00 Keypad Overlay
2 024-80107-00 Circuit Board
3 325-80048-00 Pressure Gauge Assy
4 325-80002-00 Wand Assembly
5 025-80361-00 Manifold 4 Valve 12 VDC 1/4FPT
6 325-80057-00 Pressure Switch 14-17 psi SPST
7 325-80029-00 Supply Pump (with terminals)
8 325-80034-00 Vacuum Pump (with terminals)
9 325-80044-00 Solenoid S5 Assembly
10 026-80389-00 Sight Glass FPT (Nylon)
11 325-80042-00 Flow Sensor Assy (with terminals)
12 026-80325-00 Filter Inline 1/4 Barb 150 Micron
13 022-80133-00 Check Valve 3/16 Barb Nylon
14 023-80344-00 Adapter Brake Nipple x 3/16 Barb
15 024-80099-00 Float Switch Assy for New Bottle
16 025-80364-00 EMI Filter 16A
17 026-80372-00 Filter Inline 3/16 Barb 150 Micron
18 320-80005-00 Cord Power 14/2 Clamps 12 ft
19 325-80004-00 Used Tank Assembly














































Sort By:
Page of 1
024-80099-00 RTI Float Switch New Assy 024-80099-00 RTI Float Switch New Assy

024-80099-00 RTI FLOAT SWITCH NEW ASSY

Price $261.04
024-80106-00 RTI Keypad Overlay 024-80106-00 RTI Keypad Overlay

024-80106-00 RTI Keypad Overlay

Discontinued See 024-80120-00
024-80107-00 RTI Board Circuit 024-80107-00 RTI Board Circuit

024-80107-00 RTI BOARD CIRCUIT

Price $441.51
024-80120-00 RTI Keypad Overlay BFX-2 2006 & Later 024-80120-00 RTI Keypad Overlay BFX-2 2006 & Later

024-80120-00 RTI Keypad Overlay BFX-2 2006 & Later

Price $99.48
BFX Adapter Ba01  Three Tab  Twist On With Expandable O-Ring.  See Catalog 025-88001-00 Mahle BFX Adapter BA01 Three Tab Twist On With Expandable O-ring

BFX Adapter BA01  Three Tab  Twist On With Expandable O-Ring.  Two piece 3 tab with expandable o-rings. One adapter has pressure nipple & the other seals the second brake fluid fill inlet. Fits Chrysler master cylinders with twin twist caps.

Price $115.02
BFX Adapter Ba02  Two Tab  Twist On With Expandable O-Ring  See Catalog 025-88002-00 Mahle BFX Adapter BA02 Two Tab Twist On With Expandable O-ring

BFX Adapter BA02 Two Tab Twist On With Expandable O-Ring. Twist on with 2 tabs & expandable o-ring. Fits Fords master cylinders with twist cap.

Price $105.68
025-88003-00 Mahle BFX Adapter BA03 Three Tab Twist On With Expandable O-ring 025-88003-00 Mahle BFX Adapter BA03 Three Tab Twist On With Expandable O-ring

025-88003-00 Mahle BFX Adapter BA03 Three Tab Twist On With Expandable O-ring. Twist on with 3 tabs & expandable o-ring. Fits Fords and other master
cylinders with twist cap.

Price $105.68
025-88004-00 Mahle BFX Adapter BA04 Three Tab Plastic Twist Cap 025-88004-00 Mahle BFX Adapter BA04 Three Tab Plastic Twist Cap

BFX Adapter BA04 Three Tab Plastic Twist Cap. Twist on with 3 tabs & expandable o-ring. Fits GM master cylinders
with twist cap.

Price $113.30
025-88005-00 Mahle BFX Adapter BA05 For Threaded Master Cylinder Reservoirs 025-88005-00 Mahle BFX Adapter BA05 For Threaded Master Cylinder Reservoirs

BFX Adapter BA05 For Threaded Master Cylinder Reservoirs. Threaded screw cap adapter. Fits European threaded master cylinders. Audi, Porsche, BMW, Mercedes, Volvo, VW, and others.

Price $72.34
025-88006-00 Mahle BFX Adapter BA07 All Vehicles With A Round Master Cylinder 0.800” To 3.150” 025-88006-00 Mahle BFX Adapter BA07 All Vehicles With A Round Master Cylinder 0.800” To 3.150”

BFX Adapter BA07 All Vehicles With A Round Master Cylinder 0.800” To 3.150”. Universal round adapter with chain tension hold down. Fits round master cylinders with a diameter of 0.800” to 3.150”.

Price $166.32
BFX Adapter Ba08  Vehicles With Reservoirs With Round Opening  See Catalog 025-88007-00 Mahle BFX Adapter BA08 Vehicles With Reservoirs With Round Opening 2.11” to 2.17”

BFX Adapter BA08  Vehicles With Reservoirs With Round Opening  See Catalog. Expandable O-ring adapter with hold down chain. Seals the inside of Honda master cylinders with a diameter of 2.11” to 2.17”.

Price $149.70
025-88008-00 Mahle BFX Adapter BA09 Honda Reservoirs With Round Opening 2.91” 025-88008-00 Mahle BFX Adapter BA09 Honda Reservoirs With Round Opening 2.91”

BFX Adapter Ba09  Honda Reservoirs With Round Opening. Expandable O-ring adapter with hold down chain. Seals the inside of Honda master cylinders with a diameter of 2.91”.

Price $149.70
025-88009-00 Mahle BFX Adapter BA010 Toyota Reservoirs With Small Round Opening 1.69” 025-88009-00 Mahle BFX Adapter BA010 Toyota Reservoirs With Small Round Opening 1.69”

BFX Adapter BA010 Toyota Reservoirs With Small Round Opening 1.69”. Expandable O-ring adapter with adjustable hold down tabs. Fits Toyota master cylinders with an inner diameter of 1.69”.

Price $125.34
025-88010-00 Mahle BFX Adapter BA011 Toyota Reservoirs With Large Round Opening 2.75” 025-88010-00 Mahle BFX Adapter BA011 Toyota Reservoirs With Large Round Opening 2.75”

BFX Adapter BA011 Toyota Reservoirs With Large Round Opening. Expandable O-ring adapter with adjustable hold down tabs.
Fits Toyota master cylinders with an inner diameter of 2.75”.

Price $128.26
025-88011-00 Mahle BFX Adapter BA012 Universal Cast 025-88011-00 Mahle BFX Adapter BA012 Universal Cast

BFX Adapter BA012 Universal Cast. Durable plate adapter with 2 hold down chains for rectangular cast iron master cylinders.

Price $211.65
BFX Adapter Kit Ba014  Hydraulic Clutch Flush Kit  See Catalog 025-88012-00 Mahle BFX Adapter Kit BA014 Hydraulic Clutch Flush Kit

BFX Adapter Kit Ba014  Hydraulic Clutch Flush Kit  See Catalog

Price $219.95
BFX Adapter Ba013  Nissan Altima  Xterra 025-88014-00 Mahle BFX Adapter BA013 Nissan Altima Xterra

BFX Adapter Ba013  Nissan Altima  Xterra

Price $123.55
026-80120-01 RTI Gauge Lens Cover 2.5" 026-80120-01 RTI Gauge Lens Cover 2.5"

026-80120-01 RTI Gauge Lens Cover 2.5"

Price $7.76
026-80358-00 RTI Sight Glass W/ Filter 026-80358-00 RTI Sight Glass W/ Filter

026-80358-00 RTI SIGHT GLASS W/ FILTER

Price $19.43
026-80372-00 RTI Inline Filter 3/16 Barb BFX Series 026-80372-00 RTI Inline Filter 3/16 Barb BFX Series

026-80372-00 RTI Inline Filter 3/16 Barb BFX Series

Price $8.88
035-81087-00 RTI Bay Banner Brake Flush 035-81087-00 RTI Bay Banner Brake Flush

Bay Banner Brake Flush

Price $39.71
Complete BFX Adapter Kit 325-80001-00 Mahle BFX Adapter Kit Complete

Complete BFX Adapter Kit

Price $1,231.62
325-80002-00 RTI Wand/Gun Assembly 325-80002-00 RTI Wand/Gun Assembly

Pistol grip is easy to aim for quick and efficient fluid dispensing. Lightweight and easy to handle. Easy trigger action features instant spring adjustment for controlled flow. Get the amount of fluid where you want it with no restrictions, no cut-offs!

Price $86.91
325-80004-00 RTI Tank Used Assy 325-80004-00 RTI Tank Used Assy

325-80004-00 RTI TANK USED ASSY

Price $122.79
325-80010-00 RTI Manifold Assy 325-80010-00 RTI Manifold Assy

325-80010-00 RTI MANIFOLD ASSY

Price $293.76
325-80016-00 RTI Gauge Pressure 325-80016-00 RTI Gauge Pressure

325-80016-00 RTI GAUGE PRESSURE

Price $29.93
325-80022-00 RTI Float Switch Used Assy 325-80022-00 RTI Float Switch Used Assy

325-80022-00 RTI FLOAT SWITCH USED ASSY

Price $74.11
325-80029-00 RTI Supply Pump (BFX-1 BFX-2 BFX-2V BFX200 BFX3 ALL) 325-80029-00 RTI Supply Pump (BFX-1 BFX-2 BFX-2V BFX200 BFX3 ALL)

325-80029-00 RTI Supply Pump (BFX-1 BFX-2 BFX-2V BFX200 BFX3 ALL)

Price $151.98
325-80034-00 RTI Vacuum Pump (BFX-1 BFX-2 BFX-2V BFX200 BFX3 AFTER 8/1/05) 325-80034-00 RTI Vacuum Pump (BFX-1 BFX-2 BFX-2V BFX200 BFX3 AFTER 8/1/05)

325-80034-00 RTI Vacuum Pump (BFX-1 BFX-2 BFX-2V BFX200 BFX3 AFTER 8/1/05)

Price $151.20
325-80042-00 RTI Flow Sensor Assy 325-80042-00 RTI Flow Sensor Assy

325-80042-00 RTI Flow Sensor Assy

Price $339.21
325-80044-00 RTI Solenoid Assy 325-80044-00 RTI Solenoid Assy

325-80044-00 RTI SOLENOID ASSY

Price $64.54
BFX New Fluid Tank  1 Gallon 325-80045-00 Mahle BFX New Fluid Tank 1 gallon

BFX New Fluid Tank  1 Gallon

Price $22.27
360-82284-00 RTI Circuit Board BFX-2V Old Part Number 024 80107 00 360-82284-00 RTI Circuit Board BFX-2V Old Part Number 024 80107 00

Circuit Board BFX-2V Old Part Number 024 80107 00

Price $393.25
360-82286-00 RTI Circuit Board BFX 2 Old Part Number 024 80123 00 360-82286-00 RTI Circuit Board BFX 2 Old Part Number 024 80123 00

Circuit Board BFX 2 Old Part Number 024 80123 00

Price $558.15
425-80009-00 BFX-3 Mahle Brake Flush System 425-80009-00 BFX-3 Mahle Brake Flush System

425-80009-00 Mahle BFX-3 Brake Flush System For Vehicles Requiring Higher Pressure. The new standard for brake flush service—fast, simple, automated, effective and profitable! A special push/pull process flushes the entire system and provides the highest quality service. The BFX-3 does the job right. FluidPRO® BFX-3 Brake Flush System delivers complete brake fluid exchange in a simple, three-step process, unlike most competitive models. Compatible with both ABS & non-ABS brake systems, the BFX-3 is easy operate with service times of 10 minutes. Choose the brake flush system that accelerates your productivity. Backed by the MAHLE name for superior quality, each BFX-2 is crafted for maximum uptime and less maintenance.

Price $4,143.59
