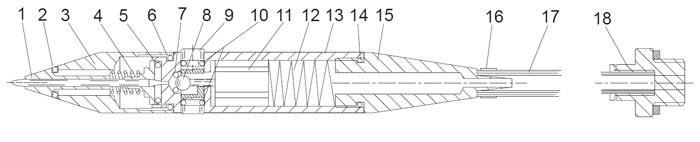

Chicago Pneumatic CP9160 Air Engraver Repair Parts
Index
No. |
Part No. |
Description |
No.
Req'd |
1
|
2050489543
|

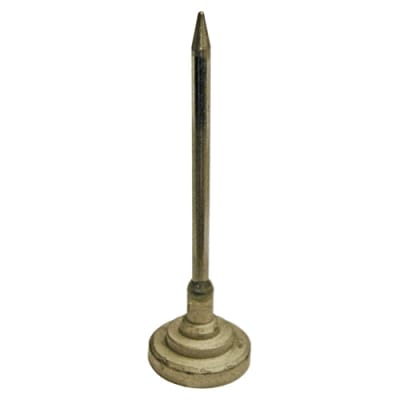

Engraving needle, medium
|
1
|
2
|
2050489553
|
O-Ring (5.6 x 2.0)
|
1
|
3
|
2050489563
|
Front section
|
1
|
4
|
2050489573
|
Spring, front
|
1
|
5
|
2050489583
|
O-Ring (7.66 x 1.78)
|
1
|
6
|
2050489593
|
O-Ring (12.1 x 1.6)
|
1
|
7
|
2050489603
|
O-Ring (2.5 x 1.8)
|
1
|
8
|
2050489613
|
Valve ball
|
1
|
9
|
2050489623
|
Valve piston
|
1
|
10
|
2050489633
|
O-Ring (3.1 x 1.6)
|
2
|
11
|
2050489643
|
Ball guide
|
1
|
12
|
2050489653
|
Spring, rear
|
1
|
13
|
2050489663
|
Housing
|
1
|
14
|
2050489693
|
O-Ring (11.1 x 1.6)
|
1
|
15
|
2050489703
|
Rear section
|
1
|
16
|
2050489713
|
Hose clamp
|
1
|
17
|
2050489723
|
Hose, black
|
1
|
18
|
2050489733
|
Hose connector, 1/4" R
|
1
|
-
|
6158727980
|
Warning label (not shown)
|
1
|
-
|
2050506913
|
Tune-up Kit
(incl 2, 5, 6, 7, 10, 14)
|
|
|
