Ingersoll-Rand 285 1" Drive Air Impact Wrench Repair Parts

IR 285 Parts List
Item Part Number Part Description IR Equivelant
1 8447 Trigger Handle Assembly 285-A92A
2 8472 Plunger Bushing 291-303
3 8473 Reverse Valve Bushing 285-330A
4 8474 Trigger 285-93A
5 8475 Spring Pin 281-437
6 8476 Stop Pin 281-439
7 8477 Slot Cover 281-438
8 8378 Throttle Valve 285-50
9 8460 Throttle Valve Plunger 285-302
10 8377 Throttle Valve Spring 285-51
11 8645 Inlet Bushing 291-A565
14 8402 Reverse Valve Seal 291-338
15 8401 O-Ring 291-566
16 8042 Ball 291-333
17 8458 Reverse Valve Assembly 285-A329
18 8402 Reverse Valve Seal 291-338
19 8480 Stop Pin 291-332
19A 8042 Ball 291-333
20 8043 Spring 291-334
21 8481 Spring Pin 281-120
22 8482 Handle Gasket 285-283
23 8461 Handle Cap Screw (4) 281-638


Handle Cap Screw
24 8483 Lockwasher (4) 291-104
25 8449 Motor Housing 285-40
26 8044 Rear Rotor Bearing 291-24
27 8373 Rear End Plate Assembly 291-A12
28 8484 Pin 291-10
29 8448 Rotor 285-53
30 2144 Vane Packet (set of 6 vanes) 291-42-6
31 8374 Cylinder Assembly 285-A3
32 8485 Cylinder Dowel (2) 291-98
33 8372 Front End Plate 291-11
34 8486 Front Rotor Bearing 58-96
35 8450 Hammer Frame 285-703
36 8228 Hammer Cam 285-721
37 8375 Hammer 285-724
38 8451 Side Plate 285-706
39
Standard Length 1 Square Drive Anvil Assembly 285-A726
39 8376 6 Extended Length 1 Square Drive Anvil Assembly 285-A726-6
39
Standard Length Spline Drive Anvil Assembly 285-A526
39
Spline Drive Anvil Assembly (6 Extended length) 285-A514-6
40 8047 Retainer Ring 291-425
41 8403 Retainer O-Ring 291-426
42 8169 Hammer Case Assembly 285-A727
43 8452 Hammer Case Bushing 291-641
44 8046 Oil Seal 291-642
45
Warning Label WARNING-27-99
46 8381 Hammer Case Gasket 285-36
47 8488 Hammer Case Cap Screw (4) 291-105


Hammer Case Cap Screw
48 8483 Lockwasher (4) 291-104
49
Dead Handle (for 285A) 291-48
49A
Dead Handle (for 285A-6 and 285A-S-6) 281-48-6
50 8489 Dead Handle Cap Screw (4) 291-49
51 8490 Dead Handle Cap Screw Lockwasher (4) 291-504
52
Name Plate 285-6
53
Nameplate Screw (2) 222-302
54 9941 Tune Up Kit (Includes: 8, 10, 14 [2], 15, 16 [16], 20, 22, 26, 30, 34, 40 [291-425], 41 [291-426], 44, 46) 285-TK1


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools
Discontinued See 105-1LB

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants. more info
105-1Lb Ingersoll-Rand 1 Lb. Metallic Housing Impact Wrench Grease
105-1Lb Ingersoll-Rand 1 Lb. Metallic Housing Impact Wrench Grease
Price $27.80

105-1Lb Ingersoll-Rand 1 Lb. Metallic Housing Impact Wrench Grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants. more info
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube
105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube
Price $14.03

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun. more info
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack)
105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)
Price $61.05

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.
more info
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing
Price $36.80

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease. more info
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease
Price $17.71

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants. more info
115-4T Ingersoll Rand Composite Grease 4 oz. Tube
115-4T Ingersoll-Rand Composite Grease 4 oz. Tube
Price $11.44

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun. more info
115-4T-6 Ingersoll-Rand Composite Grease 4 oz. Tube (6 Pack)
115-4T-6 Ingersoll-Rand Composite Grease 4 oz. Tube (6 Pack)
Price $61.05

115-4T Ingersoll Rand Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack)
more info
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit
Price $36.80

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease. more info
285-TK1 Ingersoll Rand Tune-Up Kit For IR285
285-TK1 Ingersoll-Rand Tune-Up Kit For IR285
Discontinued See 9941

285-TK1 Ingersoll Rand Tune-Up Kit For IR285 more info
285B Ingersoll Rand 1” Heavy-Duty Air Impact Wrench
285B Ingersoll-Rand 1" Heavy-Duty Air Impact Wrench
Price $649.95

The - model combines exceptional power, durability and operator convenience. more info
8043  291-334 Reversing Valve Spring
8043 291-334 Reversing Valve Spring
Price $1.64

Made In The USA8043  291-334 Reversing Valve Spring more info
8044  291-24 Bearing Equivalent
8044 291-24 Bearing Equivalent
Price $5.07

Made In The USA8044  291-24 Bearing Equivalent more info
8046  291-642 Hammer case Seal
8046 291-642 Hammer case Seal
Price $7.61

Made In The USA8046  291-642 Hammer case Seal more info
8047  291-425 Socket Retainer 1" Equivalent
8047 291-425 Socket Retainer 1" Equivalent
Price $3.80

Made In The USA8047  291-425 Socket Retainer 1" Equivalent more info
8377  285-51 Spring Equivalent
8377 285-51 Spring Equivalent
Price $2.06

Made In The USA8377  285-51 Spring Equivalent more info
8378  285-50 Throttle Valve Equivalent
8378 285-50 Throttle Valve Equivalent
Price $6.44

Made In The USA8378  285-50 Throttle Valve Equivalent more info
8381  285-36 Hammer Case Gasket Equivalent
8381 285-36 Hammer Case Gasket Equivalent
Price $4.00

Made In The USA8381  285-36 Hammer Case Gasket Equivalent more info
8401  291-566 O-ring
8401 291-566 O-ring
Price $0.63

Made In The USA8401  291-566 O-ring more info
8402  291-338 O-Ring
8402 291-338 O-Ring
Price $0.63

Made In The USA8402  291-338 O-Ring more info
8403  291-426 Socket Retainer O-ring 1"
8403 291-426 Socket Retainer O-ring 1"
Price $0.78

Made In The USA8403  291-426 Socket Retainer O-ring 1" more info
8441 281-48-6  IR Dead Handle (Black)
8441 281-48-6 IR Dead Handle (Black)
Price $29.58

Made In The USA8441 281-48-6  IR Dead Handle (Black) more info
8482  285-283 Handle Gasket
8482 285-283 Handle Gasket
Price $4.95

Made In The USA8482  285-283 Handle Gasket more info
8486  58-96 Bearing Equivalent
8486 58-96 Bearing Equivalent
Price $6.37

Made In The USA8486  58-96 Bearing Equivalent more info

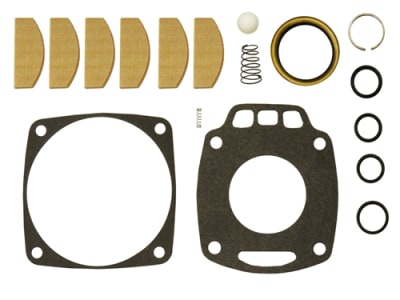

9940  285-TK1 Tune Up Kit Equivalent w/o bearings
9940 285-TK1 Ingersoll-Rand Tune Up Kit Equivalent w/o bearings
Price $39.77

Made In The USA285-TK1 Tune-up Kit (No Bearings). Used On Ingersoll-Rand Models 285, 285A. The kit contains: Rotor Vanes, Reverse Valve Spring, Hammer Case Seal, Socket Retainer, Spring, Throttle Valve, Hammer Case Gasket, O-Rings, Socket Retainer and Handle Gasket. more info

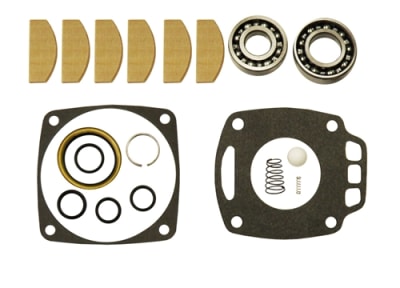

9941  285-TK1 Tune Up Kit Equivalent
9941 285-TK1 Ingersoll-Rand Tune Up Kit Equivalent
Price $41.50

Made In The USA285-TK1 Tune-up Kit . Used On Ingersoll-Rand Models 285, 285A. Kit includes Rotor Vanes, Reverse Valve Spring, Bearings, Hammer Case Seal, Socket Retainer, Spring, Throttle Valve, Hammer Case Gasket, O-Rings, & Handle Gasket. Do Not use on "A" or "B" Versions more info
GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease.
GTH-1 Ingersoll-Rand Grease Tube Head
Price $19.87

GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease. more info
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings
Price $14.50

Made In The USAIngersoll Rand R000A2-228 Push-type hand grease gun for flush-type fittings, holds up to 3 oz of grease. more info
