Chicago Pneumatic CP8252-R Impact Wrench Repair Parts

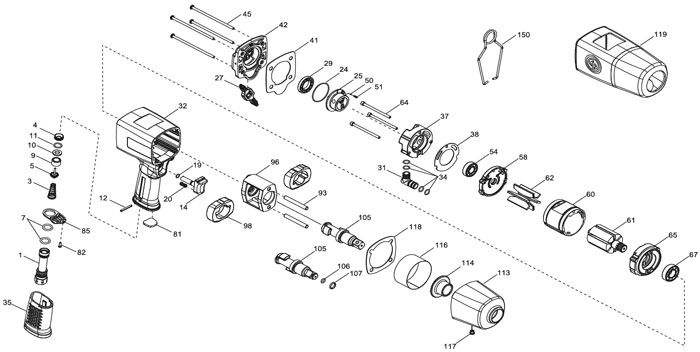

Index
No. 		Part No. Description No.
Req'd
A
 2050556803
 Air Inlet Kit
 -
1
 -
 Inlet bushing
 1
7
 -
 O-Ring 2
12
 -
 Pin
 1
81
 -
 Muffler
 1
82
 -
 Tap bolt
 1
85
 -
 Exhaust - deflector
 1
B
 2050556813
 Throttle Valve Kit
 -
3
 -
 Spring - throttle valve
 1
4
 -
 Insert bushing
 1
5
 -
 Valve - throttle
 1
9
 -
 Bushing
 1
10
 2050520903
 Seal
 1
11
 -
 O-Ring 1
C
 2050557023
 Trigger Kit
 -
14
 -
 Lever - throttle
 1
19
 -
 O-Ring 1
20
 -
 Spring
 1
D
 2050557033
 Reverse / Regulator Valve Kit
 -
24
 -
 O-Ring 1
25
 -
 Reverse lever
 1
27
 -
 Lever - reverse valve
 1
29
 -
 Rear gasket
 1
50
 -
 Steel ball
 1
51
 -
 Spring
 1
E
 2050557043
 Regulator Base Kit
 -
31
 -
 Inlet 1
34
 -
 O-Ring 4
37
 -
 Regulator base
 1
38
 -
 Gasket - regulator base
 1
50
 -
 Steel ball
 1
51
 -
 Spring
 1
64
 -
 Screw
 3
F
 2050557053
 Motor Housing Assembly
 -
32
 -
 Housing - motor
 1
35
 -
 Rubber grip
 1
G
 2050557063
 Rear Cover Kit
 -
41
 -
 Gasket - rear cover
 1
42
 -
 Rear cover
 1
45
 -
 Screw
 4
H
 2050557073
 Motor Rear End Assembly
 -
54
 -
 Bearing
 1
58
 -
 Plate - rear end
 1
I
 2050557083
 Motor Front End Assembly
 -
65
 -
 Plate - front end
 1
67
 -
 Bearing
 1
J1
 2050521363
 1/2"(R) Anvil Assembly (CP8252-R) -
105R
 -
 Anvil
 1
106R
 -
 O-Ring
 1
107R
 -
 Friction ring
 1
J1.1
 2050556923
 Socket Retaining Kit (CP8252-R) -
106
 -
 O-Ring
 5
107
 -
 Friction ring
 5
J2
 2050557093
 1/2"(P) Anvil Assembly (CP8252-P)
 -
105P
 -
 Anvil
 1
K
 2050559223
 Clutch Housing Assembly
 -
113
 -
 Clutch housing (AI)
 1
114
 -
 Bushing - clutch housing
 1
116
 -
 Steel ring
 1
117
 -
 Grease fitting
 1
118
 -
 Gasket - clutch housing
 1
L
 2050557103
 Gasket Kit
 -
38
 -
 Gasket - regulator base
 1
41
 -
 Gasket - rear cover
 1
118
 -
 Gasket - clutch housing
 1
M
 2050557113
 Small Parts Kit
 -
12
 -
 Pin
 1
29
 -
 Rear gasket
 1
45
 -
 Screw
 4
50
 -
 Steel ball
 1
51
 -
 Spring
 1
64
 -
 Screw
 3
82
 -
 Tap bolt
 1
N
 2050557123
 Ball Bearing Kit
 -
54
 -
 Bearing 1
67
 -
 Bearing
 1
-
 2050557163
 Tune-up Kit
(incl 7, 10, 11, 19, 24, 34, 38, 41, 62, 118)
 -
-
60
 2050559203
 Liner
 1
61
 2050521253
 Rotor
 1
62
 2050521263
 Blade (set of 6)
 1
93
 2050557133
 Pin (set of 2)
 1
96
 2050521143
 Cage
 1
98
 2050557143
 Dog (set of 2)
 1
119
 2050559183
 Protective cover
 1
150
 2050557153
 Suspension bail
 1
-
 2050557573
 Nameplate / warning label (CP8252-R) 1
-
 2050557583
 Nameplate / warning label (CP8252-P)
 1
Sort By:
Page of 1
2050520903 Chicago Pneumatic Seal
2050520903 Chicago Pneumatic Seal
Price $3.84

2050520903 Chicago Pneumatic Seal more info
2050521143 Chicago Pneumatic Cage
2050521143 Chicago Pneumatic Cage
Price $64.35

2050521143 Chicago Pneumatic Cage more info
2050521253 Chicago Pneumatic Rotor
2050521253 Chicago Pneumatic Rotor
Price $48.46

2050521253 Chicago Pneumatic Rotor more info
2050521263 Chicago Pneumatic Blades Set (6)
2050521263 Chicago Pneumatic Blades Set (6)
Price $15.83

2050521263 Chicago Pneumatic Blades Set (6) more info
2050521363 Chicago Pneumatic Anvil Assembly (Rp8252)
2050521363 Chicago Pneumatic Anvil Assembly (Rp8252)
Price $67.54

2050521363 Chicago Pneumatic Anvil Assembly (Rp8252) more info
2050556803 Chicago Pneumatic Air Inlet Kit
2050556803 Chicago Pneumatic Air Inlet Kit
Price $8.05

2050556803 Chicago Pneumatic Air Inlet Kit more info
2050556813 Chicago Pneumatic Throttle Valve Kit
2050556813 Chicago Pneumatic Throttle Valve Kit
Price $6.90

2050556813 Chicago Pneumatic Throttle Valve Kit more info
2050556923 Chicago Pneumatic Socket Retaining Kit - 1/2" R
2050556923 Chicago Pneumatic Socket Retaining Kit - 1/2" R
Price $2.00

2050556923 Chicago Pneumatic Socket Retaining Kit - 1/2" R more info
2050557023 Chicago Pneumatic Trigger Kit
2050557023 Chicago Pneumatic Trigger Kit
Price $4.00

2050557023 Chicago Pneumatic Trigger Kit more info
2050557033 Chicago Pneumatic Reverse / Regulator Valve Kit
2050557033 Chicago Pneumatic Reverse / Regulator Valve Kit
Price $11.50

2050557033 Chicago Pneumatic Reverse / Regulator Valve Kit more info
2050557043 Chicago Pneumatic Regulator Base Kit
2050557043 Chicago Pneumatic Regulator Base Kit
Price $26.45

2050557043 Chicago Pneumatic Regulator Base Kit more info
2050557053 Chicago Pneumatic Motor Housing Assembly
2050557053 Chicago Pneumatic Motor Housing Assembly
Price $23.00

2050557053 Chicago Pneumatic Motor Housing Assembly more info
2050557063 Chicago Pneumatic Rear Cover Kit
2050557063 Chicago Pneumatic Rear Cover Kit
Price $26.45

2050557063 Chicago Pneumatic Rear Cover Kit more info
2050557073 Chicago Pneumatic Motor Rear End Assembly
2050557073 Chicago Pneumatic Motor Rear End Assembly
Price $26.45

2050557073 Chicago Pneumatic Motor Rear End Assembly more info
2050557083 Chicago Pneumatic Motor Front End Assembly
2050557083 Chicago Pneumatic Motor Front End Assembly
Price $37.95

2050557083 Chicago Pneumatic Motor Front End Assembly more info
2050557093 Chicago Pneumatic 1/2"(P) Anvil Assembly
2050557093 Chicago Pneumatic 1/2"(P) Anvil Assembly
Price $46.00

2050557093 Chicago Pneumatic 1/2"(P) Anvil Assembly more info
2050557103 Chicago Pneumatic Gasket Kit
2050557103 Chicago Pneumatic Gasket Kit
Price $6.90

2050557103 Chicago Pneumatic Gasket Kit more info
2050557113 Chicago Pneumatic Small Parts Kit
2050557113 Chicago Pneumatic Small Parts Kit
Price $16.10

2050557113 Chicago Pneumatic Small Parts Kit more info
2050557123 Chicago Pneumatic Ball Bearing Kit
2050557123 Chicago Pneumatic Ball Bearing Kit
Price $23.00

2050557123 Chicago Pneumatic Ball Bearing Kit more info
2050557133 Chicago Pneumatic Pin (Set Of 2)
2050557133 Chicago Pneumatic Pin (Set Of 2)
Price $6.90

2050557133 Chicago Pneumatic Pin (Set Of 2) more info
2050557143 Chicago Pneumatic Dog (Set Of 2)
2050557143 Chicago Pneumatic Dog (Set Of 2)
Price $69.00

2050557143 Chicago Pneumatic Dog (Set Of 2) more info
2050557153 Chicago Pneumatic Suspension Bail
2050557153 Chicago Pneumatic Suspension Bail
Price $3.45

2050557153 Chicago Pneumatic Suspension Bail more info
2050557163 Chicago Pneumatic Tune-Up Kit CP8252
2050557163 Chicago Pneumatic Tune-Up Kit CP8252
Price $24.15

2050557163 Chicago Pneumatic Tune-Up Kit CP8252 more info
2050559183 Chicago Pneumatic Protective Cover CP8252
2050559183 Chicago Pneumatic Protective Cover CP8252
Price $10.43

2050559183 Chicago Pneumatic Protective Cover CP8252 more info
2050559203 Chicago Pneumatic Liner
2050559203 Chicago Pneumatic Liner
Price $40.25

2050559203 Chicago Pneumatic Liner more info
2050559223 Chicago Pneumatic Clutch Housing Assembly
2050559223 Chicago Pneumatic Clutch Housing Assembly
Price $41.00

2050559223 Chicago Pneumatic Clutch Housing Assembly more info
CP8252-R Chicago Pneumatic 1/2" Square Drive Impact Wrench with Ring-type Retainer
CP8252-R Chicago Pneumatic 1/2" Square Drive Impact Wrench with Ring-type Retainer
Price $222.26

CP8252-R Chicago Pneumatic 1/2" Square Drive Impact Wrench with Ring-type Retainer - Very low noise level, limited vibration and lightweight for operator comfort. Powerful and easy to control for precise assembly jobs. Durable and reliable impact for Industrial Maintenance and Production applications. Multi-purpose tool for a large variety of applications. more info
