Ingersoll-Rand 244A 244A-2 1/2" Drive Air Impact Wrench Repair Parts

Ingersoll-Rand 244A, 244A-2 1/2" Drive Air Impact Wrench Repair Parts

IR 244A Parts List
Item	PartNumber	PartDescription	IREquivalent
1		Motor Housing Assembly	244A-A40
2	8313	Throttle Valve Assembly	404-50A
3	8339	Throttle Valve Face	405-159
4	8006B	Throttle Valve Spring	R1A-51
5	8679	Throttle Valve Stem	402-302
6	8089	Air Strainer Assembly	402-565
7		Trigger	705-93
8	8305	Trigger Pin	533-656
9		Reverse Valve Bushing	231-A330
10	8400	Reverse Valve Bushing Seal (2)	PS3-67
11	8306	Reverse Valve	231-329A
12	8282	Reverse Valve Detent Ball	AV1-255
13	8308	Reverse Valve Detent Spring	231-664
14	8309	Reverse Valve Knob	231-666
15	8310	Reverse Valve Knob Screw	231-665
16		Grease Fitting	130SR-188
NS		Housing Label	WARNING-2-99
NS		Nameplate	244A-301
18	8167	Rotor	244-53
19	8027	Rear Rotor Bearing	402-22
20	8028	Front Rotor Bearing	4U-97
21	8004	Rear Rotor Bearing Retainer	402-118
22	8426	Cylinder	904-3
23	8340	Cylinder Dowel	230-98
25	2172	Vane Packet (Set of 6 Vanes)	2906P-42-6
26	8084	Front End Plate	231-11
27	8085	Rear End Plate	231-12
28	8032B	End Plate Gasket	231-283
29	8311	Motor Clamp Washer (2)	227-207
30	8133	Hammer Frame Assembly	231XP-A703
31	8079	Hammer Pin (2)	231-704
32	8087	Hammer Frame Rear Washer	231-706
33	8132	Hammer (2)	231XP-724
34		Hammer Case Assembly	131-A727-70
35	8032A	Hammer Case Gasket	230-36
36	8312	Hammer Case Pilot	405-800
37	8320	Hammer Case Bushing	705-941
38		Exhaust Deflector	244LG-23
39	9282	Hammer Case Cap Screw (3)	131-638
40	9281	Hammer Case Lock Washer (3)	131-637
41	8630	Anvil Assembly (1/2” Square Drive) StandardLength	231B-A626
41	8596	AnvilAssembly (1/2” Square Drive) 2”Extended Length	231B-A414
42	8088	Socket Retainer	231-425A
43	8270	Retainer O-Ring	R1A-159
		Grease Gun	R000A2-228
	9946	Tune-Up Kit (includes items 3, 4, 10, 12, 13, 19, 20, 21, 25, 28, 35, 42, and 43)	244-TK2

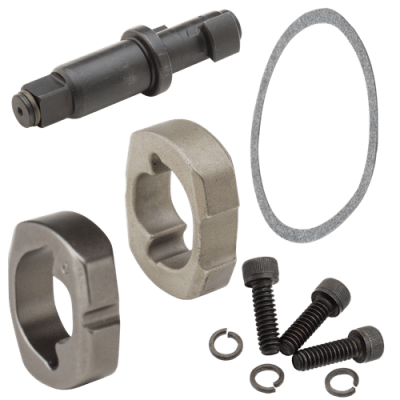

	9987	Hammer Kit (for 244A Standard Length)(includes items 20, 33(2),35, 39(3), 40(3), and 41)	231B-THK1
	9981	Hammer Kit (for 244A-2 Extended Length)(includes items 20, 33(2), 35, 39(3), 40(3), and 41)	231B-THK2

Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
