You are here: Home > Manifold Set Repair Parts & Hoses > Robinair Manifold Set Repair Parts & Hoses > Robinair 41700 Series Sight Glass Manifold Repair Parts
Robinair Model # 41700 Sight Glass Manifold (no hoses)
Robinair 41720 Sight Glass Manifold includes (3) 72” Standard ¼” Hoses
Robinair 41730 Sight Glass Manifold includes (3) 72” Standard Hoses w/Q.S. Fittings
Robinair 41740 Sight Glass Manifold includes (3) 72” Enviro-Guard Hoses w/Q.S. Fittings

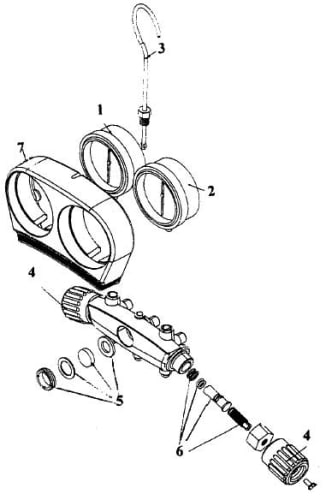

Illus. #

Part #

Description

1

11974

Compound Gauge

2

11795

Pressure Gauge

3

41697

Replacement Hook Assembly

4

41698

Replacement Red/Blue Hand Wheels

5

19827

Replacement Sight Glass Assembly

6

19695

Replacement Stem Kit

7

19691

Manifold Boot

N/S

13067

Packing Grease

N/S

31078

Yellow ¼” Standard 72” Hose (41720)

N/S

32072

Blue ¼” Standard 72” Hose (41720)

N/S

31079

Red ¼” Standard 72” Hose (41720)

N/S

38172A

Yellow ¼” Standard 72” Hose w/ Q.S. (41730)

N/S

38272A

Blue ¼” Standard 72” Hose w/Q.S. (41730)

N/S

38372A

Red ¼” Standard 72” Hose w/Q.S. (41730)

N/S

68172A

Yellow ¼” Enviro-Guard 72” Hose w/Q.S. (41740)

N/S

68272A

Blue ¼” Enviro-Guard 72” Hose w/Q.S. (41740)

N/S

68372A

Red ¼” Enviro-Guard 72” Hose w/Q.S. (41740)

N/S

40083

Replacement ¼” Hose Gaskets (pkg. of 6)

N/S

18180

Replacement O-Rings for Q.S. Fittings (pkg. of 6)

N/S

18451

Repair Kit for 45 degree Q.S. Fittings

Sort By:
Page of 1
114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each) 114748 Robinair Hose Gaskets For 1/4 And 1/2 ACME Hoses (Each)

These gaskets fit 1/4" flare and 1/2 ACME standard hose fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become crushed over time resulting in poor flow or restriction due to swelling. These are standard for some other vendors hoses as well.

Discontinued See 40083

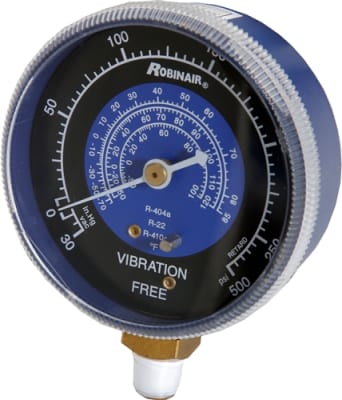

11724 Robinair Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar 11724 Robinair Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R22/404A/410A -30 To 250 Psi/Bar pressure readings, R22/404A/410A temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $22.68

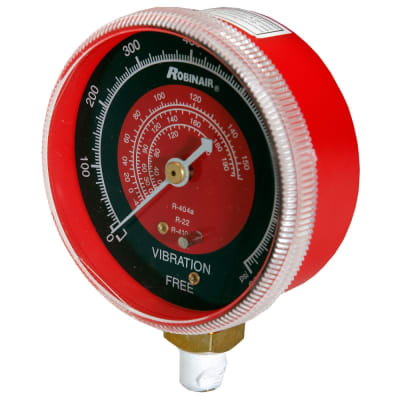

11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar 11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar

11725 Robinair High Side Refrigerant Manifold Gauge R22/R404A/R410A 0 To 500 Psi/Bar pressure readings, R22/R404A/R410A 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $22.68
11734 Robinair Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar 11734 Robinair Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R12/22/502 -30 To 125 Psi/Bar pressure readings, R12/22/502 -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $24.68
11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar 11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar

11735 Robinair High Side Refrigerant Manifold Gauge R12/22/502 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $24.68
11744 Robinair Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar 11744 Robinair Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R134a/404A/507 -30 To 125 Psi/Bar pressure readings, R134a/404A/507 -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $26.80
11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar 11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar

11745 Robinair High Side Refrigerant Manifold Gauge R134A/R404A/R507 0 To 500 Psi/Bar pressure readings, R134A/R404A/R507 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $24.68
11754 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar 11754 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar

Low Side Compound Refrigerant Manifold Gauge R22/134a/404A -30 To 125 Psi/Bar pressure readings, R22/134a/404A -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $24.68
11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar 11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar

11755 Robinair High Side Refrigerant Manifold Gauge R22/134A/404A 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $22.68

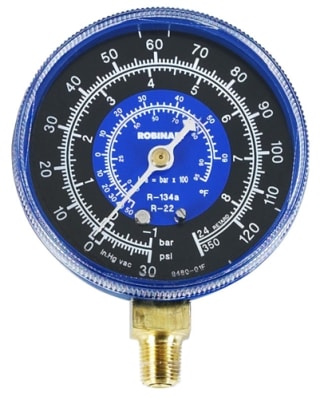

11794 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 120 Psi/Bar 11794 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 120 Psi/Bar

Low Side Universal Replacement Compound Gauge -30" to 120 Psi/Bar, Psi/kPa pressure readings, R-22 and R-134a temperature readings in degrees Celsius, Replaces 11692. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $26.80

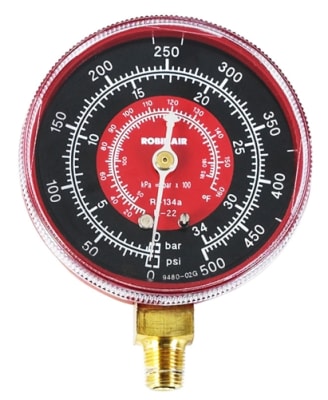

11795 Robinair High Side Universal Replacement Gauge 0-500 R22/134a Psi/Bar 11795 Robinair High Side Universal Replacement Gauge 0-500 R22/134a Psi/Bar

11795 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar pressure readings, R22/134A 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR. Replaces 11693

Price $26.80

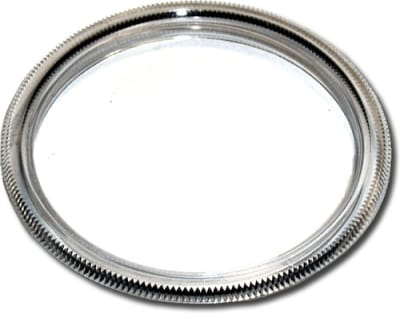

11796 Robinair Gauge Lens 1/4 Turn 11796 Robinair Gauge Lens 1/4 Turn

Replacement gauge lens, quarter turn on-off. Designed for ashcroft style gauges. Made of durable lexan for long life. 2.75" diameter.

Price $20.95
11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar 11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar

11797 Robinair Low Side Compound Refrigerant Manifold Gauge R22/134a -30 To 125 Psi/Bar pressure readings, R22/134a -30 To 125 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to recalibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $22.68
11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar 11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar

11798 Robinair High Side Refrigerant Manifold Gauge R22/134A 0 To 500 Psi/Bar pressure readings, R12/22/502 0 To 500 Psi/Bar temperature readings. General usage gauges for multiple applications where pressure or vacuum readings are required. Dampening helps reduce excessive needle fluttering making the gauge much easier to read. Internal components are compatible with many industry applications. The ability to re-calibrate the gauge is a standard feature on all gauges. Temperature scale reads in °F and pressure is displayed in either PSI or BAR.

Price $25.60
118039 Robinair Refrigerant Pressure Temperature Chart 118039 Robinair Refrigerant Pressure Temperature Chart

Refrigerant Pressure Temperature Chart For 41600 Series Manifolds or Universal Application. Lists 12 refrigerants including R-12, R-22, R-134A, R-410A, R-502, R-401A, R-401B, R-402A, R-402B, R-404A Fits conveniantly on the rear of 41400, 41600, 40100 series gauges with protector.

Price $10.40
18180 Robinair Quick Seal O-Ring Set (6 Pack) 18180 Robinair Quick Seal O-Ring Set (6 Pack)

QUICK SEAL O-Ring Set (6 Pack), O-Rings made of durable silicone rubber for resilience and long life.  fits all 1/4" Flare Quickseal Hose Ends.

Price $13.88

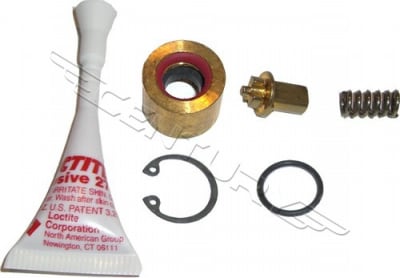

18451 Robinair 1/4 45 Degree Quick Seal Repair Kit For Enviro-Guard Hoses 18451 Robinair 1/4 45 Degree Quick Seal Repair Kit For Enviro-Guard Hoses

1/4" 45 Degree  Quick Seal Repair Kit for Enviro-Guard Hoses rebuilds leaking or damaged Quick Seal Enviro-Guard Hoses. Kit includes complete instructions and installs in minutes.

Price $17.56
19691 Robinair Protective Holster For 41700 Sight Glass Manifold Gauge Set 19691 Robinair Protective Holster For 41700 Sight Glass Manifold Gauge Set

19691 Robinair Protective Holster For 41700 Sight Glass Manifold Gauge Set. This flexible holster provides protection against the bumps and knocks of everyday use. Fits Robinair 41700, 41720, 41730, 41740 Sight Glass Manifolds.

Price $26.96
19695 Robinair Manifold Valve Stem Assembly For Sight Glass Manifold 19695 Robinair Manifold Valve Stem Assembly For Sight Glass Manifold

Manifold Valve Stem Assembly For Sight Glass Manifold

Discontinued

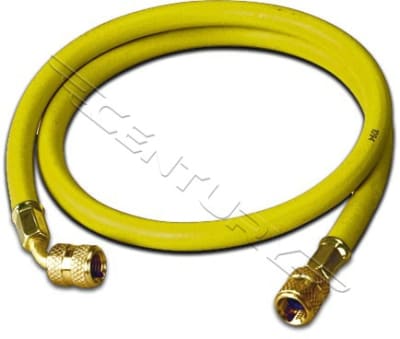

31078 Robinair 72in. Standard Yellow Hose 1/4 FFL X 1/4 FFL Standard Fittings 31078 Robinair 72in. Standard Yellow Hose 1/4 FFL X 1/4 FFL Standard Fittings

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI.

Price $23.80

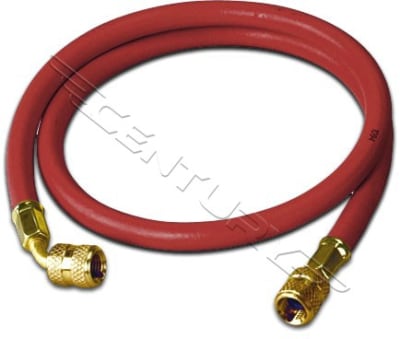

31079 Robinair 72" Standard Red Hose 1/4 FFL X 1/4 FFL Standard Fittings 31079 Robinair 72" Standard Red Hose 1/4 FFL X 1/4 FFL Standard Fittings

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI.

Price $21.10

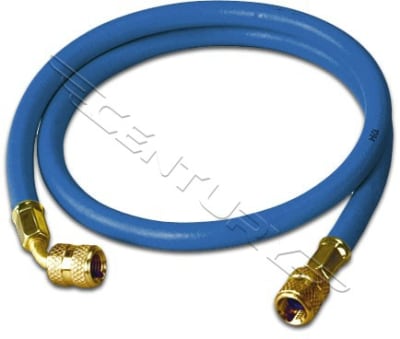

32072 Robinair 72in. Standard Blue Hose 1/4 FFL X 1/4 FFL Standard Fittings 32072 Robinair 72in. Standard Blue Hose 1/4 FFL X 1/4 FFL Standard Fittings

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI.

Price $25.01
38172A Robinair 72in. Yellow Standard Hose 45 Degree Quick Seal Fitting 38172A Robinair 72in. Yellow Standard Hose 45 Degree Quick Seal Fitting

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. A strong, six-sided crimp provides a reliable connection between the hose and the barb, even at maximum pressure. Quick-Seal fittings prevent refrigerant loss when disconnecting.

Price $36.96
38272A Robinair 72in. Blue Standard Hose 45 Degree Quick Seal Fitting 38272A Robinair 72in. Blue Standard Hose 45 Degree Quick Seal Fitting

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. A strong, six-sided crimp provides a reliable connection between the hose and the barb, Quick-Seal fittings prevent refrigerant loss when disconnecting.

Price $32.96

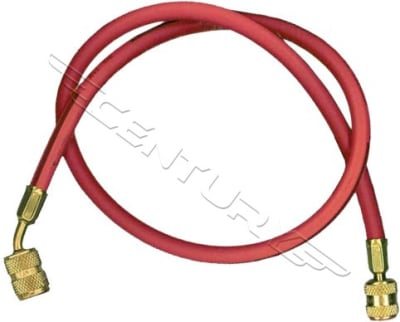

38372A Robinair 72 Red Standard Hose 45 Degree Quick-Seal Fitting 38372A Robinair 72 Red Standard Hose 45 Degree Quick-Seal Fitting

Robinair Premium Refrigerant Charging Hoses are built for long life and dependability. Standard hose jackets are ideal for standard refrigerants with a working pressure of 500 PSI and a burst pressure of 2500 PSI. Quick-Seal fittings prevent refrigerant loss when disconnecting.

Price $29.44
40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6) 40083 Robinair Gaskets For 1/4 & ACME Charging Hoses (Pkg. Of 6)

These gaskets fit 1/4" flare and 1/2 ACME standard fittings. If you are doing maintenance on you unit it's a good idea to replace these as well as they become smashed over time resulting in poor flow.

Price $14.50

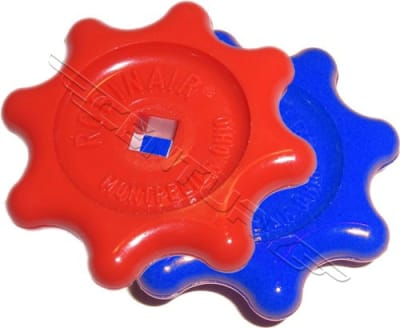

40449 Robinair Red And Blue Lexan Manifold Handwheels 40449 Robinair Red And Blue Lexan Manifold Handwheels

Robinair Red And Blue Lexan Manifold Handwheels, Wagon Wheel Type For Manifold gauge sets and Tube Cutters. Fits on most manifold stems and accessory valves for a universal application and can replace newer barrell style manifold hand wheels.

Price $14.50
41697 Robinair Hook Assembly For 41600 Series Manifold Gauge Sets 41697 Robinair Hook Assembly For 41600 Series Manifold Gauge Sets

Hook Assembly For 41600 Series Manifold Gauge Sets is constructed of steel with a brass threaded locking nut.

Price $20.00

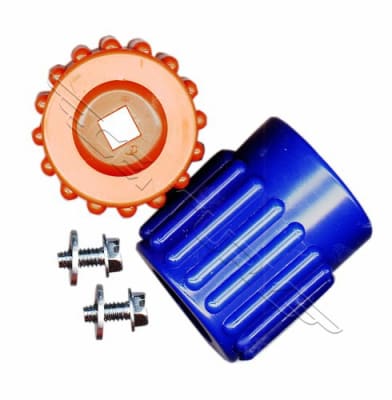

41698 Robinair Red And Blue Lexan Manifold Handwheels 41698 Robinair Red And Blue Lexan Manifold Handwheels

Robinair Red And Blue Lexan Manifold Handwheels, Barrel Type For Manifold gauge sets and Tube Cutters. Fits on most manifolds stems for a universal application and can replace older wagon wheel style manifold hand wheels.

Price $21.90
68172A Robinair 72in. Yellow Enviro-Guard Hose 45 Degree Quick Seal Fitting 68172A Robinair 72in. Yellow Enviro-Guard Hose 45 Degree Quick Seal Fitting

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure.

Price $33.22
68272A Robinair 72in. Blue Enviro-Guard Hose 45 Degree Quick Seal Fitting 68272A Robinair 72in. Blue Enviro-Guard Hose 45 Degree Quick Seal Fitting

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure.

Price $33.22
68372A Robinair 72in. Red Enviro-Guard Hose 45 Degree Quick Seal Fitting 68372A Robinair 72in. Red Enviro-Guard Hose 45 Degree Quick Seal Fitting

Enviro-Guard Hoses are constructed of special barrier material which prevent virtually any permeation of refrigerant, yet remains flexible. Meet all specifications for low permeation construction. 740 psi working pressure, 3700 psi burst pressure.

Price $33.22
