Chicago Pneumatic CP785S Shear Repair Parts

You are here: Home > Chicago Pneumatic Air Grinders and Cutting Tools > Chicago Pneumatic CP785S Shear Repair Parts

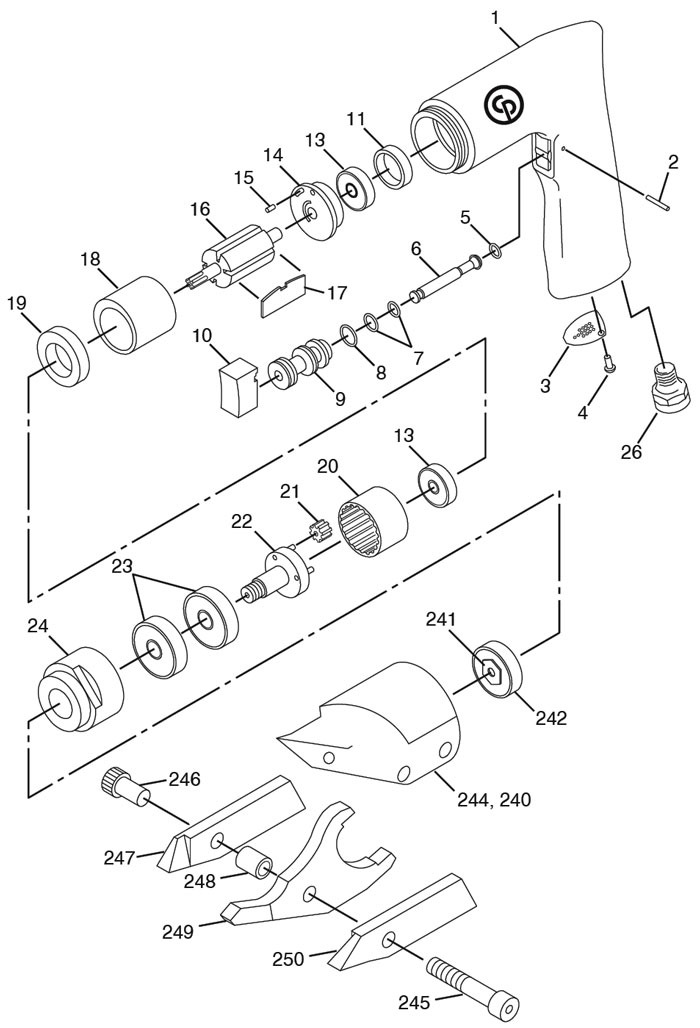

Chicago Pneumatic CP785S Shear Repair Parts

Index No.	Part No.	Description	No. Req'd
1	KF140129	Housing - Motor	1
2	KF140131	Pin	1
3	KF140132	Deflector - Exhaust	1
4	KF140133	Screw	1
5	KF125427	O-Ring - Throttle	1
6	KF140134	Stem - Valve	1
7	KF125295	O-Ring	2
8	CA083354	O-Ring (-111)	1
9	KF140143	Bushing - Valve	1
10	KF140135	Trigger	1
11	KF125284	Disc - Plastic	1
13	S025101	Bearing - Ball	2
14	CA148597	Plate - Rear End	1
15	KF124410	Pin - Dowel	1
16	KF140136	Rotor	1
17	KF138247	Blade - Set (4)	1
18	KF140148	Cylinder	1
19	KF140137	Plate - Front End	1
20	KF137282	Gear - Internal	1
21	KF140138	Gear - Idler	3
22	KF140139	Spindle	1
23	S014490	Bearing - Ball	2
24	KF140144	Nut - Clamp	1
26	CA091545	Bushing - Air Inlet	1
240	KF137228	Shear Head Assembly	1
241	KF139554	Nut - Eccentric	1
242	S083790	Bearing - Ball	1
244	KF139556	Housing - Cutter	1
245	KF124298	Screw - Lock	3
246	KF139558	Nut - Lock	3
247	KF139559	Blade - Left	1
248	KF139560	Spacer	2
249	KF139751	Blade - Center	1
250	KF139752	Blade - Right	1
-	CA146619	Decal - Safety Warning (Not Shown)	1
