INC-800A Schumacher Battery Charger Parts List


Item No. Part No. Description
5 2299001744 LED-Control Board/Display INC-800A
13 2299001775 Clamp Assembly, Battery, INC-800A
14 2299001776 Clamp Assembly, Battery, INC-800A
20 3599000200 Handle, Booster, Black
21 2299002762 Single Fan Control INC-800A
25 2299001730 SCR / Power Board, Inc 800A
35 4999000276 Wire Mesh Vent Shield
38 5110100300 Display Bezel Guard, INC-800A
39 0099000122 LED Holder Panel Mount Hrtc-52
41 2199700002 Grommet, 1/4, Ny 66 70G33L
42 2199700009 Grommet, 1/2", Nylon
47 2299002755 Fan With Connector INC-800A
48 0090026217 Power Cord 14/3 86"
54 0499000050 Switch Rocker Spdt On-On 16 Amp
58 3999000108 Circuit Breaker 100 Amp 32 Volt Purple
60 1799000086 Heat Sink Aluminum 5" X 8"
61 0899003590 Label Face Plate INC-800A
62 5199001606 Screw M2.5X6 Ph Phms Szp
Sort By:
Page of 1
0090026217 Schumacher 115 Volt Power Cord 86" 0090026217 Schumacher 115 Volt Power Cord 86"

0090026217 Schumacher 115 Volt Power Cord 86" 14/3 SJTOW terminals .25 x .25 S/R

Price $19.25
0099000062 Schumacher 6" CW Fan Blade 0099000062 Schumacher 6" CW Fan Blade

0099000062 Schumacher 6" CW Fan Blade.

Discontinued see 316-009-000
0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On 0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On

0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On

Discontinued

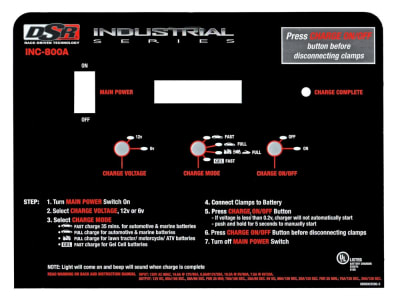

0899003590 Schumacher Face Plate Label INC-800A 0899003590 Schumacher Face Plate Label INC-800A

0899003590 Schumacher Face Plate Label INC-800A

Price $24.85
122109-001 QuickCable 120 Amp Gray SB Housing (Each) 122109-001 QuickCable 120 Amp Gray SB Housing (Each)

122109-001 QuickCable 120 Amp Gray SB Housing (Housing Only No Contacts) - All housings are color keyed for easy voltage identification.

Price $9.15
124122-001 QuickCable 4 GA 120 Amp Gray Crimp SB Kit (Each) 124122-001 QuickCable 4 GA 120 Amp Gray Crimp SB Kit (Each)

124122-001 QuickCable 4 GA 120 Amp Gray Crimp SB Kit (Each) - Each kit contains one housing and two contacts. One part number provides you with the parts necessary to make one cable end connection. All housings are color keyed for easy voltage identification.

Price $16.10
2199700002 Schumacher Grommet 1/4" 2199700002 Schumacher Grommet 1/4"

2199700002 Schumacher Grommet 1/4"

Price $0.32
2299001704 Schumacher Control Board INC-800A 2299001704 Schumacher Control Board INC-800A

2299001704 Schumacher Control Board INC-800A

Discontinued
2299001720 Schumacher LCD Display INC-800A 2299001720 Schumacher LCD Display INC-800A

2299001720 Schumacher LCD Display INC-800A

Discontinued
2299001730 Schumacher SCR / Power Board INC-800A 2299001730 Schumacher SCR / Power Board INC-800A

2299001730 Schumacher SCR / Power Board INC-800A

Price $47.88
2299001739 Schumacher Fan Motor Assembly INC-800A 2299001739 Schumacher Fan Motor Assembly INC-800A

2299001739 Schumacher Fan Motor Assembly INC-800A

Discontinued
2299001744 Schumacher LED-Control Board Display 2299001744 Schumacher LED-Control Board Display

2299001744 Schumacher LED-Control Board Display

Discontinued
2299001775 Schumacher Cable Clamp Assembly INC-800A INC-8A 2299001775 Schumacher Cable Clamp Assembly INC-800A INC-8A

Positive Negative Cable Clamp Assembly with SB120A Plug, 4 gauge wire and positive & negative clamps.

Discontinued
2299001776 Schumacher Battery Clamp Assembly INC-800A 2299001776 Schumacher Battery Clamp Assembly INC-800A

2299001776 Schumacher Battery Clamp Assembly INC-800A. SB120 Plug, 4 gauge wire, Heyco bushings installed.

Price $58.65
2299002755 Schumacher Fan Motor 120mm x 120mm x 25mm 12 volt INC-800A 2299002755 Schumacher Fan Motor 120mm x 120mm x 25mm 12 volt INC-800A

2299002755 Schumacher Fan Motor With Connector INC-800A. Fan Motor provides cooling for the unit. 120mm x 120mm x 25mm 12 volt 5.40 Watt Sleeve Bearing. DC quite design keeps noise to a minimum.

Price $24.55
2299002762 Schumacher Fan Speed Control (Single) 2299002762 Schumacher Fan Speed Control (Single Fan)

2299002762 Schumacher Fan Speed Control (Single Fan) For Rivit See 2100800011

Discontinued
246-176-666 Switch 2 Position Rocker 16 Amp SPDT 246-176-666 Switch 2 Position Rocker 16 Amp SPDT

SPDT Switch 16 amp Rating Snap-in mount no tools required to install, 1/4 Spade terminals.

Price $12.50
316-009-000 Fan Blade 6" 4 Blade CW 316-009-000 Fan Blade 6" 4 Blade CW

Fan Blade 6" 4 Blade CW. Same as 130007-001 Christie

Price $12.85
3599000200 Schumacher Battery Charger Handle 3599000200 Schumacher Battery Charger Handle

3599000200 Schumacher Battery Charger Handle. 4-15/16" Hole Centers.

Price $8.37
3999000108 Schumacher Circuit Breaker 32 Volt DC 100 Amp 3999000108 Schumacher Circuit Breaker 32 Volt DC 100 Amp

3999000108 Schumacher Circuit Breaker 32 Volt DC 100 Amp. When ordering, it may be necessary to purchase a pair of the 5199000406 screws if replacing and older circuit breaker for retrofit.

Discontinued
5110100300 Schumacher Display Guard Bezel INC-800A 5110100300 Schumacher Display Guard Bezel INC-800A

5110100300 Schumacher Display Guard Bezel INC-800A

Price $0.40
5199001606 Schumacher Screw Phillips M2 X 6MM (Each) 5199001606 Schumacher Screw Phillips M2 X 6MM (Each)

5199001606 Schumacher Screw Phillips M2 X 6MM (Each)

Price $0.55
5200000007 Schumacher Nut 10-32 Hex Steel Zinc 5200000007 Schumacher Nut 10-32 Hex Steel Zinc

5200000007 Schumacher Nut 10-32 Hex Steel Zinc

Discontinued


*Variations of models due to production changes and parts availability are not our responsibility
*No refunds on electrical components
*Service should be performed only by a qualified technician
*Please read all supporting documentation and safety instructions
