117-051 83110 Century 110 amp MIG welder (phase-control)

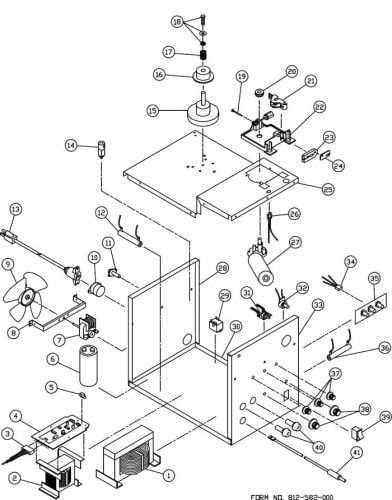

117-051 Replacement Parts List
Item No.
 		Lincoln #
 		Customer #
 		Description
1
880-188-888
 Main Transformer
2
880-215-888
 Reactor Coil
3
880-225-666
 Wire Harness
4
 880-217-666
 880-217-666
 Main Circuit Board
5
 216-053-666
 216-053-666
 Thermal Protector
6
 S13490-109
 213-035-666
 Capacitor
7
 216-087-666
 216-087-666
 Fan Motor
8
411-072-666
 Fan Bracket
9
316-009-666
 Fan Blade
10
 S18414-1
 239-159-666
 AC Receptacle
11
246-116-666
 Fuse Holder


245-060-000
 Fuse Only, BAN30 or BLN30
12
860-523-666
 Bleeder Resistor
13
 S18475
 248-226-666
 Power Cord


4040,
248-227-100
 Power Cord for 20 Amp Setting
14
 216-086-666
 246-212-666
 Gas Solenoid
15
 312-066-666
 312-066-666
 Bolt, Spindle, Spring, Washer & Wing Nut
16
 312-110-666
 312-110-666
 Spool Adapter
17
330-029-666
 Spring
18
081-055-666
 Bolt with Washer & Nut
19
239-123-000,
239-208-000
 Inlet Guide Tube
20
 310-122-500
 4323
 0.024 / 0.030 / 0.035 Drive Roller


4347,
310-154-000
 0.045 Serrated Drive Roller
21
312-107-000
 Tension Arm Only
22
 880-130-666
 880-130-666
 Drive Base Assembly with Arm
23
 412-465-666
 412-465-666
 Gun Connector Block
24
412-464-666
 Copper Jumper
25
410-651-010
 Drive Deck
26
880-227-666
 Gun Wire Harness
27
 216-079-666
 216-079-666
 Drive Motor with Gearbox
28
410-650-010
 Back Panel
29
 246-258-666
 246-258-666
 Relay
30
410-648-666
 Base
31
 880-219-666
 880-219-666
 Wire Speed Cointrol with PCB
32
246-260-000
(245-108-666)
 Potentiometer, 10K, 1/4 Watt
33
410-649-030
 Front Panel
34
880-187-666 Spot-Stitch Wire Harness
35
880-214-666 Spot Stitch PCB
36
880-218-666 Brake Resistor
37
246-139-666 Knob, 1-3/16"
38
246-140-666 Knob, 1-1/2"
39
 246-259-666
 246-259-666
 Rocker Switch, 90 / Off / 110
40
 312-045-666
 312-046-666
 Receptacle Assembly
41
248-320-666
 Polarity Jumper Cable
42
238-009-500
 Ground Cable with Plug & Clamp 12' (Not Shown)
43
 239-292-666
 41001,
239-010-301
 Ground Clamp (Not Shown)
44
246-103-666
 Hood Handle (Not Shown)
45
 238-155-000
 4320
 10' Mig Gun (less tip and nozzle) (Not Shown)
46
 334-303-001
 334-286-666
 Gas Regulator (Not Shown)
47
 059-245-666
Gas Hose (Not Shown)
Sort By:
081-055-666 Screw With Washer & Nut 081-055-666 Screw With Washer & Nut

081-055-666 Screw With Washer & Nut

Discontinued
131-211-100 Mig Gas Conversion Kit 2111 131-211-100 Mig Gas Conversion Kit 2111

131-211-100 Mig Gas Conversion Kit 2111. Includes fixed regulator, 24 Volt Solenoid, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-211-200 Mig Gas Regulator & Hose Kit 131-211-200 Mig Gas Regulator & Hose Kit

131-211-200 Mig Gas Regulator & Hose Kit. Includes fixed regulator, Gas hose and clamps, fittings for hose and welder.

Discontinued
216-079-666 24 Volt Drive Motor 216-079-666 24 Volt Drive Motor

216-079-666 24 Volt Drive Motor

Discontinued
238-009-500 Century Ground Cable & Clamp 12 Foot (4007) 238-009-500 Century Ground Cable & Clamp 12 Foot (4007)

238-009-500 Century Ground Cable & Clamp 12 Foot 2 Gauge cable with Dinse Type Machine Plug (4007)

Discontinued
239-052-908 Lincoln Cable Connector, Set #4-#1 (4031) 239-052-908 Lincoln Cable Connector, Set #4-#1 (4031)

Lincoln Cable Conncetor Set. Precision machined from special contour extended brass. Equipped with heat and oil resistance molded covers. Easily twists into position. Model 239-052-908. One pair 3/8” brass male plugs. Fits most Century Arc and MIG welders. For cable size #4-#1

Discontinued
245-108-666 Potentiometer 10k Ohm 245-108-666 Potentiometer 10k Ohm

245-108-666 Potentiometer 10k Ohm

Discontinued See 246-260-000
246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008. 246-086-666 Century Solenoid 24 Volt Air Service

246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008, B7161370.

Discontinued
246-260-000 Potentiometer 10K Ohm 246-260-000 Potentiometer 10K Ohm

246-260-000 Potentiometer 10K Ohm

Discontinued
246-326-666 Century Gun Connector Knob 246-326-666 Century Gun Connector Knob

246-326-666 Century Gun Connector Knob

Price $11.95
310-119-500 Century Steel Drive Roller .030 .035 .045 4341 310-119-500 Century Steel Drive Roller .030 .035 .045 4341

310-119-500 Century Steel Drive Roller .030 .035 .045 4341. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key.

Discontinued
310-154-500 Century Steel Serrated Drive Roller .045 4347. For use with Mig welders made by Century Mfg Co. 310-154-500 Century Steel Serrated Drive Roller .045 4347

310-154-500 Century Steel Serrated Drive Roller .045 4347. For use with Mig welders made by Century Mfg Co. Does Not Include "D" Or "Square" Stock Key.

Discontinued See 310-119-500
334-203-000 Nozzle, 1/2 Id 334-203-000 Nozzle, 1/2 Id (Each)

Tweco Style MIG Welding Nozzle, Recessed. (1 pack). Replaces Century/Lincoln part numbers: 4348, 43480, 334-203-100, 334-203-500, 334-203-908, M15578, Magnum 100, KP21T-50, 21-50. Works with most Century and Lincoln Electric welders.

Price $8.00
334-221-000 Trigger, Mig Gun 334-221-000 Trigger, Mig Gun

334-221-000 Trigger, Mig Gun

Price $43.50
334-227-000 Tube, Conductor Large Id 334-227-000 Tube, Conductor Large Id

334-227-000 Tube, Conductor Large Id

Price $61.55
880-219-666 Circuit Board Assembly, Speed Control 880-219-666 Circuit Board Assembly, Speed Control

880-219-666 Circuit Board Assembly, Speed Control

Price $99.99
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack) Replaces KP11-45, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Discontinued See KP11-45
KH727 Lincoln Nozzle, Spot Weld (each) KH727 Lincoln Nozzle, Spot Weld (each)

KH727 Lincoln Nozzle, Spot Weld (each). Replaces Century Part Numbers: 4329, 43290. 334-211-000, 334-211-100, 334-211-300, 334-211-500, 334-211-908, KP1956-1, KP21-62-FAS.

Discontinued
S18475 Power Cord (248-226-000, 248-227-000, 4040) S18475 Power Cord (248-226-000, 248-227-000, 4040)

S18475 Power Cord for the following Century Welders & Lincoln Welders. 117-051, 117-052, 117-058, 117-059, 117-061, 117-064 and others. Does not have ears for retaining screws. Replaces 248-226-000, 248-227-000, 4040

Discontinued
