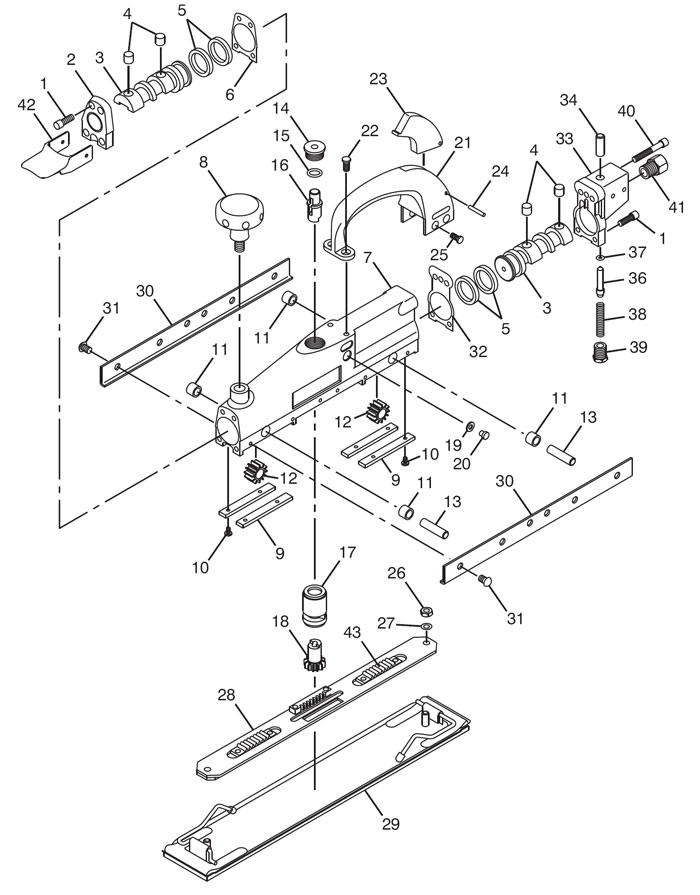

CP7268 Dual Piston Sander Repair Parts


Index
No.
Part No.
Description
No.
Req'd
1
8940163266 Screw
6
2
8940163267 Front Cap
1
3
8940163268 Piston
2
4
8940163269 Plug
4
5
8940163270 Piston Ring
4
6
8940163271 Front Gasket
1
7
8940163272 Body
1
8
8940163273 Knob
1
9
8940163274 Wear Plate
4
10
8940163275 Screw
5
11
8940163276 Bearing
4
12
8940163277 Gear
2
13
8940163278 Gear Shaft
2
14
8940163279 Plunger
1
15
8940163280 O-Ring
1
16
8940163281 Adjustable Shaft
1
17
8940163282 Actuator Valve
1
18
8940163283 Actuator Gear
1
19
8940163284 Washer
1
20
8940163285 Screw
1
21
8940163286 Handle
1
22
8940163287 Screw
2
23
8940163288 Trigger
1
24
8940163289 Pin
1
25
8940163290 Screw
4
26
8940163291 Hex. Nut
2
27
8940163292
Washer
2
28
8940163293 Carrier
1
29
8940163294 Pad Assembly
1
30
8940163295 Side Strap
2
31
8940163296 Screw
12
32
8940163297 Rear Gasket
1
33
8940163298 Rear Cap 1
34
8940163299 Bushing 1
36
8940163300 Valve Pin 1
37
8940163301 O-Ring 1
38
8940163302 Valve Spring 1
39
8940163303 Valve Plug 1
40
8940163304 Screw 1
41
8940163305 Hose Adapter 1
42
8940163581 Cover Carrier 1
43
KF127245
Piston Rack with 2 rivets
1
