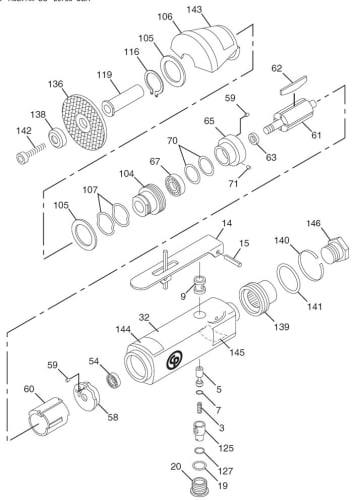

Chicago Pneumatic CP861 Cut-Off Tool Repair Parts


Index
No.
Part No. Description No.
Req'd
3 KF124504 Spring - Throttle Valve 1
5 KF124505 Valve - Throttle 1
7 C100129 O-Ring 1
9 KF124507 Bushing - Throttle Valve 1
14 C138731 Lever - Throttle (Lock-Off) 1
15 C114089 Pin - Roll 1
19 A043001 O-Ring 1
20 KF124511 Plug - Throttle Valve 1
32 KF136521 Housing - Motor
(Incl Index Nos: 9 & 146)
1
54 S039709 Bearing Ball 1
58 KF125474 Plate - Rear End
(Incl Index No: 59)
1
59 KF127209 Pin - Roll 2
60 KF125477 Liner 1
61 KF124517 Rotor 1
62 KF138243 Balde - Rotor Set (4) 1
63 KF124519 Collar - Rotor 1
65 KF125473 Plate - Front End
(Incl Index Nos: 59 & 71)
1
67 C120326 Bearing Ball 1
70 KF124522 Shim (As Required) 1
71 KF127208 Pin - Roll 1
104 KF136289 Nut - Clamp 1
105 KF136291 Spacer - Guard 2
106 KF136295 Guard - Wheel 1
107 KF136294 Washer - Wave 2
116 KF136293 Ring - Ext. Retaining 1
119 KF136290 Spindle - Wheel (Model K) 1
- CA157943 Spindle - Wheel (Model L) 1
125 KF124528 Regulator - Air 1
127 KF124528 O-Ring 1
136 P083071 Wheel Cutting 2-7/8" (5 Pack) 1
138 KF136292 Washer - Wheel (Model K) 1
- CA157944 Washer - Wheel (Model L) 1
139 KF125475 Sleeve - Exhaust 1
140 KF125476 Ring Snap 1
141 P092536 O-Ring 1
142 KF136505 Screw Hex Head Cap 1
- KF136246 Wrench - Spindle (Not Shown) 1
143 KF136500 Decal - Caution 1
144 CA144813 Decal - Warning 1
145 CA157797 Decal - Guard Warning 1
146 8940158447 Inlet Bushing 1
Sort By:
MIL1001-4 Milton Industries Tool Oil 4oz. Flip Top 1001-4 Milton Industries Tool Oil 4oz. Flip Top

Extends life and performance of air tools, lubricators, valves and cylinders. Prevents seizure of air tools and pneumatic equipment. Recommended for tools requiring a 10 weight non-detergent lubricant. Working temperature: 5 F to 350 F.

Price $5.15
8940158447 Chicago Pneumatic Inlet Bushing 8940158447 Chicago Pneumatic Inlet Bushing

8940158447 Chicago Pneumatic Inlet Bushing

Price $17.71
8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube 8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

8940158455 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease 100Gm Tube

Price $29.28
8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge 8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

8940158456 Chicago Pneumatic Pneu-Lube Synthetic Clutch Grease Cartridge

Price $36.54
A043001 Chicago Pneumatic O-Ring In-013 A043001 Chicago Pneumatic O-Ring In-013

A043001 Chicago Pneumatic O-Ring In-013

Price $3.44
C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

C098689 Chicago Pneumatic Push-Type Hand Grease Gun For Flush Fittings

Price $15.61
C100129 Chicago Pneumatic O-Ring In-009 C100129 Chicago Pneumatic O-Ring In-009

C100129 Chicago Pneumatic O-Ring In-009

Price $3.92
C114089 Chicago Pneumatic Pin-Roll .125x.875 C114089 Chicago Pneumatic Pin-Roll .125x.875

C114089 Chicago Pneumatic Pin-Roll .125x.875

Price $5.66
C138731 Chicago Pneumatic Lever-Throttle C138731 Chicago Pneumatic Lever-Throttle

C138731 Chicago Pneumatic Lever-Throttle

Price $28.03
CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz.

CA000046 Chicago Pneumatic Air Tool Oil Protecto Lube 20 Oz. 20 oz. Top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship.

Price $8.76
CA144889 Chicago Pneumatic Blade-Set-Rotor CA144889 Chicago Pneumatic Blade-Set-Rotor

CA144889 Chicago Pneumatic Blade-Set-Rotor

Price $12.61
CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz. CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

CA149661 Chicago Pneumatic Oil Protecto Lube 4 Oz.

Price $4.86
CA157943 Chicago Pneumatic Spindle-Wheel CA157943 Chicago Pneumatic Spindle-Wheel

CA157943 Chicago Pneumatic Spindle-Wheel

Price $29.52
CA157944 Chicago Pneumatic Washer-Wheel CA157944 Chicago Pneumatic Washer-Wheel

CA157944 Chicago Pneumatic Washer-Wheel

Price $10.13
CP861 Chicago Pneumatic 2-7/8" Cut-Off Tool CP861 Chicago Pneumatic 2-7/8" Cut-Off Tool

CP861 2-7/8" Cut-Off Tool - This cut-off tool is heavy-duty and operates at high speed (up to 20,000 rpm), it is also lightweight. This tool is very well suited for cutting steel, bolts, clamps, fiberglass and composite materials.

Price $175.65
KF124504 Chicago Pneumatic Spring KF124504 Chicago Pneumatic Spring

KF124504 Chicago Pneumatic Spring

Price $7.12
KF124505 Chicago Pneumatic Valve-Throttle KF124505 Chicago Pneumatic Valve-Throttle

KF124505 Chicago Pneumatic Valve-Throttle

Price $16.22
KF124507 Chicago Pneumatic Bushing-Valve KF124507 Chicago Pneumatic Bushing-Valve

KF124507 Chicago Pneumatic Bushing-Valve

Price $9.22
KF124511 Chicago Pneumatic Plug-Motor Valve KF124511 Chicago Pneumatic Plug-Motor Valve

KF124511 Chicago Pneumatic Plug-Motor Valve

Price $15.82
KF124517 Chicago Pneumatic Rotor KF124517 Chicago Pneumatic Rotor

KF124517 Chicago Pneumatic Rotor

Price $58.94
KF124519 Chicago Pneumatic Collar-Rotor KF124519 Chicago Pneumatic Collar-Rotor

KF124519 Chicago Pneumatic Collar-Rotor

Price $8.66
KF124522 Chicago Pneumatic Shim KF124522 Chicago Pneumatic Shim

KF124522 Chicago Pneumatic Shim

Price $8.67
KF124528 Chicago Pneumatic Regulator-Air KF124528 Chicago Pneumatic Regulator-Air

KF124528 Chicago Pneumatic Regulator-Air

Price $12.61
KF125473 Chicago Pneumatic Plate-Front End KF125473 Chicago Pneumatic Plate-Front End

KF125473 Chicago Pneumatic Plate-Front End

Price $33.88
KF125474 Chicago Pneumatic Plate-Rear End KF125474 Chicago Pneumatic Plate-Rear End

KF125474 Chicago Pneumatic Plate-Rear End

Price $47.17
KF125475 Chicago Pneumatic Sleeve-Exhaust KF125475 Chicago Pneumatic Sleeve-Exhaust

KF125475 Chicago Pneumatic Sleeve-Exhaust

Price $10.11
KF125476 Chicago Pneumatic Ring-Snap KF125476 Chicago Pneumatic Ring-Snap

KF125476 Chicago Pneumatic Ring-Snap

Price $7.16
KF125477 Chicago Pneumatic Liner KF125477 Chicago Pneumatic Liner

KF125477 Chicago Pneumatic Liner

Price $82.57
KF127208 Chicago Pneumatic Pin-Roll KF127208 Chicago Pneumatic Pin-Roll

KF127208 Chicago Pneumatic Pin-Roll

Discontinued
KF127209 Chicago Pneumatic Pin-Roll KF127209 Chicago Pneumatic Pin-Roll

KF127209 Chicago Pneumatic Pin-Roll

Price $5.41
KF136246 Chicago Pneumatic Wrench-Spindle KF136246 Chicago Pneumatic Wrench-Spindle

KF136246 Chicago Pneumatic Wrench-Spindle

Price $14.37
KF136289 Chicago Pneumatic Nut-Clamp KF136289 Chicago Pneumatic Nut-Clamp

KF136289 Chicago Pneumatic Nut-Clamp

Price $22.14
KF136291 Chicago Pneumatic Spacer-Shield KF136291 Chicago Pneumatic Spacer-Shield

KF136291 Chicago Pneumatic Spacer-Shield

Price $5.41
KF136293 Chicago Pneumatic Ring-Ext Retaining KF136293 Chicago Pneumatic Ring-Ext Retaining

KF136293 Chicago Pneumatic Ring-Ext Retaining

Price $5.41
KF136294 Chicago Pneumatic Washer-Wave KF136294 Chicago Pneumatic Washer-Wave

KF136294 Chicago Pneumatic Washer-Wave

Price $5.41
KF136295 Chicago Pneumatic Shield-Guard KF136295 Chicago Pneumatic Shield-Guard

KF136295 Chicago Pneumatic Shield-Guard

Price $25.07
KF136505 Chicago Pneumatic Screw-Hex Hd 1/4-20 KF136505 Chicago Pneumatic Screw-Hex Hd 1/4-20

KF136505 Chicago Pneumatic Screw-Hex Hd 1/4-20

Price $7.16
KF136521 Chicago Pneumatic Housing-Motor KF136521 Chicago Pneumatic Housing-Motor

KF136521 Chicago Pneumatic Housing-Motor

Price $89.90
KF138243 Chicago Pneumatic Blade Set-Rotor 860 KF138243 Chicago Pneumatic Blade Set-Rotor 860

KF138243 Chicago Pneumatic Blade Set-Rotor 860

Discontinued See CA144889
P083071 Chicago Pneumatic O-Ring In-011 P083071 Chicago Pneumatic O-Ring In-011

P083071 Chicago Pneumatic O-Ring In-011

Price $2.96
P092536 Chicago Pneumatic O-Ring In-020 P092536 Chicago Pneumatic O-Ring In-020

P092536 Chicago Pneumatic O-Ring In-020

Price $8.67
S039709 Chicago Pneumatic Bearing-Ball S039709 Chicago Pneumatic Bearing-Ball

S039709 Chicago Pneumatic Bearing-Ball

Price $29.47
