ASD6007BCW Cornwell Tools Battery Charger Parts List

ASD6007BCW Cornwell Tools Battery Charger Parts
Diagram # Description Part Number
1 Front leg 605671
2 Axle w/nuts 610052
3 Wheel w/nuts 605672
4 Rectifier w/wiring harness 610985
5 Transformer 610986
6 Fan Blade 610189
7 Fan Motor w/blade 610190
8 DC Circuit Breaker (2) 610987
9 Switch 610291
10 AC Cord 610696
11 DC Cable Set 610820
12 Clamps (1 pair w/jaws) 6199
13 Jaw Kit (repairs 1 clamp 610970
14 PCB 610988
15 Ammeter 610346
16 Back Panel 610977
17 Right Side Panel -
18 Front Panel -
19 Base Panel -
Not Shown


Left Side Panel -

Top Panel -

Handle 610753


MAINTENANCE INSTRUCTIONS
Worn clamps and jaws should be replaced. Worn parts can lead to poor connections and present a safety hazard. See parts list for part number of jaw and clamp kits. Any Maintenance or repair of this unit that involves disassembly of the cabinet should be done only by a qualified serviceman. Incorrect reassembly may result in a risk of electric shock when the unit is subsequently used.

Sort By:
Page of 1

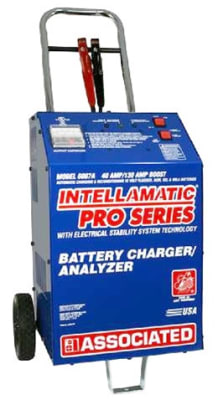

6007A Associated 40/130 Amp 12 Volt Automotive Battery Charger With Intellamatic Pro
6007A Associated 40/130 Amp 12 Volt Automotive Battery Charger With Intellamatic Pro
Discontinued See ESS6007B

Made In The USAThis fully automatic, microprocessor controlled automotive charger and battery analyzer is designed with the serious mechanic in mind. This unit identifies battery state of health and automatically recovers deeply discharged batteries. It incorporates patented charging technology that safely charges and recovers all types of batteries, including sealed, gel, and AGM technologies.
605213 Associated Chrome Handle
605213 Associated Chrome Handle
Price $50.43

Chrome Handle with screws and insulated clamp bar.
605671 Associated Front Leg With Screws
605671 Associated Front Leg With Screws
Price $30.85

Front Leg With Screws
605672 Associated Wheel Kit With Nuts (Set Of Two Plastic)
605672 Associated Wheel Kit With Nuts (Set Of Two 6" Plastic)
Price $34.92

605672 Associated Wheel Kit With Nuts (Set Of Two 6" Plastic)
610043 Associated 3/8 Axle Cap (Each)
610043 Associated 3/8 Axle Cap (Each)
Price $2.18

610043 Associated 3/8 Axle Cap (Each)
610052 Associated Axle With Nuts
610052 Associated Axle With Nuts
Price $29.69

610052 Associated Axle With Nuts. Axle 3/8" O.D. x 15-3/4" Long
610189 Fan Blade Kit 6" 4 Wing
610189 Fan Blade Kit 6" 4 Wing
Price $13.92

610189 Fan Blade Kit 6" 4 Wing, two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.
610190 Associated Fan Motor Installation Kit 115 Volt
610190 Associated Fan Motor Installation Kit 115 Volt
Price $60.04

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.
610291 Associated Rocker Volt Switch (Momentary)
610291 Associated Rocker Volt Switch (Momentary)
Price $25.86

Associated Rocker Volt Switch
610346 Associated Ammeter Horizontal 0-50 DC Amp Range
610346 Associated Ammeter Horizontal 0-50 DC Amp Range
Price $49.53

610346 Associated Ammeter Horizontal 0-50 DC Amp Range
610696 Associated Power Cord 115 Volt
610696 Associated Power Cord 115 Volt
Price $30.18

610696 Associated Power Cord 115 Volt
610753 Associated Chrome Handle
610753 Associated Chrome Handle
Discontinued See 605213

610753 Associated Chrome Handle
610820 Associated DC Cable Set
610820 Associated DC Cable Set
Price $117.53

DC CABLE SET
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
Price $17.29

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.
610977 Associated Back Panel 19 Black
610977 Associated Back Panel 19 Black
Price $26.37

610977 Associated Back Panel 19 Black
610985 Associated Rectifier Assembly W/Wiring Harness 052-0624
610985 Associated Rectifier Assembly W/Wiring Harness 052-0624
Price $463.69

Rectifier Assembly W/Wiring Harness 052-0624
610986 Associated Transformer Assembly 044-0260
610986 Associated Transformer Assembly 044-0260
Price $308.73

610986 Associated Transformer Assembly 044-0260
610987 Associated DC Circuit Breaker 053-0067 (Qty 2)
610987 Associated DC Circuit Breaker 053-0067 (Qty 2)
Price $17.45

DC Circuit Breaker 053-0067 (Qty 2)
610988 Associated Pc Board 6007 132-0129
610988 Associated Pc Board 6007 132-0129
Price $357.93

610988 Associated Pc Board 6007 132-0129
6199 Associated 400 Amp Clamp Kit (Pair)
6199 Associated 400 Amp Clamp Kit (Pair)
Price $22.25

Made in the USAProfessional quality heavy-duty clamps for all booster cables. Replace Associated clamps or upgrade other lesser products with these professional quality replacement clamps.
6200 Associated Side Terminal Adapter Pair
6200 Associated Side Terminal Adapter Pair
Price $6.62

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
Price $32.09

Made In U.S.A.Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry.
6204 Associated 500 Amp Jaw Kit
6204 Associated 500 Amp Jaw Kit (Repairs One Clamp)
Discontinued See 610970

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.
ESS6007B Associated Automotive Battery Charger 12 Volt 40 Amp 130 Amp Boost Intellamatic
ESS6007B Associated Automotive Battery Charger 12 Volt 40 Amp 130 Amp Boost Intellamatic
Price $523.09

Made In The USAThe ESS6007B Associated Automotive Battery Charger 12V 40Amp/130Amp Boost Intellamatic has Electrical Stability System (ESS™) for re-flashes. With nominal 13.7 volt DC output technology, the ESS6007B is a stable power supply for extended service procedures. It also has a program for deep discharge recovery of flooded batteries and patented diagnostics that will indicate if a battery is weak or defective. Designed to charge all types of 12 volt batteries including; AGM, Gel Cell, Sealed, and Standard Flooded batteries (including: Spiral Cell, Orbital™, or Optima™ batteries). Not to mention this charger also has Dead Battery Override Control and it is safe to operate in any weather.
