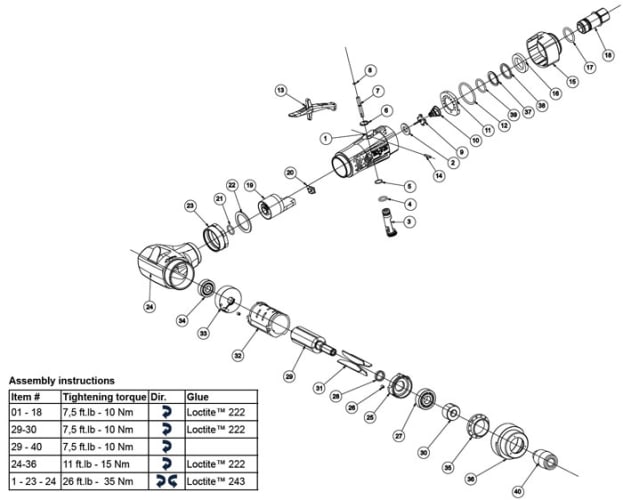

Chicago Pneumatic CP5080-5220H18 Belt Sander Repair Parts



Index
No.
Part No. Description No.
Req'd
A
6154600400
Regulator Assembly
-
3
-
Regulator
1
4
-
O-Ring (8.1 x 1.6) 1
5
-
O-Ring (8 x 1) 1
6
-
Spring ring WR9
1
7
-
Valve stem
1
8
-
O-Ring (2 x 1) 1
B
2050546343
Valve Kit
-
9
-
Tip valve
1
10
-
Spring
1
C
2050547893
Front Plate Assembly
-
25
-
Front plate
1
26
-
Pin spring (3 x 4)
1
27
6157580520
Bearing (10 x 26 x 8)
1
28
-
Washer
1
D
2050547933
Rear Plate Assembly
-
26
-
Pin spring (3 x 4)
1
33
-
Rear plate
1
34
6157581380
Bearing (8 x 22 x 7)
1
E
2050547943
Morot Assembly
-
C
2050547893
Front plate assembly
1
D
2050547933
Rear plate assembly
1
29
6154261240
Rotor
1
31
2050547803
Blades (set of 4) 1
32
6154001510
Cylinder
1
F
2050546413
Small Parts Kit
-
6
-
Spring ring WR9
1
8
-
O-Ring (2 x 1) 1
12
-
O-Ring (27 x 2) 1
14
-
Needle (2.5 x 11.8)
1
17
-
O-Ring (17 x 2) 1
21
-
O-Ring (10.5 x 1.5) 1
37
-
Ring
1
38
-
Spacer
1
39
-
O-Ring (15.6 x 1.78)
1
G
2050547923
Tune-up Kit
-
2
-
Seal
1
16
-
Felt
1
22
-
Gaskets (set of 2)
1
31
2050547803
Blades (set of 4)
1
-
1
2050547773
Handle assembly (incl 15)
1
11
6155740650
Air control ring 1
13
2050541493
Safety lever
1
15
-
Rear cap
1
18
2050542533
Inlet assembly
1
19
6153212410
Insert
1
20
6156561900
Rubber gasket
1
23
6157301890
Nut
1
24
6155653230
Motor housing
1
30
6156080510
Rotor nut
1
35
2050553603
Front ring
1
36
2050553513
Cover
1
40
6159901850
Wheel 1
-
2050500263
Hex wrench (4 mm) (not shown) 1
-
6158727980
Warning label 1
-
A
2050546323
Small Parts Kit CP5080-4200 series 18"
-
2
-
Screw 1
4
-
Screw
1
5
-
Hex nut
1
6
-
Guide post
1
7
-
Dust cover
1
8
-
Spring 1
10
-
Spring 1
11
-
Plug
1
12
-
Knob 1
-
14
2050545823
Cover
1
1
-
Guard support
1
9
-
Arm
1
13
-
Handle
1
Sort By:
Page of 1
2050541493 Chicago Pneumatic Safety Lever
2050541493 Chicago Pneumatic Safety Lever
Price $15.45

2050541493 Chicago Pneumatic Safety Lever more info
2050542533 Chicago Pneumatic Inlet Assy
2050542533 Chicago Pneumatic Inlet Assy
Price $19.57

2050542533 Chicago Pneumatic Inlet Assy more info
2050545823 Chicago Pneumatic Cover Assembly
2050545823 Chicago Pneumatic Cover Assembly
Price $21.63

2050545823 Chicago Pneumatic Cover Assembly more info
2050546323 Chicago Pneumatic Belt Support 18" - Small Parts
2050546323 Chicago Pneumatic Belt Support 18" - Small Parts
Price $23.69

2050546323 Chicago Pneumatic Belt Support 18" - Small Parts more info
2050546343 Chicago Pneumatic Valve Kit
2050546343 Chicago Pneumatic Valve Kit
Price $6.18

2050546343 Chicago Pneumatic Valve Kit more info
2050546413 Chicago Pneumatic Small Parts Kit
2050546413 Chicago Pneumatic Small Parts Kit
Price $4.12

2050546413 Chicago Pneumatic Small Parts Kit more info
2050547773 Chicago Pneumatic Handle Assy
2050547773 Chicago Pneumatic Handle Assy
Price $45.32

2050547773 Chicago Pneumatic Handle Assy more info
2050547923 Chicago Pneumatic Tune-Up Kit 500W
2050547923 Chicago Pneumatic Tune-Up Kit 500W
Discontinued

2050547923 Chicago Pneumatic Tune-Up Kit 500W more info
2050547943 Chicago Pneumatic Motor Assembly 500W 7°
2050547943 Chicago Pneumatic Motor Assembly 500W 7
Price $388.31

2050547943 Chicago Pneumatic Motor Assembly 500W 7 more info
6154001510 Chicago Pneumatic Cylinder 500W
6154001510 Chicago Pneumatic Cylinder 500W
Price $95.79

6154001510 Chicago Pneumatic Cylinder 500W more info
6154261240 Chicago Pneumatic Rotor 500W
6154261240 Chicago Pneumatic Rotor 500W
Price $79.31

6154261240 Chicago Pneumatic Rotor 500W more info
6154600400 Chicago Pneumatic Regulator Assy
6154600400 Chicago Pneumatic Regulator Assy
Price $31.93

6154600400 Chicago Pneumatic Regulator Assy more info
6155653230 Chicago Pneumatic Housingmachined500W
6155653230 Chicago Pneumatic Housingmachined500W
Price $82.40

6155653230 Chicago Pneumatic Housingmachined500W more info
6155740650 Chicago Pneumatic Air Control Ring 18 000 Rpm
6155740650 Chicago Pneumatic Air Control Ring 18 000 Rpm
Price $4.12

6155740650 Chicago Pneumatic Air Control Ring 18 000 Rpm more info
6156080510 Chicago Pneumatic Rotor Nut 500W
6156080510 Chicago Pneumatic Rotor Nut 500W
Price $16.48

6156080510 Chicago Pneumatic Rotor Nut 500W more info
6157301890 Chicago Pneumatic Nut Connection 7°
6157301890 Chicago Pneumatic Nut Connection 7
Price $18.54

6157301890 Chicago Pneumatic Nut Connection 7 more info
6157580520 Chicago Pneumatic Ball Bearing
6157580520 Chicago Pneumatic Ball Bearing
Price $8.00

6157580520 Chicago Pneumatic Ball Bearing more info
CP5080-5220H18 Chicago Pneumatic 18" 0.75Hp Large Surface  Industrial Belt Sander
CP5080-5220H18 Chicago Pneumatic 18" 0.75Hp Large Surface Industrial Belt Sander
Price $537.08

CP5080-5220H18 Chicago Pneumatic 18" 0.75Hp Large Surface  Industrial Belt Sander - Industrial belt sander. Ergonomic handle and high speed. High durability thanks to simple and robust design. Ideal for versatile sanding applications. more info
