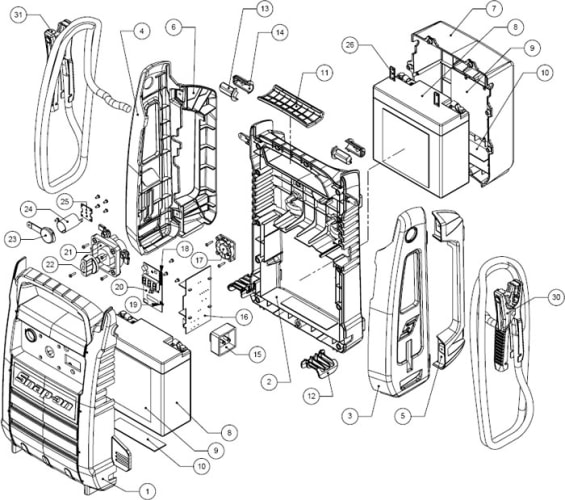

EEJP500V24 Snap-On 12/24 Volt Booster Pack


ITEM NO. PART NUMBER DESCRIPTION QTY.
1 3699001820 Case Front Pp Red EEJP500 1
2 3699001821 Case Back Pp Red EEJP500 1
3 3699001835 Case Endcap Left Om Assy EEJP500 1
4 3699001836 Case Endcap Right Om Assy EEJP500 1
5 3699001826 Case Rail Left PP Blk EEJP500V24 1
6 3699001827 Case Rail Left PP Blk EEJP500V24 1
7 3699001825 Case Door Deep PP Red EEJP500V24 1
8 5799000010 Batt 12V 22Ah Snap-On Logo 2
9 0099000715 Tape 120X120X2mm 3
10 0099000718 Tape 120X30X2mm 3
11 3699001832 Case Handle Abs Blk Om Eejp 1
12 3699001816 Case Cord Wrap PP Black Eejp 2
13 3699001817 Case Post Front PP Black Eejp 2
14 3699001818 Case Post Back PP Black Eejp 2
15 0099000679 Ac Plug - PSJ Jump Starter 1
16 SEE KIT BELOW
Ass'Y Power Board EEJP500V24 1
17 0099000391 Fan Cooling 40 X 40 X 10 Mm 12Vdc W/Cond 1
18 - Header 10 Pin 1
19 - Header 2 Pin 1
20 SEE KIT BELOW Ass'Y Control Board EEJP500V24 1
21 0499000091 Switch 12V/Off/24V 1
22 4999000041 Knob Abs Black 24V EEJP 1
23 4999000208 Dc Rubber Cover 1
24 0099000494 Dc Adapter In Shell For PS120 1
25 0099000486 Assy Fibre Brd Dc Source Skt 1
26 4999000246 Strap Strain Relief 4Ga EEJP 2
27 5199008936 Screw M3.5 X 10Mm Torx Head 6
28 5199008926 Screw M4 X 16Mm Torx Head 2
29 5199008916 Screw M4 X 25Mm Torx Head 24
30 3899002514 Clamp Ass'Y Neg Black EEJP 4 Ga 53" 1
31 3899002513 Clamp Ass'Y Pos Red EEJP 4 Ga 54" 1
