PROMAX RG5410 Recovery Machine Repair Parts

  • Recovers all commonly used CFC, HFC, HCFC Refrigerants (including Puron™ R-410A)
  • Proprietary “Oil-less” compressor capable of handling both liquid and vapor
  • Ergonomic design for easier handling
  • Tough corrosion proof polyethylene blow molded case
  • Field serviceable semi-hermetic compressor
  • Self purge feature
  • Includes Filter-Drier
  • 550 psi safety cut off switch
  • All units pre-wired to accept 80% Tank Shut Off Kit (Part No. KT 5001)
  • Power Source – 115 V 60 Hz

PROMAX RG5410EX Parts Breakdown
Item
Description
Part No.
1
Plastic Case
536752 (L&R)
2
Fan Grill
100505
3
Axial Fan
EL1817
4
Condenser
CD1201
5
Motor Modified
536756
6
Coupler
534483
7
Bell Housing
CP1001
8
Compressor
535398ASM
9
Pressure Switch
EL2800
10
Input Gauge
534487
11
Output Gauge
534488
12
Gauge Lens
GA1000
13
On / Off Switch
EL1310
14
Start Switch
EL1309
15
Blue Knob
100123
16
Red Knob
100124
17
Black Knob
100122
18
Front Panel
535388
19
Filter
100343
20
Flare Cap
NB6501
21
Power Cord
111443
22
High Pressure Switch
EL2802
23
Back Plate
100318
24
Start Capacitor
536754
25
Compressor Bracket
100351
26
Manifold
535396ASM
27
Hose 4"
100345
28
Run Capacitor
536755
29
Low Pressure Switch
113726
30
Check Valve (NS)
116418
31
On /Off / On Switch
536768
32
Handle Grip
536769

RG5910EX Replacement Kits & Accessories
Part No.
Description
536770 Compressor Repair Kit (all three kits 536772, 536774 & 536776)
536772
Piston Seal Replacement (middle section of compressor)
536774 Valve Replacement Kit (top section of compressor)
536776 Piston Bushing - Pin Replacement Kit
KT3308 Shaft Seal Replacement Kit (bottom section of compressor)
KT5001
80% Tank Capacity Cable Kit
Sort By:
Page of 1
100122 PROMAX Provax Black Knob
100122 PROMAX Provax Black Knob
Price $14.75

100122 PROMAX Provax Black Knob more info
100123 PROMAX Provax Blue Knob
100123 PROMAX Provax Blue Knob
Price $14.75

100123 PROMAX Provax Blue Knob more info
100124 PROMAX Provax Red Knob
100124 PROMAX Provax Red Knob
Price $14.75

100124 PROMAX Provax Red Knob more info
100343 PROMAX Filter 1/4 Male Flare
100343 PROMAX Filter 1/4 Male Flare
Price $16.41

1/4" Flare Filter for ProMax and MiniMax Units Designed to protect recovery systems from debris and deposits that would normally harm your unit. Large filter capacity provides long life. All steel construction with enamel finish resists corrosion and rusting. more info
100345 PROMAX Hose, Blue, 4" Long
100345 PROMAX Hose, Blue, 4" Long
Price $14.07

100345 PROMAX Hose, Blue, 4" Long more info
113726 PROMAX Provax Vacuum Switch
113726 PROMAX Provax Vacuum Switch
Discontinued

113726 PROMAX ProVax Vacuum Switch more info
17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank
17506 Robinair 50lb. 1/4 Flare Refillable Refrigerant Tank
Price $185.29

50lb. R-12 / Universal Gas Refillable Refrigerant Tank. Red Vapor Blue Liquid Ported Valve. 50 lb. capacity refrigerant tank for R-12, R-22, R-502 (universal) with 1/4" Flare fittings more info
19049 Robinair Power Cord 110 Volt 16 Gauge
19049 Robinair Power Cord 110 Volt 16 Gauge
Price $33.56

Power Cord - 110 Volt 16 Gauge. For heay duty cord see 551628. more info
534483 PROMAX Motor Pump Coupler (No Hardware)
534483 PROMAX Motor Pump Coupler (No Hardware)
Price $22.58

Motor Pump Coupler. Does Not Include NB3204 set screw, 535908 cap screws, or NB5662 dowel pin. more info
534487 PROMAX Inlet Gauge 500psi
534487 PROMAX Inlet Gauge 500psi
Price $29.36

500psi Gauge (Blue), 1/8" MPT Bottom Tap Fitting, 0 To 500 PSI 500 PSI Max Pressure Scale, PSI/BAR pressure readings. more info
534488 PROMAX Outlet Gauge 800psi
534488 PROMAX Outlet Gauge 800psi
Price $32.72

800psi Gauge (Red), 1/8" MPT Bottom Tap Fitting, 0 To 800 PSI 800 PSI Max Pressure Scale, PSI/BAR pressure readings. more info
535398ASM PROMAX Compressor
535398ASM PROMAX Compressor
Price $234.74

535398ASM PROMAX Compressor more info
535908 PROMAX Motor Pump Coupler Screw 10-32 X 5/8
535908 PROMAX Motor Pump Coupler Screw 10-32 X 5/8
Price $1.80

535908 PROMAX Motor Pump Coupler Screw 10-32 X 5/8 more info
536770 PROMAX Compressor Major Repair Kit
536770 PROMAX Compressor Major Repair Kit
Discontinued

536770 PROMAX Compressor Major Repair Kit - All parts necessary to: replace piston seal (middle section), valve replacement (top section) and shaft seal replacement. more info

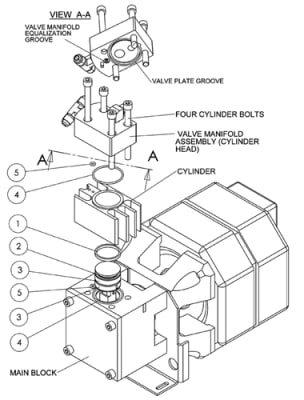

536772 PROMAX Piston Seal Replacement (Middle Section Of Compressor)
536772 PROMAX Piston Seal Replacement (Middle Section Of Compressor)
Price $10.89

536772 PROMAX Piston Seal Replacement (Middle Section Of Compressor) more info
536774 PROMAX Valve Replacement Kit (Top Section Of Compressor) With Valve Plate.
536774 PROMAX Valve Replacement Kit (Top Section Of Compressor)
Price $46.76

536774 PROMAX Valve Replacement Kit (Top Section Of Compressor) more info
536776 PROMAX Piston Bushing - Pin Replacement Kit
536776 PROMAX Piston Bushing - Pin Replacement Kit
Price $14.95

536776 PROMAX Piston Bushing - Pin Replacement Kit more info
CD1201 PROMAX Condenser
CD1201 PROMAX Condenser
Discontinued

CD1201 PROMAX Condenser more info
CP1001 PROMAX Compressor Mount (Rg5xxx)
CP1001 PROMAX Compressor Mount (Rg5xxx)
Price $17.77

CP1001 PROMAX Compressor Mount (Rg5xxx) more info
CP1397 PROMAX Valve Plate
CP1397 PROMAX Valve Plate
Price $35.95

Valve Plate, no valves or springs. When purchasing this it is customary to purchase the rebuild kit as well, found here. more info
CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug
CRXTOSP1 CPS 3 Pin Brad Harrison Tank Overfill Cable Shorting Plug
Price $39.95

CRXTOSP1 Tank Overfill Protection Cable Shorting Plug allows the user to override the tank float safety device on most recovery units using a 3 pin brad Harrison cable. Screws in place at the cable end allowing the unit to start. (Always use a scale for accuracy when using this device) 30 & 50 pound tanks should never be filled to a level beyond 80% of tank capacity. more info
EL1309 PROMAX Momentary Switch
EL1309 PROMAX Momentary Switch
Price $25.06

EL1309 PROMAX Momentary Switch more info
EL1310 PROMAX On/Off Switch
EL1310 PROMAX On/Off Switch
Price $18.34

EL1310 PROMAX On/Off Switch more info
EL1817 PROMAX Axial Fan
EL1817 PROMAX Axial Fan
Price $88.50

Axial Fan 115 volt, .43 amp 35 watt Rotary Fan, 6.375" Mounting Hole Centers. Two wire lead set for power connection 14" & 24"with 1/4" spade terminals. more info
EL1821 PROMAX 1/2 HP AC Motor (110v)
EL1821 PROMAX 1/2 HP AC Motor (110v)
Price $192.74

1/2 Hp Ac Motor (110v) with starting relay (not available as a seperate item) more info
EL2800 PROMAX Pressure Sensor, Low (400 Psi)
EL2800 PROMAX Pressure Sensor, Low (400 Psi)
Price $63.95

EL2800 PROMAX Pressure Sensor, Low (400 Psi) more info
EL2802 PROMAX Pressure Sensor, High (550psi)
EL2802 PROMAX Pressure Sensor, High (550psi)
Price $79.50

EL2802 PROMAX Pressure Sensor, High (550psi) more info
GA1000 PROMAX Gauge Lens
GA1000 PROMAX Gauge Lens
Price $12.44

GA1000 PROMAX Gauge Lens more info
KT-5001 PROMAX 80% Tank Overfill Protection Module For PROMAX Recovery Unit
KT-5001 PROMAX 80% Tank Overfill Protection Module For PROMAX Recovery Unit
Price $80.16

This module plugs directly into the wire harness of your PROMAX Recovery unit through a plug already installed on your machine. This allows you to recover unattended with out the danger of tank overfill or the need to have a scale present to weigh the tank. more info
KT3308 PROMAX Shaft Seal Ball Bearing Replacement Kit (CP1320 Compressors)
KT3308 PROMAX Shaft Seal Ball Bearing Replacement Kit (CP1320 Compressors)
Price $64.11

Shaft Seal Replacement Kit for CP1320 Compressor. Includes bearings, seals and o-rings and illustrated instructions. more info
NB1102 PROMAX #4-40 Pan Head Cap Screw For Knobs
NB1102 PROMAX #4-40 Pan Head Cap Screw For Knobs
Price $12.82

NB1102 PROMAX #4-40 Pan Head Cap Screw For Knobs more info
NB3204 PROMAX Motor Pump Coupler Screw 1/4-20 X 1/4"
NB3204 PROMAX Motor Pump Coupler Screw 1/4-20 X 1/4"
Price $11.83

NB3204 PROMAX Motor Pump Coupler Screw 1/4-20 X 1/4" more info
NB5662 PROMAX 1/8" Diameter X 1/2" Dowel Pin
NB5662 PROMAX 1/8" Diameter X 1/2" Dowel Pin
Price $12.82

NB5662 PROMAX 1/8" Diameter X 1/2" Dowel Pin more info
NB6200 PROMAX Rubber Foot (Each)
NB6200 PROMAX Rubber Foot (Each)
Price $12.82

Rubber Foot, Steel impregnated washer for durability. more info
NB6501 PROMAX 1/4" Flare Cap & Strap
NB6501 PROMAX 1/4" Flare Cap & Strap
Price $12.82

1/4 Flare Seal Cap with anchor retention strap prevents loss when not in use. more info
NB7005 PROMAX 10-24 Steel Rivnut
NB7005 PROMAX 10-24 Steel Rivnut
Price $12.82

NB7005 PROMAX 10-24 Steel Rivnut more info
RG5410EX PROMAX High Pressure Recovery Unit
RG5410EX PROMAX High Pressure Recovery Unit
Discontinued See RG6

Designed for EXtremely Fast recovery of medium and high-pressure refrigerants, including R-410A (Puron). Features include automatic 13" Low Pressure Shut off (selectable for deeper recovery), automatic high pressure cut-out switch (selectable for low or high pressure gasses), for safety and a 20% increase in flow over the RG5410A. Direct liquid recovery without damaging the compressor and an Oil-less compressor which allows for rapid transfer of large amounts of liquid.
Published Recovery Rates
Direct Liquid - 4.77 lb/min Direct Vapor - 0.41 lb/min Push/Pull - 14.5 lb/min
more info
RG6000 PROMAX Ultra Refrigerant Recovery Unit
RG6000 PROMAX Ultra Refrigerant Recovery Unit
Discontinued See RG6

Designed for recovery of medium and high-pressure refrigerants, including R-410A (Puron), Automatic high pressure cut-out switch for safety. Direct liquid recovery without damaging the compressor and an Oil-less compressor which allows for rapid transfer.
Published Recovery Rates
Direct Liquid - 7.00 lb/min Direct Vapor - 0.50 lb/min Push/Pull - 14.72 lb/min
more info
Salvage Operation Refrigerant Recovery Unit Starter Kit
Salvage Operation Refrigerant Recovery Unit Starter Kit
Price $2,249.95

Having a hard time keeping up with work flow in a salvage yard or appliance recycling center? Recovering refrigerant can be time consuming and difficult to manage. This exclusive package from Century allows for the recovery of refrigerant from up to 10 appliances at one time making salvage operations quick and easy.  Our package solution offers you the ability to recover 100 or more appliances a day making your work easy and profitable. Our trained staff can even custom build one for you tailored to specific needs. more info
