INC-406A Schumacher Battery Charger Parts List



Schumacher INC-406A Repair Parts
Part No.
Description
Qty
0090026001
115 Volt Power Cord
1
2299002234
Fan Motor 12 Volt DC Muffin Ultra Quiet
1
3599000200
Battery Charger Handle
1
3899002537
Positive / Negative Clamp and Cable Set
1
4999001229
Fan Motor 12 Volt DC Muffin Ultra Quiet
1
0499000117 Rocker Switch, Illuminated 1
0899003973 Face-plate Label 1
2199700043 Spacer, Round 16
2299001817 Control Board Assembly 1
2299001818 Power Board Assembly 1
2299001876 Line Filter Assembly 1
2700000034 Strain Relief (Power Cord)
1
3899002218 Battery Cable Bulkhead Connector 4


PROBLEM POSSIBLE CAUSE SOLUTION
CONNECTED (red) LED is not lit. The battery is not connected correctly. Check for a poor connection to the battery and frame. Make sure the connection points are clean. Rock the clips back and forth for a better connection.
Reverse connections at battery. Shut the charger off and correct the lead connections.
The CHECK BATTERY (red) LED is blinking. The charger is in Abort Mode. Reset the charger by disconnecting the battery.
Have battery checked.
The CHARGED (green) LED turns on a few minutes or less after connecting the battery. The battery may be fully charged or recently charged, leaving the battery voltage high enough to appear to be fully charged. If the battery is in a vehicle, turn the headlights on for a few minutes to reduce the battery voltage and try charging again.
The battery may be sulfated. A sulfated battery will eventually accept a charge. Continue charging for a few hours. If the charger cannot complete charging the battery, it will go into Abort Mode.
The charger is making an audible clicking sound. The charger has a relay that turns the current on and off to the battery. No problem, this is a normal condition.
Charger will not turn on when properly connected. AC outlet is dead. Check for open fuse or circuit breaker supplying AC outlet.
Poor electrical connection. Check power cord and extension cord for loose fitting plug.
Battery clips do not spark when touched together. The charger is equipped with an auto-start feature. It will not supply current to the battery clips until a battery is properly connected. Unlike traditional chargers, the clips will not spark if touched together. No problem, this is a normal condition.
Schumacher User Manual Link
Sort By:
Page of 1
0090026001 Schumacher 115 Volt Power Cord
0090026001 Schumacher 115 Volt Power Cord
Discontinued

115 Volt Power Cord more info
0499000117 Schumacher Rocker Switch Red Illuminated
0499000117 Schumacher Rocker Switch Red Illuminated
Price $8.95

0499000117 Schumacher Rocker Switch Red Illuminated more info
0600000988 Schumacher Barrier Strip Terminal
0600000988 Schumacher Barrier Strip Terminal
Price $5.80

0600000988 Schumacher Barrier Strip Terminal 8 position 25 Amp with jumpers. more info

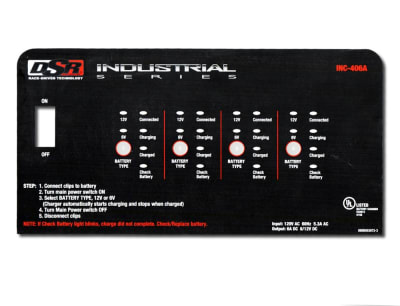

0899003973 Schumacher Faceplate Label
0899003973 Schumacher Faceplate Label
Price $12.25

0899003973 Schumacher Faceplate Label more info

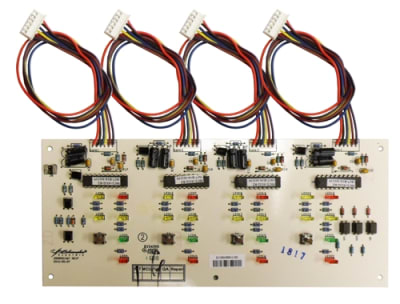

2299001817 Schumacher Control Board Assembly
2299001817 Schumacher Control Board Assembly
Price $58.60

2299001817 Schumacher Control Board Assembly more info
2299001818 Schumacher Power Board Assembly
2299001818 Schumacher Power Board Assembly
Price $59.95

2299001818 Schumacher Power Board Assembly more info
2299001876 Schumacher Line Filter Assembly
2299001876 Schumacher Line Filter Assembly
Price $28.50

2299001876 Schumacher Line Filter Assembly more info
2299002234 Schumacher Fan Motor 12volt DC 80mm X 80mm X 25mm
2299002234 Schumacher Fan Motor 12volt DC 80mm X 80mm X 25mm
Discontinued See 4999001229

Fan Motor provides cooling for the unit. 80mm X 80mm X 25mm 12volt DC quiet design keeps noise to a minimum. May require the purchase of a 2299001542 Schumacher 12volt DC Fan Speed Controller. more info
2700000034 Schumacher Heyco Strain Relief
2700000034 Schumacher Heyco Strain Relief
Price $2.15

Power Cord Strain Relief Protects the lifeline of your electric/electronic products by absorbing the forces of pull, push, and twist that may be exerted on the flexible power cord. Securely anchors, insulates, and protects cables at panel entry points. more info
3599000200 Schumacher Battery Charger Handle
3599000200 Schumacher Battery Charger Handle
Price $8.37

3599000200 Schumacher Battery Charger Handle. 4-15/16" Hole Centers. more info
3899002218 Schumacher Battery Cable Connector
3899002218 Schumacher Battery Cable Connector
Discontinued

3899002218 Schumacher Battery Cable Connector more info
3899002537 Positive Negative Clamp and Cable Set INC812A
3899002537 Positive Negative Clamp and Cable Set INC812A
Discontinued

Positive Negative Clamp and Cable Set INC812A. Sold Each. Positive and negative clamps with 14 ga. 6 foot cable set, male female bullet type polarized connector. more info
4999001229 Schumacher Fan Motor 12 Volt DC 80mm x 80mm x 25mm
4999001229 Schumacher Fan Motor 12 Volt DC 80mm x 80mm x 25mm
Discontinued

Fan Motor provides cooling for the unit. 80mm x 80mm x 25mm 12volt DC Quiet design keeps noise to a minimum. May require the purchase of a 2299001542 Schumacher 12volt DC Fan Speed Controller. Note plug end to determine correct fit. *Please note: If replacing the 2299001565, you may have to swap plug ends from your old fan to make the new fan work. See 169116-001 for connectors more info
DSR125 Schumacher 6/12 Volt 12 Amp 4 Bank Automatic Battery Charger
DSR125 Schumacher 6/12 Volt 12 Amp 4 Bank Automatic Battery Charger
Price $309.95

DSR125 Schumacher 6/12 Volt 12 Amp 4 Bank Automatic Battery Charger. Completely Independent, Fully Automatic, Microprocessor-Controlled Charging Banks for charging 6V and 12V Standard, AGM and Lithium batteries, charge 4 different size batteries at the same time. The DSR127 Charger automatically to 10 amps output per bank with four detachable 6 foot cables with 75 Amp, color-coded clamps. A separate digital display for each bank provides charging data at a glance. Multi-stage charging algorithm provides safe efficient complete charging of batteries. Recovery Mode has been added to recover sulfated Standard and AGM batteries. more info
INC-406A Schumacher 6 Amp 6/12 Volt Automatic 4 Bank Benchtop Automotive Battery Charger
INC-406A Schumacher 6 Amp 6/12 Volt Automatic 4 Bank Benchtop Automotive Battery Charger
Price $399.95

A fully automatic 6 and 12-volt, 6 amp, 4 independent bank automotive battery charger capable of charging four batteries at once. This unit features independent banks, microprocessors that charge the batteries smarter, four detachable 6' cords with 75 amp color-coded clamps, and a 6 amp output per individual bank. Each bank includes independent LED status indicators that let you know how your battery is doing during the charging process. This unit will provide many years of reliable service. more info
