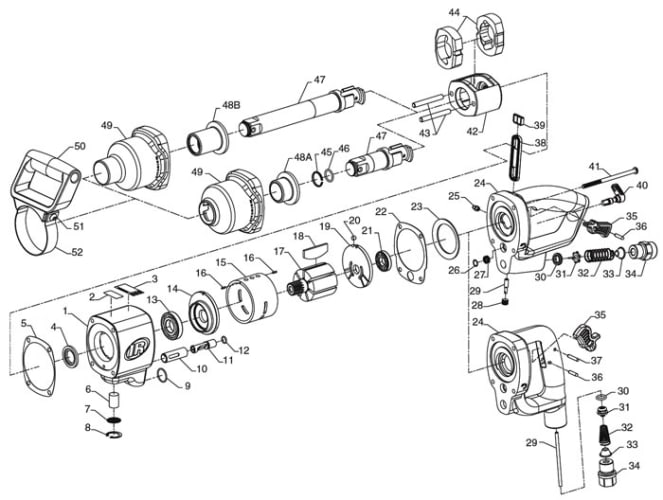

Ingersoll-Rand 2190Ti 1" Drive Air Impact Wrench Repair Parts

Item Part Number Part Description IR Equivalent
1 8570 Housing Assembly 2925B-A40
2 - Information Label 1-800-LABEL
3 - Warning Label WARNING-2-99
4 9357 Washer, Hammer Frame 2161-706
5 8589 Gasket, Hammer Case 2161-36
6 8660 Silencer, Exhaust 2080-310
7 8658 Exhaust Deflector 2080-123
8 8659 Snap Ring, Exhaust 3CS5492-28
9 9329 O-Ring, Housing C321-606
10 - Bushing, Reverse Valve
11 8188 Reverse Valve 2161-329
12 8860 O-Ring, Reverse Valve 23446
13 8037 Bearing, Front End Plate 834-24
14 8824 End Plate, Front 2161-11
15 9146 Cylinder Assembly 2925-A3
16 9469 Dowel Pin, Cylinder (2 Required) JC3350-538
17 9109 Rotor 2080-53
18 2199 Vane (Sold Each -7 req) 2925-42-7
18 2199P Vane Plastic (Sold Each -7 req) 2925-42-7
19 8825 End Plate, Rear 2161-12
20 8171 Dowel Pin, Rear End Plate 2920-74
21 8038 Bearing, Rear End Plate 4E-510
22 8588 Gasket, Handle 2161-739
23 8186 Washer, Motor 2161-207
24 9683 Handle Assembly (2190Ti, 2190Ti-6) 2190-A92
24 - Handle Assembly (2190DTi-6) 2925B-A92
25 8182 Grease Fitting R1-188
26 8184 Snap Ring, Reverse Lever 2161-28
27 9720 Spring, Reverse Lever 2080-278
28 9716 Pipe Plug (219071, 2190Ti-6) 2080-34
29 9717 Plunger Pin 2080-120
30 8208 Valve Seat DG230-303 295-303
31 8104 Throttle Valve DG230-302 2921-302
32 8629 Spring, Inlet 2080-51
33 8628 Air Strainer 834-61
34 8626 Inlet Bushing Assembly 2080-A465A
35 - Trigger Assembly (2190Ti, 2190Ti-6) 2080-A93
35 9687 Trigger Assembly (2190DTi-6) 2925B-93
36 - Trigger Pin
37 - Dowel Pin, Trigger (2190DTi-6)
38 - Throttle Actuator (2190Ti, 2190Ti-6) 2080-94A
39 - Plug (2190T1, 2190Ti-6) 2080-95
40 9719 Reverse Lever 2080-658
41 9224 Socket Head Capscrew (4) 2080-638
42 9690 Hammer Frame Kit 2190-K703
42 8260 Hammer Frame 2925-703
42 9993 Hammer Kit (2190Ti) 2190-THK1
42 9623 Hammer Kit (2190Ti-6, 2190DTi-6) 2190-6-THK1
43 8416 Hammer Pin (2 req) 2910-704
44 8694 Hammer (2 req) 2925-724
45 8661 Socket Retainer 910E5-918
46 9578 O-Ring, Socket Retainer BBFM-557
47 8791 Anvil Assembly 6" 2080-A826-6
47 8292 Anvil Assembly Dual Retainer style 3/4"  2910-726-DR
47 9692 Anvil Assembly Dual Retainer style 1"  2080-A726
48A 9433 Bushing, Hammer Case (2190Ti) 2161-641
48B 9432 Bushing, Hammer Case (2190Ti-6, 2190DTi-6) 2080-641-6
49 9693 Hammer Case Assembly (2190Ti) 2190Ti-D727
49 9694 Hammer Case Assembly (2190Ti-6,2190DTi-6) 2190Ti-6-D727
50 9695 Dead Handle Assembly 2080-A48
51 - Strap
52 - Cap Screw (2)
* 9691 Socket Retainer Kit 2190-SRK1
* 9990P Tune-Up Kit 2190-TK1
* 9990 Tune-Up Kit 2190-TK1
* 105-LBK1 Air Tool Oil (4oz. bottle) 10Z4
* 105-1 LB Grease (1-lb can) 105-1 LB
* 105-8LB Grease (8-lb can) 105-8LB
* 9685 Inlet Parts Kit (2190Ti, 2190Ti-6) Parts 28-34 2190-K303


Century Tool & Equipment is in no way affiliated with the above manufacturers. The parts advertised for sale are not always genuine parts, but are parts made for or by Century Tool & Equipment. Reference to said numbers are for your convenience only. We reserve the right to substitute genuine parts in place of Century Tool & Equipment parts.
Sort By:
Page of 1
100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools 100-1Lb Ingersoll-Rand 1 Lb. Standard-Duty Grease For Impact Tools

1 lb. Can tool lube. Standard-duty impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Discontinued See 105-1LB
105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube 105-4T Ingersoll-Rand Metallic Housing Grease 4 oz. Tube

105-4T Ingersoll Rand Metallic Housing Grease 4 oz. Tube. Metallic housing impact wrench grease. For use with GTH-1 grease gun.

Price $14.03
105-4T-6 Ingersoll Rand Metallic Housing Grease Pack (6 Pack) 105-4T-6 Ingersoll-Rand Metallic Housing Grease Pack (6 Pack)

Box of 6 4 oz. Tubes of IR Number 105 Grease. Metallic housing impact wrench grease. For use with GTH-1 grease gun. (6 Pack) 1.

Price $79.85
105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing 105-LBK1 Ingersoll-Rand Air Care Kit For IRT105 Metallic Housing

Ingersoll Rand Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $42.20
115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease 115-1LB Ingersoll-Rand 1Lb. Can Composite Housing Impact Wrench Grease

1 lb. Can tool lube. Composite housing impact wrench grease. Thicker longer lasting grease for assembling the hammer mechanism. Provides longer life and smoother operation than standard lubricants.

Unavailable
115-4T Ingersoll Rand Composite Grease 4 oz. Tube 115-4T Ingersoll-Rand Composite Grease 4 oz. Tube

115-4T Ingersoll Rand Composite Grease 4 oz. Tube. Composite housing impact wrench grease. For use with GTH-1 or other grease gun.

Price $11.44
115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit 115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit

115-LBK1 Ingersoll-Rand Composite Grease & Oil Air Care Kit includes GTH-1 Grease tube head, 10Z4 4oz. Bottle of #10 Air Tool Oil and 115-4T 4oz. Tube #115 Tool Grease.

Price $36.80
2161-11 Front End Plate (Genuine Ingersoll-Rand Part) 2161-11 Ingersoll-Rand Front End Plate

2161-11 Front End Plate (Genuine Ingersoll-Rand Part)

Price $89.18
2199  2925-42 Rotor Vane Equivalent 2199 2925-42 Rotor Vane Equivalent Sold Each

Made In The USA2199  2925-42 Rotor Vane Equivalent - Sold Each

Price $3.38
8037  834-24 Bearing Equivalent 8037 834-24 Bearing Equivalent

Made In The USA8037  834-24 Bearing Equivalent

Price $7.28
8038  4E-510 Bearing Equivalent 8038 4E-510 Bearing Equivalent

Made In The USA8038  4E-510 Bearing Equivalent

Price $4.98
8104  DG230-302/2921-302 Throttle Valve 8104 DG230-302/2921-302 Throttle Valve

Made In The USA8104  DG230-302/2921-302 Throttle Valve

Price $8.12
8171  2920-74 End Plate Dowel 8171 2920-74 End Plate Dowel

Made In The USA8171  2920-74 End Plate Dowel

Price $4.95
8182  R1-188 Grease Fitting (Zerk fitting) 8182 R1-188 Grease Fitting

Made In The USA8182  R1-188 Grease Fitting

Price $3.55
8184  2161-28 Reversing Lever Snap Ring 8184 2161-28 Reversing Lever Snap Ring

Made In The USA8184  2161-28 Reversing Lever Snap Ring

Price $4.00
8186  2161-207 Motor Clamp Washer 8186 2161-207 Motor Clamp Washer

Made In The USA8186  2161-207 Motor Clamp Washer

Price $4.95
8188  2161-329 Reversing Valve 8188 2161-329 Reversing Valve

Made In The USA8188  2161-329 Reversing Valve

Price $21.22
8208  DG230-303/295-303 Throttle Valve Seat 8208 DG230-303/295-303 Throttle Valve Seat

Made In The USA8208  DG230-303/295-303 Throttle Valve Seat

Price $4.10
8260  2925-703 Hammer Frame 8260 2925-703 Ingersoll-Rand Hammer Frame

Made In The USA8260  2925-703 Hammer Frame

Price $259.88
8293 2925RB-A3 Stainless Steel Cylinder Reverse Bias With Stainless Pins 8293 2925RB-A3 Stainless Steel Cylinder Reverse Bias With Stainless Pins

Made In The USA8293 2925RB-A3 Stainless Steel Cylinder Reverse Bias With Stainless Pins

Price $198.00
8416 2910-704 Hammer Pin (Each) 8416 2910-704 Hammer Pin (Each)

Made In The USA8416 2910-704 Hammer Pin (Each)

Price $10.31

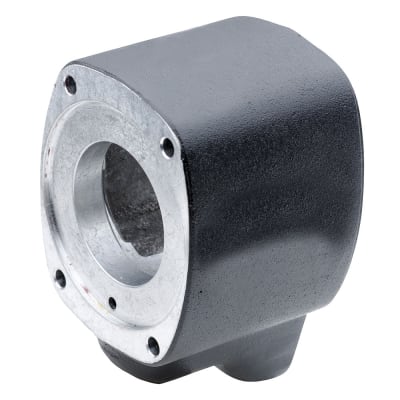

8570 2925B-A40 Ingersoll-Rand Motor Housing Assembly 8570 2925B-A40 Ingersoll-Rand Motor Housing Assembly

8570 2925B-A40 Motor Housing Assembly

Price $752.00
8588  2161-739 Backcap Gasket 8588 2161-739 Backcap Gasket

Made In The USA8588  2161-739 Backcap Gasket

Price $5.00
8589  2161-36 Hammer Case Gasket 8589 2161-36 Hammer Case Gasket

Made In The USA8589  2161-36 Hammer Case Gasket

Price $3.00

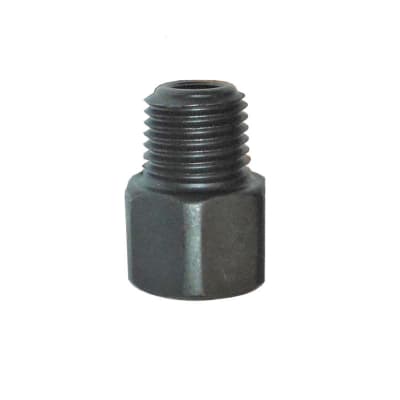

8626 2080-A465A Ingersoll-Rand Inlet Bushing Assembly 8626 2080-A465A Ingersoll-Rand Inlet Bushing Assembly

8626 2080-A465A Inlet Bushing Assembly. Includes O-ring.

Price $16.00

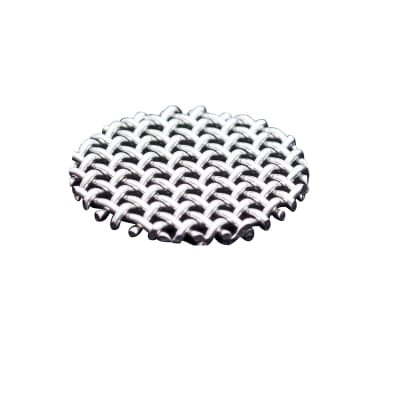

8628 834-61 Stainless Steel Air Strainer 8628 834-61 Stainless Steel Air Strainer

Made In The USA8628 834-61 Stainless Steel Air Strainer

Price $9.78
8658 2080-123 Ingersoll-Rand Deflector 8658 2080-123 Ingersoll-Rand Deflector

8658 2080-123 Deflector

Price $4.28

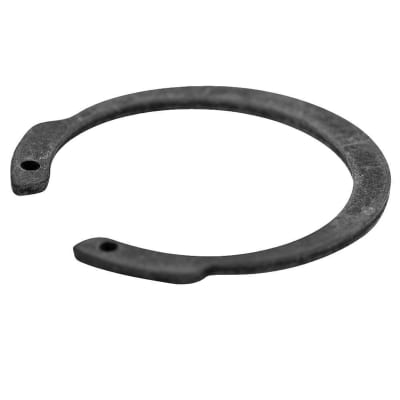

8659 3CS5492-28 Ingersoll-Rand Retainer 8659 3CS5492-28 Ingersoll-Rand Retainer

8659 3CS5492-28 Retainer

Price $4.00
8660 2080-310 Inger-Soll Rand Silencer 8660 2080-310 Inger-Soll Rand Silencer

Made In The USA8660 2080-310 Inger-Soll Rand Silencer

Price $1.60
8661  910E5-918 Socket Retainer 1" 8661 910E5-918 Socket Retainer 1"

Made In The USA8661  910E5-918 Socket Retainer 1"

Price $3.00
8694  2925-724 Hammer 8694 2925-724 Hammer

Made In The USA8694  2925-724 Hammer

Price $92.40

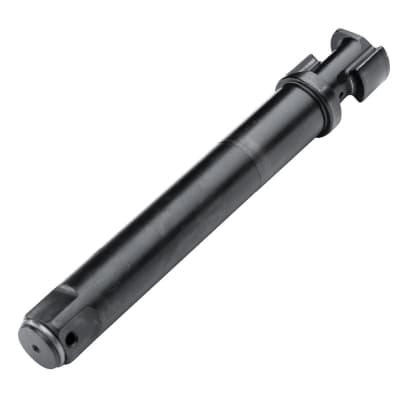

8791 2080-A826-6 Ingersoll-Rand Anvil For 2190Ti-6 8791 2080-A826-6 Ingersoll-Rand Anvil For 2190Ti-6

8791 2080-A826-6 Anvil For 2190Ti-6

Price $255.00
8824  2161-11 Front end plate 8824 2161-11 Front end plate

Made In The USA8824  2161-11 Front end plate

Price $77.55
8825  2161-12 Rear end plate 8825 2161-12 Rear end plate

Made In The USA8825  2161-12 Rear end plate

Price $77.55
8829 Spring 2080-51 8829 Spring 2080-51

Made In The USA8829 Spring 2080-51

Price $4.18
8860  023446 O-Ring 8860 023446 O-Ring

Made In The USA8860  023446 O-Ring

Price $1.08

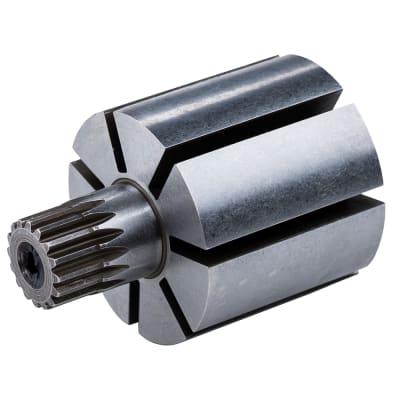

9109 2080-53 Ingersoll-Rand Rotor 9109 2080-53 Ingersoll-Rand Rotor

9109 2080-53 Rotor

Price $154.48
9146 2925-A3 Stainless Steel Cylinder Standard Bias With Stainless Pins 9146 2925-A3 Stainless Steel Cylinder Standard Bias With Stainless Pins

Made In The USA9146 2925-A3 Cylinder. Stainless Steel Standard Bias With Stainless Pins.

Price $198.00
9224 2161-706 2080-638 Bolt 9224 2161-706 2080-638 Bolt

Made In The USA9224 2161-706 2080-638 Bolt

Price $5.00

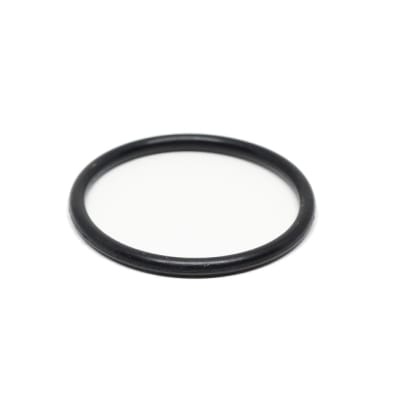

9329 C321-606 Ingersoll-Rand O-Ring 9329 C321-606 Ingersoll-Rand O-Ring

9329 C321-606 O-Ring

Price $1.94
9357  2161-706 Washer 9357 2161-706 Washer

Made In The USA9357  2161-706 Washer

Price $6.19

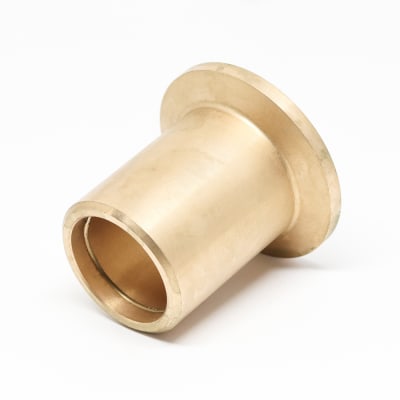

9432 2080-641-6 Ingersoll-Rand Bushing 9432 2080-641-6 Ingersoll-Rand Bushing

9432 2080-641-6 Bushing

Price $136.35
Unavailable
9433  2161-641 Bushing 9433 2161-641 Bushing

Made In The USA9433  2161-641 Bushing

Price $53.74
9469  JC3350-538 Roll pin 9469 JC3350-538 Roll pin

Made In The USA9469  JC3350-538 Roll pin

Price $2.88
9578  BBFM-557 O-Ring 9578 BBFM-557 Ingersoll-Rand O-Ring

Made In The USA9578  BBFM-557 O-Ring

Price $0.78

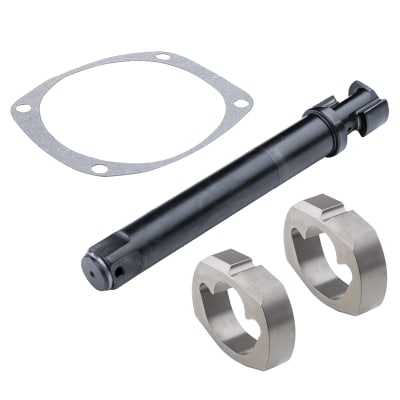

9623 2190-6-THK1 Ingersoll-Rand Hammer Kit 6" Extended 9623 2190-6-THK1 Ingersoll-Rand Hammer Kit 6" Extended

9623 2190-6-THK1 Hammer Kit 6" Extended includes:  8589  2161-36 Hammer Case Gasket ,(2) 8694 2925-724 Hammer and a 8791 2080-A826-6 6" extended anvil. Made in USA

Price $399.00

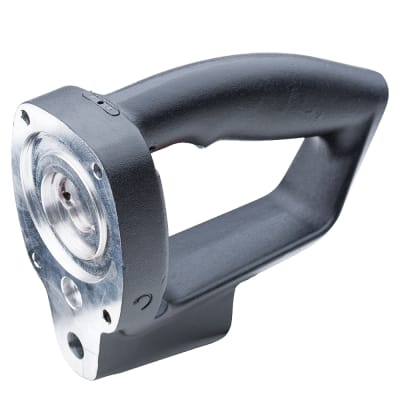

9683 2190-A92 Ingersoll-Rand Handle Assembly 9683 2190-A92 Ingersoll-Rand Handle Assembly

9683 2190-A92 Handle Assembly

Price $471.25

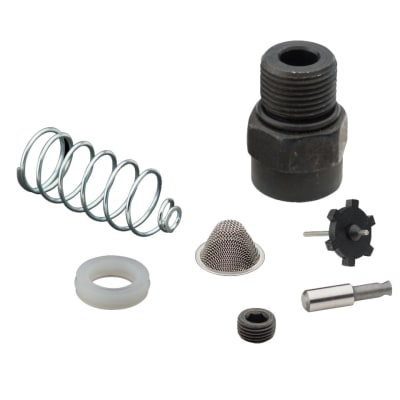

9685 Ingersoll-Rand 2190-K303 Inlet Parts Kit 9685 Ingersoll-Rand 2190-K303 Inlet Parts Kit

Made In The USA9685 Ingersoll-Rand 2190-K303 Inlet Parts Kit

Price $91.00
9687 2925B-93 Ingersoll-Rand Trigger Assembly 9687 2925B-93 Ingersoll-Rand Trigger Assembly

9687 2925B-93 Trigger Assembly

Price $24.00

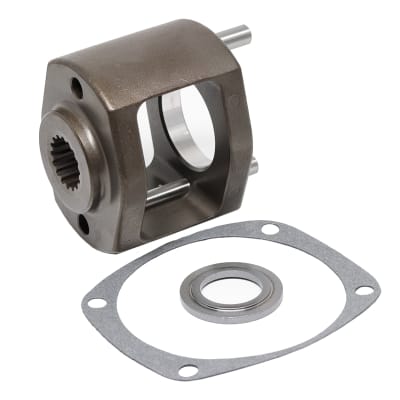

9690 2190-K703 Ingersoll-Rand Hammer Frame Kit 9690 2190-K703 Ingersoll-Rand Hammer Frame Kit

9690 2190-K703 Ingersoll-Rand Hammer Frame Kit

Price $162.00

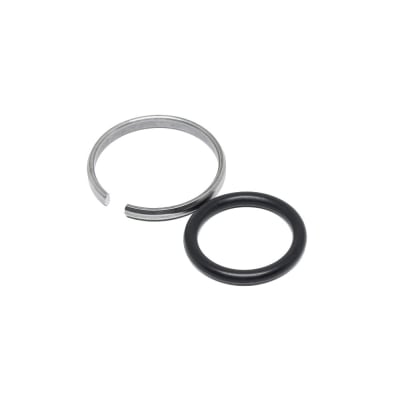

9691 2190-SRK1 Ingersoll-Rand 1" Socket Retainer Kit 9691 2190-SRK1 Ingersoll-Rand 1" Socket Retainer Kit

9691 2190-SRK1 Ingersoll-Rand 1" Socket Retainer Kit

Price $4.95

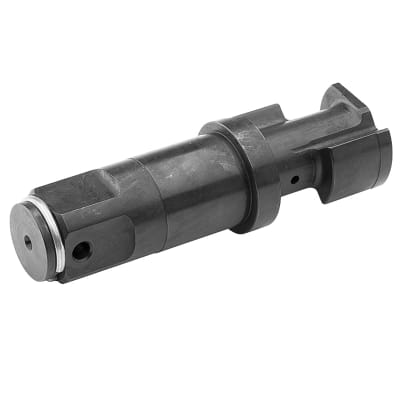

9692 2080-A726 Ingersoll-Rand 1" Anvil Equivalent 9692 2080-A726 Ingersoll-Rand 1" Anvil Equivalent

9692 2080-A726 1" Anvil Equivalent

Price $130.95

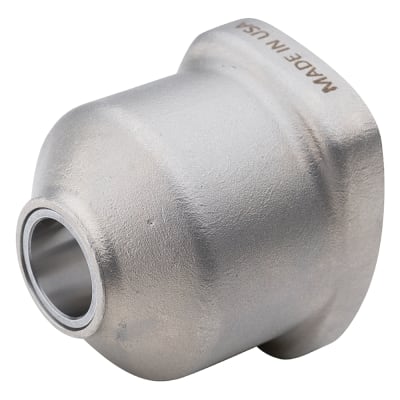

9693 2190Ti-D727 Ingersoll-Rand Hammer Case Assembly With Bushing 9693 2190Ti-D727 Ingersoll-Rand Hammer Case Assembly With Bushing

9693 2190Ti-D727 Ingersoll-Rand Hammer Case Assemby With Bushing Installed

Discontinued

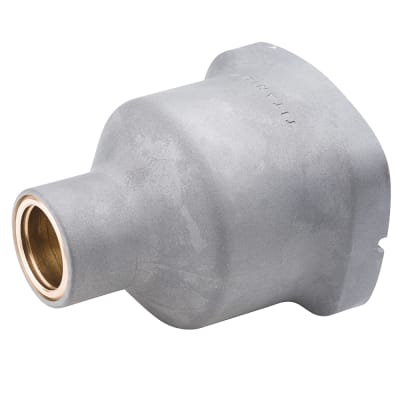

9694 2190Ti-6-D727 Ingersoll-Rand Hammer Case Assembly 9694 2190Ti-6-D727 Ingersoll-Rand Hammer Case Assembly

9694 2190Ti-6-D727 Hammer Case Assembly

Price $311.25
9695 2080-A48 Ingersoll-Rand Dead Handle Assembly 9695 2080-A48 Ingersoll-Rand Dead Handle Assembly

9695 2080-A48 Dead Handle Assembly

Price $85.50

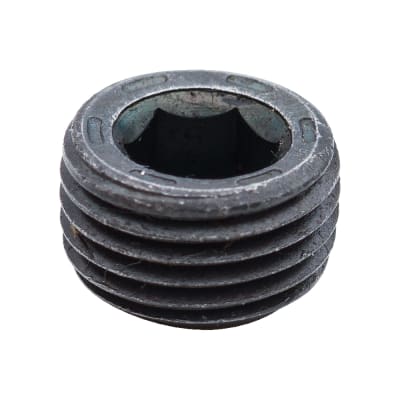

9716 2080-34 Ingersoll-Rand Pipe Plug 9716 2080-34 Ingersoll-Rand Pipe Plug

9716 2080-34 Pipe Plug

Price $4.00

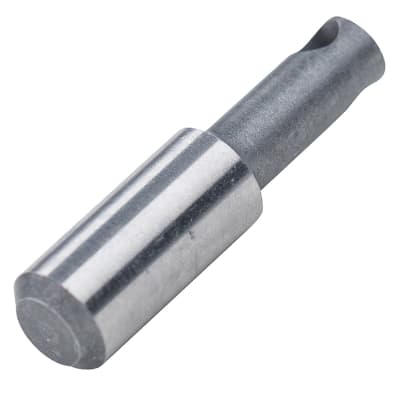

9717 2080-120 Ingersoll-Rand Plunger Pin 9717 2080-120 Ingersoll-Rand Plunger Pin

9717 2080-120 Plunger Pin

Discontinued
9719 2080-658 Ingersoll-Rand Reverse Lever 9719 2080-658 Ingersoll-Rand Reverse Lever

9719 2080-658 Reverse Lever

Price $8.00

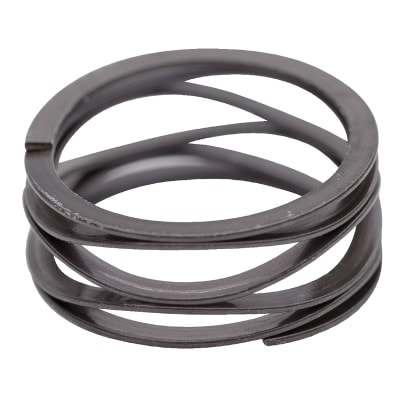

9720 2080-278 Ingersoll-Rand Reverse Lever Spring 9720 2080-278 Ingersoll-Rand Reverse Lever Spring

9720 2080-278 Reverse Lever Spring

Price $8.40

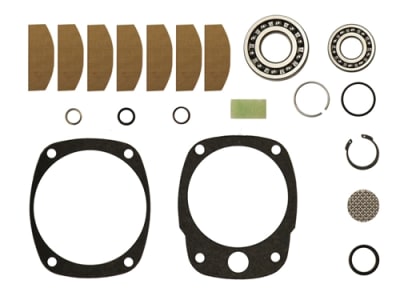

2190-TK1 Tune-up Kit. Used On Ingersoll-Rand Model 2190 series 9990 2190-TK1 Ingersoll-Rand Tune-up Kit Factory Equivalent

Made In The USA2190-TK1 Tune-up Kit. Used On Ingersoll-Rand Model 2190 series. The kit contains: Rotor Vanes, Bearings, Hammer Case Gasket, Handle Gasket, Silencer, Socket Retainer, Socket Retainer O-Ring, O-Rings, Retainer, Screen and Washer. This kit is made in the USA.

Price $66.54

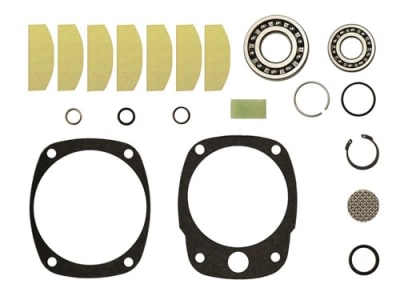

9990P 2190-TK1 Ingersoll-Rand Tune-Up Kit (Plastic Vanes) 9990P 2190-TK1 Ingersoll-Rand Tune-Up Kit (Plastic Vanes)

9990P 2190-TK1 Ingersoll-Rand Tune-Up Kit (Plastic Vanes). Used On Ingersoll-Rand Model 2190 series. The kit contains: Rotor Vanes, Bearings, Hammer Case Gasket, Handle Gasket, Silencer, Socket Retainer, Socket Retainer O-Ring, O-Rings, Retainer, Screen and Washer. This kit is made in the USA.

Price $61.13

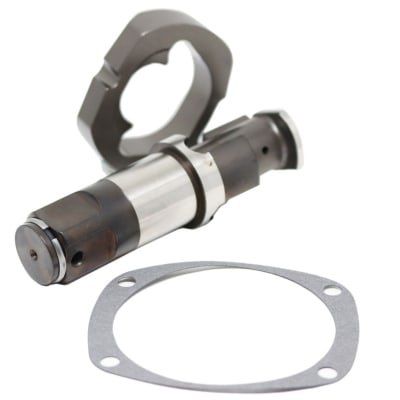

9993 2190-THK1 Ingersoll-Rand Hammer Kit 9993 2190-THK1 Ingersoll-Rand Hammer Kit

9993 2190-THK1 Hammer Kit

Price $273.80
GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease. GTH-1 Ingersoll-Rand Grease Tube Head

GTH-1 Ingersoll-Rand Grease Tube Head. Use with 4oz. Tube #115 Tool Grease.

Price $19.87
R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings R000A2-228 Ingersoll-Rand Push-Type Hand Grease Gun For Flush Fittings

Made In The USAIngersoll Rand R000A2-228 Push-type hand grease gun for flush-type fittings, holds up to 3 oz of grease.

Price $14.50
