6002B SN 078613 & Later Associated Battery Charger Parts List

MODEL 6002B PARTS LIST
Diagram # Description Part Number
1 Front leg 610864
2 Wheels w/nuts (2) 610553
3 Axle w/nuts 605673
4 Base 605186
5 Transformer 611072
6 Rectifier 611073
7 Fan Blade 610189
8 Fan Motor 610190
9 AC Circuit Breaker 610397
10 Timer (Electric)
611245
11 Switch w/knob (1) 611187
12 Pointer Knob (1) 603147
13 Amps Charge Meter 605204
14 AC Cord 611253
15 DC Cable Set 611074
16 DC Circuit Breaker (1) 610069
17 Top panel 611247
18 Side Panel (1) 605209
19 Back Panel 611080
20 Stop/Go Lite 604579
21 Clamps (1 pair, includes jaws) 6202
22 Jaw Kit (repairs 1 clamp) 610970
Not shown


Lid 605211

Handle 610753

Front Panel 611079

Clamp Bar 610517

6002B electric timer production began with serial number 078613-078812 1149
Sort By:
Page of 1
020-0076 Associated Chrome Handle Screws (Each) 020-0076 Associated Chrome Handle Screws (Each)

020-0076 Associated Chrome Handle Screws (Each)

Price $1.54

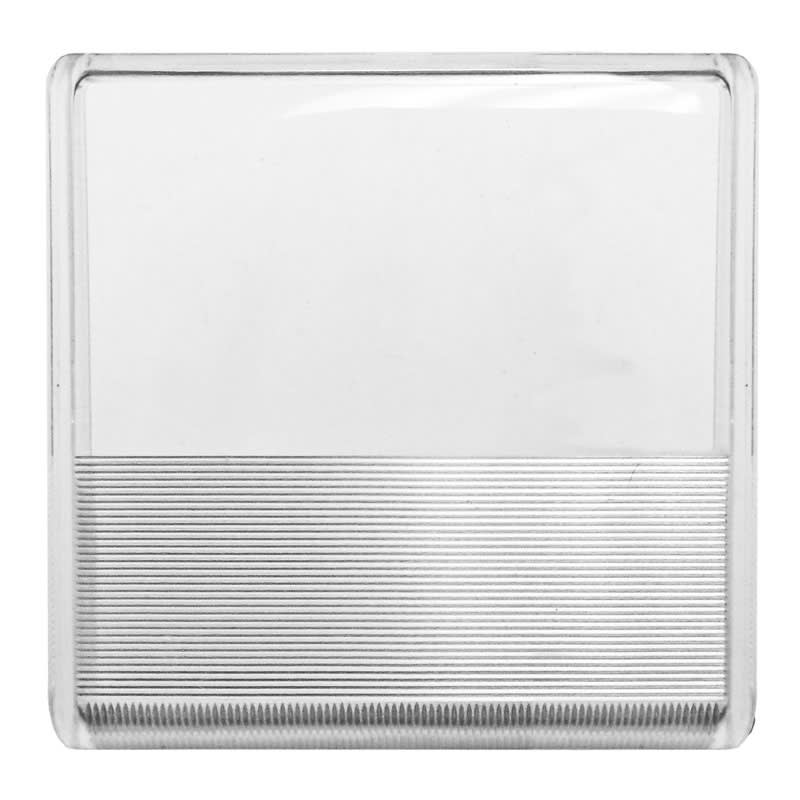

600121 Associated Meter Cover 600121 Associated Meter Cover

Clear Acrylic Lens Replaces Cover For 605204 Meter And Others

Price $10.02

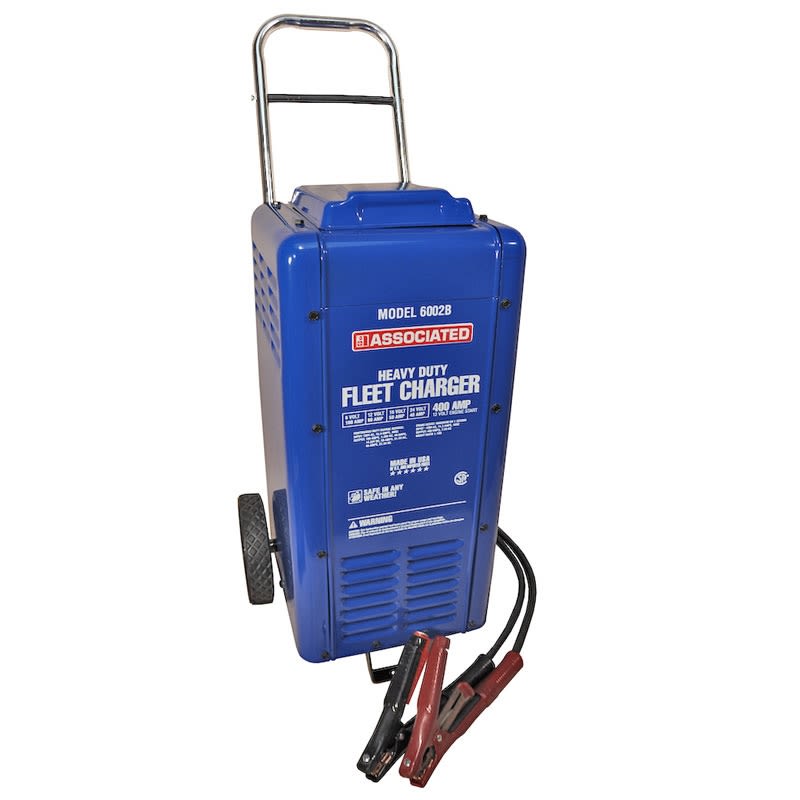

6002B Associated 100/80/50/400 Amp 6/12/18/24 Volt W/ Start 6002B Associated 100/80/50/400 Amp 6/12/18/24 Volt W/ Start

Made In The USAThe Associated 6002B is the highest performance fleet car battery charger on the market, comes with our best manufacturer's boost rating of 725 Amps. Charges 6, 12, 18, and 24 volt batteries. Heavy-duty transformer, patented "Sub-Sil" multi diode rectifiers, longer AC cord and DC leads are standard features for higher performance. Features include, 500 amp fully insulated "Flex-Spring" clamps; the strongest in the industry. An Automatic Timer for accurate charging. Patented "Stop/Go" light polarity protection. Heavy-duty chrome plated handle. Rugged 7 inch wheels. Made in the USA. UL listed for indoor/outdoor use, "Safe In Any Weather"

Price $849.95
603147 Associated Pointer Knob (Press-On) 603147 Associated Pointer Knob (Press-On)

Associated Pointer Knob with spring clip (Press-On). Fits 1/2 round shaft switches and timers only. For 3/4 round shaft applications see 610930.

Price $10.95

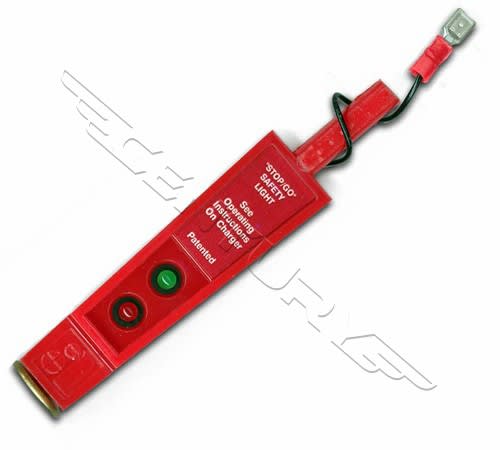

604579 Associated Stop/Go Polarity Indicator Assembly 604579 Associated Stop/Go Polarity Indicator Assembly

STOP/GO LITE Assembly will upgrade any battery charger clamp kit or repair an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

Price $33.71
604592 Associated Stop/Go Polarity Indicator Lamp 604592 Associated Stop/Go Polarity Indicator Lamp

604592 Associated Booster Cables STOP/GO LITE Assembly. This is the replacement light only (does not include resistor See 604579 for complete kit). For repair of an existing damaged light. A great safety feature for any battery charger. Fits Snugly inside a clamp lever and reads red for no-go, green for go, preventing reverse connection in poorly lit or unreadable conditions.

Price $29.45

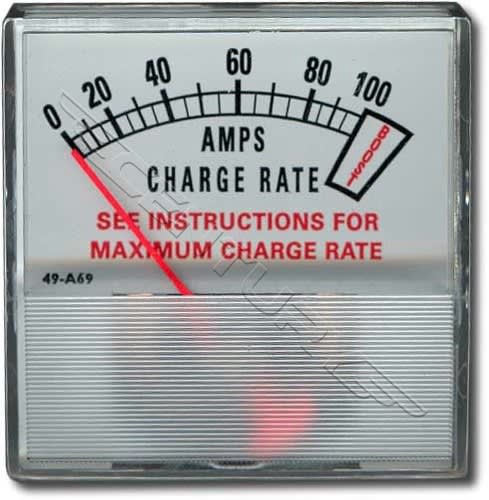

605204 Associated Ammeter 0-100 Amp Range W/ Boost 605204 Associated Ammeter 0-100 Amp Range W/ Boost

Associated 605204 Ammeter 0-100 Amp Range w/ Boost. Includes Sealing Gasket, Mounting Template and mounting hardware.

Price $29.34
605209 Associated Universal Side Panel 6001 6002 605209 Associated Universal Side Panel 6001 6002

605209 Associated Side Panel 6001, 6002, 6003, 6008. Universal Side panel utilized on both sides (axle cutout on front and back).

Price $41.02

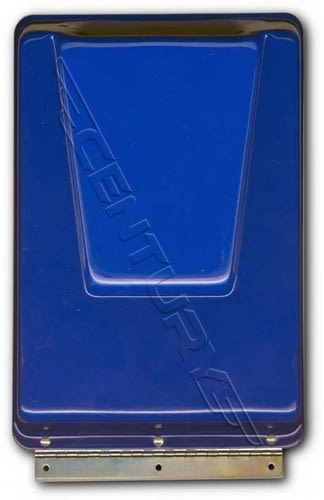

605211 Associated Lid Assembly 605211 Associated Lid Assembly

Lid Assembly with hinge, screws and rubber bumper pad. Replace your lid and keep those knobs from getting knocked off. Protects the switches and gauge s from damage and weather.

Price $27.03
605213 Associated Chrome Handle 605213 Associated Chrome Handle

Chrome Handle with screws and insulated clamp bar.

Price $52.11
605673 Associated Axle With Nuts 605673 Associated Axle With Nuts

605673 Associated Axle With Nuts

Price $28.02
610043 Associated 3/8 Axle Cap (Each) 610043 Associated 3/8 Axle Cap (Each)

610043 Associated 3/8 Axle Cap (Each)

Price $2.84
610069 Associated 50 Amp DC Circuit Breaker 610069 Associated 50 Amp DC Circuit Breaker

50 Amp DC Circuit Breaker

Price $26.50
610180 Associated Knob 610180 Associated Knob

Associated 610180 KNOB

Price $21.92

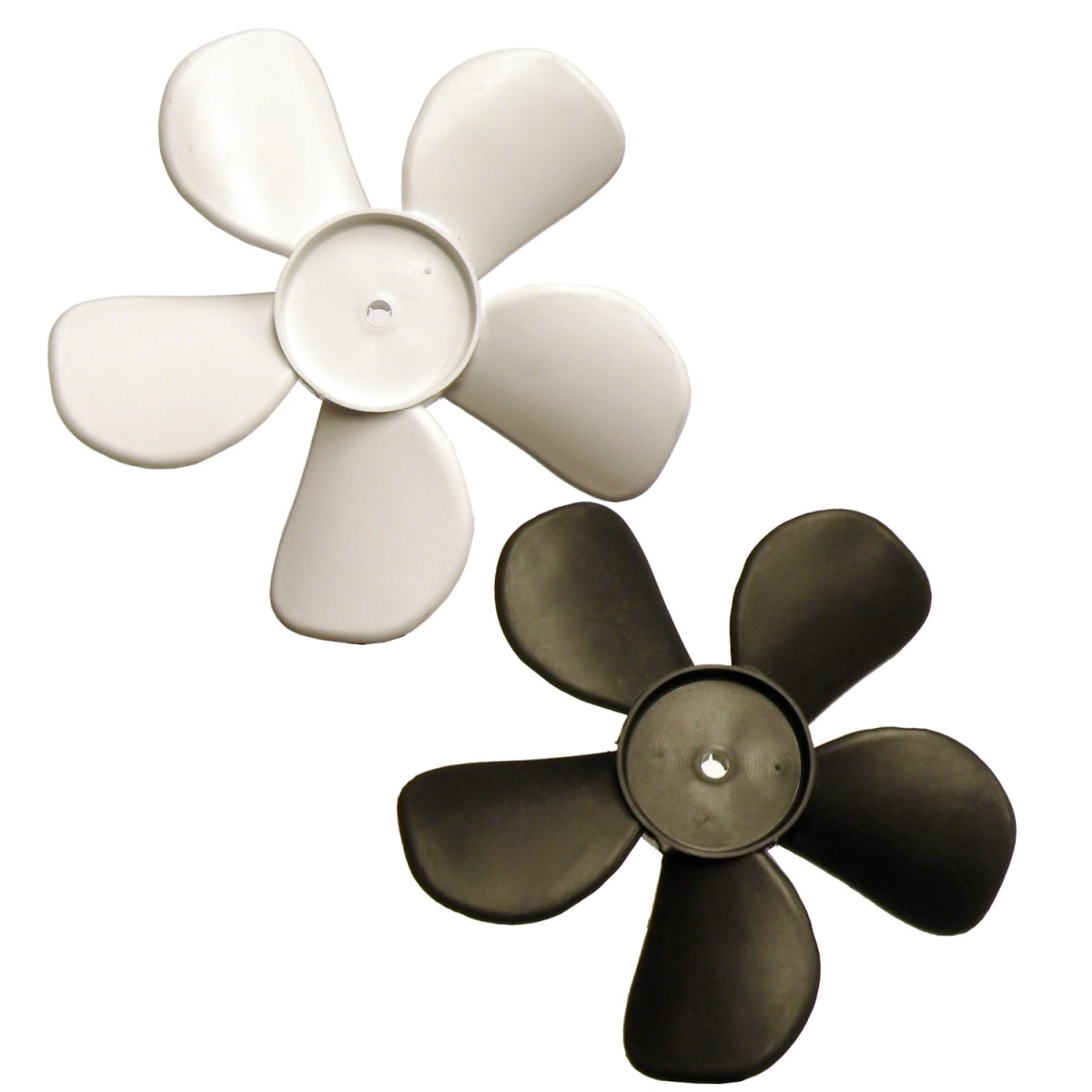

610189 Associated Fan Blade Kit 610189 Associated Fan Blade Kit

610189 Associated Fan Blade Kit, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units.

Price $14.39

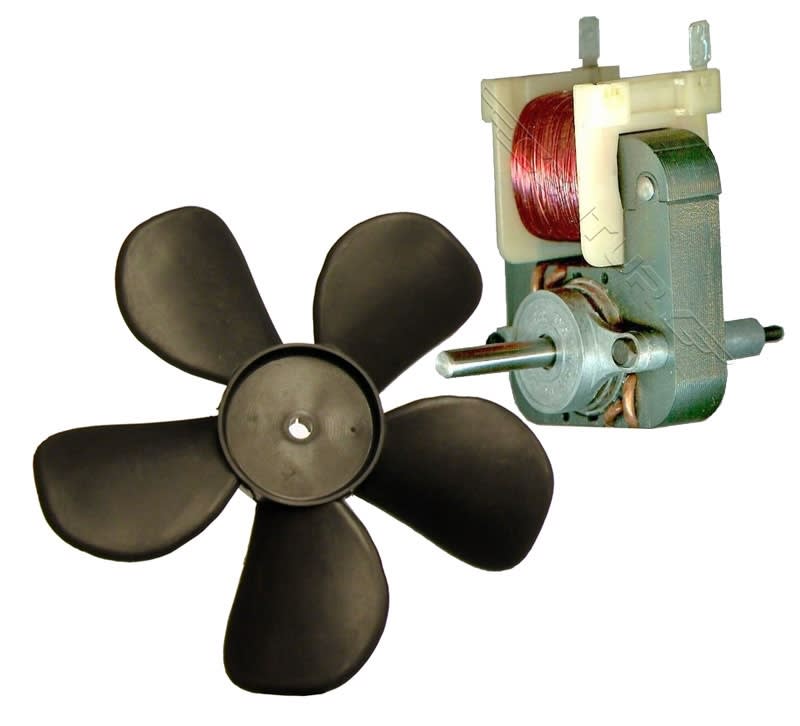

610190 Associated Fan Motor Kit With Blade 115 Volt 610190 Associated Fan Motor Kit With Blade 115 Volt

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts.

Price $62.04

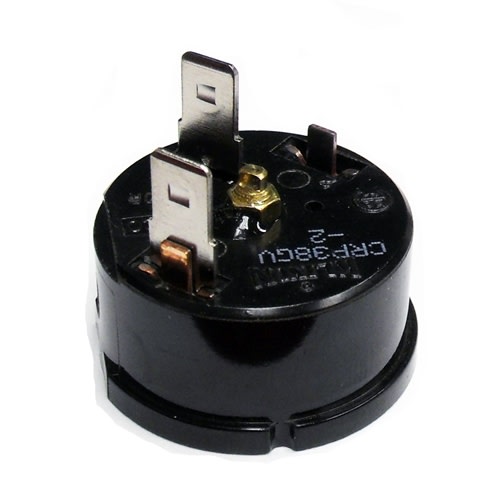

610397 Associated AC Circuit Breaker 610397 Associated AC Circuit Breaker

AC CIRCUIT BREAKER

Price $54.00
610398 Associated Transformer 6002B 610398 Associated Transformer 6002B

610398 Associated Transformer 6002B

Price $617.64
610517 Associated Clamp Bar 7" 610517 Associated Clamp Bar 7"

610517 Associated Clamp Bar 7"

Price $7.58
610553 Associated 7" Wheel Kit With Hubs 610553 Associated 7" Wheel Kit With Hubs

610553 Associated Pair of 7" rubber wheels with a pair of hubs for 3/8" axle.

Price $39.39
610753 Associated Chrome Handle 610753 Associated Chrome Handle

610753 Associated Chrome Handle

Discontinued See 605213

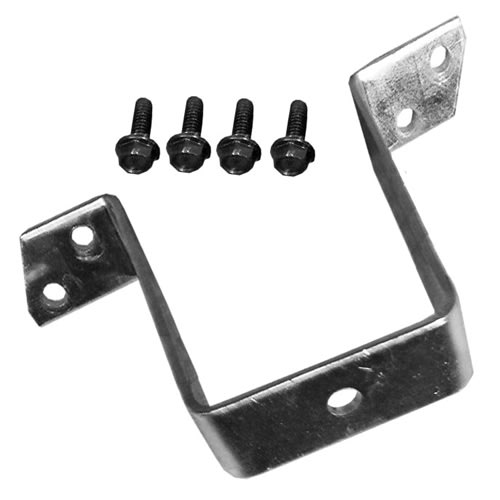

610864 Associated Leg 610864 Associated Leg

Associated 610864 LEG

Price $23.10

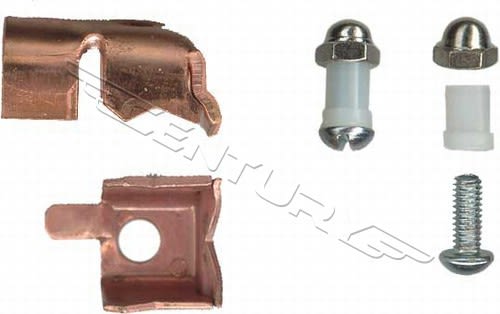

610970 Associated 500 Amp Jaw Kit (Repairs One Clamp) 610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts.

Price $17.87
611072 Associated Transformer 6002B Welded Base 611072 Associated Transformer 6002B Welded Base

611072 Associated Transformer 6002B Welded Base

Price $533.25

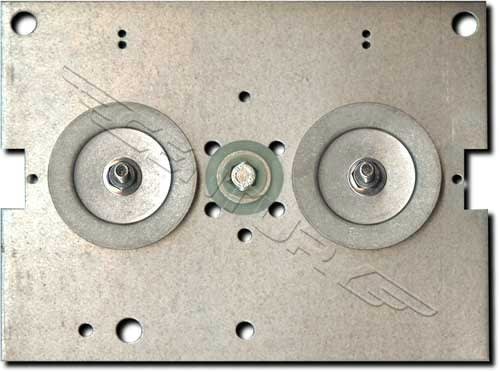

611073 Associated Rectifier Installation Kit 611073 Associated Rectifier Installation Kit

Associated 611073 Rectifier Installation Kit. The Highest rated Rectifier on the market, completely assembled, includes mounting hardware and insulators.

Price $45.23
611074 Associated DC Cable Assembly 8' (4 AWG) 611074 Associated DC Cable Assembly 8' (4 AWG)

Associated DC Cable Assembly, with 500 amp, fully insulated, "Flex-Spring" clamps. 8' (4 AWG)

Price $163.90
611075 Associated Front Panel 6002B Upgrade 611075 Associated Front Panel 6002B Upgrade

611075 Associated Front Panel 6002B Upgrade

Price $38.81
611132 Associated Top Panel For 6002B Mechanical Timer Units 611132 Associated Top Panel For 6002B Mechanical Timer Units

611132 Associated Top Panel For 6002B Mechanical Timer Units

Price $62.26
611133 Associated A/C Cord 14-3 Flag Terminals 611133 Associated A/C Cord 14-3 Flag Terminals

611133 Associated A/C Cord 14-3 Flag Terminals

Price $72.93
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob 611187 Associated 8 Position Rotary Selector Switch With Pointer Knob

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

Price $44.18

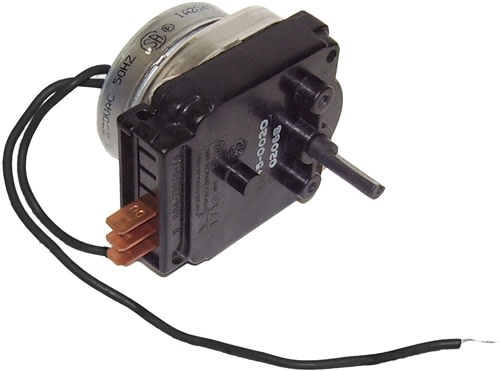

611245 Associated 120 Minute Electronic Timer with Knob 611245 Associated 120 Minute Electronic Timer with Knob

611245 Associated 120 Minute Electronic Timer with Knob, for use in units with a 120 minute timer already installed. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Price $67.74
611247 Associated Top Panel 6002B Electrical Timer (041-1868) 611247 Associated Top Panel 6002B Electrical Timer (041-1868)

Top Panel 6002B Electrical Timer (041-1868)

Price $39.47

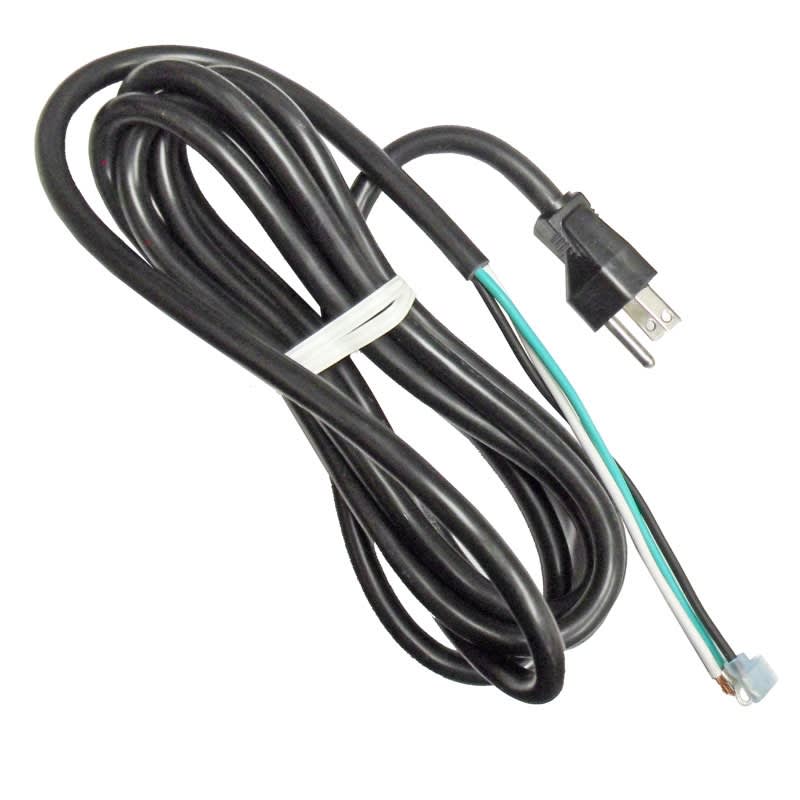

611253 Associated Power Cord 14/3 SJOW-A 611253 Associated Power Cord 14/3 SJOW-A

611253 Associated Power Cord 14/3 SJOW-A

Price $46.05
611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit 611254 Associated 120 Minute Electronic Timer with Knob Upgrade Kit

611254 Associated 120 Minute Electronic Timer with Knob, retrofit for units with a mechanical timer. The timer controls battery charging in timed Mode and has a manual hold mode for longer charging cycles. Switch circuits are rated 15 amperes. Termination is designed to accept standard 1/4" spade terminals.

*If your unit has an Older 90 Minute mechanical timer, use the 611254 retrofit kit to simplify the install. If your unit has an electric 120 minute timer, use the 611245 which is a direct replacement for those units.

Price $76.68
6200 Associated Side Terminal Adapter Pair 6200 Associated Side Terminal Adapter Pair

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use.

Price $7.34

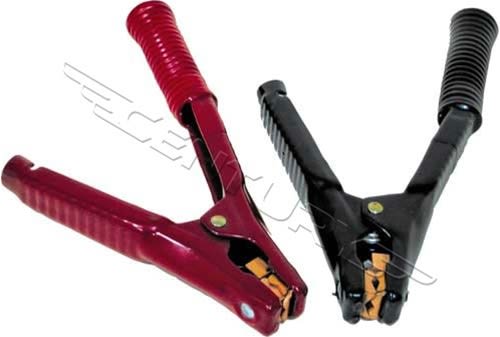

6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair) 6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
