6080A Associated Battery Charger Parts List

MODEL 6080A REPAIR PARTS
Diagram # Description Part Number
1
Switch w/knob 605675
2
Switch - Rocker 610172
3
Ammeter 605616
4
AC Cord 605206
5
DC Cable Set 610098
6
Circuit Breaker (1) 610117
7
Rectifier 610090
8
Transformer 610088
9
Handle (optional accessory) 610057
10
Side Panels (1 pair) 610072
11
Top Panel 610075
12
Base 610076
13
Back Panel 610082
14
Front Panel 610083
15
Jumper Leads (set of 5) 6074
Sort By:
Page of 1
600121 Associated Meter Cover
600121 Associated Meter Cover
Price $9.70

Clear Acrylic Lens Replaces Cover For 605204 Meter And Others more info
605206 Associated A/C Cord 16-3
605206 Associated A/C Cord 16-3
Discontinued

605206 Associated A/C Cord 16-3 more info

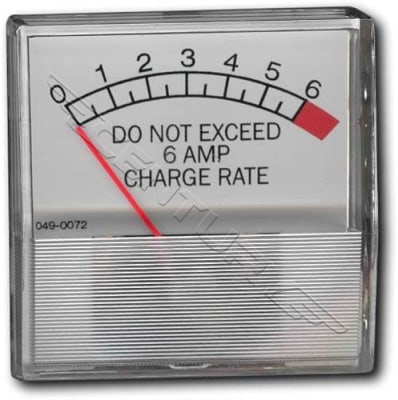

605616 Associated Ammeter Horizontal 0-6 Amp With Overload
605616 Associated Ammeter Horizontal 0-6 Amp With Overload
Price $63.93

605616 Ammeter Horizontal 0-6 Amp With Overload Zone. Brass Stud Mounts With Star Washers Included. more info
605675 Associated Rotary Switch Multi Knob Kit
605675 Associated Rotary Switch Multi Knob Kit
Discontinued See 611187

605675 Associated Rotary Switch Multi Knob Kit. This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob of your choice and discard the rest. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.

When Discontinued See 611187
more info

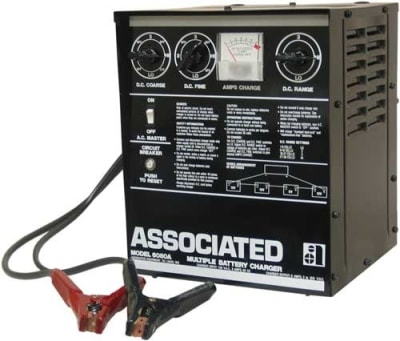

6080A Associated 6 Amp 1-36 Cells Series Automotive Battery Charger
6080A Associated 6 Amp 1-36 Cells Series Automotive Battery Charger
Price $481.64

Made In USAThe 6080A Associated 6 Amp Battery charger for "Flooded" or wet automotive and "Maintenance Free" batteries. Charge up to 36 Cells (6 batteries) in Series. New technology enables higher output voltage for charging new batteries and rejuvenating sulfated batteries. Fully charges six maintenance-free batteries at a time. Has an isolated transformer for better safety, plus circuit breaker protection. Includes five charging leads. Mounts on wall or bench more info
610057 Associated Handle
610057 Associated Handle
Price $33.32

HANDLE more info
610088 Associated Transformer 6080A
610088 Associated Transformer 6080A
Price $446.41

610088 Associated Transformer 6080A more info
610090 Associated Silicone Bridge Rectifier
610090 Associated Silicone Bridge Rectifier
Price $39.40

Silicone Bridge Rectifier more info

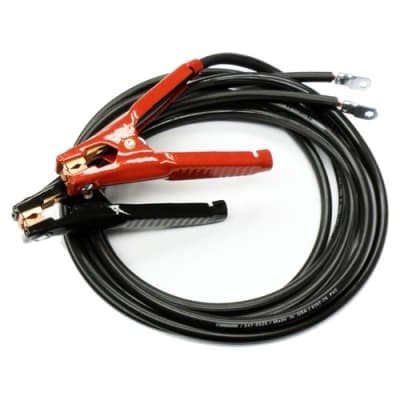

610098 Associated DC Cable Set With Clamps 8' Long 10/2 AWG
610098 Associated DC Cable Set With Clamps 8' Long 10/2 AWG
Price $99.83

DC Lead Set with clamps, PVC Jacket for flexibility and long life, 8' Long 10/2 AWG welding wire provides excellent electrical characteristics. more info

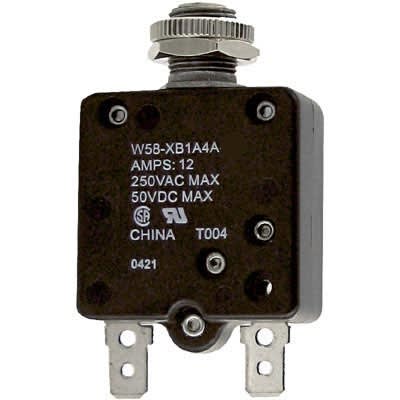

610117 Associated 12 Amp Circuit Breaker
610117 Associated 12 Amp Circuit Breaker
Price $58.44

CIRCUIT BREAKER more info
610172 Associated Rocker Switch
610172 Associated Rocker Switch
Price $18.11

ROCKER SWITCH more info
611095 Associated Charging Jumper Cups (Top Post Only)
611095 Associated Charging Jumper Cups (Top Post Only)
Price $9.86

611095 Associated Charging Jumper Cups (Each) more info
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob
611187 Associated 8 Position Rotary Selector Switch With Pointer Knob
Price $42.76

This kit replaces several older style switch / knob combinations. Simply follow the easy to read instructions for your battery charger and install the knob. Illustrated instructions indicate any wiring changes needed to facilitate the new switch.
more info
