117-052 83105 Century 105 amp MIG welder (phase-control)

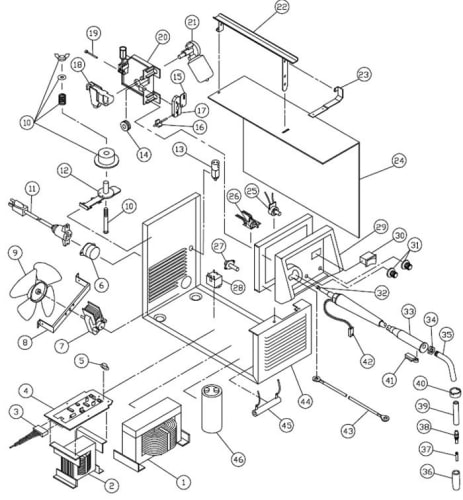

117-052 Replacement Parts List
Item No.
Customer #
Description
1
880-188-888
Transformer Assembly
2
880-215-888
Reactor Assembly
3
880-225-666
Wire Harness
4
880-217-666
Heatsink / PCB Assembly
5
216-053-666
Thermal Protector
6
239-159-666
Power Receptacle
7
216-087-666
Fan Motor
8
412-375-000
Fan Motor Bracket
9
316-009-666
Fan Blade
10
131-350-001
Tension Kit
11
S18475
Power Cord
12
312-076-666
Wire Spindle
13
246-212-666
Solenoid Switch
14
4347
Drive Roller 0.045 Serrated

4323
Drive Roller 0.024 / 0.030 / 0.035
15
410-464-666
Mig Connector Jumper
16
246-326-000
Knob
17
412-465-666
Mig Gun Connector
18
880-111-666
Drive Tensioner Assembly
19
239-123-666
Inlet Guide Tube
20
880-130-666
Drive Base Assembly
21
216-089-666
Drive Motor
22
880-012-010
Handle Assembly
23
412-278-016
Hood Hinge
24
410-568-020
Right Side Panel
25
245-108-666
Heat Potentiometer
26
880-219-666
Wire Speed PCB
27
246-116-666
Fuse Holder

245-060-666
Fuse Only (BLN-30)
28
246-258-666
Relay
29
743-267-666
Mig Nose with Label
30
246-259-666
Rocker Switch
31
246-107-666
Knob
32
4331
Steel Liner

4325
Teflon Liner
33
238-155-100
Gun Assembly
34
334-220-000
Nut
35
334-227-000
Conductor Tube
36
4343
Nozzle, Steel (Tapered)

4330
Nozzle, Flux or Aluminum (Straight)

4329
Nozzle, Spot (Notched)
37
4309
0.024 Contact Tips (Bag of 6)

4310
0.030 Contact Tips (Bag of 6)

4311
0.035 Contact Tips (Bag of 6)

4339
0.045 Contact Tips (Bag of 6)
38
334-228-000
Gas Diffuser
39
334-217-000
Conductor Tube Insulation
40
334-219-000
Handle Cap
41
334-221-000
Trigger
42
860-744-000
Gun Wiring Harness
43
238-216-666
Ground Cable Assembly

4100
Ground Clamp (Not Shown)
44
410-639-010
Mig Base
45
860-523-666
Bleeder Resistor Assembly
45
213-035-666
Capacitor
47
412-248-000
Tank Chain (Not Shown)
48
410-557-020
Left Side Panel (Not Shown)
49
238-155-100
Gun Assembly 10' (Not Shown)
50
334-285-666
Gas Regulator (Not Shown)
51
4213
Standard Helmet (Not Shown)
52
410-575-030
Hood (Not Shown)
53
412-406-010
Tank Tray (Not Shown)
54
412-271-010
Tank Bracket (Not Shown)
55
412-251-010
Tank Tray Straps (Not Shown)
56
412-248-000
Tank Chain (Not Shown)
Sort By:
071-014-908 Century Drive Roller Key Set 071-014-908 Century Drive Roller Key Set

Century Drive Roller Key Set. For use with Mig welders made by Century Mfg Co. Set includes both flat stock and woodruf keys for most welders, use when buying a new drive roller. Some older units had the key made into the drive roller, the new style drives rollers are slotted and require a woodruf key to lock them to the shaft.

Discontinued
131-211-100 Mig Gas Conversion Kit 2111 131-211-100 Mig Gas Conversion Kit 2111

131-211-100 Mig Gas Conversion Kit 2111. Includes fixed regulator, 24 Volt Solenoid, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-211-200 Mig Gas Regulator & Hose Kit 131-211-200 Mig Gas Regulator & Hose Kit

131-211-200 Mig Gas Regulator & Hose Kit. Includes fixed regulator, Gas hose and clamps, fittings for hose and welder.

Discontinued
131-419-000 Century Spindle Tension Kit 131-419-000 Century Spindle Tension Kit

131-419-000 Century Spindle Tension Kit Hardware for the 312-076-666 spindle. Replaces part number 131-350-001.

Price $35.60
238-009-500 Century Ground Cable & Clamp 12 Foot (4007) 238-009-500 Century Ground Cable & Clamp 12 Foot (4007)

238-009-500 Century Ground Cable & Clamp 12 Foot 2 Gauge cable with Dinse Type Machine Plug (4007)

Discontinued
Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320 238-155-000 Gun, Mig 130 Amp 10 Ft

Gun, Mig 130 Amp 10 Ft. The 238-155-000 replaces: 238-224-000, 238-224-100, 238-155-100, 123-155-500, 4320

Discontinued
239-052-908 Lincoln Cable Connector, Set #4-#1 (4031) 239-052-908 Lincoln Cable Connector, Set #4-#1 (4031)

Lincoln Cable Conncetor Set. Precision machined from special contour extended brass. Equipped with heat and oil resistance molded covers. Easily twists into position. Model 239-052-908. One pair 3/8” brass male plugs. Fits most Century Arc and MIG welders. For cable size #4-#1

Discontinued
246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008. 246-086-666 Century Solenoid 24 Volt Air Service

246-086-666 Century Solenoid 24 Volt Air Service, replaces 246-212-666 and 43700008, B7161370.

Price $115.85
246-258-666 Relay, 24 Volt 246-258-666 Relay, 24 Volt

246-258-666 Relay, 24 Volt

Price $53.25
246-259-666 Rocker Switch DPDT Center Off 246-259-666 Rocker Switch DPDT Center Off

246-259-666 Rocker Switch DPDT Center Off. Rocker Switch, DPDT, Center Off used on the following Century welders: 117-051 (Century 83110, Century 83111, Solar 2150, Dayton 3Z913E, Dayton 3Z913F, Matco WFWMDP), 117-052 (Century 83105), 117-053 (Solar 2140, Sears Craftsman 20549), 117-055 (Matco WFFC), 117-058 (Snap-On YA217A), 117-059 (Snap-On YA219C, Matco WFW140), 117-061 (Century Powermate 83100, 117-064 (Century Powermate 83101)

Price $79.89
310-122-500 Century Steel Drive Roller .024 .030 .035 4323 310-122-500 Century Steel Drive Roller .024 .030 .035 4323

Century Drive Roller .024 .030 .035 in Part number 4323. For use with steel welding wire in all Mig welders made by Century Mfg Co. Does Not Include key.

Price $23.70
312-045-666 Receptacle Assembly 312-045-666 Receptacle Assembly

312-045-666 Front Panel Female Receptacle Kit for many Century made welders. For matching male plugs see part # 239-052-908. Replaces part # 312-028-100.

Price $74.50
312-076-666 Spindle Arm for Century / Lincoln Welders 312-076-666 Spindle Arm for Century / Lincoln Welders

312-076-666 Spindle Arm for Century / Lincoln Welders. See part # 131-419-000 for spindle tension kit or the 312-110-666 spool adapter to fit a 8" spool of wire to the same spindle.

Discontinued See 9SS31898-1
334-203-000 Nozzle, 1/2 Id 334-203-000 Nozzle, 1/2 Id

Tweco Style MIG Welding Nozzle, Recessed. (1 pack). Replaces Century/Lincoln part numbers: 4348, 43480, 334-203-100, 334-203-500, 334-203-908, M15578, Magnum 100, KP21T-50, 21-50. Works with most Century and Lincoln Electric welders.

Price $4.00
334-221-000 Trigger, Mig Gun 334-221-000 Trigger, Mig Gun

334-221-000 Trigger, Mig Gun

Price $39.50
334-227-000 Tube, Conductor Large Id 334-227-000 Tube, Conductor Large Id

334-227-000 Tube, Conductor Large Id

Price $61.55
334-228-000 Diffuser, Gas Mig Gun Large Id 334-228-000 Diffuser, Gas Mig Gun Large Id

Diffuser, Gas Mig Gun Large Id. Gas diffuser for the following MIG guns: 4320, 238-155-000, 238-155-100, 238-155-500, 238-224-000, 238-224-100.

Discontinued see KP35-50
860-616-908 Century Composite Aluminum Drive Roller 43240 860-616-908 Century Composite Aluminum Drive Roller 43240

860-616-908 Century Composite Aluminum Drive Roller 43240. (860-908-002) For use with soft welding wire in all Mig welders made by Century Mfg Co.

Price $42.50
880-130-666 Drive Deck 880-130-666 Drive Deck with Arm

880-130-666 Drive Deck

Price $99.99
880-217-666 Circuit Board/Heatsink Assembly 880-217-666 Circuit Board/Heatsink Assembly

880-217-666 Circuit Board/Heatsink Assembly

Discontinued
KH525 Lincoln 300 Amp Ground Clamp KH525 Lincoln 300 Amp Ground Clamp

The Lincoln Electric 300 Amp Grounding Work Clamp is designed to complete electrical circuits to help promote a positive welding arc. This clamp features wide-grip jaws to help ensure a firm connection. Helps ground your work to be welded to a good electrical (ground) earth. Will take cable sizes up to #2/0. Cable (not included) connects directly to jaws. Ensures that the work cable makes a good electrical connection with the metal being welded. Jaws have a heavy duty spring that compresses the jaws tightly against the metal object. 1-year warranty.

Price $6.30
KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023 KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack)

KH710 Lincoln .025" Tweco Style Contact Tip (10 Pack). Same as KP11-25, KP2039-1B1, M15522, Mig023, Replaces Century and Marquette Part Numbers:4309, 43090, 334-159-000, 334-159-300, 334-159-908, M15522, KP11-25 & Others. Used on Century made welders model 117-001 to 117-090.

Price $13.95
KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack) KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack)

KH711 Lincoln .030" Tweco Style Mig Contact Tip (10 Pack). Same as KP11-30, KP2039-2B1, M15523, Mig030.  Replaces Century and Marquette Part Numbers: 4310, 43100, 334-160-000, M15523, KP11-30 & Others. Used on Century made welders model 117-001 to 117-090.

Price $13.95
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH712 Lincoln .035" Tweco Style Mig Contact Tip (10 Pack)

KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. Replaces Century and Marquette Part Numbers: 4311, 43110, 334-161-000, M15524, KP11-35 & Others. Used on Century made welders model 117-001 to 117-090.

Price $13.95
KH712 Lincoln .035" Tweco Style Contact Tip (10 Pack) Replaces KH712, KP11-35, KP2039-3B1, M15524, Mig035. KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack)

KH713 Lincoln .045" Tweco Style Mig Contact Tip (10 Pack) Replaces KP11-45, KP2039-4B1, M57242, Mig045, 43990, 334-202-300

Discontinued See KP11-45
KH727 Lincoln Nozzle, Spot Weld (each) KH727 Lincoln Nozzle, Spot Weld (each)

KH727 Lincoln Nozzle, Spot Weld (each). Replaces Century Part Numbers: 4329, 43290. 334-211-000, 334-211-100, 334-211-300, 334-211-500, 334-211-908, KP1956-1, KP21-62-FAS.

Price $15.75
KP35-50 Diffuser, Gas Mig Gun Large Id KP35-50 Diffuser, Gas Mig Gun Large Id

Diffuser, Gas Mig Gun Large Id. Gas diffuser for the following MIG guns: 4320, 238-155-000, 238-155-100, 238-155-500, 238-224-000, 238-224-100.

Price $15.99
KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel KP45-40-15 Mig Gun Liner .035 - .045 15Ft Steel

Mig Gun Liner .035 - .045 15Ft, For most Century Solar and small Lincoln welders. Replaces KP1937-1, 4331, 334-229, 334-373 Steel Liners. For Aluminum See KP1959-1 (4325, 334-230, 334-374) - Teflon Liner.

Price $25.56
S18475 Power Cord (248-226-000, 248-227-000, 4040) S18475 Power Cord (248-226-000, 248-227-000, 4040)

S18475 Power Cord for the following Century Welders & Lincoln Welders. 117-051, 117-052, 117-058, 117-059, 117-061, 117-064 and others. Does not have ears for retaining screws. Replaces 248-226-000, 248-227-000, 4040

Discontinued
