| Illus. # | Part # | Description |

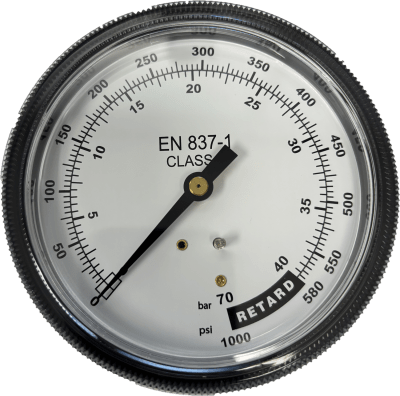

| 1 | RA19281 | Air Purge Gauge (115V) |
| 1 | RA19285 | Air Purge Gauge (220V) |
| 2 | RA17107 | Amber Light (115V) |
| 2 | RA19351 | Amber Light (220V) (disc) |

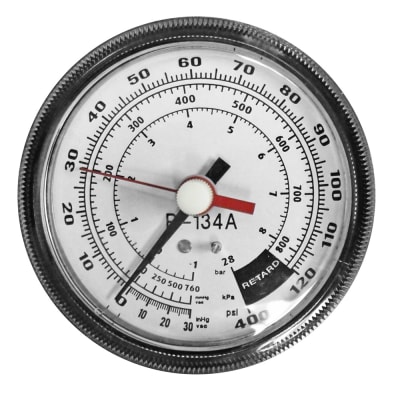

| 3 | RA19786 | Low Side Gauge |

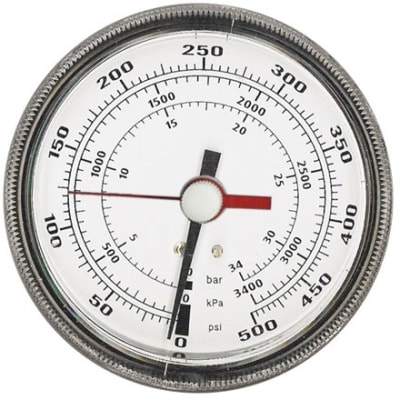

| 4 | RA19787 | High Side Gauge |
| 5 | RA19506 | Inlet Manifold Assembly |
| 6 | RA19759 | Circuit Breaker/Thermal Overload |
| 7 | RA19805 | Flow Control Valve |
| 8 | RA15425 | Vacuum Pump (115V) |
| 8 | RA15628 | Vacuum Pump (220V) |
| 9 | 19776 | Spin-On Filter |

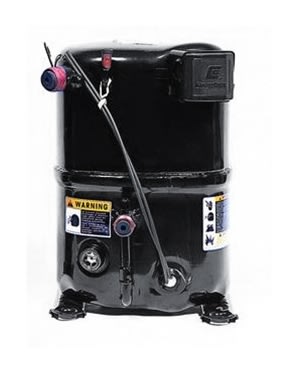

| 10 | RA19775 | Hermetic Compressor (115V) Discontinued
|

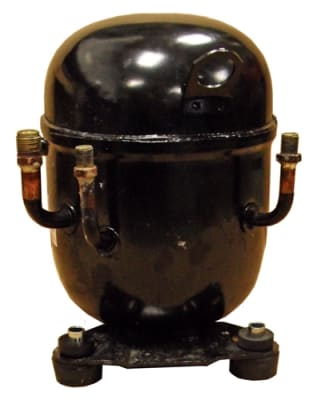

| 10 | RA20081 | Hermetic Compressor (115V) New
|
| 10 | RA19785 | Hermetic Compressor (220V) Discontinued |
| 10 | RA20082 | Hermetic Compressor (230V) New |
| 11 | 123938 | System Oil Separator |
| 12 | RA19011 | 550 CFM Fan |

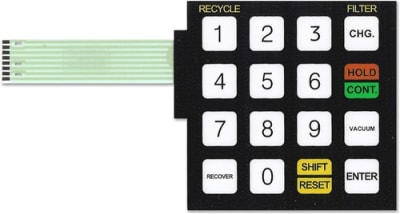

| 13 | RA19065 | Keypad |
| 14 | RA17549 | 15 Amp Circuit Breaker |
| 15 | RA19343 | Main Power Switch |
| 16 | 19295 | Air Purge Valve |
| 17 | RA19181 | Power Cord Receptacle |
| 18 | RA19501 | Tank Strap |
| 19 | RA19773 | Scale Assembly |
| 20 | RA17416 | Fan (115V) |
| 20 | RA17516 | Fan (220V) |
| Not Shown | RA19774 | Main Circuit Board (17800B) |
| Not Shown | RA19803 | Main Circuit Board (17801B) |
| Not Shown | RA19778 | Relay Board (115V) |
| Not Shown | RA19784 | Relay Board (220V) |
| Not Shown | 19652 | Oil-less Compressor (115V) |
| Not Shown | 19706 | Oil-less Compressor (220V) |
| Not Shown | RA19047 | Receptacle |
| Not Shown | RA19429 | Vacuum Pump Protection Switch |
| Not Shown | RA18752 | Vacuum Switch |
| Not Shown | RA19427 | High Pressure Switch |
| Not Shown | 17506 | 50 lb. (23 kg) Tank (¼ fittings) " |
| Not Shown | 34750 | 50 lb. (23 kg) Tank (ACME fittings) |
| Not Shown | 19299 | 36 Yellow Single Q.S. Hose " |
| Not Shown | 68336A | 36 Red Single Q.S. Hose " |
| Not Shown | 19375 | 36 Blue Single Q.S. Hose " |
| Not Shown | 19312 | 36 Red Hose w/Auto Shut-Off " |
| Not Shown | 19372 | 36 Blue Hose w/Auto Shut-Off " |
| Not Shown | 19310 | 36 Yellow Hose w/Auto Shut-Off " |
| Not Shown | 19350 | 36 Blue ACME Hose " |
| Not Shown | 19307 | 36 Red ACME Hose " |
| Not Shown | 19313 | 36 Yellow ACME Hose " |

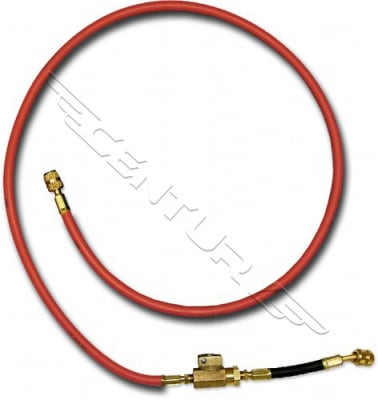

| Not Shown | 19300 | 96 Red Hose w/Ball Valve " |
| Not Shown | 19343 | 96 Blue Hose w/Ball Valve " |
| Not Shown | 19370 | 96 Red Hose w/Auto Shut-Off " |
| Not Shown | 19309 | 96 Blue Hose w/Auto Shut-Off " |
| Not Shown | 19328 | 96 Red ACME Q.S. Hose " |
| Not Shown | 19329 | 96 Blue ACME Q.S. Hose " |
| Not Shown | 16301 | Tank Adapter |
| Not Shown | 18190A | Low Side Service Coupler |
| Not Shown | 18191A | High Side Service Coupler |
| Not Shown | 19049 | Power Cord |
