| Index No. | Part No. | Description | No. Req'd |
| 1 | CA145052 | CylinderHead Assembly | 1 |
| 2 | CA145053 | Pin- Dowel | 2 |
| 3 | CA145054 | Bumper | 1 |
| 4 | CA145055 | Piston Incl Index No: 3 | 1 |
| 5 | CA145056 | Gasket | 1 |
| 6 | CA145057 | Cylinder | 1 |
| 7 | CA145058 | Pin- Dowel | 2 |
| 8 | CA145059 | Valve | 1 |
| 9 | CA145060 | Valve- Assembly Incl Index No: 8 | 1 |
| 10 | CA145061 | SeatValve | 1 |
| 11 | 8940158401 | Body- Throttle Valve | 1 |
| 12 | CA145063 | O-Ring | 1 |

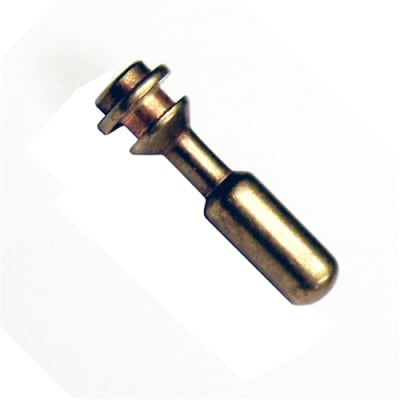

| 13 | 8940158402 | Stem- Throttle Valve | 1 |
| 14 | CA145065 | O-Ring | 1 |
| 15 | 8940158403 | Spring- Throttle Valve | 1 |
| 16 | CA145067 | O-Ring | 4 |
| 17 | CA145068 | Cap- Throttle Valve | 1 |
| 18 | 8940158337 | RubberWasher | 1 |
| 19 | 8940158404 | Housing- Motor | 1 |
| 20 | 8940158405 | Bushing- Air Inlet Assembly (Incl: 8940158366 Muffler Cap & 8940158367 Muffler) | 1 |
| 21 | 8940158406 | Spacer | 1 |
| 22 | 8940158407 | Screw | 1 |
| 23 | CA145074 | Holder- Blade | 1 |
| 24 | CA145075 | Set- Screw | 2 |
| 26 | 8940158408 | Screw | 3 |
| 27 | 8940158409 | Guard- Blade | 1 |
| 28 | 8940158410 | Guide- Wheel | 1 |
| 29 | CA145080 | Wrench- Hex | 1 |
| 30 | 8940158411 | Lever- Throttle | 1 |
| 31 | CA145082 | SpringPin | 1 |
| 34 | 8940158775 | Blade- Saw (18T) (5) | 1 |

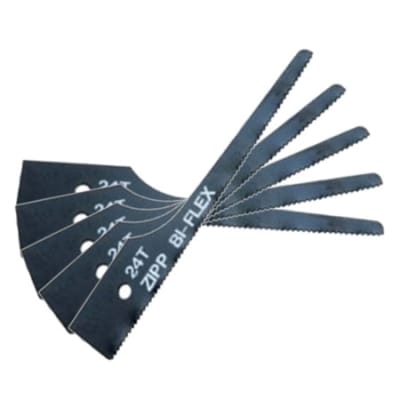

| - | 8940158776 | Blade- Saw (24T) (5) | 1 |
| - | 8940158777 | Blade- Saw (32T) (5) | 1 |
| 35 | 8940158412 | UniversalSwivel Air Inlet Joint | 1 |
| 36 | 8940158413 | ConnectingTube | 1 |
| 37 | 8940158414 | Spring | 1 |
| 38 | 8940158415 | AirInlet | 1 |
| 39 | 8940158416 | RetainingRing | 1 |
| 40 | 8940158417 | NylonNut | 1 |
| 41 | 8940158418 | ShockAbsorbent Spring | 1 |
| 42 | 8940158419 | MainLiner | 1 |
| 43 | 8940158420 | FrontHead | 1 |
| 44 | 8940158421 | Screw | 1 |
| - | 8940158363 | Decal- Warning Safety (Not Shown) | 1 |
