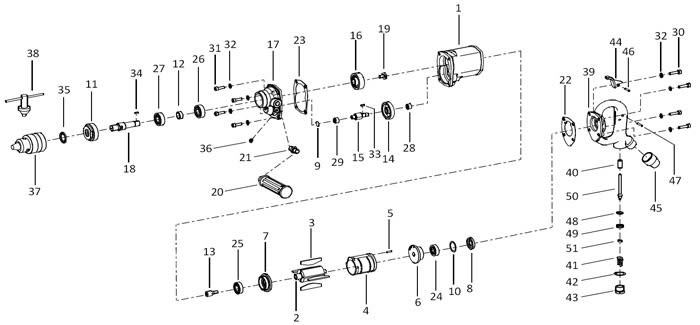

Chicago Pneumatic CP1816 Air Drill Repair Parts



Index
No.
Part No. Description No.
Req'd
1
5412102917
Housing
1
2
5412051283
Rotor
1
3
5412051284
Rotor blade
4
4
5412053719
Cylinder
1
11
5412051287
Spindle bearing cover
1
18
5412051302
Spindle
1
38
5412052005
Drill chuck handle
1
39
5412102915
Handle
1
45
5412051281
Inlet joint (NPT)
1
A
8940170367
Rear Plate Kit
-
5
-
Spring pin
1
6
-
Cylinder upper plate
1
8
-
Bearing cover
1
10
-
Packing
1
24
-
Ball bearing
1
B
8940170368
Front Plate Kit
-
7
-
Cylinder lower plate
1
25
-
Ball bearing 1
C
8940170369
First Stage Gear Kit
-
13
-
No. 1 pinion
1
14
-
No. 1 gear
1
D
8940170370
Second Stage Gear Kit
-
15
-
No. 2 pinion
1
16
-
No. 2 gear
1
33
-
Key
1
E
8940170371
Gear Case Kit
-
17
-
No. 1 gear case
1
23
-
Packing (B)
1
36
-
Grease nipple
1
F
8940170372
Spindle Kit
-
18

Spindle
1
34
-
Key
1
G
8940170373
Side Handle Kit
-
20
-
Dead handle
1
21
-
Dead handle joint
1
H
8940170374
Gasket Kit
-
22
-
Packing (A)
1
23
-
Packing (B)
1
I
8940170375
Screw Kit
-
30
-
Cap screw
4
31
-
Cap screw
4
32
-
Plain washer
8
J
8940170376
Throttle Valve Kit
-
40
-
Throttle valve rod bushing
1
41
-
Throttle valve spring
1
42
-
Throttle valve cover packing
1
43
-
Throttle valve cover
1
48
-
Throttle valve 1
49
-
Throttle valve washer
1
50
-
Throttle valve rod
1
51
-
Sub throttle valve
1
K
8940170377
Lever Kit
-
44
-
Throttle valve lever
1
46
-
Needle roller
1
47
-
Needle roller
1
L
8940170378
Motor Bearing Kit
-
24
-
Ball bearing 1
25
-
Ball bearing 1
M
8940170379
Second Stage Bearing Kit
-
28
-
Needle bearing
1
29
-
Needle bearing
1
N
8940170382
Spindle Bearing Kit
-
26
-
Ball bearing 1
27
-
Ball bearing 1
O
8940170380
Tune-up Kit
(incl 3, 22, 23, 35, 42)
-
P
8940170381
Small Parts Kit
(incl 5, 9, 12, 19, 33, 34, 36, 46, 47)
-
Sort By:
5412051281 Chicago Pneumatic Inlet Joint Cp1816 5412051281 Chicago Pneumatic Inlet Joint Cp1816

5412051281 Chicago Pneumatic Inlet Joint Cp1816

Discontinued
5412051283 Chicago Pneumatic Rotor Cp1816 5412051283 Chicago Pneumatic Rotor Cp1816

5412051283 Chicago Pneumatic Rotor Cp1816

Discontinued
5412051284 Chicago Pneumatic Rotor Blade Cp1816 5412051284 Chicago Pneumatic Rotor Blade Cp1816

5412051284 Chicago Pneumatic Rotor Blade Cp1816

Price $4.24
5412051287 Chicago Pneumatic Spindle Bearing Cover Cp1816 5412051287 Chicago Pneumatic Spindle Bearing Cover Cp1816

5412051287 Chicago Pneumatic Spindle Bearing Cover Cp1816

Discontinued
5412051302 Chicago Pneumatic Spindle Cp1816 5412051302 Chicago Pneumatic Spindle Cp1816

5412051302 Chicago Pneumatic Spindle Cp1816

Discontinued
5412052005 Chicago Pneumatic Chuck Handle Cp1816 5412052005 Chicago Pneumatic Chuck Handle Cp1816

5412052005 Chicago Pneumatic Chuck Handle Cp1816

Discontinued
5412053719 Chicago Pneumatic Cylinder Cp1816 5412053719 Chicago Pneumatic Cylinder Cp1816

5412053719 Chicago Pneumatic Cylinder Cp1816

Price $72.42
5412102915 Chicago Pneumatic Handle Assy Cp1816 5412102915 Chicago Pneumatic Handle Assy Cp1816

5412102915 Chicago Pneumatic Handle Assy Cp1816

Price $484.05
5412102917 Chicago Pneumatic Housing Cp1816 5412102917 Chicago Pneumatic Housing Cp1816

5412102917 Chicago Pneumatic Housing Cp1816

Discontinued
8940170367 Chicago Pneumatic Rear Plate Kit Cp1816 8940170367 Chicago Pneumatic Rear Plate Kit Cp1816

8940170367 Chicago Pneumatic Rear Plate Kit Cp1816

Price $156.37
8940170368 Chicago Pneumatic Front Plate Kit Cp1816 8940170368 Chicago Pneumatic Front Plate Kit Cp1816

8940170368 Chicago Pneumatic Front Plate Kit Cp1816

Price $102.04
8940170369 Chicago Pneumatic First Stage Gear Kit Cp1816 8940170369 Chicago Pneumatic First Stage Gear Kit Cp1816

8940170369 Chicago Pneumatic First Stage Gear Kit Cp1816

Price $154.71
8940170370 Chicago Pneumatic Second Stage Gear Kit Cp1816 8940170370 Chicago Pneumatic Second Stage Gear Kit Cp1816

8940170370 Chicago Pneumatic Second Stage Gear Kit Cp1816

Price $181.09
8940170371 Chicago Pneumatic Gear Case Kit Cp1816 8940170371 Chicago Pneumatic Gear Case Kit Cp1816

8940170371 Chicago Pneumatic Gear Case Kit Cp1816

Price $136.59
8940170372 Chicago Pneumatic Spindle Kit Cp1816 8940170372 Chicago Pneumatic Spindle Kit Cp1816

8940170372 Chicago Pneumatic Spindle Kit Cp1816

Price $97.10
8940170373 Chicago Pneumatic Side Handle Kit Cp1816 8940170373 Chicago Pneumatic Side Handle Kit Cp1816

8940170373 Chicago Pneumatic Side Handle Kit Cp1816

Price $66.44
8940170374 Chicago Pneumatic Gasket Kit Cp1816 8940170374 Chicago Pneumatic Gasket Kit Cp1816

8940170374 Chicago Pneumatic Gasket Kit Cp1816

Price $31.33
8940170375 Chicago Pneumatic Screw Kit Cp1816 8940170375 Chicago Pneumatic Screw Kit Cp1816

8940170375 Chicago Pneumatic Screw Kit Cp1816

Price $123.41
8940170376 Chicago Pneumatic Throttle Valve Kit Cp1816 8940170376 Chicago Pneumatic Throttle Valve Kit Cp1816

8940170376 Chicago Pneumatic Throttle Valve Kit Cp1816

Price $128.39
8940170377 Chicago Pneumatic Lever Kit Cp1816 8940170377 Chicago Pneumatic Lever Kit Cp1816

8940170377 Chicago Pneumatic Lever Kit Cp1816

Price $47.75
8940170378 Chicago Pneumatic Motor Bearing Kit Cp1816 8940170378 Chicago Pneumatic Motor Bearing Kit Cp1816

8940170378 Chicago Pneumatic Motor Bearing Kit Cp1816

Price $44.43
8940170379 Chicago Pneumatic Second Stage Bearing Kit Cp1816 8940170379 Chicago Pneumatic Second Stage Bearing Kit Cp1816

8940170379 Chicago Pneumatic Second Stage Bearing Kit Cp1816

Price $54.34
8940170381 Chicago Pneumatic Small Parts Kit Cp1816 8940170381 Chicago Pneumatic Small Parts Kit Cp1816

8940170381 Chicago Pneumatic Small Parts Kit Cp1816

Price $108.64
8940170382 Chicago Pneumatic Spindle Bearing Kit Cp1816 8940170382 Chicago Pneumatic Spindle Bearing Kit Cp1816

8940170382 Chicago Pneumatic Spindle Bearing Kit Cp1816

Price $41.17
CP1816 Chicago Pneumatic 5/8" (16mm) 1Hp D-Handle Drill CP1816 Chicago Pneumatic 5/8" (16mm) 1Hp D-Handle Drill

CP1816 Chicago Pneumatic 5/8" (16mm) 1Hp D-Handle Drill - Drills for Industrial Maintenance & Production designed for intensive duty and high durability with precision. Ideal for drilling of mild steel, cast iron.

Price $965.41
