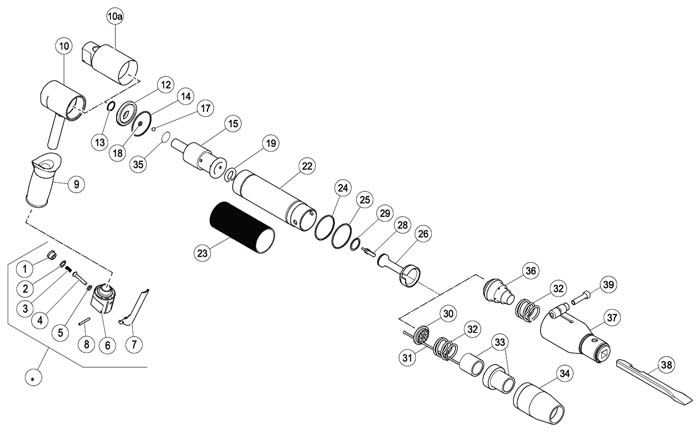

Chicago Pneumatic B16MV Needle Scaler Repair Parts



Index
No.
Part No. Description No.
Req'd
1
672.522
Valve Cap
1
2
658.238
Valve Cap O-Ring
1
3
681.578
Valve Spring
1
4
312.531
Valve Stem
1
5
658.239
Valve Seat O-Ring
1
6
307.516
Valve Body
1
7
321.574
Throttle Lever
1
7a
6153212470
Safety Lever (B16 only)
1
8
6156350410
Roll Pin
1
*
395.518
Valve Body Assembly (incl items 1-8)
1
9
6153000480
Rubber Handle Grip
1
17
6157700570
Ball (Polyurethane) (6 mm dia)
1
18
6156583260
Ball Retaining O-Ring
1
10
6155731350
Cover Assembly (Pistol Grip) (B18)
1
-
6155731370
Cover Assembly (Pistol Grip) (B19)
1
10a
6155731360 Cover Assembly (Inline) (B16)
1
12
6155961060
Guide Plate (B16, B18) 1
12
6155961070
Guide Plate (B19) 1
13
6156500340
Guide Plate Seal (B16, B18) 1
13
6156500350
Guide Plate Seal (B19) 1
14
658.243
Guide Plate O-Ring (B16, B18) 1
14
658.243
Guide Plate O-Ring (B19) 1
15
6154001530
Cylinder (B16, B18) 1
15
6154001540
Cylinder Sub Assembly (B19) 1
19
6156452390
Piston Cushion (B16, B18) 1
19
6156452400
Piston Cushion (B19) 1
22
6154320090
Intermediate Tube (B16, B18) 1
22
6154320100
Intermediate Tube (B19) 1
23
6155731380
Intermediate Tube Outer Sleeve (B16, B18) 1
23
6155731390
Intermediate Tube Outer Sleeve (B19) 1
24
6156870670
Circlip (B19) 1
25
658.243
Front Tube Locking O-Ring (B16, B18) 1
25
658.243
Front Tube Locking O-Ring (B19) 1
26
6151430550
Piston (B16, B18) 1
26
6151430560
Piston (B19) 1
28
6151550170
Valve Pin
1
29
6156583310
Piston Ring (B16, B18) 1
29
6156583320
Piston Ring (B19) 1
30
6152520130
Needle Holder (3mm) (B16, B18) 1
30
6152520140
Needle Holder (3mm) (B19) 1
31
6158046160
Needle Chisel (3mm) (B16, B18) 19
31
6158046170
Needle Chisel (3mm) (B19) 28
32
6156901000
Front Spring (B16, B18) 1
32
6156901010
Front Spring (B19) 1
33
6155961030
Front Tube Insert + Spacer (B16, B18) 1
33
6155961040
Front Tube Insert (B19) 1
34
6155751210
Front Tube (B16, B18) 1
34
6155751220
Front Tube (B19) 1
35
6156452410
Cylinder Stem Reaction Ring (B16, B18) 1
35
6156452420
Cylinder Stem Reaction Ring (B19) 1
36
6152505600
Anvil (B16, B18) 1
36
6152505610
Anvil (B19) 1
37
6152520150
Chisel Holder (B16, B18)
1
37
6152520160
Chisel Holder (B19)
1
38
6158046180
Chisel, width 3/4" (19mm),
length 7" (178mm) (B18BV, B19BV)
1
38
6158046220
Chisel, width 3/4" (19mm),
length 10" (254mm) (B16BV)
1
39
-
Screw (B16BV, B18BV, B19BV)
1
-
-
Nameplate
1
Sort By:
312.531 Chicago Pneumatic Valve Stem 312.531 Chicago Pneumatic Valve Stem

312.531 Chicago Pneumatic Valve Stem

Price $35.24
395.518 Chicago Pneumatic Valve 395.518 Chicago Pneumatic Valve

395.518 Chicago Pneumatic Valve

Price $533.70
6151550170 Chicago Pneumatic Valve Pin 6151550170 Chicago Pneumatic Valve Pin

6151550170 Chicago Pneumatic Valve Pin

Price $51.92
6152505600 Chicago Pneumatic Anvil (B16-B18) 6152505600 Chicago Pneumatic Anvil (B16-B18)

6152505600 Chicago Pneumatic Anvil (B16-B18)

Price $325.33
6152520130 Chicago Pneumatic Needle Holder (3Mm, B16-B18) 6152520130 Chicago Pneumatic Needle Holder (3Mm, B16-B18)

6152520130 Chicago Pneumatic Needle Holder (3Mm, B16-B18)

Price $196.08
6152520150 Chicago Pneumatic Chisel Holder (B16-B18) 6152520150 Chicago Pneumatic Chisel Holder (B16-B18)

6152520150 Chicago Pneumatic Chisel Holder (B16-B18)

Price $434.18
6153212470 Chicago Pneumatic Safety Throttle Lever 6153212470 Chicago Pneumatic Safety Throttle Lever

6153212470 Chicago Pneumatic Safety Throttle Lever

Price $44.98
6154001530 Chicago Pneumatic Cylinder 6154001530 Chicago Pneumatic Cylinder

6154001530 Chicago Pneumatic Cylinder

Price $346.00
6155731350 Chicago Pneumatic B18 Cover Assy (Pistol Grip) 6155731350 Chicago Pneumatic B18 Cover Assy (Pistol Grip)

6155731350 Chicago Pneumatic B18 Cover Assy (Pistol Grip)

Price $213.60
6155731380 Chicago Pneumatic Inter Tube Outer Sleeve 6155731380 Chicago Pneumatic Inter Tube Outer Sleeve

6155731380 Chicago Pneumatic Inter Tube Outer Sleeve

Price $15.08
6156350410 Chicago Pneumatic Roll Pin 6156350410 Chicago Pneumatic Roll Pin

6156350410 Chicago Pneumatic Roll Pin

Price $5.56
6156452390 Chicago Pneumatic Piston Cushion (B16-B18) 6156452390 Chicago Pneumatic Piston Cushion (B16-B18)

6156452390 Chicago Pneumatic Piston Cushion (B16-B18)

Price $25.86
6156452410 Chicago Pneumatic Cylinder Stem Reaction Ring 6156452410 Chicago Pneumatic Cylinder Stem Reaction Ring

6156452410 Chicago Pneumatic Cylinder Stem Reaction Ring

Price $3.98
6156500340 Chicago Pneumatic Guide Plate Seal 6156500340 Chicago Pneumatic Guide Plate Seal

6156500340 Chicago Pneumatic Guide Plate Seal

Price $196.69
6156583310 Chicago Pneumatic Piston Ring (B16-B18) 6156583310 Chicago Pneumatic Piston Ring (B16-B18)

6156583310 Chicago Pneumatic Piston Ring (B16-B18)

Price $199.53
6156870670 Chicago Pneumatic Circlip (B19) 6156870670 Chicago Pneumatic Circlip (B19)

6156870670 Chicago Pneumatic Circlip (B19)

Price $7.09
6156901000 Chicago Pneumatic Front Spring (B16-B18) 6156901000 Chicago Pneumatic Front Spring (B16-B18)

6156901000 Chicago Pneumatic Front Spring (B16-B18)

Price $97.03
6157700570 Chicago Pneumatic Ball (6Mm) 6157700570 Chicago Pneumatic Ball (6Mm)

6157700570 Chicago Pneumatic Ball (6Mm)

Price $26.35
6158046180 Chicago Pneumatic Chisel 1/2" Squ Shank 7" X 19mm 6158046180 Chicago Pneumatic Chisel 1/2" Squ Shank 7" X 19mm

6158046180 Chicago Pneumatic Chisel 1/2" Squ Shank 7" X 19mm

Price $68.53
6158046220 Chicago Pneumatic Chisel 1/2" Squ Shank 7" X 35mm Cranked 6158046220 Chicago Pneumatic Chisel 1/2" Squ Shank 7" X 35mm Cranked

6158046220 Chicago Pneumatic Chisel 1/2" Squ Shank 7" X 35mm Cranked

Price $68.53
658.238 Chicago Pneumatic O Ring Cap 658.238 Chicago Pneumatic O Ring Cap

658.238 Chicago Pneumatic O Ring Cap

Price $15.03
658.239 Chicago Pneumatic O Ring B15M 658.239 Chicago Pneumatic O Ring B15M

658.239 Chicago Pneumatic O Ring B15M

Price $14.99
681.578 Chicago Pneumatic Valve Spring 681.578 Chicago Pneumatic Valve Spring

681.578 Chicago Pneumatic Valve Spring

Price $7.23
B16MV Chicago Pneumatic Vibration-Damped Needle Scaler B16MV Chicago Pneumatic Vibration-Damped Needle Scaler

B16MV Chicago Pneumatic Vibration-Damped Needle Scaler - Low vibrations for smooth operations. Perfect tool for long hours of operations. One hand operation. Adjustable front tube grants extended needle life.

Price $657.02
