You are here: Home > Battery Charger Parts > Sears Battery Charger Repair Parts > 71450 Sears 50/15/2/225/125 Amp Manual Battery Charger

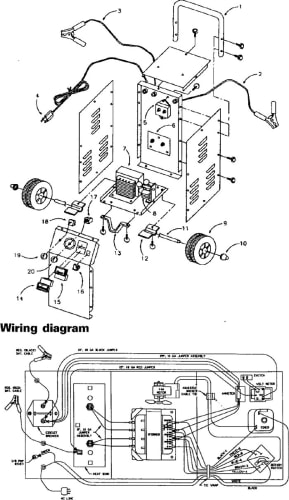

 Replacement Parts List Sears 71450
 Item Description Part Number
1 Handle 3599000286
2 Negative Cable With Clamp
3899000391
3 Negative Cable With Clamp 3899000408
4 AC Power Cord 0090026001
5 Circuit Breaker 3999000065
6 Rectifier Assembly
2299000614
7 Transformer 0093026429
8 Fan Motor
0099000063
9 Wheel 0099000080
10 Wheel Hub 5200000008
11 Axle 0099000060
13 Foot 1199003352
14 Volt Meter 5399200002
15 Ammeter 5399100097
16 Rocker Switch (Meter Select)
0499000051
17Timer0099000094
18Rotary Selector Switch
0499000051
19Selector Switch Knob
0099000045
20Timer Control Knob
0099000096
21Owners Manual
0000000517
Sort By:
Page of 1
0090026001 Schumacher 115 Volt Power Cord 0090026001 Schumacher 115 Volt Power Cord

115 Volt Power Cord

Discontinued
0099000045 Schumacher Knob For Selector Switches on SE Series Chargers 0099000045 Schumacher Knob For Selector Switches on SE Series Chargers

This Knob is for selector switches on SE Series chargers only, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000062 Schumacher 6" CW Fan Blade 0099000062 Schumacher 6" CW Fan Blade

0099000062 Schumacher 6" CW Fan Blade.

Discontinued
0099000063 Schumacher Fan Motor Open Frame 115 Volt 0099000063 Schumacher Fan Motor Open Frame 115 Volt

Fan Motor Open Frame 115 Volt

Discontinued
0099000080 Wheel 6" Plastic For 3/8 Axle 0099000080 Schumacher Wheel 6" Plastic For 3/8 Axle

0099000080 Wheel 6" Plastic For 3/8 Axle

Discontinued
0099000094 Schumacher 135 Minute Timer Mechanical with Hold 0099000094 Schumacher 135 Minute Timer Mechanical with Hold

Mechanically controls charging in timed Mode with manual hold mode. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" spade terminals.

Discontinued
0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft 0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft

0099000096 Knob For Timer Switches 1/4" OD 3/4 "D" Shaft, there are separate knobs for selector switches and timers. Please check your part numbers carefully.

Discontinued
0099000269 Schumacher Knob For Timer Switches on PS Series Chargers 0099000269 Schumacher Knob For Timer Switches on PS Series Chargers

This Knob is for timers on PS Series chargers only with a 1/2 Shaft, there are separate knobs for selector switches with a 3/4 shaft. Please check your part numbers carefully.

Price $4.62
0099000270 Schumacher Knob For Selector Switches on PS Series Chargers 0099000270 Knob For Selector Switches on PS Series Chargers

This Knob is for selector switches with a 3/4 Shaft only, there are separate knobs for timers with a half shaft. Please check your part numbers carefully.

Discontinued
0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On 0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On

0499000050 Schumacher Rocker Switch 2 Position Switch 3 Terminal On-On

Discontinued
0499000051 Schumacher 6 Position Rotary Selector Switch With Knob 0499000051 Schumacher 6 Position Rotary Selector Switch With Knob

0499000051 Schumacher 6 Position Rotary Selector Switch With Knob (7 Terminals With Trace). Uses Newer "Twist Lock" Mounting System For newer units. If your unit has an older threaded shoulder with a Pal Nut, use the 0499000022 version of this switch.

Price $41.95
1199003352 Schumacher Foot, Metal 1199003352 Schumacher Foot, Metal

1199003352 Schumacher Foot, Metal, no hardware included.

Discontinued
214-009-666 Rectifier Diode 70 Amp (541101-039) SDH70N02P 214-009-666 Rectifier Diode 70 Amp (541101-039)

214-009-666 Rectifier Diode 70 Amp (541101-039) SDH70N02P

Price $21.95
2299001067 Schumacher Battery Charger Wheels - Handle - Hardware Kit 2299001067 Schumacher Battery Charger Wheels - Handle - Hardware Kit

Battery Charger Wheels - Handle - Hardware Kit For SE3000, SE6030. Includes 3599000210 Handle, 0099000080 Wheels, 0099000123 Plastic Foot, 0099000066 Axle, 2299001076 Misc Parts Bag (screws etc..)

Discontinued
246-176-666 Switch 2 Position Rocker 16 Amp SPDT 246-176-666 Switch 2 Position Rocker 16 Amp SPDT

SPDT Switch 16 amp Rating Snap-in mount no tools required to install, 1/4 Spade terminals. Original OEM Part Every Time

Price $12.46
316-009-000 Fan Blade 6" 4 Blade CW 316-009-000 Fan Blade 6" 4 Blade CW

Fan Blade 6" 4 Blade CW. Same as 130007-001 Christie

Price $12.85
3899000391 Schumacher DC Output Clamp Cable Black 3899000391 Schumacher DC Output Clamp And Cable Black

DC Output Clamp And Cable Black. 7ft Long, 6ga, Ring Terminal connector. Steel Clamp. Used on chargers with 250 amp max rates.

Discontinued
3899000408 Schumacher DC Output Clamp And Cable Red 3899000408 Schumacher DC Output Clamp And Cable Red

DC Output Clamp And Cable Red. 7ft Long, 6ga, Ring Terminal connector. Steel Clamp. Used on chargers with 250 amp max rates.

Discontinued
3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82" 3899001140 Schumacher Output Cable And Clamp Black Negative 6 AWG 82"

Output Cable And Clamp, Black Negative, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 82" long with square strain relief on cable.

Discontinued
3899001141 Schumacher Output Cable And Clamp Red Positive 6 AWG 88" 3899001141 Schumacher Output Cable And Clamp Red Positive 6 AWG 88"

Output Cable And Clamp, Red Positive, 6 AWG Welding wire, Steel Clamp, Ring Terminal Connection, 88" long with square strain relief on cable.

Discontinued
51-288 115 Volt Fan Motor With Fan Blade & Mount 51-288 115 Volt Fan Motor With Fan Blade & Mount

51-288 115 Volt Fan Motor With Fan Blade & Mount. .195 diameter shaft. Your unit may not require the mount, in which case discard it.

Discontinued See ASO610190
5100000005 Timer Screw M3 X 5.5 5100000005 Timer Screw M3 X 5.5

5100000005 Screw M3 X 5.5 For Original Timer

Price $0.05
5399100076 Schumacher Ammeter Horizontal 0-50 Amp 5399100076 Schumacher Ammeter Horizontal 0-50 Amp

Ammeter Horizontal 0-50 AMP features easy snap-in installation, no tools required. Red Green Charge Rate face. 0-50 Amp range and wire through induction pick-up for greater accuracy.

Discontinued

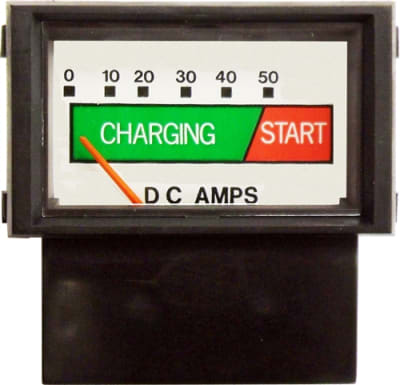

5399100097 Schumacher Ammeter Horizontal 5399100097 Schumacher Ammeter 0-50 Amp Horizontal

5399100097 Schumacher Ammeter 0-50 Amp Horizontal features easy snap-in installation, no tools required. Red Green Charge Rate face with Start. Wire Through Connection for ease of installation.

Discontinued
6094K89 Knob For Schumacher Battery Charger Selector Switches & Timers 6094K89 Knob For Battery Charger Selector Switches & Timers

6094K89 Knob For Battery Charger Selector Switches & Timers. This Knob is for selector switches and timers, designed with 1/4" ID and a set screw for locking onto shaft. Suitable for all 1/4" shaft switches. Replaces Schumacher 0099000045 & 0099000096.

Price $4.65
S29420-24 Century Battery Charger Clamp Holder S29420-24 Century Battery Charger Clamp Holder

S29420-24 Century Battery Charger Clamp Holder With Screws. Now you can stow your clamps in a safe place that doesn't get in the way, drag the ground or short out. Fits any round or flat bar battery charger handle. If using as a universal fit drilling two holes will be necessary.

Price $14.85
TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer TJ1-120MHB Universal Battery Charger 2 Hour Mechanical Timer

TJ1-120MB Universal Mechanical 2 Hour Timer With Finish Bell. Mechanically controls charging in timed Mode, has "Hold" for manual un-timed charging. Single Pole Single Throw (SPST) Switch rated 15 amperes. Termination is designed to accept 1/4" Quick Disconnect terminals. Includes mounting screws. Replaces many older mechanical timers.

Price $49.40
