6007A Associated Battery Charger Analyzer Parts List

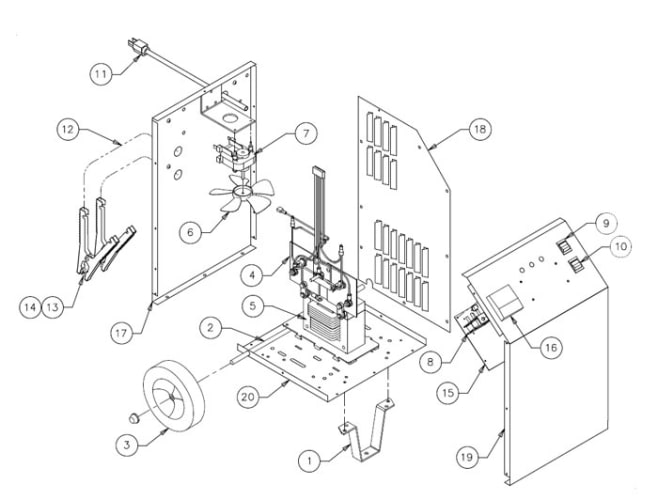

MODEL 6007A REPAIR PARTS
Diagram # Description Part Number
1 Front leg 605671
2 Axle w/nuts 610052
3 Wheel w/nuts 611157
4 Rectifier w/wiring harness 611193
5 Transformer 611168
6 Fan Blade 610189
7 Fan Motor w/blade 610190
8 DC Circuit Breaker (2) 610987
9 Switch 610291
10 Switch On-Off-On 611167
11 AC Cord 610696
12 DC Cable Set 610820
13 Clamps (1 pair w/jaws) 6199
14 Jaw Kit (repairs 1 clamp) 610970
15 PCB 611155
16 Ammeter 610346
17 Back Panel 610977
18 Right Side Panel 611032
19 Front Panel 611166
20 Base Panel 610054
21 SCR Assembly 611240
Not Shown


Left Side Panel 611031

Top Panel 611011

Handle 610753

Clamp Bar 610517

Sort By:
Page of 1
020-0076 Associated Chrome Handle Screws (Each)
020-0076 Associated Chrome Handle Screws (Each)
Price $1.40

020-0076 Associated Chrome Handle Screws (Each) more info
6007A Associated 40/130 Amp 12 Volt Automotive Battery Charger With Intellamatic Pro
6007A Associated 40/130 Amp 12 Volt Automotive Battery Charger With Intellamatic Pro
Discontinued See ESS6007B

Made In The USAThis fully automatic, microprocessor controlled automotive charger and battery analyzer is designed with the serious mechanic in mind. This unit identifies battery state of health and automatically recovers deeply discharged batteries. It incorporates patented charging technology that safely charges and recovers all types of batteries, including sealed, gel, and AGM technologies. more info
605213 Associated Chrome Handle
605213 Associated Chrome Handle
Price $50.43

Chrome Handle with screws and insulated clamp bar. more info
605671 Associated Front Leg With Screws
605671 Associated Front Leg With Screws
Price $30.85

Front Leg With Screws more info
610043 Associated 3/8 Axle Cap (Each)
610043 Associated 3/8 Axle Cap (Each)
Price $2.18

610043 Associated 3/8 Axle Cap (Each) more info
610052 Associated Axle With Nuts
610052 Associated Axle With Nuts
Price $29.69

610052 Associated Axle With Nuts. Axle 3/8" O.D. x 15-3/4" Long more info
610054 Associated Universal Base 6009 (See Notes)
610054 Associated Universal Base 6009 (See Notes)
Price $21.61

610054 Associated Universal Base 6009 (UNIVERSAL BASE 6009 (SEE 610498 Base if transformer has four "L" shaped legs.) more info
610189 Fan Blade Kit 6" 4 Wing
610189 Fan Blade Kit 6" 4 Wing
Price $13.92

610189 Fan Blade Kit 6" 4 Wing, includes two blades with the same diameter, rotation, pitch and wings but differing shaft diameter for older units. more info
610190 Associated Fan Motor Installation Kit 115 Volt
610190 Associated Fan Motor Installation Kit 115 Volt
Price $60.04

Universal Fan Motor Installation Kit includes everything needed to install on virtually any unit. Comes complete with a 115v. skeleton frame motor (reversible), equipped with 1/4" spade terminals for electrical connections, a fan blade, a set of 1/4" female spade terminal adapter leads, 1/4" Crimp-on female spades for alternate hook up, 2 sets of pin terminals for molex plug installation and 2 wire nuts. more info
610291 Associated Rocker Volt Switch (Momentary)
610291 Associated Rocker Volt Switch (Momentary)
Price $25.86

Associated Rocker Volt Switch more info
610346 Associated Ammeter Horizontal 0-50 DC Amp Range
610346 Associated Ammeter Horizontal 0-50 DC Amp Range
Price $49.53

610346 Associated Ammeter Horizontal 0-50 DC Amp Range more info
610517 Associated Clamp Bar 7"
610517 Associated Clamp Bar 7"
Price $7.33

610517 Associated Clamp Bar 7" more info
610578 Associated Left Side Panel Kit 6027B
610578 Associated Left Side Panel Kit 6027B
Price $32.43

610578 Associated Left Side Panel Kit 6027B more info
610579 Associated Right Side Panel Kit 6027B
610579 Associated Right Side Panel Kit 6027B
Price $32.43

610579 Associated Right Side Panel Kit 6027B more info
610696 Associated Power Cord 115 Volt
610696 Associated Power Cord 115 Volt
Price $30.18

610696 Associated Power Cord 115 Volt more info
610753 Associated Chrome Handle
610753 Associated Chrome Handle
Discontinued See 605213

610753 Associated Chrome Handle more info
610820 Associated DC Cable Set
610820 Associated DC Cable Set
Price $117.53

DC CABLE SET more info
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
610970 Associated 500 Amp Jaw Kit (Repairs One Clamp)
Price $17.29

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts. more info
610977 Associated Back Panel 19 Black
610977 Associated Back Panel 19 Black
Price $26.37

610977 Associated Back Panel 19 Black more info
610987 Associated DC Circuit Breaker 053-0067 (Qty 2)
610987 Associated DC Circuit Breaker 053-0067 (Qty 2)
Price $17.45

DC Circuit Breaker 053-0067 (Qty 2) more info
610988 Associated Pc Board 6007 132-0129
610988 Associated Pc Board 6007 132-0129
Price $357.93

610988 Associated Pc Board 6007 132-0129 more info
611011 Associated Top Panel 7 Inch Blue
611011 Associated Top Panel 7 Inch Blue
Price $20.27

611011 Associated Top Panel 7 Inch Blue more info
611031 Associated Left Slope Side Panel 40° Blue
611031 Associated Left Slope Side Panel 40° Blue
Price $21.47

611031 Associated Left Slope Side Panel 40° Blue more info
611032 Associated Front Slope Side Panel 40° Blue
611032 Associated Front Slope Side Panel 40° Blue
Price $21.47

611032 Associated Front Slope Side Panel 40° Blue more info
611155 Associated PC Board 6007 132-0151
611155 Associated PC Board 6007 132-0151
Price $224.29

611155 Associated Pc Board 6007 132-0151. If your board has a daughter board with relays, order new style board 611311 & 611470 Relay board) more info
611157 Associated Wheel Kit Rubber 6 Inch
611157 Associated Wheel Kit Rubber 6 Inch
Price $34.81

611157 Associated Wheel Kit Rubber 6 Inch more info
611166 Associated Front Panel 6007A
611166 Associated Front Panel 6007A
Price $74.59

611166 Associated Front Panel 6007A more info
611167 Associated SPDT Switch (On-Off-On)
611167 Associated SPDT Switch (On-Off-On)
Price $18.43

611167 Associated SPDT Switch (On-Off-On) more info
611168 Associated Transformer 6007A
611168 Associated Transformer 6007A
Price $302.72

611168 Associated Transformer 6007A more info
611193 Associated Rectifier / Wiring Harness
611193 Associated Rectifier / Wiring Harness
Price $157.82

Rectifier / Wiring Harness more info
611240 Associated SCR With Black & Yellow Leads
611240 Associated SCR With Black & Yellow Leads
Price $29.00

611240 Associated SCR With Black & Yellow Leads more info
6199 Associated 400 Amp Clamp Kit (Pair)
6199 Associated 400 Amp Clamp Kit (Pair)
Price $22.25

Made in the USAProfessional quality heavy-duty clamps for all booster cables. Replace Associated clamps or upgrade other lesser products with these professional quality replacement clamps. more info
6200 Associated Side Terminal Adapter Pair
6200 Associated Side Terminal Adapter Pair
Price $6.62

Need side terminal adapters? Model 6200 fits Associated and most other insulated clamps for easier connections. Side terminal adapters clip easily into place inside the clamp rivit and pull out of the way when not in use. more info
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
6202 Associated 500 Amp Battery Charger Clamp Heavy Duty Coated (Pair)
Price $32.09

Made In U.S.A.Professional quality heavy duty 500 amp replacement clamps for all booster cables. Replace Associated clamps or other manufacturer's products with these professional quality insulated clamps. Clamps incorporate Associated's innovative "Flexi-Spring" for long cable life at the point it bends most. Possibly the best clamp in the industry. more info
6204 Associated 500 Amp Jaw Kit
6204 Associated 500 Amp Jaw Kit (Repairs One Clamp)
Discontinued See 610970

500 Amp Jaw Kit (Repairs One Clamp) Heavy Duty Copper construction for long life and high conductance. Includes insulators and screws with acorn nuts. more info
ESS6007B Associated Automotive Battery Charger 12 Volt 40 Amp 130 Amp Boost Intellamatic
ESS6007B Associated Automotive Battery Charger 12 Volt 40 Amp 130 Amp Boost Intellamatic
Price $523.09

Made In The USAThe ESS6007B Associated Automotive Battery Charger 12V 40Amp/130Amp Boost Intellamatic has Electrical Stability System (ESS™) for re-flashes. With nominal 13.7 volt DC output technology, the ESS6007B is a stable power supply for extended service procedures. It also has a program for deep discharge recovery of flooded batteries and patented diagnostics that will indicate if a battery is weak or defective. Designed to charge all types of 12 volt batteries including; AGM, Gel Cell, Sealed, and Standard Flooded batteries (including: Spiral Cell, Orbital™, or Optima™ batteries). Not to mention this charger also has Dead Battery Override Control and it is safe to operate in any weather. more info
