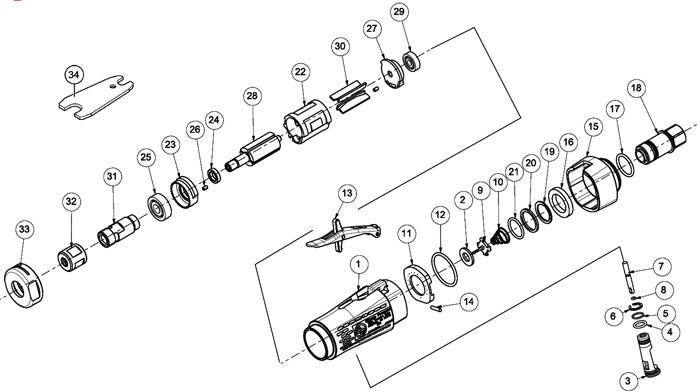

Chicago Pneumatic CP3000-325F Die Grinder Repair Parts



Index
No. 		Part No. Description No.
Req'd
A
 6154600400
 Regulator Assembly
 -
3
 -
 Regulator
 1
4
 -
 O-Ring (8.1 x 1.6) 1
5
 -
 O-Ring (8 x 1) 1
6
 -
 Spring ring WR9
 1
7
 -
 Valve stem
 1
B
 2050546343
 Valve Kit
 -
9
 -
 Tip valve
 1
10
 -
 Spring
 1
C
 2050546353
 Front Plate Assembly
 -
23
 -
 Front plate
 1
24
 -
 Washer
 1
25
 6157581380
 Bearing 608Z (8 x 22 x 7)
 1
26
 -
 Pin spring (2.5 x 4)
 1
D
 2050546383
 Rear Plate Assembly
 -
26
 -
 Pin spring (2.5 x 4)
 1
27
 -
 Rear plate
 1
29
 6157580630
 Bearing 625ZZ (5 x 16 x 5)
 1
E
 2050546393
 Motor Assembly
 -
C
 2050546353 Front plate assembly
 1
D
 2050546383 Rear plate assembly
 1
22
 6154001500
 Cylinder
 1
28
 6154261210
 Rotor
 1
30
 2050547783
 Blades (set of 4)
 1
F
 2050546413
 Small Parts Kit
 -
6
 -
 Spring ring WR9
 1
8
 -
 O-Ring (2 x 170) 1
12
 -
 O-Ring (27 x 2) 1
14
 -
 Needle (2.5 x 11.8)
 1
17
 -
 O-Ring (17 x 2) 1
19
 -
 External ring
 1
20
 -
 Spacer
 1
21
 -
 O-Ring (15.6 x 1.78) 1
-
 -
 O-Ring (10.5 x 1.5)
(for rear exhaust type)
 1
G
 2050546403
 Tune-up Kit
 -
2
 -
 Seal
 1
16
 -
 Felt
 1
30
 2050547783
 Blades (set of 4)
 1
-
 -
 Paper gasket for CP3030
 1
-
1
 2050547773
 Handle assembly (incl 15)
 1
11
 6159700940
 Plate
 1
13
 2050541493
 Safety lever
 1
15
 2050541863
 Rear cap
 1
18
 2050542533
 Inlet assembly
 1
31
 6155260590
 Collet holder 1/4" SIAL 300
 1
32
 6156060440
 Collet nut SIAL 300
 1
33
 2050549613
 Grid
 2
34
 2050549593
 Cover (25,000 rpm)
 1
-
 2050549603
 Cover (30,000 rpm)
 1
35
 2050548063
 Spanner
 2
-
 6155260590
 Collet 1/4" (not shown)
 1
-
 6158727980
 Warning label
 1
Sort By:
Page of 1
2050541493 Chicago Pneumatic Safety Lever
2050541493 Chicago Pneumatic Safety Lever
Price $15.45

2050541493 Chicago Pneumatic Safety Lever more info
2050542533 Chicago Pneumatic Inlet Assy
2050542533 Chicago Pneumatic Inlet Assy
Price $19.57

2050542533 Chicago Pneumatic Inlet Assy more info
2050546343 Chicago Pneumatic Valve Kit
2050546343 Chicago Pneumatic Valve Kit
Price $6.18

2050546343 Chicago Pneumatic Valve Kit more info
2050546353 Chicago Pneumatic Front Plate Assy 300W
2050546353 Chicago Pneumatic Front Plate Assy 300W
Price $70.04

2050546353 Chicago Pneumatic Front Plate Assy 300W more info
2050546383 Chicago Pneumatic Rear Plate Assy 300W
2050546383 Chicago Pneumatic Rear Plate Assy 300W
Price $67.98

2050546383 Chicago Pneumatic Rear Plate Assy 300W more info
2050546393 Chicago Pneumatic Motor Assy 300W Straight
2050546393 Chicago Pneumatic Motor Assy 300W Straight
Price $300.76

2050546393 Chicago Pneumatic Motor Assy 300W Straight more info
2050546403 Chicago Pneumatic Tune-Up Kit 300W
2050546403 Chicago Pneumatic Tune-Up Kit 300W
Price $20.60

2050546403 Chicago Pneumatic Tune-Up Kit 300W more info
2050546413 Chicago Pneumatic Small Parts Kit
2050546413 Chicago Pneumatic Small Parts Kit
Price $4.12

2050546413 Chicago Pneumatic Small Parts Kit more info
2050547773 Chicago Pneumatic Handle Assy
2050547773 Chicago Pneumatic Handle Assy
Price $45.32

2050547773 Chicago Pneumatic Handle Assy more info
2050547783 Chicago Pneumatic Blades 300W (Set Of 4)
2050547783 Chicago Pneumatic Blades 300W (Set Of 4)
Price $15.45

2050547783 Chicago Pneumatic Blades 300W (Set Of 4) more info
2050548063 Chicago Pneumatic Spanner 300W
2050548063 Chicago Pneumatic Spanner 300W
Price $7.21

2050548063 Chicago Pneumatic Spanner 300W more info
2050549593 Chicago Pneumatic Cover 25K Front
2050549593 Chicago Pneumatic Cover 25K Front
Price $13.08

2050549593 Chicago Pneumatic Cover 25K Front more info
2050549603 Chicago Pneumatic Cover 30K Front
2050549603 Chicago Pneumatic Cover 30K Front
Price $13.08

2050549603 Chicago Pneumatic Cover 30K Front more info
2050549613 Chicago Pneumatic Exhaust Grid
2050549613 Chicago Pneumatic Exhaust Grid
Price $1.75

2050549613 Chicago Pneumatic Exhaust Grid more info
6154261210 Chicago Pneumatic Rotor M8 300W
6154261210 Chicago Pneumatic Rotor M8 300W
Price $73.13

6154261210 Chicago Pneumatic Rotor M8 300W more info
6154600400 Chicago Pneumatic Regulator Assy
6154600400 Chicago Pneumatic Regulator Assy
Price $31.93

6154600400 Chicago Pneumatic Regulator Assy more info
6156060440 Chicago Pneumatic Collet Nut S300
6156060440 Chicago Pneumatic Collet Nut S300
Price $20.60

6156060440 Chicago Pneumatic Collet Nut S300 more info
6159700940 Chicago Pneumatic Plate 300W (Acr)
6159700940 Chicago Pneumatic Plate 300W (Acr)
Price $1.88

6159700940 Chicago Pneumatic Plate 300W (Acr) more info
CP3000-325F Chicago Pneumatic 1/4" (6.35mm) Collet 0.4Hp Die Grinder
CP3000-325F Chicago Pneumatic 1/4" (6.35mm) Collet 0.4Hp Die Grinder
Price $219.86

CP3000-325F Chicago Pneumatic 1/4" (6.35mm) Collet 0.4Hp Die Grinder - Industrial die grinder. Industrial grade durability up to 1000 hours maintenance intervals. Operator comfort, high precision and easy maintenance more info
CPT6155260590 Chicago Pneumatic Collet 1/4" Erickson Series 300
CPT6155260590 Chicago Pneumatic Collet 1/4" Erickson Series 300
Price $56.76

CPT6155260590 Chicago Pneumatic Collet 1/4" Erickson Series 300 more info
