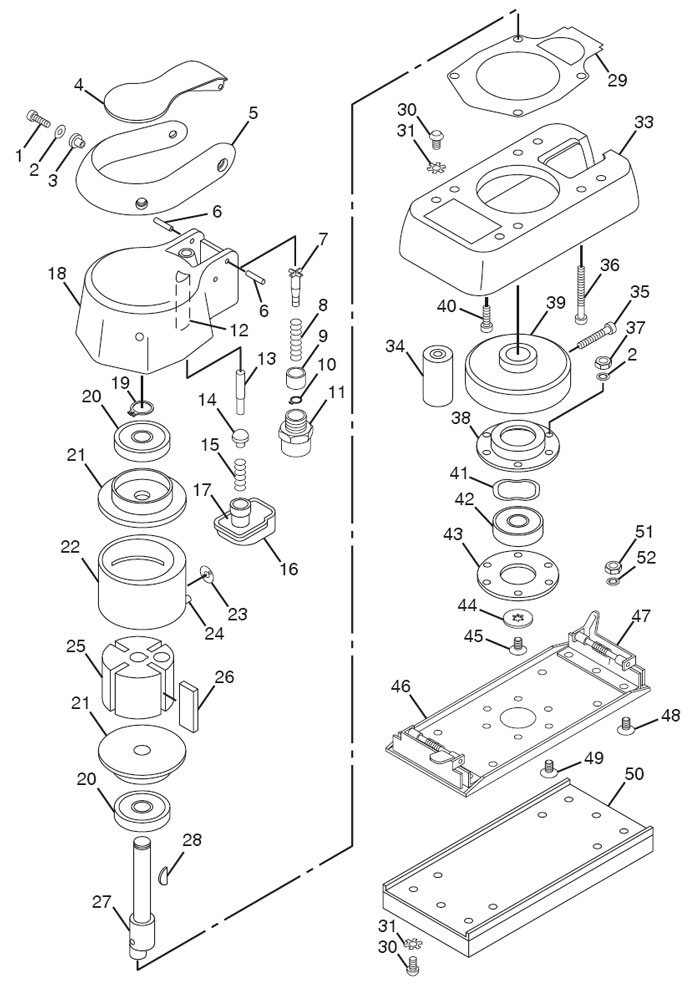

Chicago Pneumatic CP766 Heavy Duty Orbital Sander Repair Parts


Index
No.
Part No. Description No.
Req'd
1 KF125132 Screw - Grip 4
2 G115473 Lockwasher 10
3 KF125131 Bushing - Grip 4
4 KF125113 Lever - Throttle 1
5 KF125130 Grip - Rubber 1
6 KF125114 Pin - Lever 2
7 KF129697 Valve - Regulator (Inner) 1
8 S018467 Lock Pin Spring 1
9 KF129698 Valve - Regulator (Outer) 1
10 C090745 Ring -Retaining 1
11 CA091545 Bushing - Air Inlet 1
12 KF125109 Foam - Muffler (Housing) 2
13 KF125107 Pin -Valve 1
14 KF124233 Valve - Throttle 1
15 A088212 Spring -Throttle Valve 1
16 KF125102 Muller - Exhaust 1
17 KF125110 Foam - Muffler 1
18 KF129696 Housing - Motor 1
19 KF124279 Ring - Retaining 1
20 S025055 Bearing - Ball 2
21 KF124280 Plate - End 2
22 KF124282 Liner (Incl Index No: 24) 1
23 P083071 O-Ring (-011) 1
24 KF124281 Dowel - Liner 1
25 KF125104 Rotor 1
26 KF138241 Blade Set - Rotor (4) 1
27 KF125103 Shaft - Rotor 1
28 KF124286 Key - Rotor 1
29 KF125108 Gasket 1
30 S007693 Fill Head Screw 8
31 KF125128 Lockwasher 8
33 KF125101 Shroud - Housing 1
34 KF125127 Mount - Rubber 4
35 KF125111 Screw - Balancer Lock 1
36 KF124298 Screw 2
37 S008795 Steel - Nut 6
38 KF125119 Retainer - Bearing 1
39 KF125112 Balancer 1
40 P073153 Allan Cap Screw 2
41 KF125120 Washer - Wave 1
42 KF125121 Bearing - Ball 1
43 KF125118 Plate - Bearing 1
44 P072435 Lockwasher 1
45 S009306 Flat Head Screw 1
46 KF125115 Plate Shoe (Incl Index Nos: 47, 48, 51 & 52) 1
47 KF125116 Clamp - Paper 2
48 CA147560 Screw 6
49 S007677 Flat Head Screw 6
50 KF125126 Pad - Sanding 1
51 CA147561 Nut - Lock 6
52 CA147562 Lockwasher 6
- CA131376 Decal - Oil Daily 1
- CA144007 Decal - Safety Warning 1
Tune-Up Kit KF132241 Incl Index Nos: 14, 23, 26 & 29
