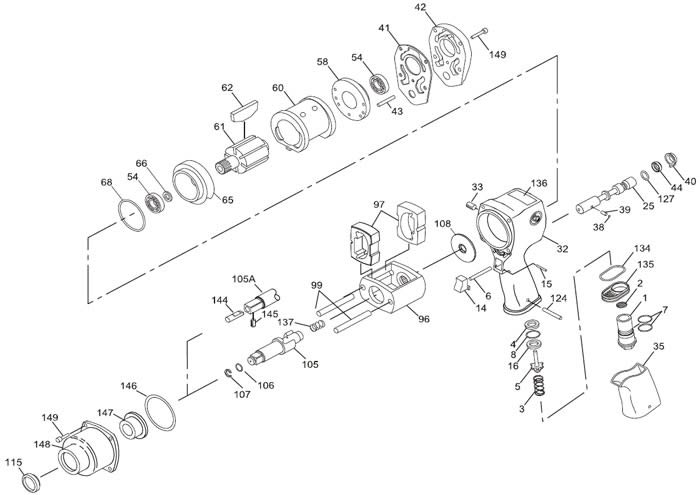

Chicago Pneumatic CP6500RS Impact Wrench Repair Parts



Index
No.
Part No. Description No.
Req'd
1
CA147022
Bushing - air inlet
1
2
CA059037
Strainer - air
1
3
CA142464
Spring - throttle 1
4
CA149095
Spacer
1
5
CA142460
Valve - throttle
1
6
CA144831
Pin - throttle
1
7
C105693
O-Ring 2
8
CA149096
O-Ring
1
14
CA147017
Trigger
1
15
CA144836
Pin - roll
1
16
C139037
Seat - throttle
1
25
CA147016
Valve - reverse
1
32
CA156600
HSG - motor
1
33
S089953
Plug - pipe
1
35
8940158432
Handle - grip impact
1
38
S008613
Ball
1
39
CA147021
Spring - detent
1
40
CA155263
Switch - regulator
1
41
8940158633
Gasket - motor housing (Model B only) 1
42
8940158634
Cover - motor housing (Model B only)
1
43
C085245
Pin - dowel
1
44
8940158535
Spacer (Model B only)
1
54
C066342
Bearing - ball
2
58
KF136268
Plate - rear end
1
60
CA148607
Liner
1
61
CA148606
Rotor
1
62
CA148605
Rotor blade (set of 6)
1
65
KF134665
Plate - front end
1
66
CA087513
Seal - oil
1
68
C087266
O-Ring
1
96
CA155733
Cage
1
97
CA155055
Dog - clutch
2
99
CA155734
Pin - clutch
2
105
CA148609
Assembly - 1/2" square anvil
RSR (friction ring)
1
105A
CA156603
Assembly - 1/2" square anvil
RS (pin retainer)
1
106
P083071
O-Ring 1
107
CA088097
Retainer - socket
1
108
CA145569
Washer - rear clutch
1
115
CA148608
Seal clutch
1
124
R086991
Pin - roll
1
127
CA147018
O-Ring 1
134
CA148528
Gasket
1
135
CA147023
Deflector - exhaust
1
136
CA155779
Decal - warning
1
137
CA154959
Spring - compression
1
144
C076263
Plug - retainer
1
145
C048499
Pin - retainer
1
146
CA158192
O-Ring
1
147
CA156601
Bushing - shank
1
148
CA156602
Housing - clutch
1
149
CA155947
Screw / lock washer
8
-
8940158638
Tune-up Kit
(incl 7, 8, 41, 62, 66, 68, 106,
107, 115, 127, 134, 144, 145, 146)
-
8940158640
Repair Kit (CP6500 RSR)
(incl Tune-up kit parts plus 97, 99, 105)
-
8940158639
Repair Kit (CP6500 RS)
(incl Tune-up kit parts plus 97, 99, 105A)
-
8940158675
Conversion Kit (Model A to Model B)
(incl 41, 42, 44)
Sort By:
8940158432 Chicago Pneumatic Handle-Grip Impact 8940158432 Chicago Pneumatic Handle-Grip Impact

8940158432 Chicago Pneumatic Handle-Grip Impact

Price $5.36
8940158535 Chicago Pneumatic Spacer 8940158535 Chicago Pneumatic Spacer

8940158535 Chicago Pneumatic Spacer

Price $3.89
8940158633 Chicago Pneumatic Gasket-Motor Housing 8940158633 Chicago Pneumatic Gasket-Motor Housing

8940158633 Chicago Pneumatic Gasket-Motor Housing

Price $5.64
8940158634 Chicago Pneumatic Cover-Motor Housing 8940158634 Chicago Pneumatic Cover-Motor Housing

8940158634 Chicago Pneumatic Cover-Motor Housing

Price $20.62
8940158638 Chicago Pneumatic Kit-Tune Up Cp6500 M 8940158638 Chicago Pneumatic Kit-Tune Up Cp6500 M

8940158638 Chicago Pneumatic Kit-Tune Up Cp6500 M

Price $64.85
8940158639 Chicago Pneumatic Kit-Repair Cp6500rs 8940158639 Chicago Pneumatic Kit-Repair Cp6500rs

8940158639 Chicago Pneumatic Kit-Repair Cp6500rs

Price $173.97
8940158640 Chicago Pneumatic Kit-Repair Cp6500rsr 8940158640 Chicago Pneumatic Kit-Repair Cp6500rsr

8940158640 Chicago Pneumatic Kit-Repair Cp6500rsr

Price $132.66
8940158675 Chicago Pneumatic Kit-Conversion Cp650 8940158675 Chicago Pneumatic Kit-Conversion Cp650

8940158675 Chicago Pneumatic Kit-Conversion Cp650

Price $23.57
8940173358 Chicago Pneumatic Front End Plate Kit 8940173358 Chicago Pneumatic Front End Plate Kit

8940173358 Chicago Pneumatic Front End Plate Kit

Price $41.56
C048499 Chicago Pneumatic Retainer Pin C048499 Chicago Pneumatic Retainer Pin

C048499 Chicago Pneumatic Retainer Pin

Price $11.07
C066342 Chicago Pneumatic Bearing-Ball C066342 Chicago Pneumatic Bearing-Ball

C066342 Chicago Pneumatic Bearing-Ball

Price $22.12
C076263 Chicago Pneumatic Retaining Plug C076263 Chicago Pneumatic Retaining Plug

C076263 Chicago Pneumatic Retaining Plug

Price $7.14
C085245 Chicago Pneumatic Pin-Dowel C085245 Chicago Pneumatic Pin-Dowel

C085245 Chicago Pneumatic Pin-Dowel

Price $12.62
C087266 Chicago Pneumatic O-Ring In C087266 Chicago Pneumatic O-Ring In

C087266 Chicago Pneumatic O-Ring In

Price $5.37
C105693 Chicago Pneumatic O-Ring In-017 C105693 Chicago Pneumatic O-Ring In-017

C105693 Chicago Pneumatic O-Ring In-017

Price $3.92
C139037 Chicago Pneumatic Seat-Throttle C139037 Chicago Pneumatic Seat-Throttle

C139037 Chicago Pneumatic Seat-Throttle

Price $10.13
CA059037 Chicago Pneumatic Strainer-Air CA059037 Chicago Pneumatic Strainer-Air

CA059037 Chicago Pneumatic Strainer-Air

Price $5.39
CA087513 Chicago Pneumatic Seal-Oil CA087513 Chicago Pneumatic Seal-Oil

CA087513 Chicago Pneumatic Seal-Oil

Price $7.14
CA088097 Chicago Pneumatic Socket Retaining Ring 1/2" CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

CA088097 Chicago Pneumatic Socket Retaining Ring 1/2"

Price $5.38
CA142460 Chicago Pneumatic Valve-Throttle CA142460 Chicago Pneumatic Valve-Throttle

CA142460 Chicago Pneumatic Valve-Throttle

Price $12.63
CA142464 Chicago Pneumatic Spring-Throttle CA142464 Chicago Pneumatic Spring-Throttle

CA142464 Chicago Pneumatic Spring-Throttle

Price $7.17
CA144831 Chicago Pneumatic Pin-Throttle CA144831 Chicago Pneumatic Pin-Throttle

CA144831 Chicago Pneumatic Pin-Throttle

Discontinued
CA144836 Chicago Pneumatic Pin-Roll 3/32 X 11/1 CA144836 Chicago Pneumatic Pin-Roll 3/32 X 11/1

CA144836 Chicago Pneumatic Pin-Roll 3/32 X 11/1

Price $3.87
CA145569 Chicago Pneumatic Washer-Rear Clutch CA145569 Chicago Pneumatic Washer-Rear Clutch

CA145569 Chicago Pneumatic Washer-Rear Clutch

Price $10.12
CA147016 Chicago Pneumatic Valve-Reverse CA147016 Chicago Pneumatic Valve-Reverse

CA147016 Chicago Pneumatic Valve-Reverse

Price $19.16
CA147017 Chicago Pneumatic Trigger CA147017 Chicago Pneumatic Trigger

CA147017 Chicago Pneumatic Trigger

Price $11.07
CA147018 Chicago Pneumatic O-Ring In-203 CA147018 Chicago Pneumatic O-Ring In-203

CA147018 Chicago Pneumatic O-Ring In-203

Price $5.37
CA147021 Chicago Pneumatic Spring-Detent CA147021 Chicago Pneumatic Spring-Detent

CA147021 Chicago Pneumatic Spring-Detent

Price $5.39
CA147022 Chicago Pneumatic Bushing-Air Inlet CA147022 Chicago Pneumatic Bushing-Air Inlet

CA147022 Chicago Pneumatic Bushing-Air Inlet

Price $55.99
CA147023 Chicago Pneumatic Deflector-Exhaust CA147023 Chicago Pneumatic Deflector-Exhaust

CA147023 Chicago Pneumatic Deflector-Exhaust

Price $12.67
CA148528 Chicago Pneumatic Gasket-Deflector Exh CA148528 Chicago Pneumatic Gasket-Deflector Exh

CA148528 Chicago Pneumatic Gasket-Deflector Exh

Price $5.37
CA148605 Chicago Pneumatic Blade Set CA148605 Chicago Pneumatic Blade Set

CA148605 Chicago Pneumatic Blade Set

Price $29.50
CA148606 Chicago Pneumatic Rotor CA148606 Chicago Pneumatic Rotor

CA148606 Chicago Pneumatic Rotor

Price $66.35
CA148607 Chicago Pneumatic Liner CA148607 Chicago Pneumatic Liner

CA148607 Chicago Pneumatic Liner

Price $98.79
CA148608 Chicago Pneumatic Seal Clutch CA148608 Chicago Pneumatic Seal Clutch

CA148608 Chicago Pneumatic Seal Clutch

Price $7.19
CA148609 Chicago Pneumatic Assembly-1/2" Sq Anv CA148609 Chicago Pneumatic Assembly-1/2" Sq Anv

CA148609 Chicago Pneumatic Assembly-1/2" Sq Anv

Price $58.95
CA149095 Chicago Pneumatic Spacer CA149095 Chicago Pneumatic Spacer

CA149095 Chicago Pneumatic Spacer

Price $8.71
CA149096 Chicago Pneumatic O Ring CA149096 Chicago Pneumatic O Ring

CA149096 Chicago Pneumatic O Ring

Price $7.19
CA154959 Chicago Pneumatic Spring-Compression CA154959 Chicago Pneumatic Spring-Compression

CA154959 Chicago Pneumatic Spring-Compression

Price $3.87
CA155055 Chicago Pneumatic Dog-Clutch (Each) CA155055 Chicago Pneumatic Dog-Clutch (Each)

CA155055 Chicago Pneumatic Dog-Clutch (Each)

Discontinued
CA155263 Chicago Pneumatic Switch-Regulator CA155263 Chicago Pneumatic Switch-Regulator

CA155263 Chicago Pneumatic Switch-Regulator

Price $8.66
CA155733 Chicago Pneumatic Cage CA155733 Chicago Pneumatic Cage

CA155733 Chicago Pneumatic Cage

Price $104.67
CA155734 Chicago Pneumatic Pin-Cage CA155734 Chicago Pneumatic Pin-Cage

CA155734 Chicago Pneumatic Pin-Cage

Price $7.19
CA155947 Chicago Pneumatic Screw/Lock Washer CA155947 Chicago Pneumatic Screw/Lock Washer

CA155947 Chicago Pneumatic Screw/Lock Washer

Price $3.89
CA156600 Chicago Pneumatic Hsg-Motor CA156600 Chicago Pneumatic Hsg-Motor

CA156600 Chicago Pneumatic Hsg-Motor

Price $129.70
CA156601 Chicago Pneumatic Bushing-Shank CA156601 Chicago Pneumatic Bushing-Shank

CA156601 Chicago Pneumatic Bushing-Shank

Price $20.06
CA156602 Chicago Pneumatic Hsg-Clutch CA156602 Chicago Pneumatic Hsg-Clutch

CA156602 Chicago Pneumatic Hsg-Clutch

Price $104.67
CA156603 Chicago Pneumatic Assembly-1/2" Sq Anv CA156603 Chicago Pneumatic Assembly-1/2" Sq Anv

CA156603 Chicago Pneumatic Assembly-1/2" Sq Anv

Price $54.55
CA158192 Chicago Pneumatic O-Ring 63mmx2mm CA158192 Chicago Pneumatic O-Ring 63mmx2mm

CA158192 Chicago Pneumatic O-Ring 63mmx2mm

Price $15.76

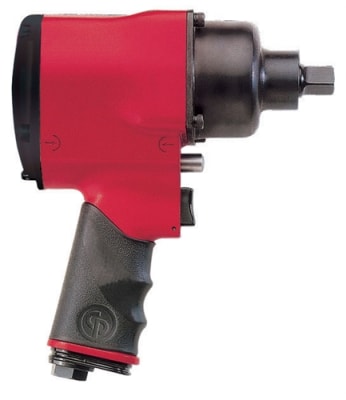

CP6500RS Chicago Pneumatic 1/2" Square Drive Industrial Impact Wrench with Pin-type Retainer CP6500RS Chicago Pneumatic 1/2" Square Drive Industrial Impact Wrench with Pin-type Retainer

CP6500RS Chicago Pneumatic 1/2" Square Drive Industrial Impact Wrench with Pin-type Retainer - Best performer for Industrial Maintenance & Production applications. Operator comfort and control even on high torque. Reliable double-dog clutch in oil bath & durable housing. Compact 3-part construction for easy maintenance.

Discontinued
KF134665 Chicago Pneumatic Plate-Front End KF134665 Chicago Pneumatic Plate-Front End

KF134665 Chicago Pneumatic Plate-Front End

Discontinued See 8940173358
KF136268 Chicago Pneumatic Plate-Rear End KF136268 Chicago Pneumatic Plate-Rear End

KF136268 Chicago Pneumatic Plate-Rear End

Discontinued
P083071 Chicago Pneumatic O-Ring In-011 P083071 Chicago Pneumatic O-Ring In-011

P083071 Chicago Pneumatic O-Ring In-011

Price $2.96
R086991 Chicago Pneumatic Pin-Roll .188x1.00 R086991 Chicago Pneumatic Pin-Roll .188x1.00

R086991 Chicago Pneumatic Pin-Roll .188x1.00

Price $7.17
S008613 Chicago Pneumatic Ball-Steel .156"Dia S008613 Chicago Pneumatic Ball-Steel .156"Dia

S008613 Chicago Pneumatic Ball-Steel .156"Dia

Price $5.34
S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt

S089953 Chicago Pneumatic Plug-Pipe 1/16" Npt

Price $5.33
